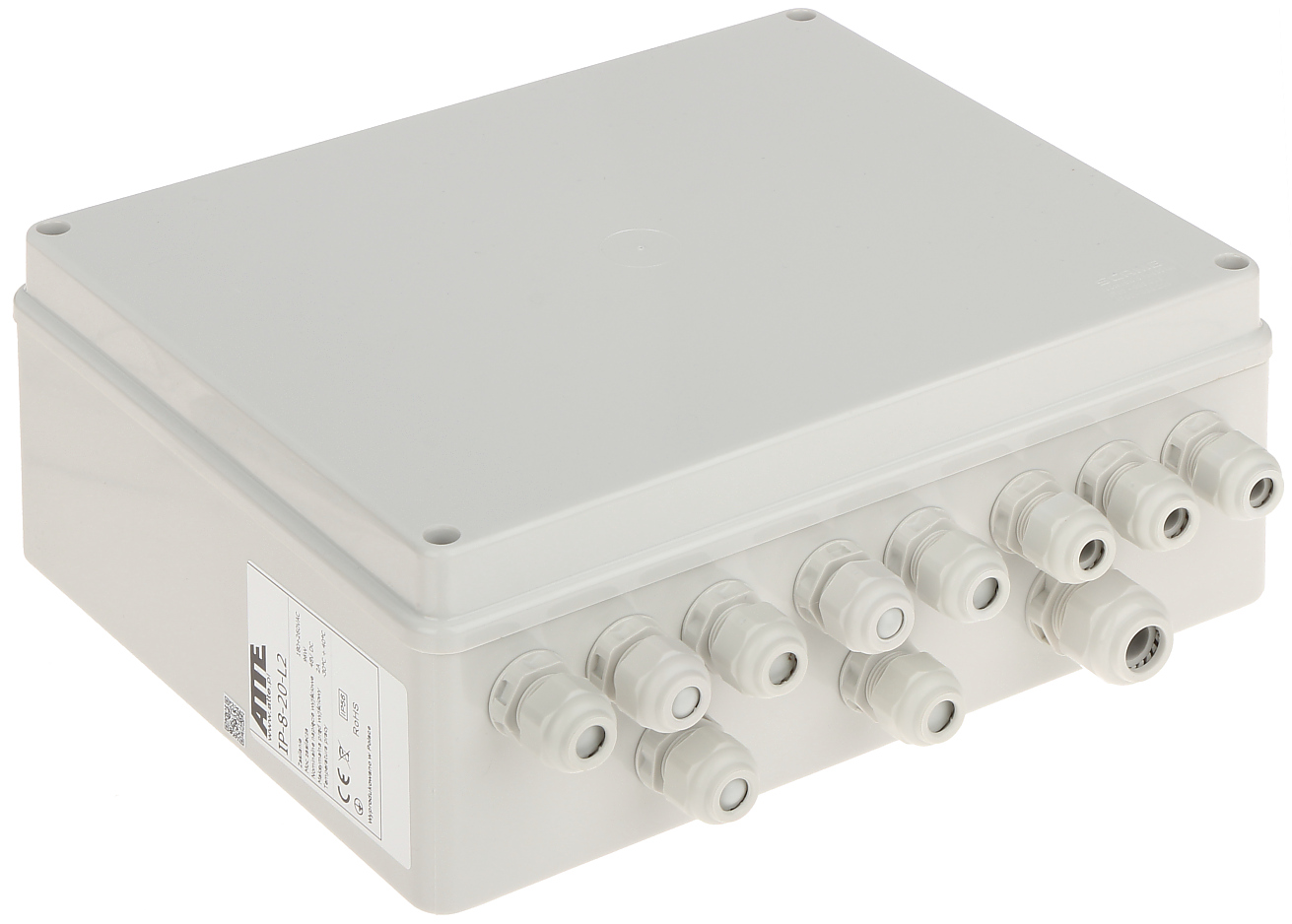

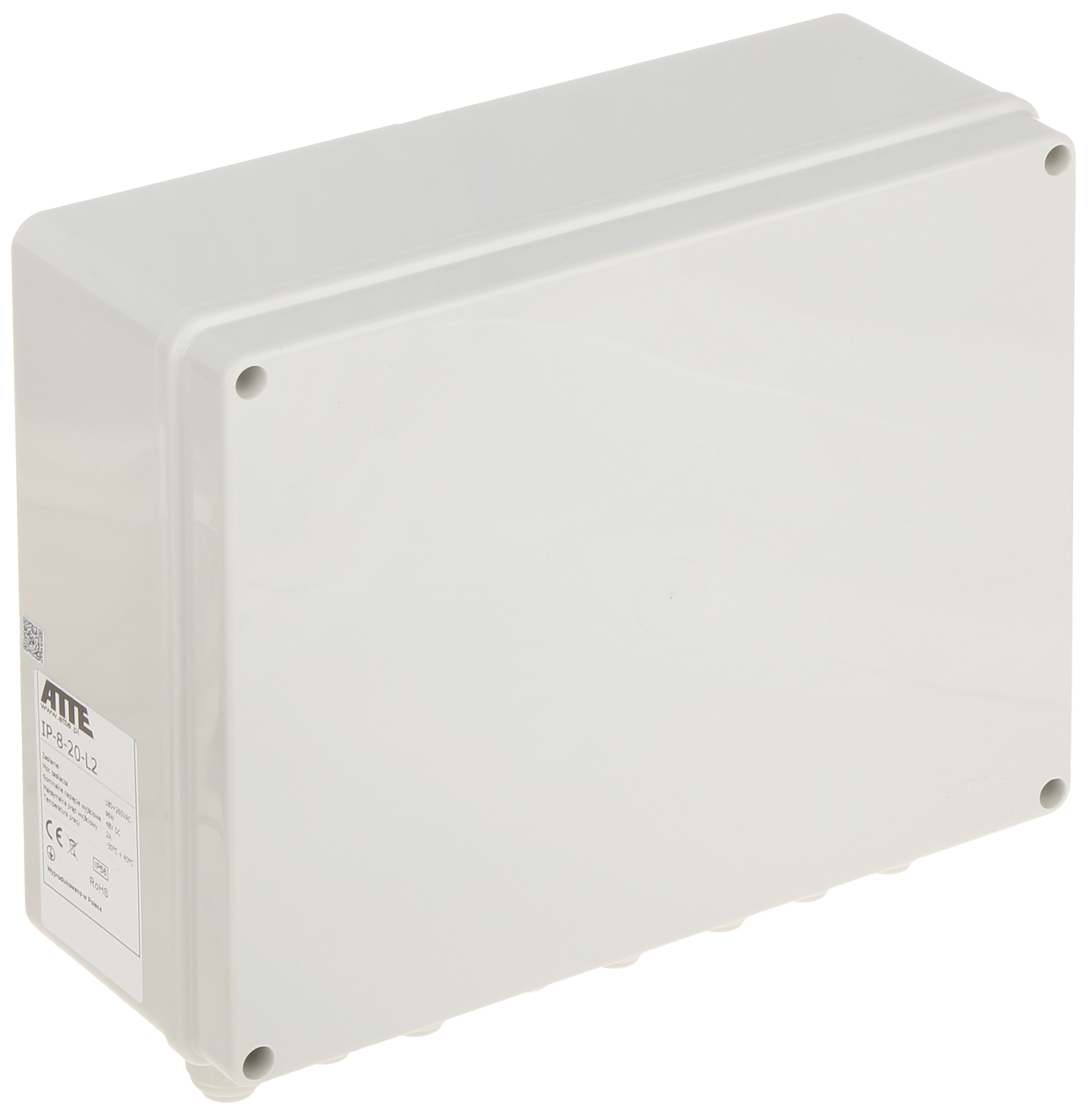

SWITCH POE IP-8-20-L2 8-PORT ATTE

€271.68

(Включая налог 21%)

Задать вопрос

КОД: IP-8-20-L2

Доступность: 2 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

LAN ports: 2 x RJ45 10/100/1000 Base-TX - Uplink, 8 x RJ45 10/100 Base-TX + PoE (802.3af/at) / Passive PoE ; Transmission speed: 10 / 100 Mbps : 8 LAN & PoE ports, 10 / 100 / 1000 Mbps : 2 LAN ports ; Maximal total power: 96 W ;

LAN ports:	2 x RJ45 10/100/1000 Base-TX - Uplink, 8 x RJ45 10/100 Base-TX + PoE (802.3af/at) / Passive PoE
Management:
LED diodes:	Power, LAN
Transmission speed:	10 / 100 Mbps : 8 LAN & PoE ports, 10 / 100 / 1000 Mbps : 2 LAN ports
Maximal output power:	40 W @ Passive PoE - 1 ... 8 ports, 30 W @ PoE (802.3at) - 1 ... 8 ports, 15.4 W @ PoE (802.3af) - 1 ... 8 ports
Maximal total power:	96 W

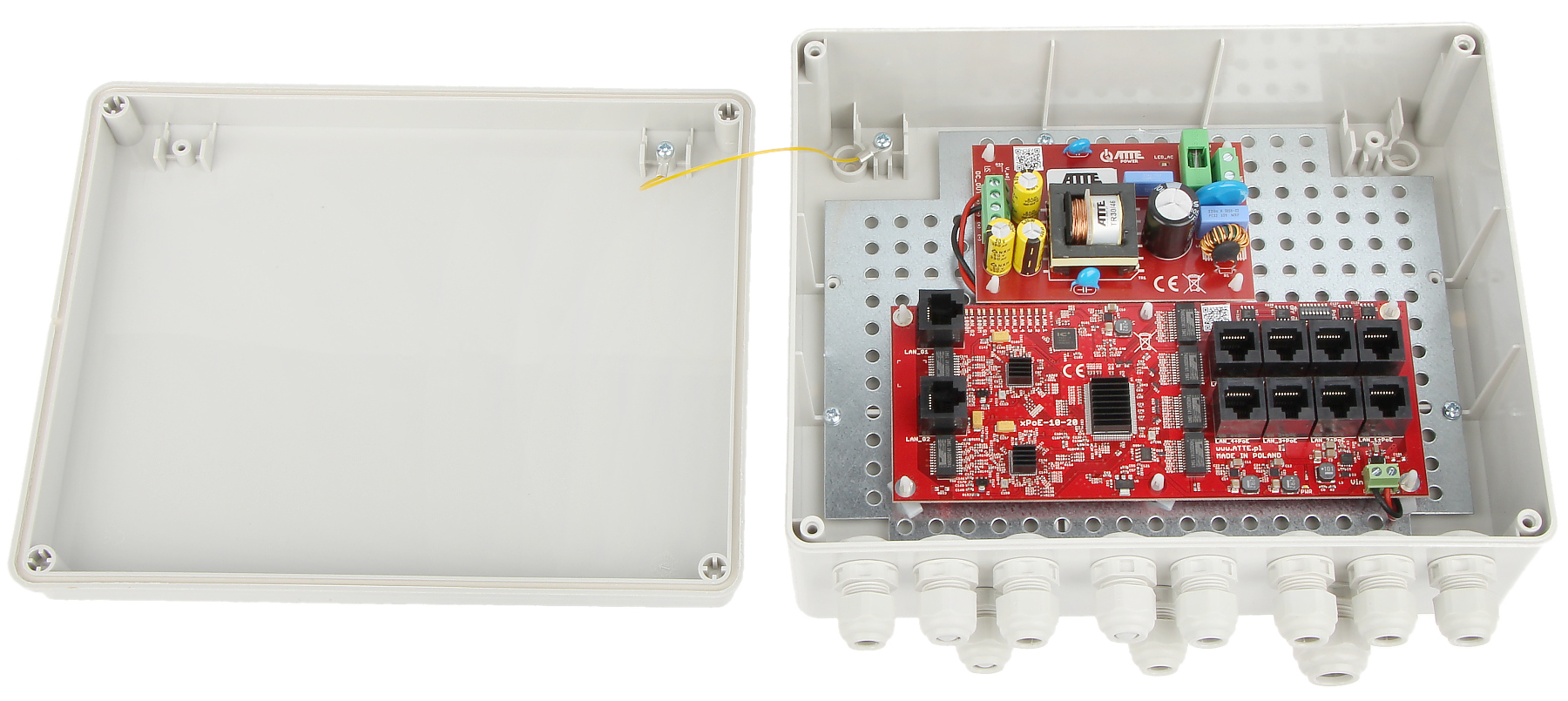

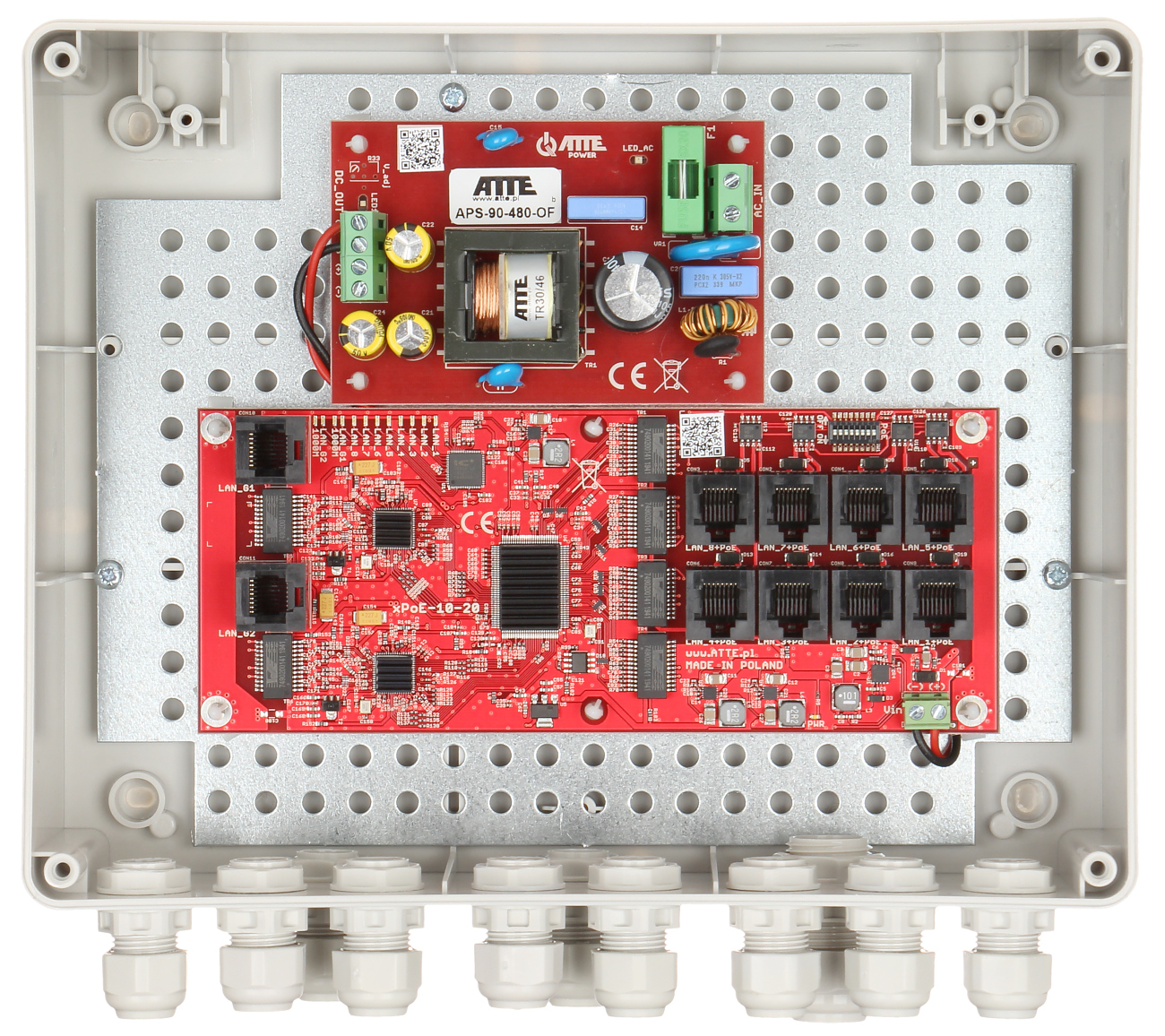

Main features:	Supported PoE devices: 802.3af/at, Passive PoE Possibility to connecting in cascade @ 90 W Built-in switching power supply : 48 V DC / 96 W Efficiency : 92 % PSU thermal protection Short-circuit protection Overload protection The ability to independently turn on and off the PoE power for each of the LAN 1 ... LAN 8 ports Electronic fuse independently for each PoE channel The modular design streamlines service tasks and enables quick and easy system expansion The raster system of module assembly facilitates the expansion of the device by further modules The ABOX-L2 mounting enclosure is equipped with 11 cable entries with glands in the 10 x M16 + 1 x M20 arrangement "Index of Protection" : IP56

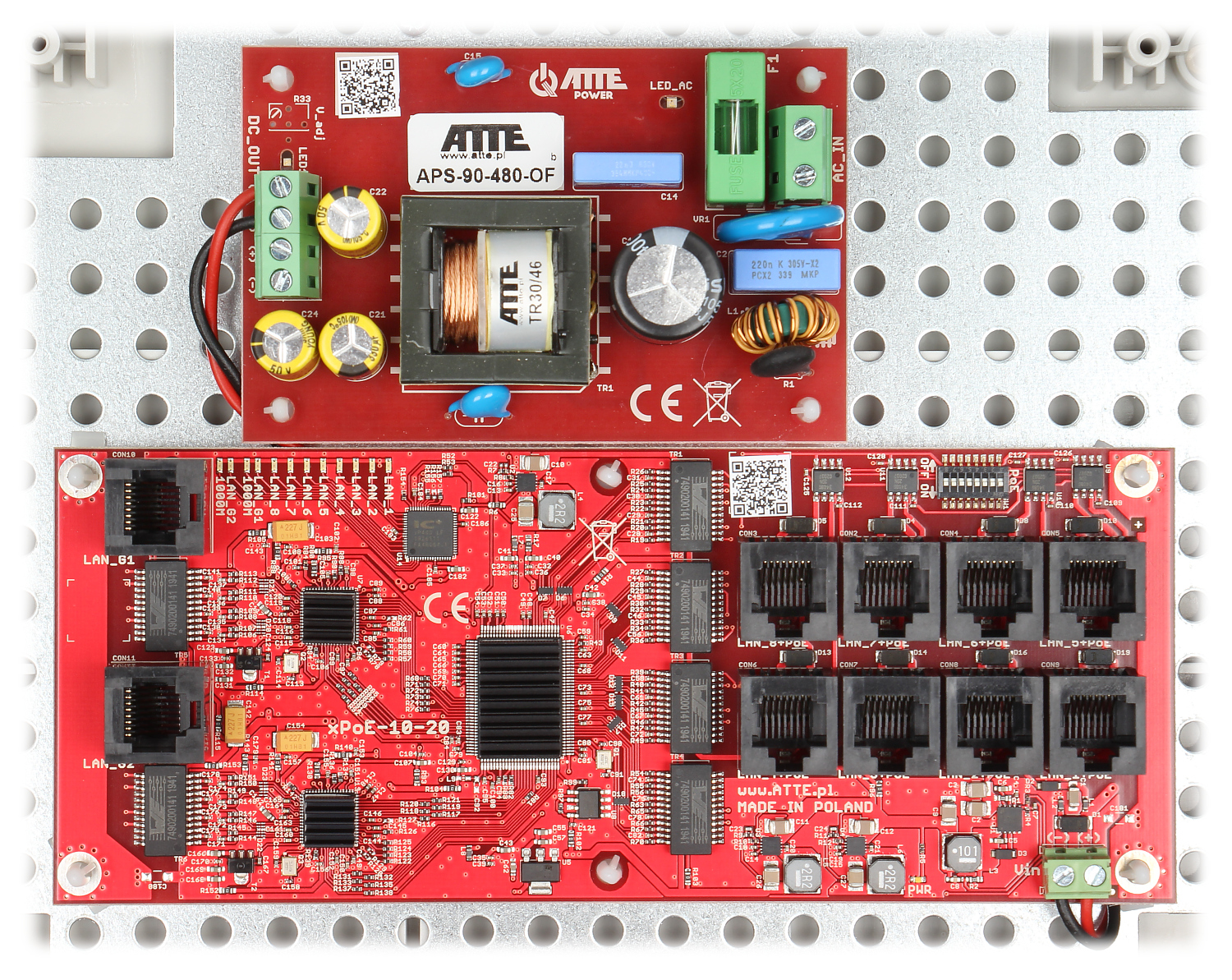

Power supply:	190 ... 260 V AC - Built-in APS-90-480-OF switching mode power supply
Weight:	1.04 kg
Dimensions:	248 x 198 x 96 mm
Manufacturer / Brand:	ATTE
Guarantee:	3 years
