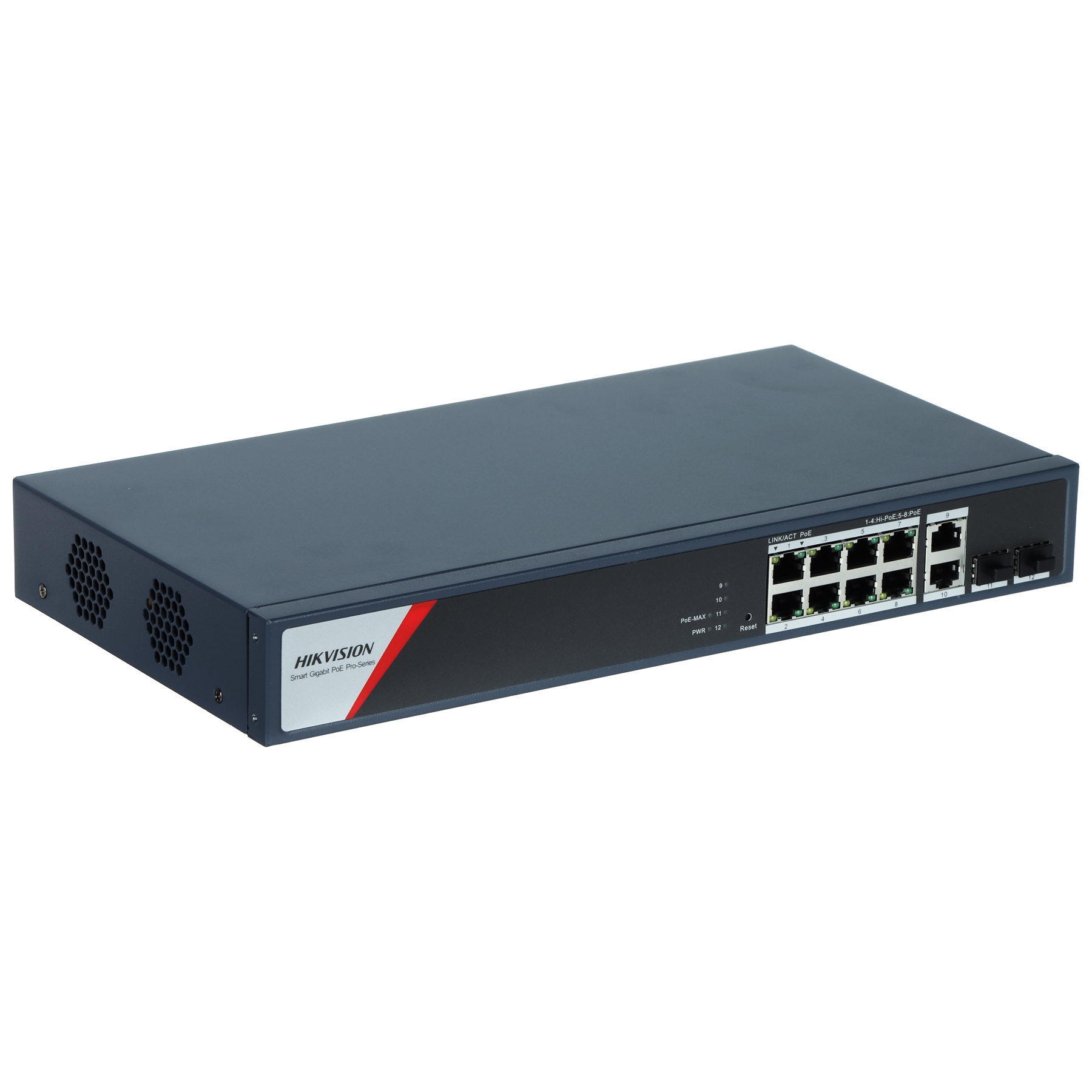

SWITCH POE DS-3E1512HP-SI-8P2T2F 8-PORT SFP Hikvision

€190.28

(Включая налог 21%)

Задать вопрос

КОД: DS-3E1512HP-SI-8P2T2F

Доступность: 2 шт.

Кол-во:

Минимальное количество для товара "SWITCH POE DS-3E1512HP-SI-8P2T2F 8-PORT SFP Hikvision" 1.

Купить в один клик

Описание

LAN ports: 12 x RJ45 ( 4 x PoE (802.3af/at/bt) + 4 x PoE (802.3af/at) ), 2 x port SFP ; Transmission speed: 10 / 100 / 1000 Mbps - 8 LAN & PoE ports, 1000 Mbps - 2 SFP ports - Uplink ; Maximal total power: 130 W ;

LAN ports:	12 x RJ45 ( 4 x PoE (802.3af/at/bt) + 4 x PoE (802.3af/at) ), 2 x port SFP
Transmission speed:	10 / 100 / 1000 Mbps - 8 LAN & PoE ports, 10 / 100 / 1000 Mbps - 2 Uplink ports, 1000 Mbps - 2 SFP ports - Uplink
Maximal output power:	90 W / port PoE @ 1 ... 4 ports 30 W / port PoE @ 5 ... 8 ports
Maximal total power:	130 W
MAC addresses table:	8k
Management:
Default IP address:	192.168.1.64
Default admin user / password:	admin / -
Operation modes:	Extend On : 300 m, 10 Mbps @ UTP cat. 5e, 6 Extend Off : 100 m, 1000 Mbps @ UTP cat. 5e, 6
Main features:	Watchdog PoE Static link aggregation VLAN QoS : Queue scheduling: SP, WRR, SP+WRR Switch is web managed Configuration and management from the iVMS-4200 application View topology and network status Loop Prevention function Storm Control function Port mirroring function DHCP snooping support Access Control List - ACL package filtering based on source and destination IP addresses Spanning Tree STP/RSTP SNMPv1/v2c The device supports 8-pin power supply Remote configuration Remote update of software Can be mounted in a Rack 19" cabinet

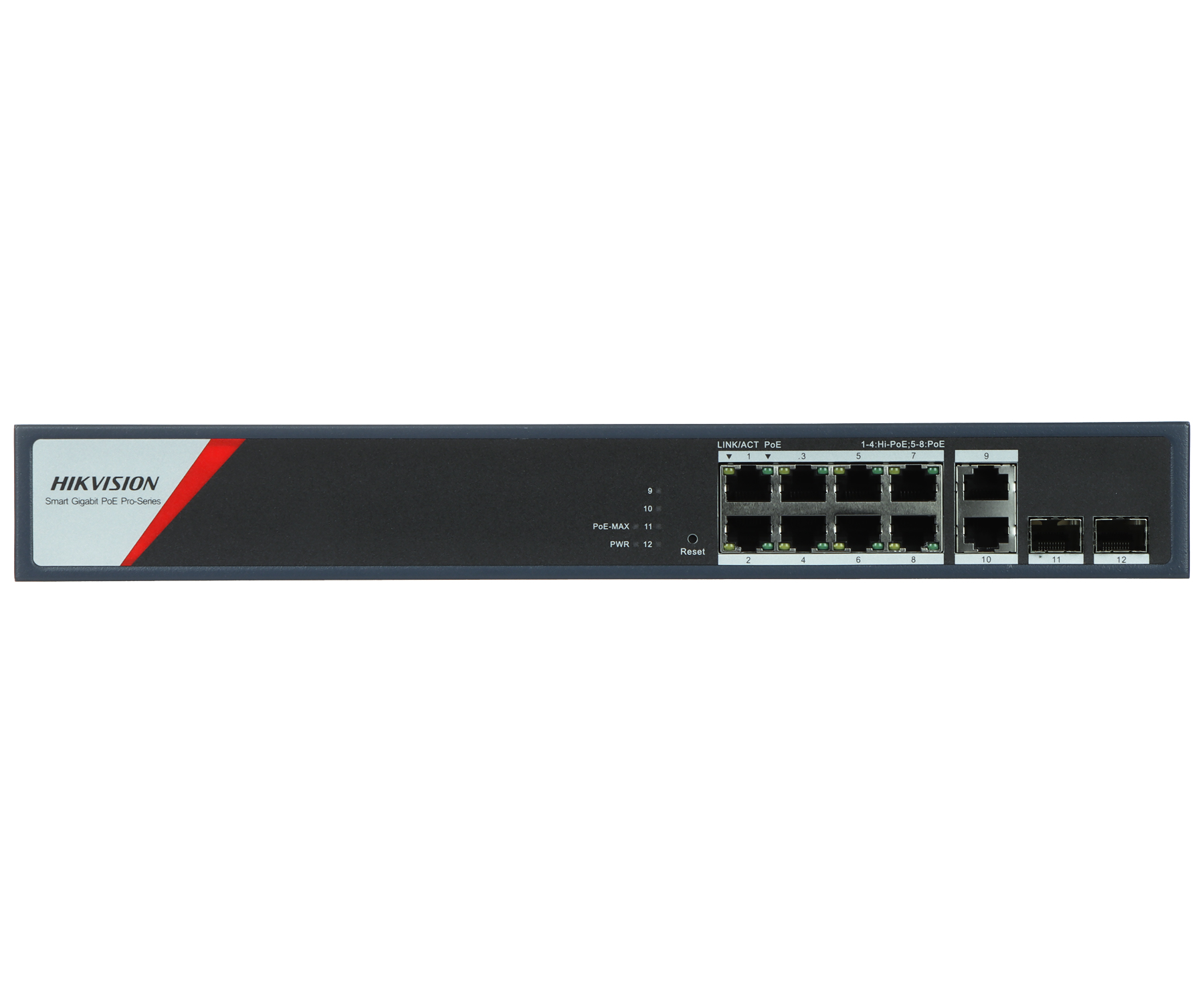

LED diodes:	Power, Link/Act, PoE, PoE Max, 9 LAN/WAN, 10 LAN/WAN, 11 SFP, 12 SFP
Certificates:	CE
Housing:	Metal
Protections:	Overvoltage 6 kV - PoE ports

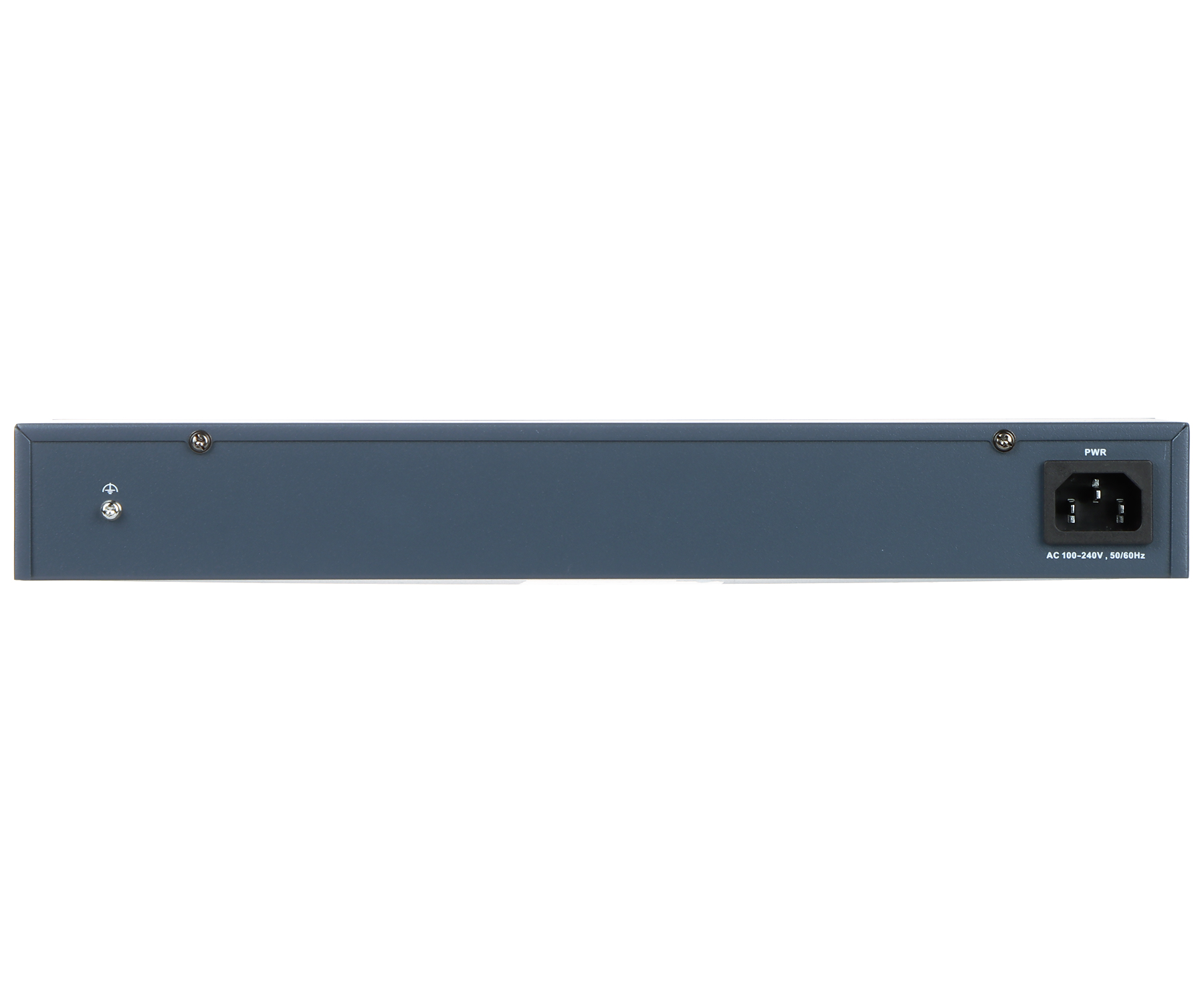

Power supply:	100 ... 240 V AC
Operation temp:	0 °C ... 45 °C
Weight:	1.73 kg
Dimensions:	335 x 176 x 44 mm, RACK 19", 1U
Manufacturer / Brand:	Hikvision
SAP Code:	301803249
Guarantee:	3 years
