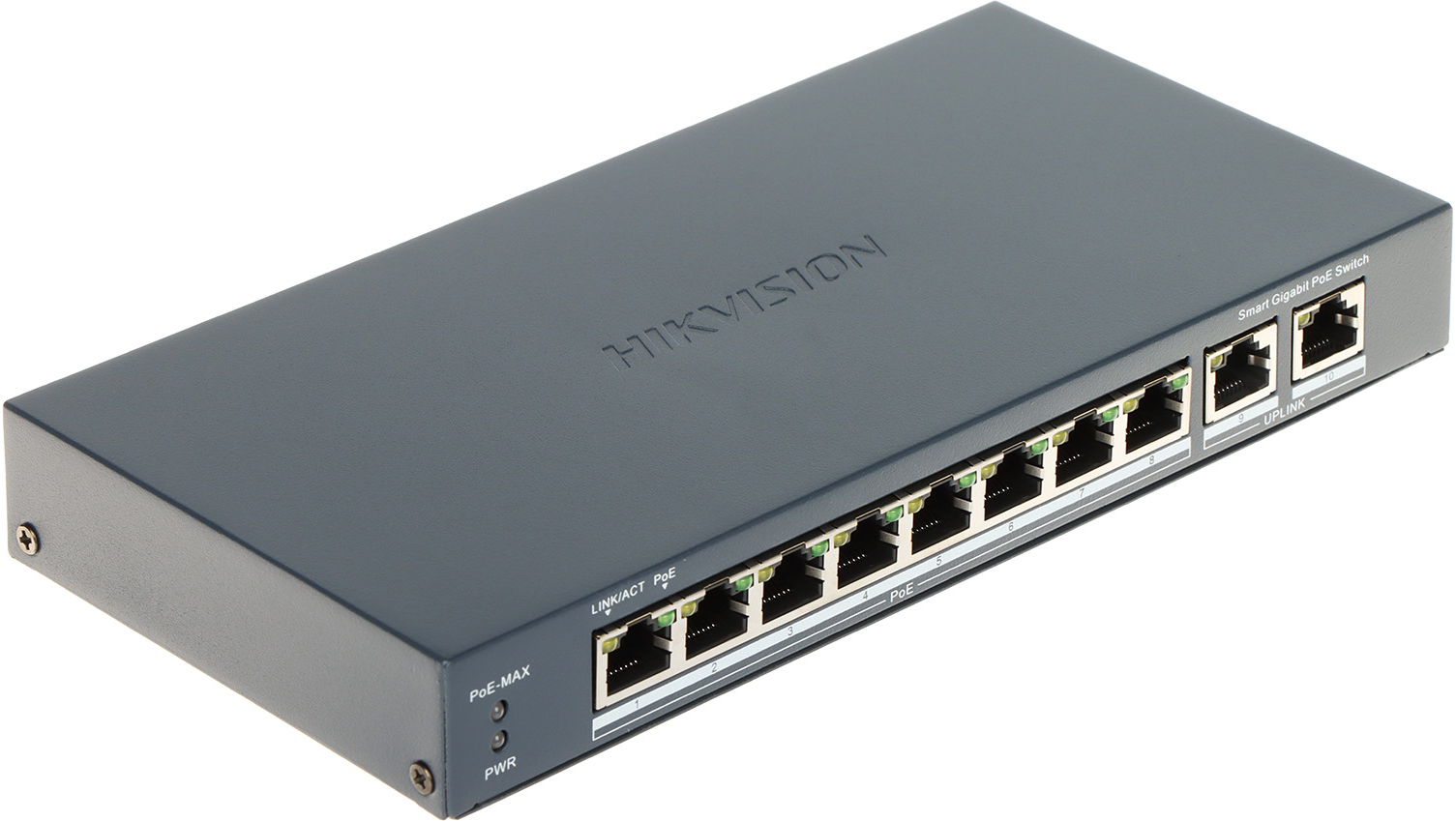

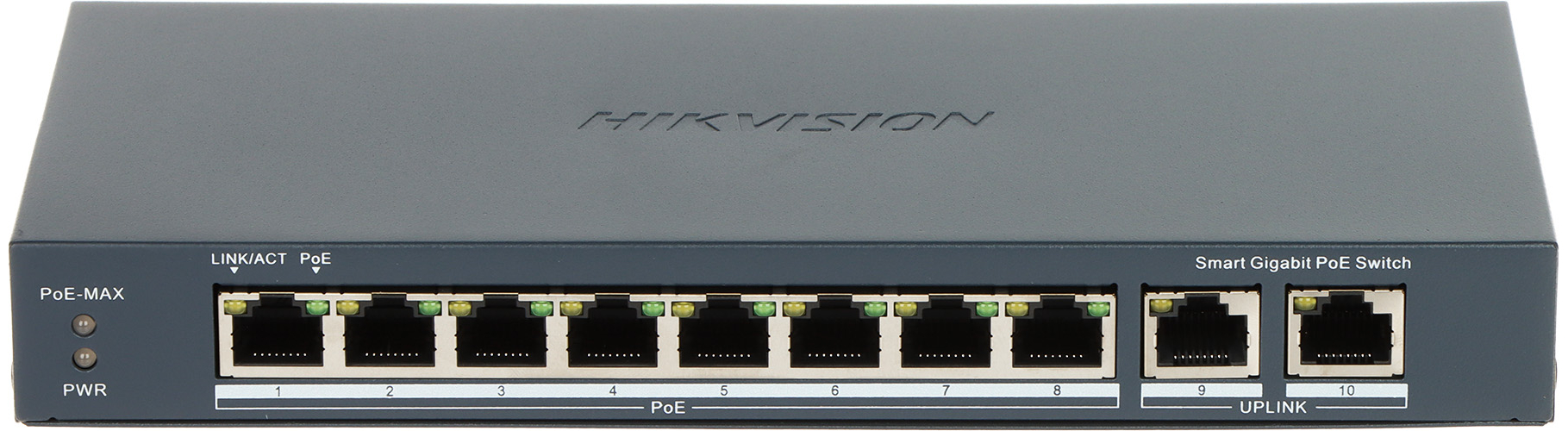

SWITCH POE DS-3E1510P-EI 8-PORT Hikvision

€111.05

(Включая налог 21%)

Задать вопрос

КОД: DS-3E1510P-EI

Доступность: 1 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

LAN ports: 8 x RJ45 ( 8 x PoE (802.3af/at) ), 2 x RJ45 (Uplink) ; Transmission speed: 10 / 100 / 1000 Mbps - 8 LAN & PoE ports, 10 / 100 / 1000 Mbps - 2 RJ45 (Uplink) ports ; Maximal total power: 110 W ;

LAN ports:	8 x RJ45 ( 8 x PoE (802.3af/at) ), 2 x RJ45 (Uplink)
Management:
LED diodes:	Power, Link/Act, PoE, PoE Max, 9 Uplink, 10 Uplink
Transmission speed:	10 / 100 / 1000 Mbps - 8 LAN & PoE ports, 10 / 100 / 1000 Mbps - 2 RJ45 (Uplink) ports
Maximal output power:	30 W / port PoE
Maximal total power:	110 W
Switching capacity:	20 Gb/s
Forwarding rate:	14.88 Mpps
MAC addresses table:	4k
Default IP address:	10.180.190.200
Default admin user / password:	admin / -
Operation modes:	Long Range - 300 m, 10 Mbps - 1 ... 8 ports Port Isolation - 1 ... 8 ports Watchdog PoE - 1 ... 8 ports
Main features:	Switch is web managed Configuration and management from the iVMS-4200 application Hik-Central Pro support HPP - Hik-Partner Pro support - View topology and network status, Data Flow Control , Remote update of software, Remote configuration Port Isolation - 1 ... 8 ports are isolated from each other and separately work with the 9, 10 ports PoE Watchdog mode - monitoring of the ports that power PoE devices and automatic restart by cutting off the power supply when an unresponsive device is detected Static link aggregation - Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection Support 3 aggregation groups Loop Protection - IEEE 802.1d, IEEE 802.1w, Spanning Tree STP/RSTP VLAN - IEEE 802.1Q standard support, up to 32 VLAN groups and 1 ... 4094 VIDs Cable test Compliance with the LLDP protocol SNMPv1/v2c Port mirroring function Power supply PoE : Support for Endspan mode 1-2(-), 3-6(+) RESET button Possibility to mount to the wall
Certificates:	CE, RoHS, WEEE
Protections:	Overvoltage 6 kV - PoE ports
Housing:	Metal
Color:	Graphite

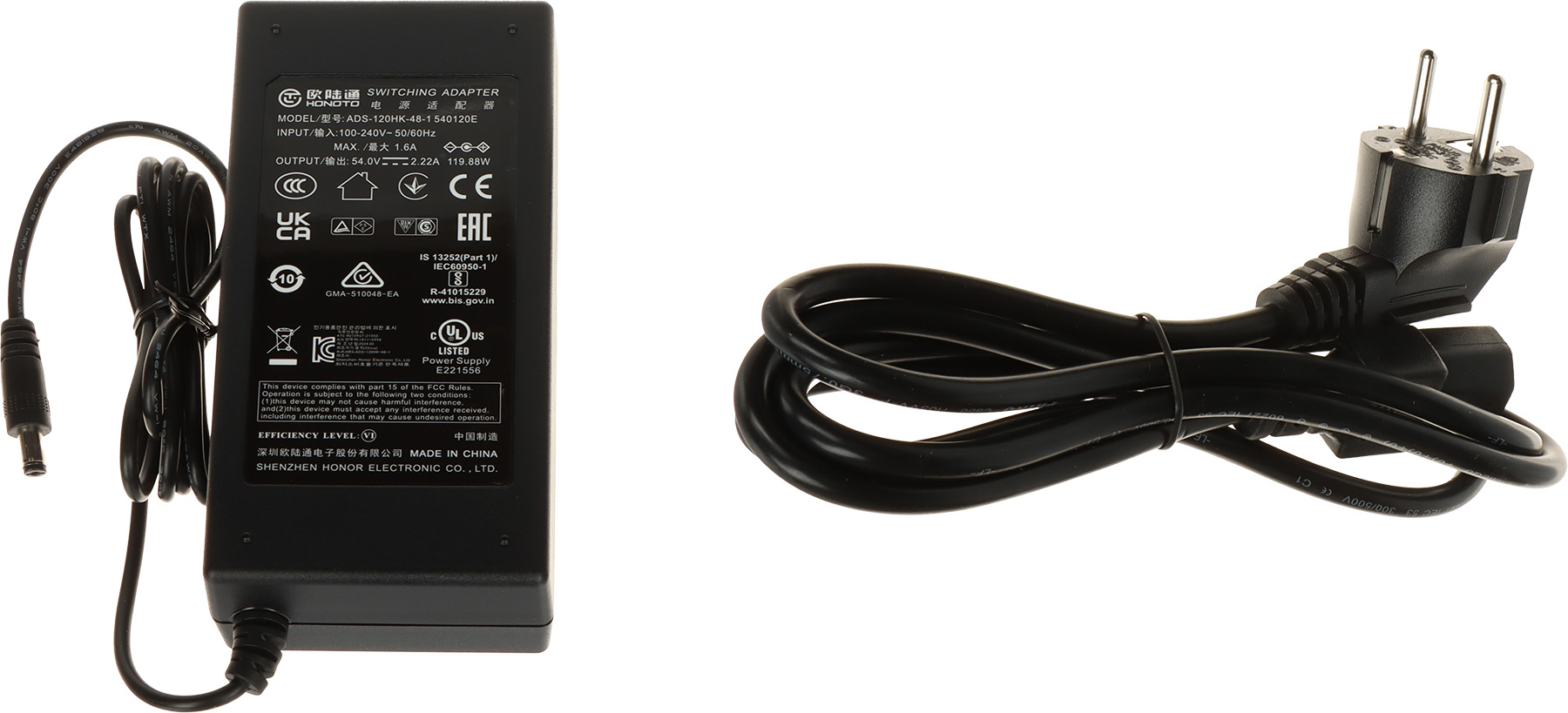

Power supply:	54 V DC / 2.22 A (power adapter included)
Power consumption:	max. 120 W
Operation temp:	0 °C ... 40 °C
Weight:	0.5 kg
Dimensions:	218 x 109 x 28 mm
Manufacturer / Brand:	Hikvision
SAP Code:	301802995
Guarantee:	3 years
