LAN ports: 8 x RJ45 10/100 Base-TX ( 8 x PoE (802.3af/at) ), 2 x RJ45 10/100/1000 Base-TX ; Transmission speed: 10 / 100 Mbps - 8 LAN & PoE ports, 10 / 100 / 1000 Mbps - 2 Uplink ports ; Maximal output power: 30 W / port PoE ; MAC addresses table: 16k ;
LAN ports: | |
Transmission speed: | |
Maximal output power: | 30 W / port PoE |
Maximal total power: | 60 W |
MAC addresses table: | 16k |
Management: | ![]() |
Operation modes: | |
Main features: | PoE power mode : The device supports 8-pin power supply |
LED diodes: | Power, Link/Act, PoE |
Certificates: | CE |

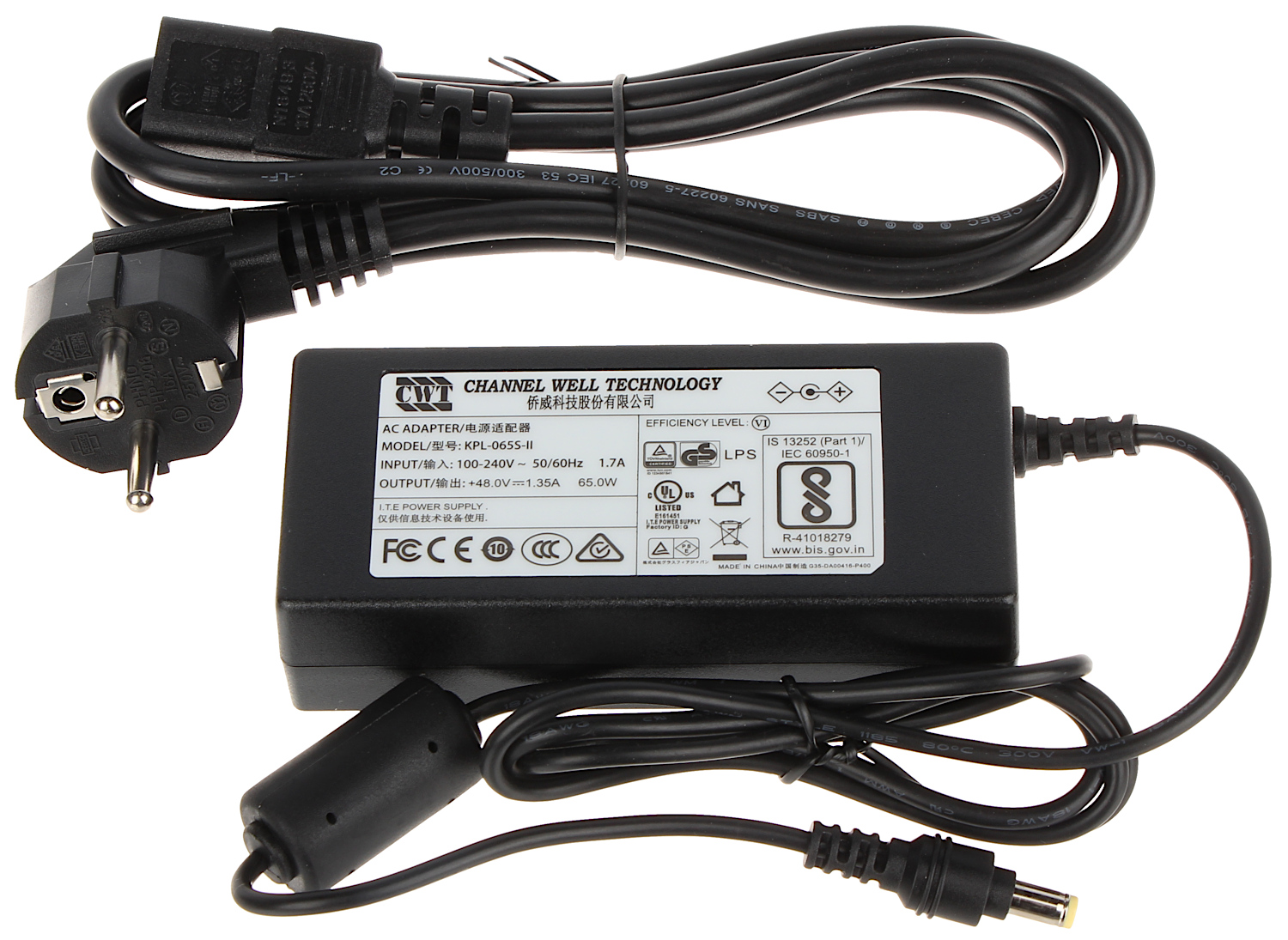

Power supply: | 48 V DC / 1.35 A (power adapter included) |
Operation temp: | -10 °C ... 40 °C |
Weight: | 0.54 kg |
Dimensions: | 218 x 103 x 28 mm |
Manufacturer / Brand: | Hikvision |
SAP Code: | 301801717 |
Guarantee: | 3 years |
