POE SWITCH WITH BUFFERED POWER SUPPLY IPUPS-8-20-H 8-PORT ATTE

€380.90

(Включая налог 21%)

Задать вопрос

КОД: IPUPS-8-20-H

Доступность: 1 шт.

Кол-во:

+ −

Минимальное количество для товара "POE SWITCH WITH BUFFERED POWER SUPPLY IPUPS-8-20-H 8-PORT ATTE" 1.

Купить в один клик

Описание
Особенности

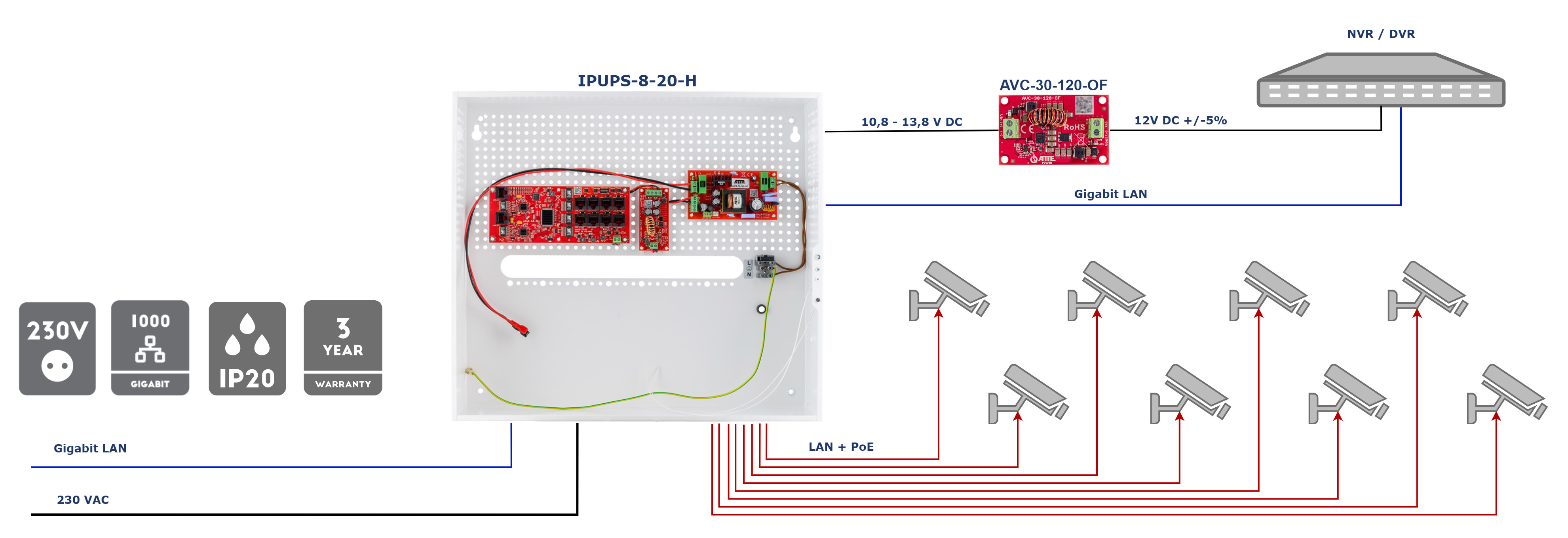

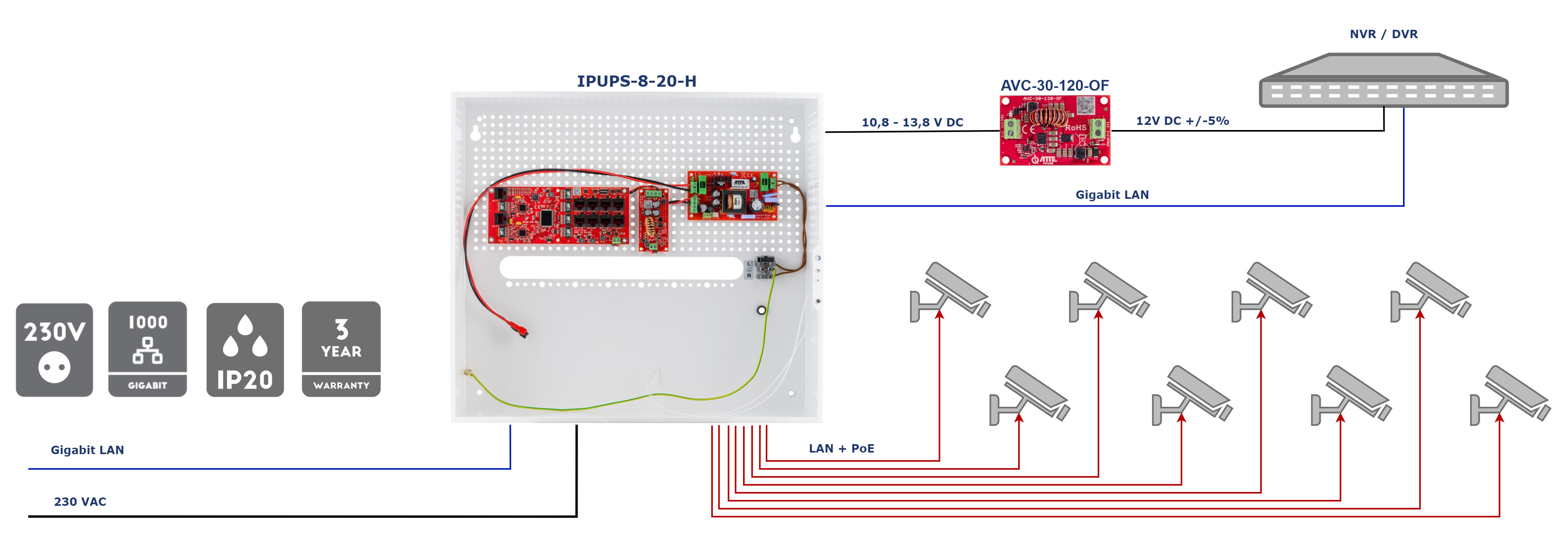

LAN ports: 2 x RJ45 10/100/1000 Base-T - Uplink, 8 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE ; Transmission speed: 10 / 100 / 1000 Mbps : 2 x Uplink port, 10 / 100 Mbps : 8 x LAN & PoE port ; Maximal total power: 60 W ;

LAN ports:	2 x RJ45 10/100/1000 Base-T - Uplink, 8 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE
Management:
LED diodes:	AC, DC, CHARGING (battery charging), PoE, Gigabit Ethernet
Transmission speed:	10 / 100 / 1000 Mbps : 2 x Uplink port, 10 / 100 Mbps : 8 x LAN & PoE port
Maximal output power:	40 W @ Passive PoE - LAN1 ... LAN8 ports, 30 W @ PoE (802.3af/at) - LAN1 ... LAN8 ports
Maximal total power:	60 W
Operation modes:	Standard : 100 m @ 10/100 Mb/s - LAN1 ... LAN8 ports

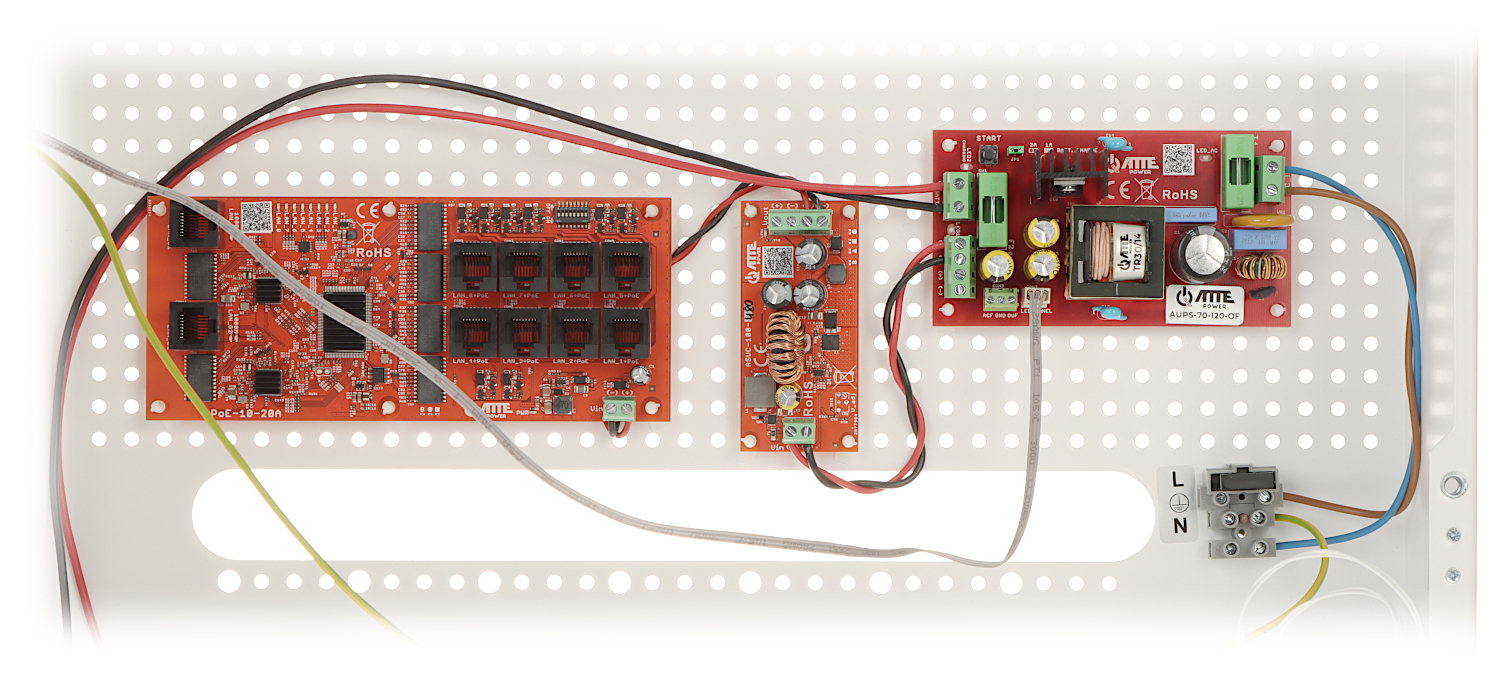

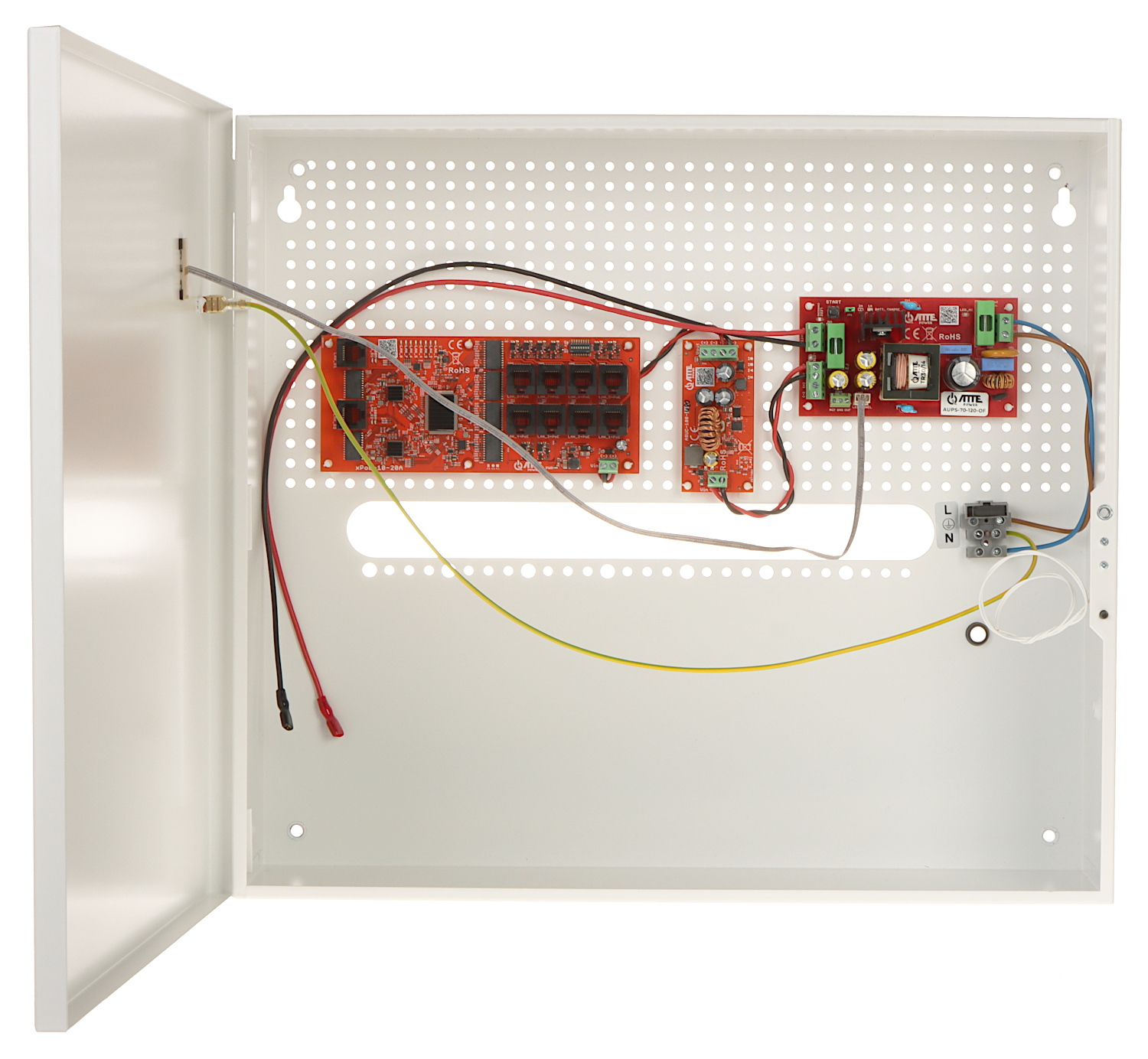

Main features:	4K UHD support The ability to independently turn on and off the PoE power for each of the LAN 1 ... LAN 8 ports The modular design streamlines service tasks and enables quick and easy system expansion The raster system of module assembly facilitates the expansion of the device by further modules 2 x Place for battery : 12 V / 18 Ah Place for recorder (NVR) Battery charging current : 1 A / 2 A - (set with the JP1 jumper) Battery - Protection against reverse polarity connection, Protection against deep discharge of the battery Technical outputs of the OC type signaling loss of voltage at the PSU output (OUF) and loss of voltage in the 230V mains (ACF) PSU thermal protection : 130 °C Overload protection LAN & PoE ports - Short-circuit protection, Overvoltage TAMPER switch indicating open the cover "Index of Protection" : IP20
Power supply:	190 ... 260 V AC
Weight:	4.40 kg

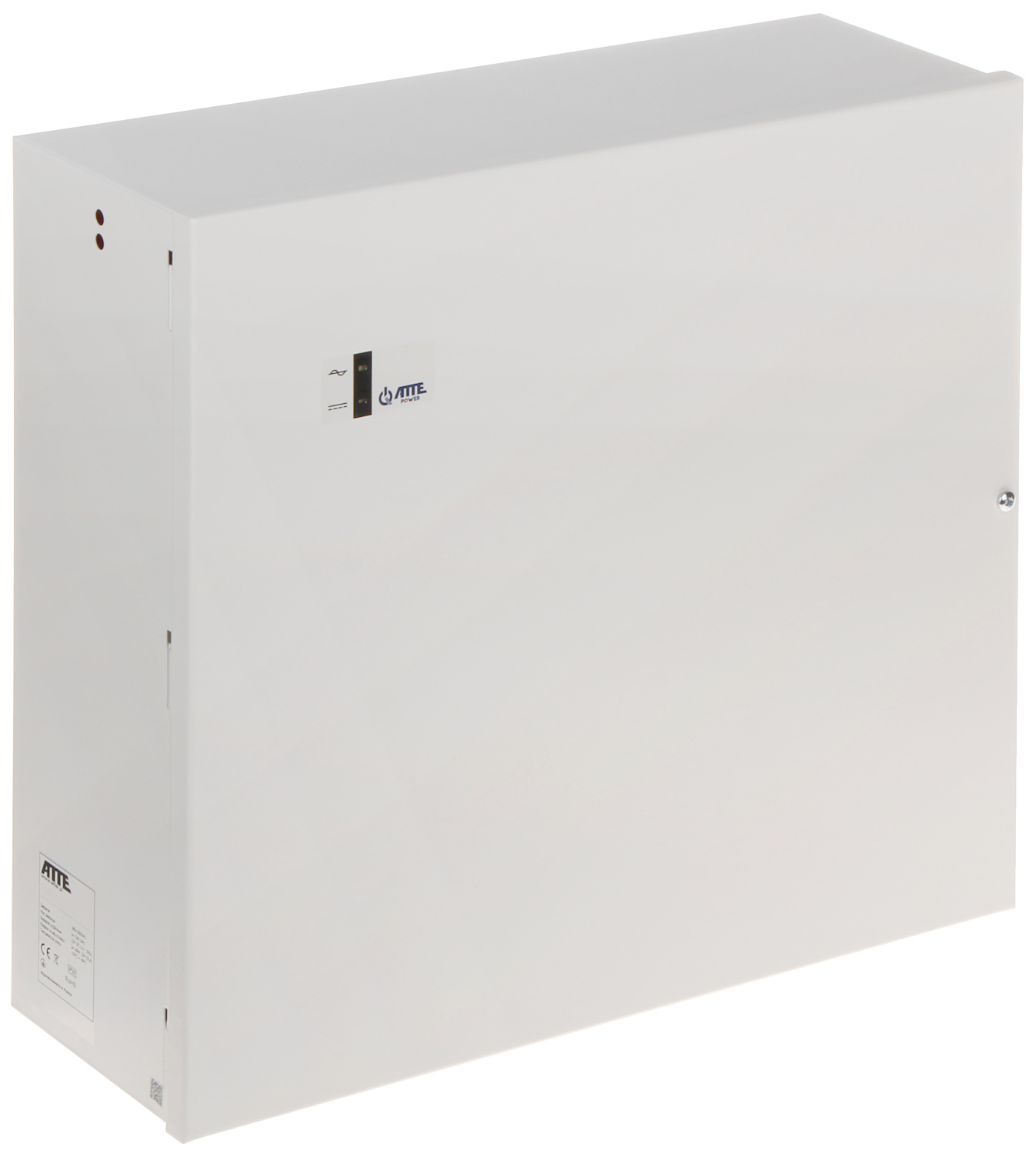

Dimensions:	455 x 405 x 150 mm
Manufacturer / Brand:	ATTE
Guarantee:	3 years
