SWITCH POE IP-5-11-L2 5-PORT ATTE

€141.22

(Включая налог 21%)

Задать вопрос

КОД: IP-5-11-L2

Доступность: 3 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

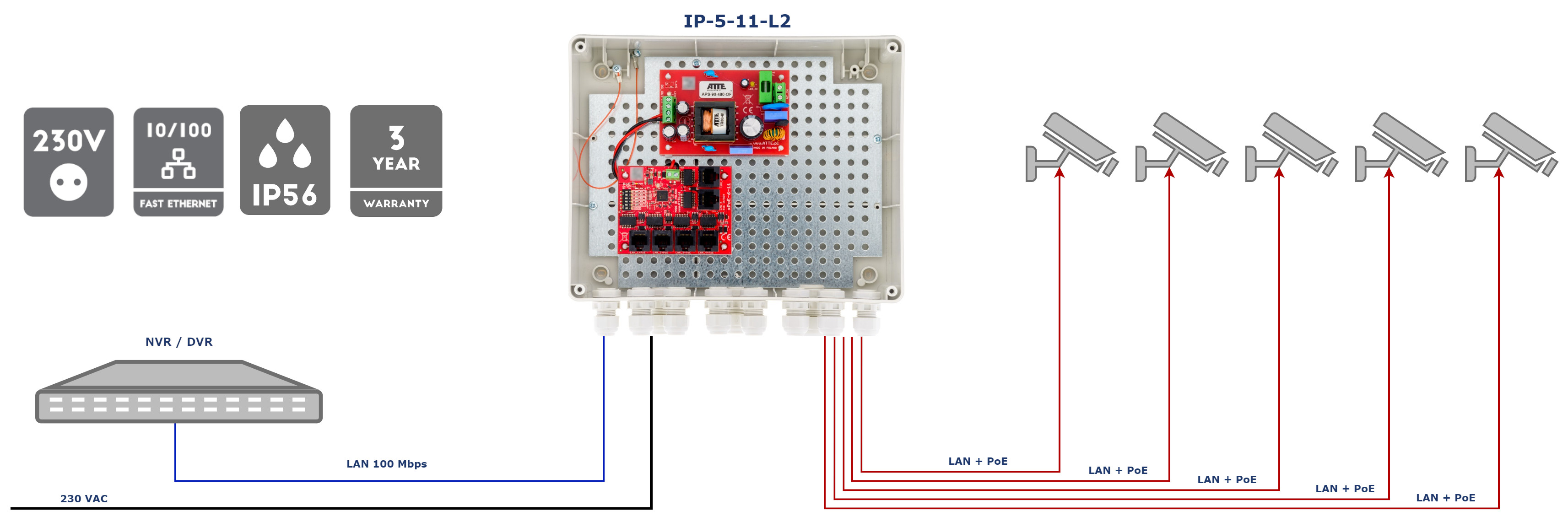

LAN ports: 1 x RJ45 10/100 Base-T - Uplink, 5 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE ; Transmission speed: 10 / 100 Mbps : 1 LAN port + 5 LAN & PoE ports ; Maximal total power: 60 W ;

LAN ports:	1 x RJ45 10/100 Base-T - Uplink, 5 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE
Management:
LED diodes:	Power, LAN
Transmission speed:	10 / 100 Mbps : 1 LAN port + 5 LAN & PoE ports
Maximal output power:	40 W @ Passive PoE - LAN1 ... LAN4 ports, 60 W @ Passive PoE - LAN5 port, 30 W @ PoE (802.3af/at) - LAN1 ... LAN5 ports
Maximal total power:	60 W
Operation modes:	Standard : 100 m @ 10/100 Mb/s - LAN1 ... LAN6 ports Long Range : 280 m @ 10 Mb/s - LAN1 ... LAN4 ports ; 100 m @ 10/100 Mb/s - LAN5, LAN6 ports

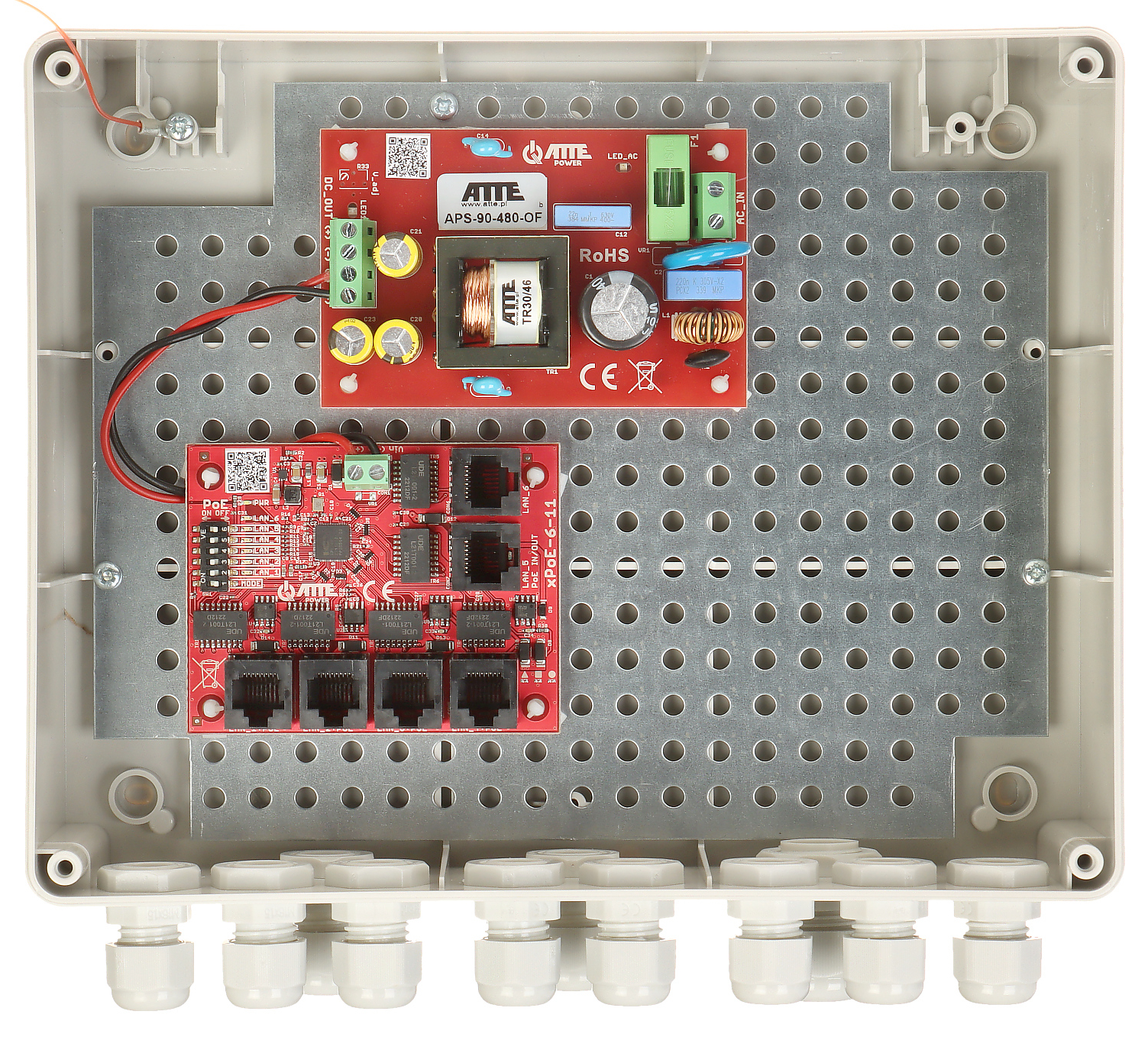

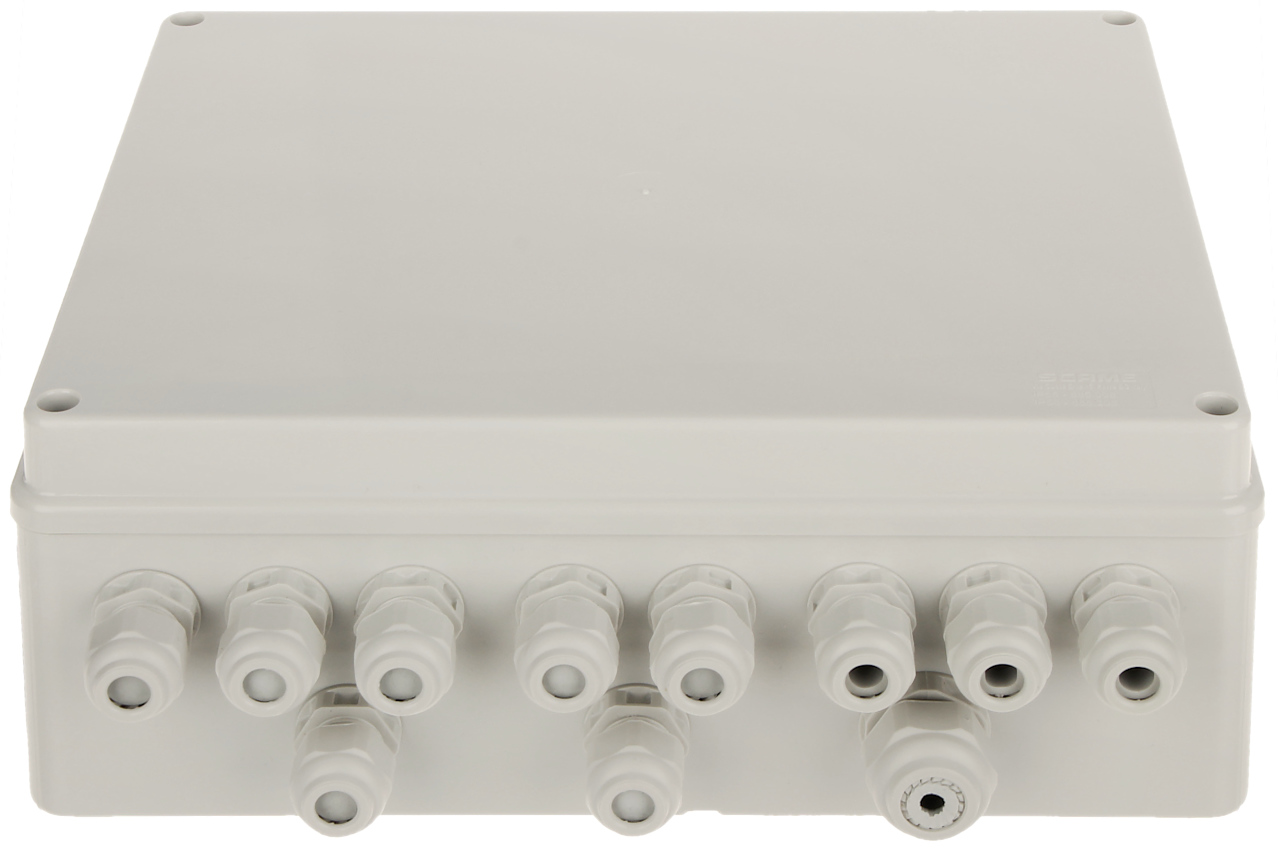

Main features:	Possible cascading device connection (power transmission between devices using Passive PoE via LAN 5 port) The output PoE voltage is equal to the input voltage The ability to independently turn on and off the PoE power for each of the LAN 1 ... LAN 5 ports The modular design streamlines service tasks and enables quick and easy system expansion The raster system of module assembly facilitates the expansion of the device by further modules The ABOX-L2 mounting enclosure is equipped with 11 cable entries with glands in the 10 x M16 + 1 x M20 arrangement "Index of Protection" : IP56
Power supply:	190 ... 260 V AC - cable terminals
Weight:	1.02 kg
Dimensions:	248 x 198 x 96 mm
Manufacturer / Brand:	ATTE
Guarantee:	3 years
