POE SWITCH WITH BUFFERED POWER SUPPLY IPUPS-5-11-XL2 5-PORT ATTE

€191.68

(Включая налог 21%)

Задать вопрос

КОД: IPUPS-5-11-XL2

Доступность: 7 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

LAN ports: 1 x RJ45 10/100 Base-T - Uplink 5 x RJ45 10/100 Base-T, PoE 802.3af/at / Passive PoE ; Transmission speed: 10 / 100 Mbps : 1 LAN port + 5 LAN & PoE ports ; Maximal total power: 50 W ;

LAN ports:	1 x RJ45 10/100 Base-T - Uplink 5 x RJ45 10/100 Base-T, PoE 802.3af/at / Passive PoE
Management:
LED diodes:	Power, LAN
Transmission speed:	10 / 100 Mbps : 1 LAN port + 5 LAN & PoE ports
Maximal output power:	40 W @ Passive PoE - 1 ... 4 ports, 50 W @ Passive PoE - 5 port, 30 W @ PoE (802.3af/at) - 1 ... 5 ports
Maximal total power:	50 W
Operation modes:	Standard : 100 m @ 10/100 Mb/s - 1 ... 6 ports Long Range : 280 m @ 10 Mb/s - 1 ... 4 ports ; 100 m @ 10/100 Mb/s - 5, 6 ports

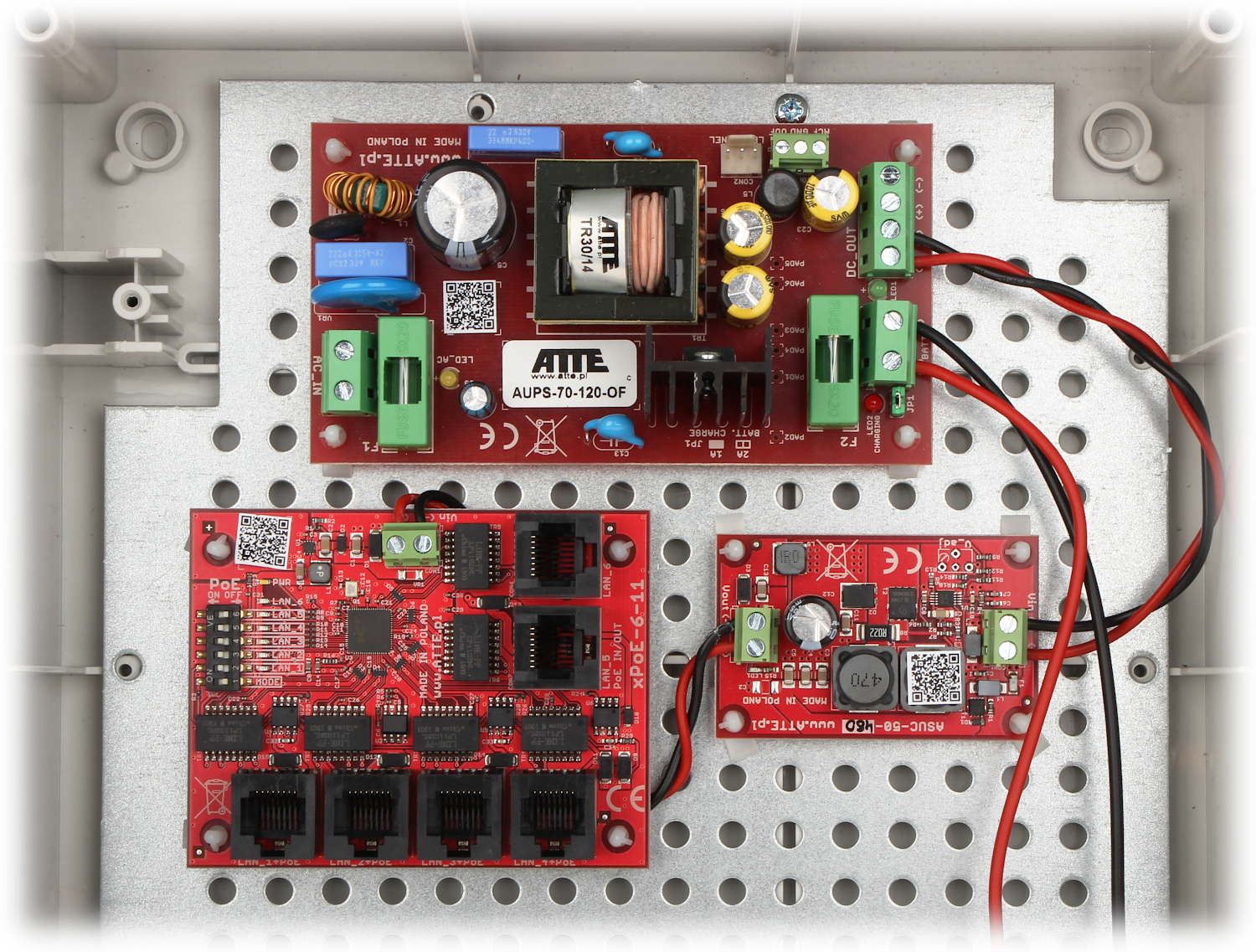

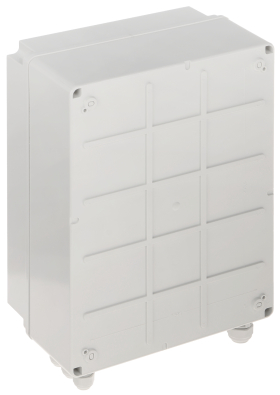

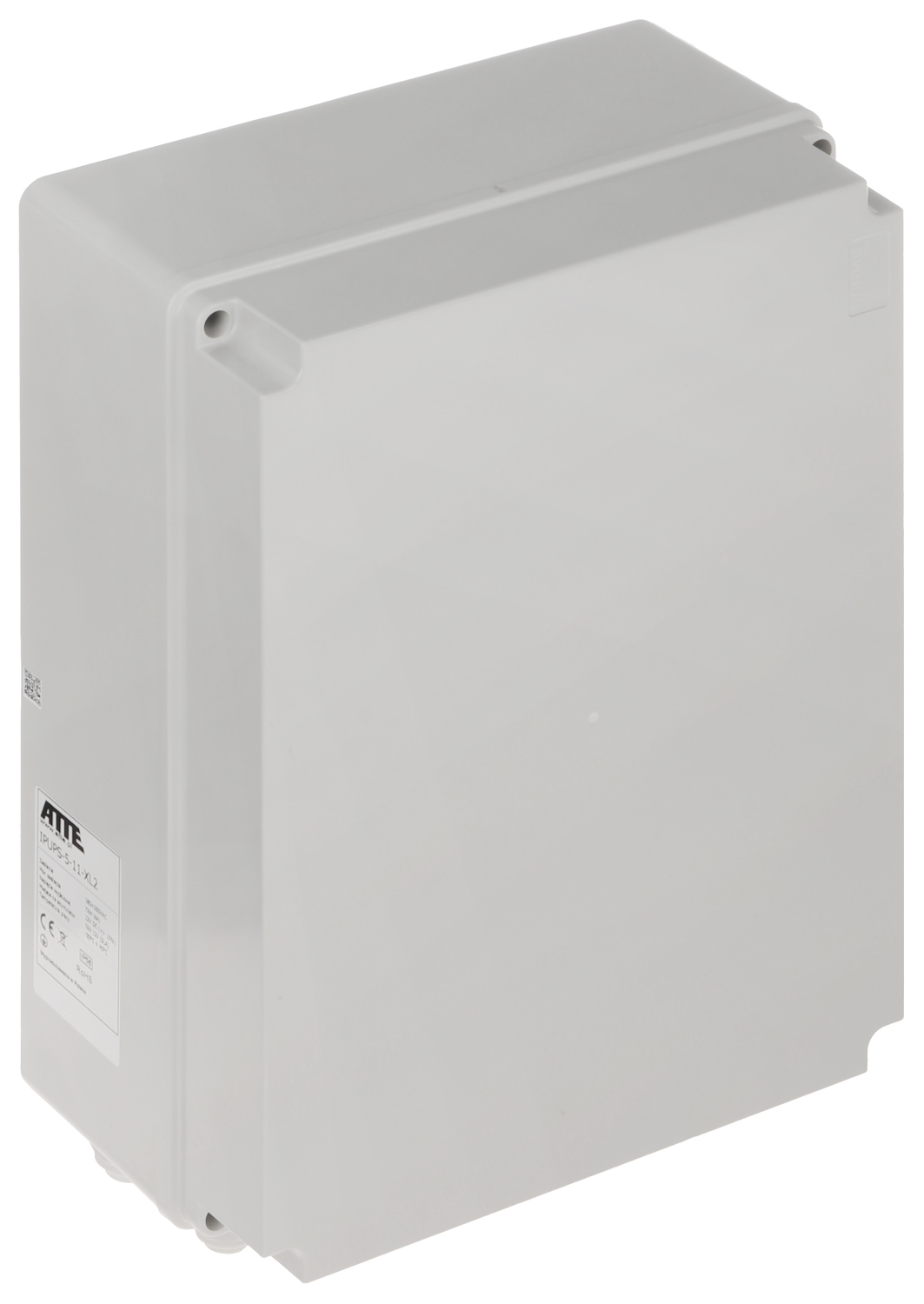

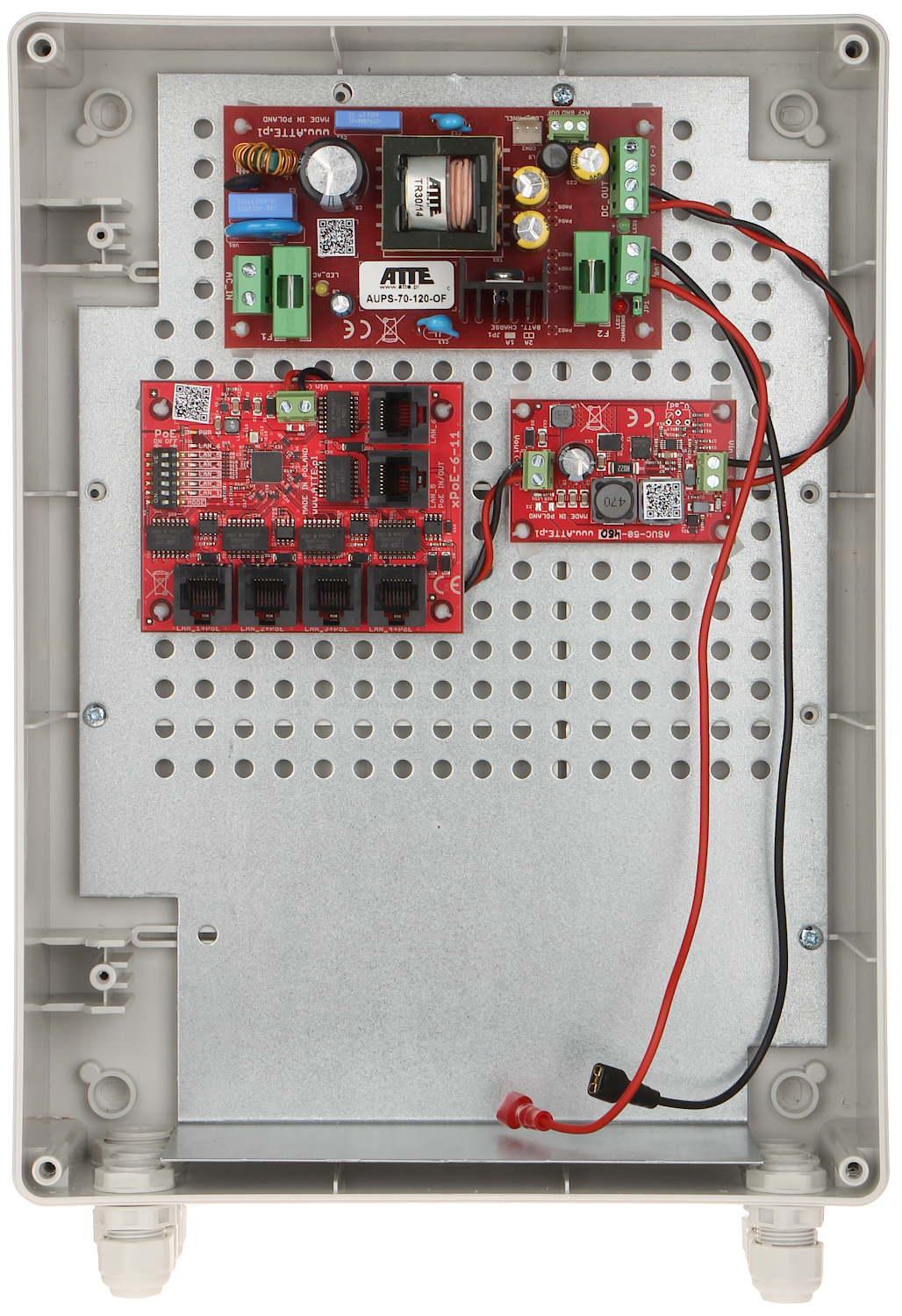

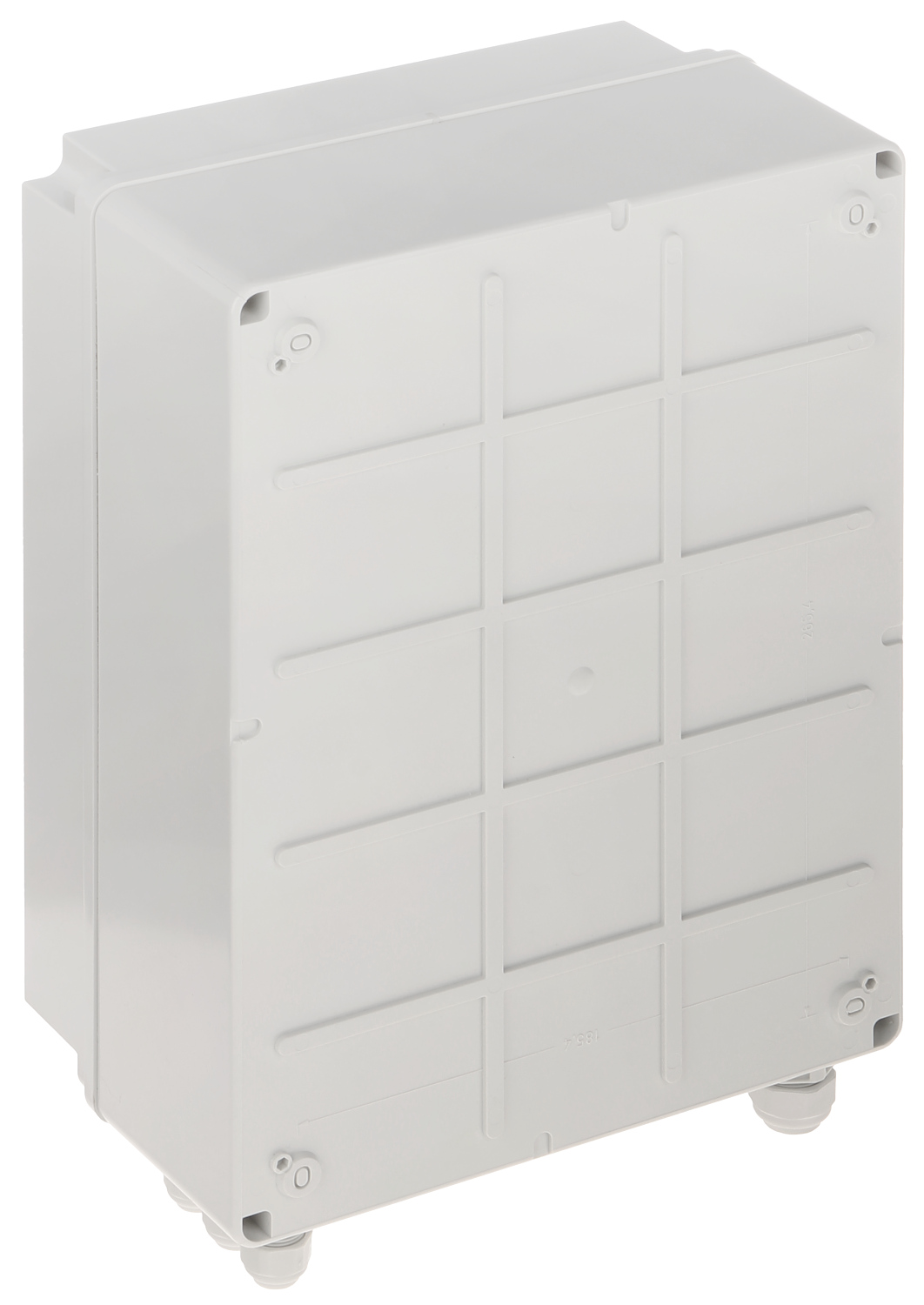

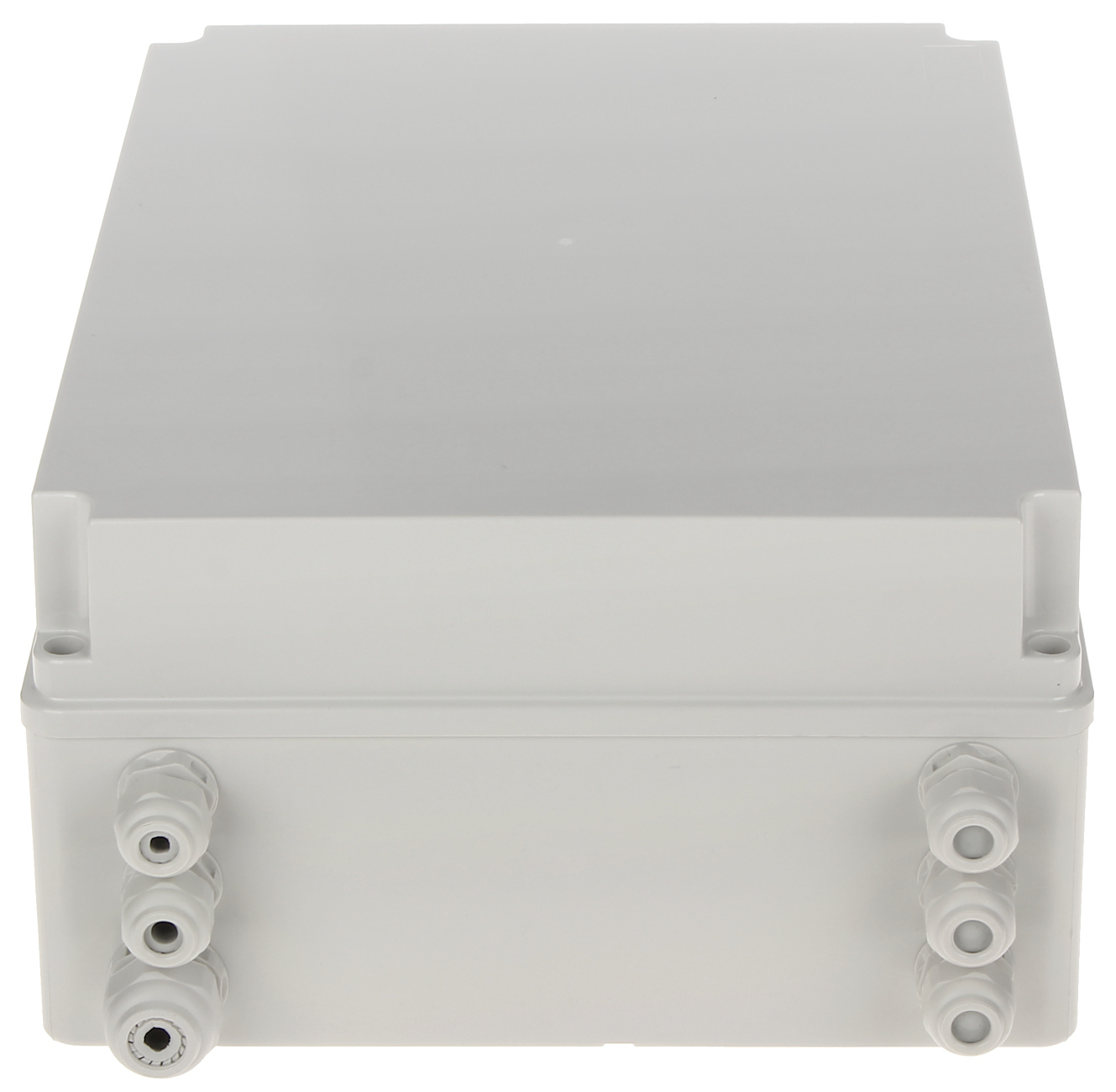

Main features:	The ability to independently turn on and off the PoE power for each of the LAN 1 ... LAN 5 ports The modular design streamlines service tasks and enables quick and easy system expansion The raster system of module assembly facilitates the expansion of the device by further modules Place for battery : 12 V / 7 Ah Battery charging current : 1 A / 2 A - (set with the JP1 jumper) Technical outputs of the OC type signaling loss of voltage at the PSU output (OUF) and loss of voltage in the 230V mains (ACF) Protection against deep discharge of the battery The ABOX-XL2 mounting enclosure is equipped with 6 cable entries with glands in the 5 x M16 + 1 x M20 arrangement
Power supply:	230 V AC
Weight:	1.53 kg
Dimensions:	333 x 227 x 130 mm
Manufacturer / Brand:	ATTE
Guarantee:	2 years
