SWITCH POE DS-3T1306P-SI/HS 4-PORT SFP Hikvision

€99.83

(Включая налог 21%)

Задать вопрос

КОД: DS-3T1306P-SI/HS

Доступность: 13 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

LAN ports: 4 x RJ45 10/100 Base-T ( 4 x PoE (802.3af/at) ), 1 x RJ45 10/100/1000 Base-T - Uplink, 1 x SFP 1000 Base-X - Uplink ; Transmission speed: 10 / 100 Mbps - 4 LAN & PoE ports, 10 / 100 / 1000 Mbps - RJ45 (Uplink), 1000 Mbps - SFP (Uplink) ; Maximal total power: 60 W ;

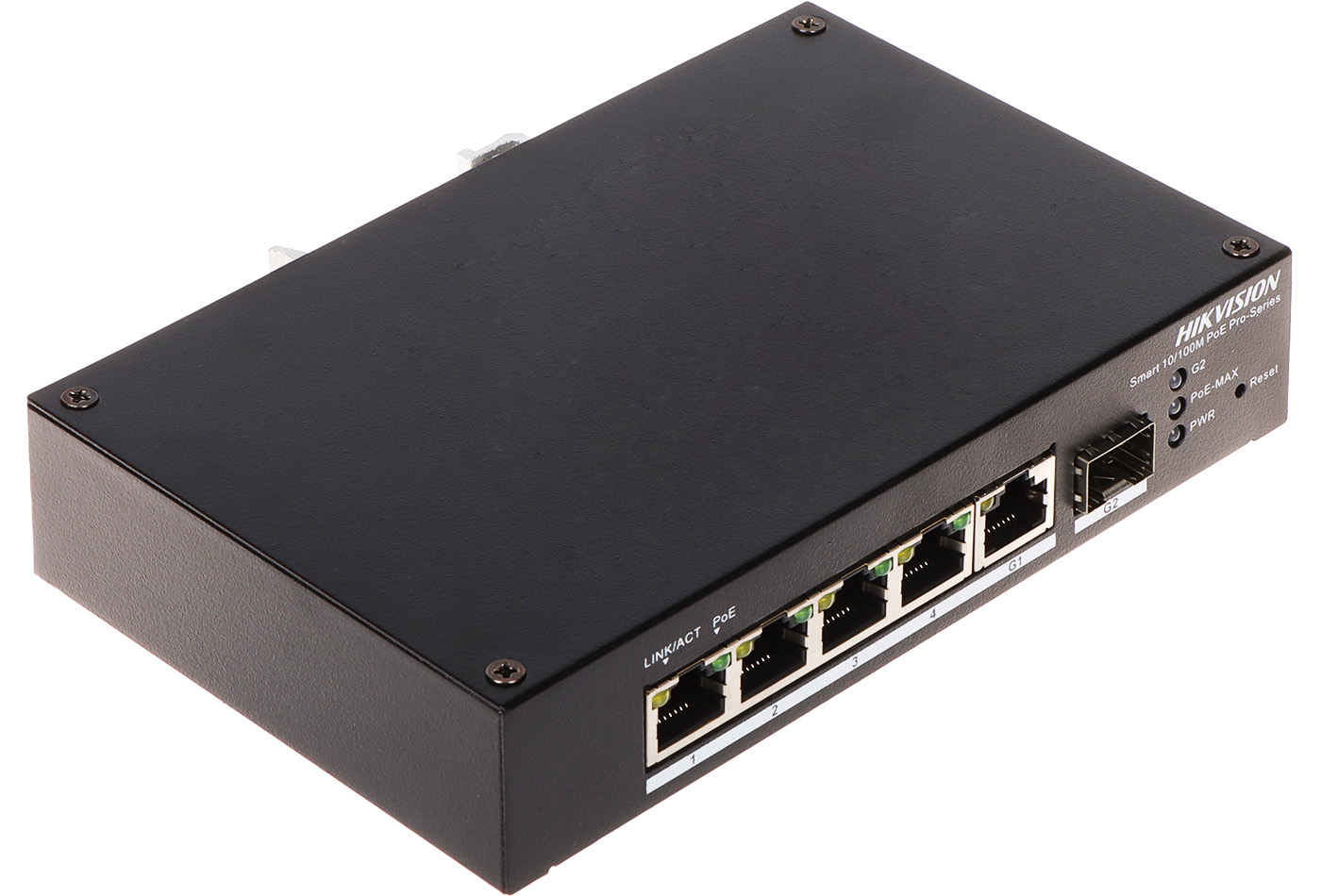

LAN ports:	4 x RJ45 10/100 Base-T ( 4 x PoE (802.3af/at) ), 1 x RJ45 10/100/1000 Base-T - Uplink, 1 x SFP 1000 Base-X - Uplink
Transmission speed:	10 / 100 Mbps - 4 LAN & PoE ports, 10 / 100 / 1000 Mbps - RJ45 (Uplink), 1000 Mbps - SFP (Uplink)
Maximal output power:	30 W / port PoE
Maximal total power:	60 W
MAC addresses table:	2k
Management:
Default IP address:	192.168.1.64
Default admin user / password:	admin / -
Operation modes:	Extend - 1 ... 4 ports : 300 m, 10 Mbps @ UTP cat. 5e, 6 Port Isolation - 1 ... 4 ports Watchdog PoE - 1 ... 4 ports

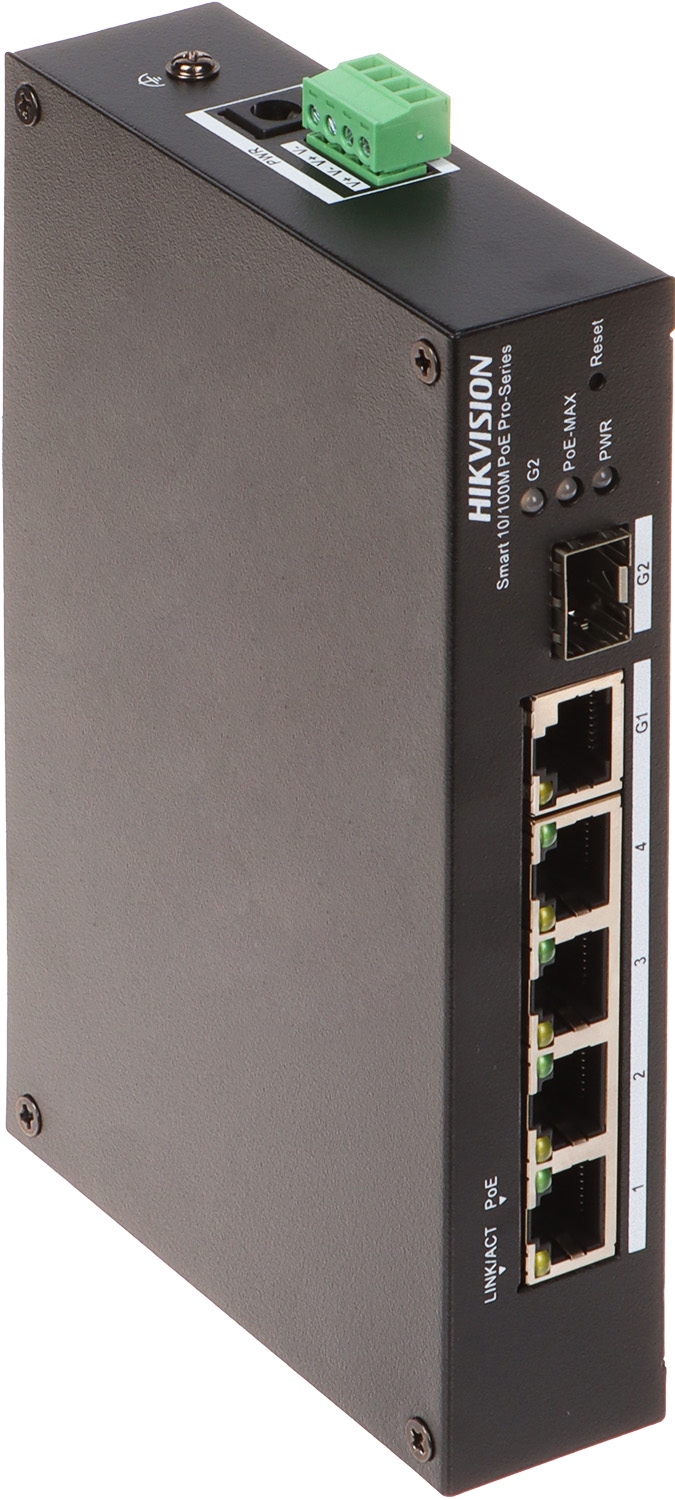

LED diodes:	Power, Link/Act, PoE, PoE Max, G1, G2
Main features:	View topology and network status The device supports 8-pin power supply - wires : 1-2(-), 3-6(+), 4-5(+), 7-8(-) Support for Endspan mode - wires : 1-2(-), 3-6(+) Support for Midspan mode - wires : 4-5(+), 7-8(-) Remote update of software System logs Data Flow Control Watchdog function Storm Control function Port mirroring function Port isolation QoS : Queue scheduling: SP, WRR, SP+WRR VLAN : 4094 groups Spanning Tree STP/RSTP Spanning Tree ERPS SNMPv1/v2c Compliance with the LLDP protocol DHCP Devices for mounting on a DIN, TS-35 rail Industrial wide temperature design.
Certificates:	CE, RoHS, FCC, WEEE, REACH
Protections:

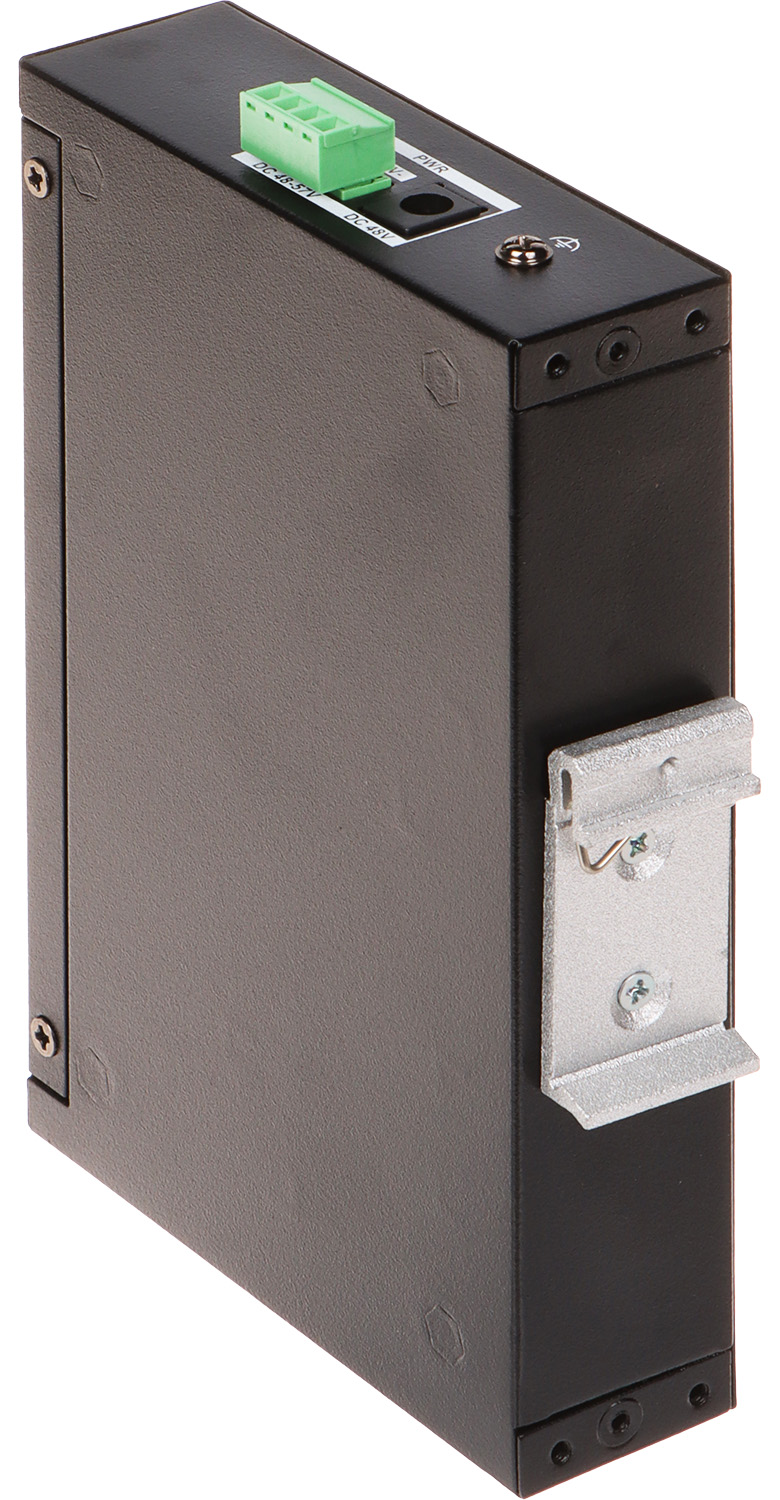

Housing:	Metal, Desktop, DIN rail (TS-35)

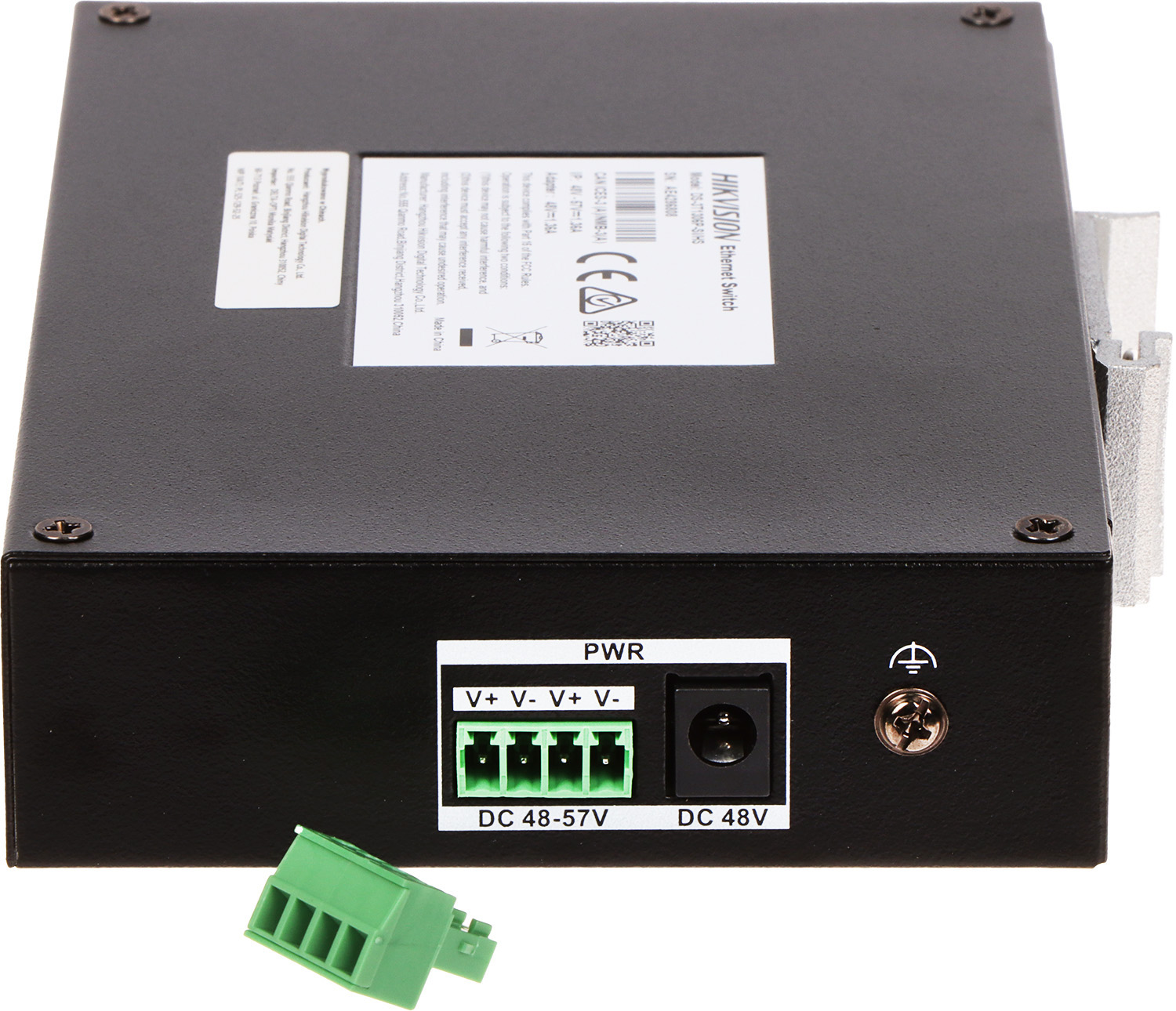

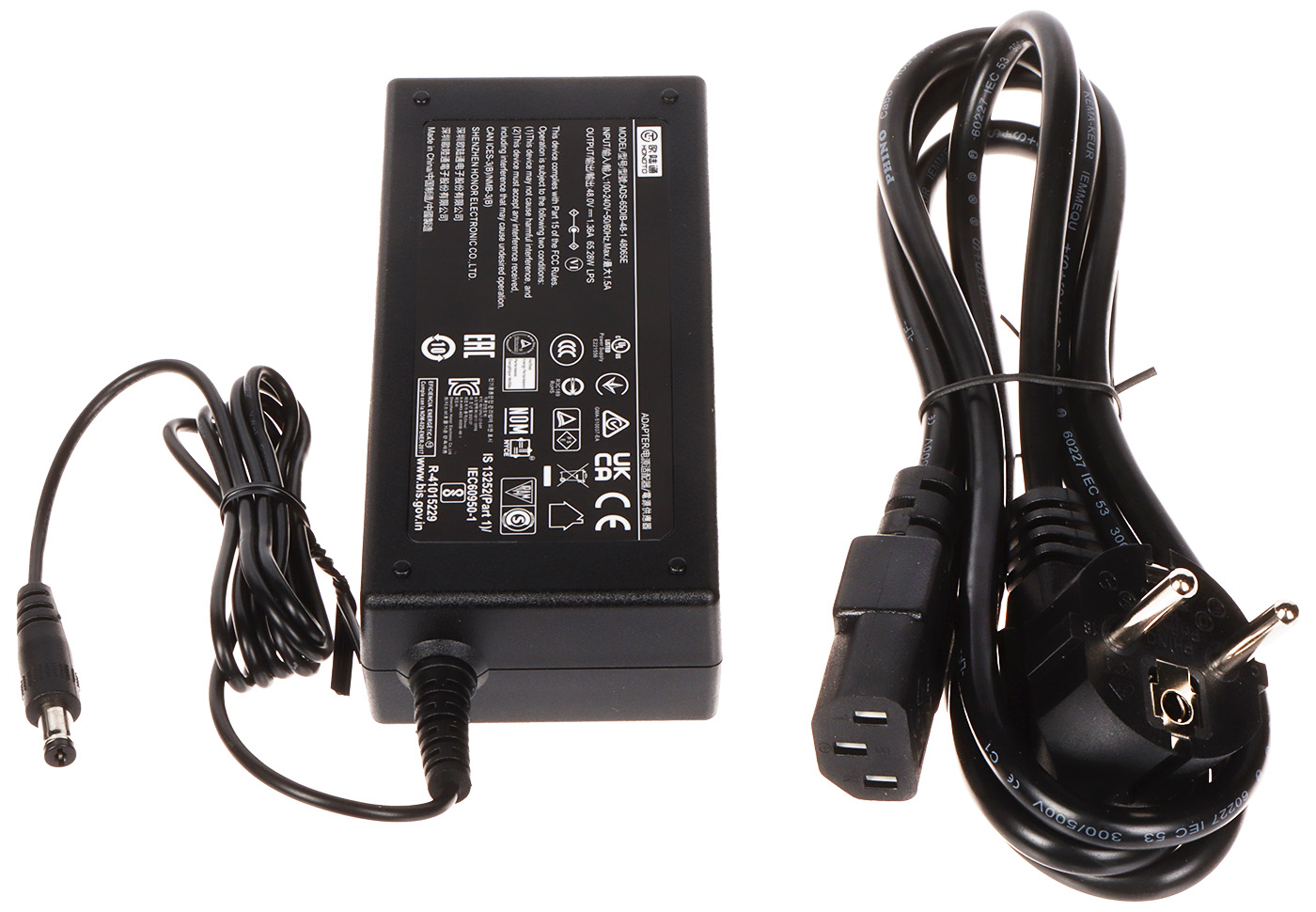

Power supply:	48 ... 57 V DC - 2 inputs 48 V AC / 1.36 A (power adapter included)
Power consumption:	max. 65 W
Operation temp:	-30 °C ... 65 °C
Weight:	0.39 kg
Dimensions:	158 x 102 x 32 mm
Manufacturer / Brand:	Hikvision
SAP Code:	301802344
Guarantee:	3 years
