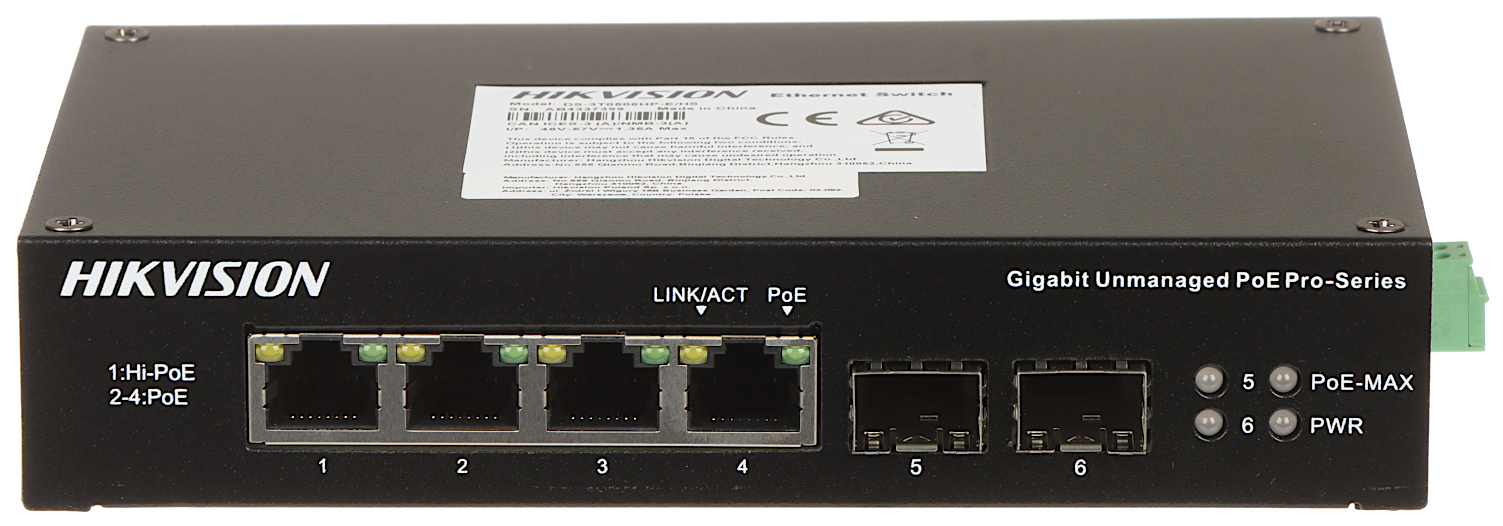

SWITCH POE DS-3T0506HP-E/HS 4-PORT SFP Hikvision

€104.71

(Включая налог 21%)

Задать вопрос

КОД: DS-3T0506HP-E/HS

Доступность: 36 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

LAN ports: 4 x RJ45 10/100/1000 Base-TX ( 1 x Hi-PoE (802.3af/at/bt) + 3 x PoE (802.3af/at) ), 2 x port SFP 1000 Base-X - Uplink ; Transmission speed: 10 / 100 / 1000 Mbps - 4 LAN & PoE ports, 1000 Mbps - 2 SFP (Uplink) ports ; Maximal total power: 60 W ;

LAN ports:	4 x RJ45 10/100/1000 Base-TX ( 1 x Hi-PoE (802.3af/at/bt) + 3 x PoE (802.3af/at) ), 2 x port SFP 1000 Base-X - Uplink
Transmission speed:	10 / 100 / 1000 Mbps - 4 LAN & PoE ports, 1000 Mbps - 2 SFP (Uplink) ports
Maximal output power:	60 W / port Hi-PoE - 1 port 30 W / port PoE - 2 ... 4 ports
Maximal total power:	60 W
MAC addresses table:	2k
Management:

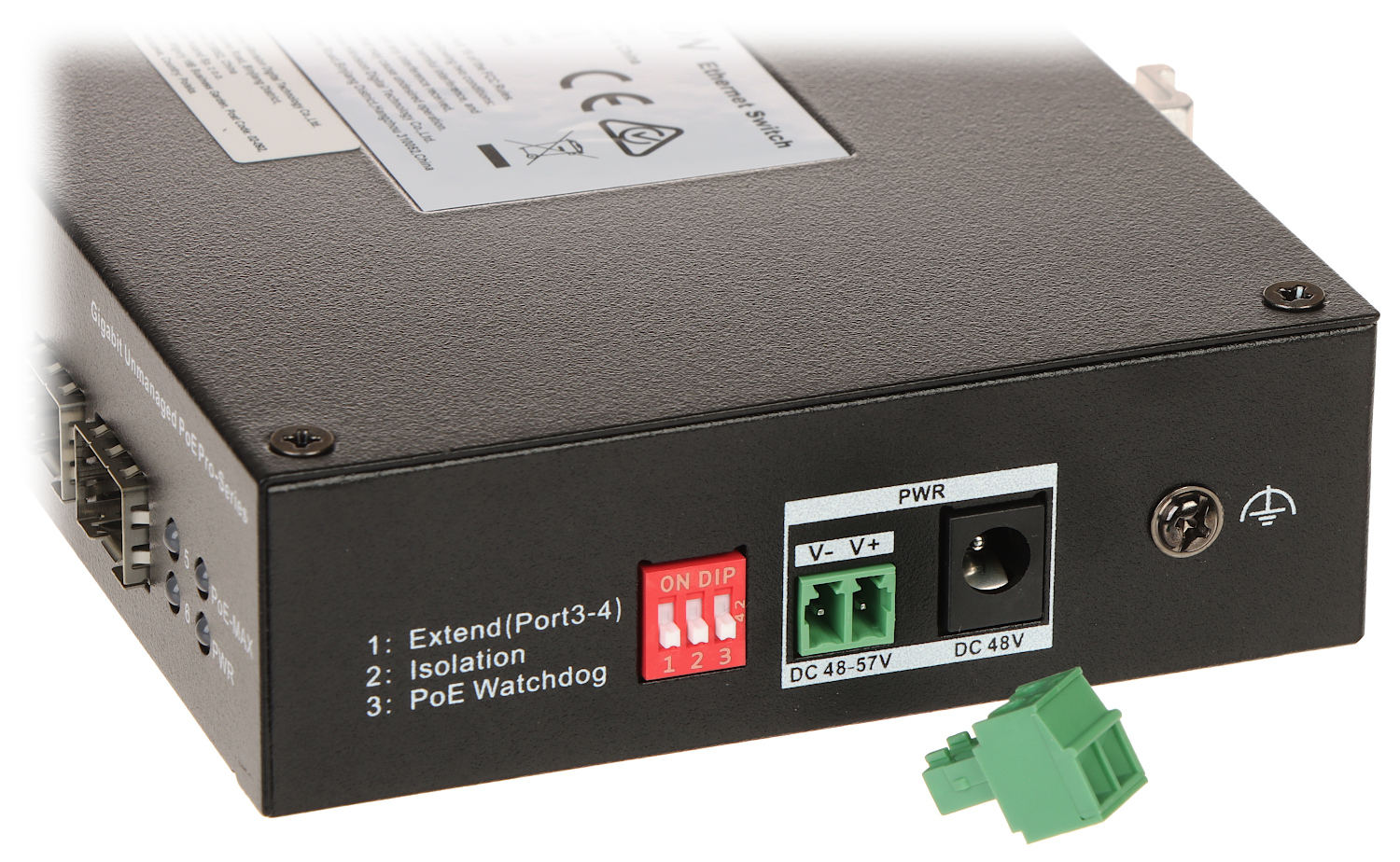

Operation modes:	Extend Off : 100 m, 1000 Mbps - 1 ... 4 ports Extend On : 300 m, 10 Mbps - 3, 4 ports Port Isolation : 1 ... 4 ports Watchdog PoE : 1 ... 4 ports
LED diodes:	Power, Link/Act, PoE, PoE Max, SFP - 5, 6 ports
Main features:	MDI/MDI-X auto detection feature - auto detecting the data transmission mode Overvoltage protection : 6 kV - PoE ports EXTEND mode - 3, 4 ports The device supports 8-pin power supply : wires 1-2, 3-6, 4-5, 7-8 Port isolation PoE Watchdog / PD Alive mode - monitoring of the ports that power PoE devices and automatic restart by cutting off the power supply when an unresponsive device is detected
Certificates:	CE, FCC, RoHS
Housing:	Metal

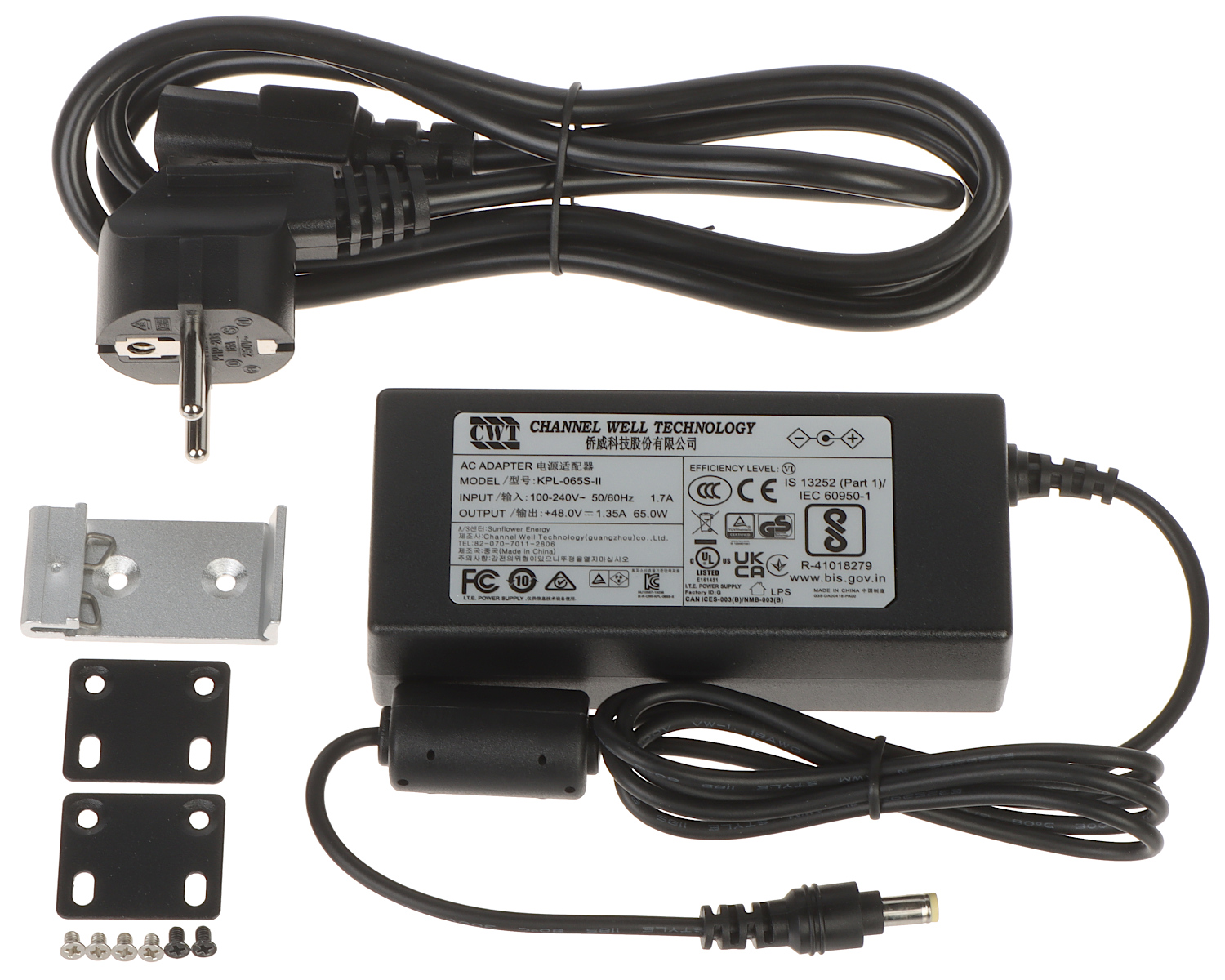

Power supply:	48 V DC / 1.35 A (power adapter included)
Power consumption:	max. 65 W
Operation temp:	-30 °C ... 65 °C
Weight:	0.36 kg
Dimensions:	158 x 104 x 32 mm
Manufacturer / Brand:	Hikvision
SAP Code:	301801602
Guarantee:	3 years
