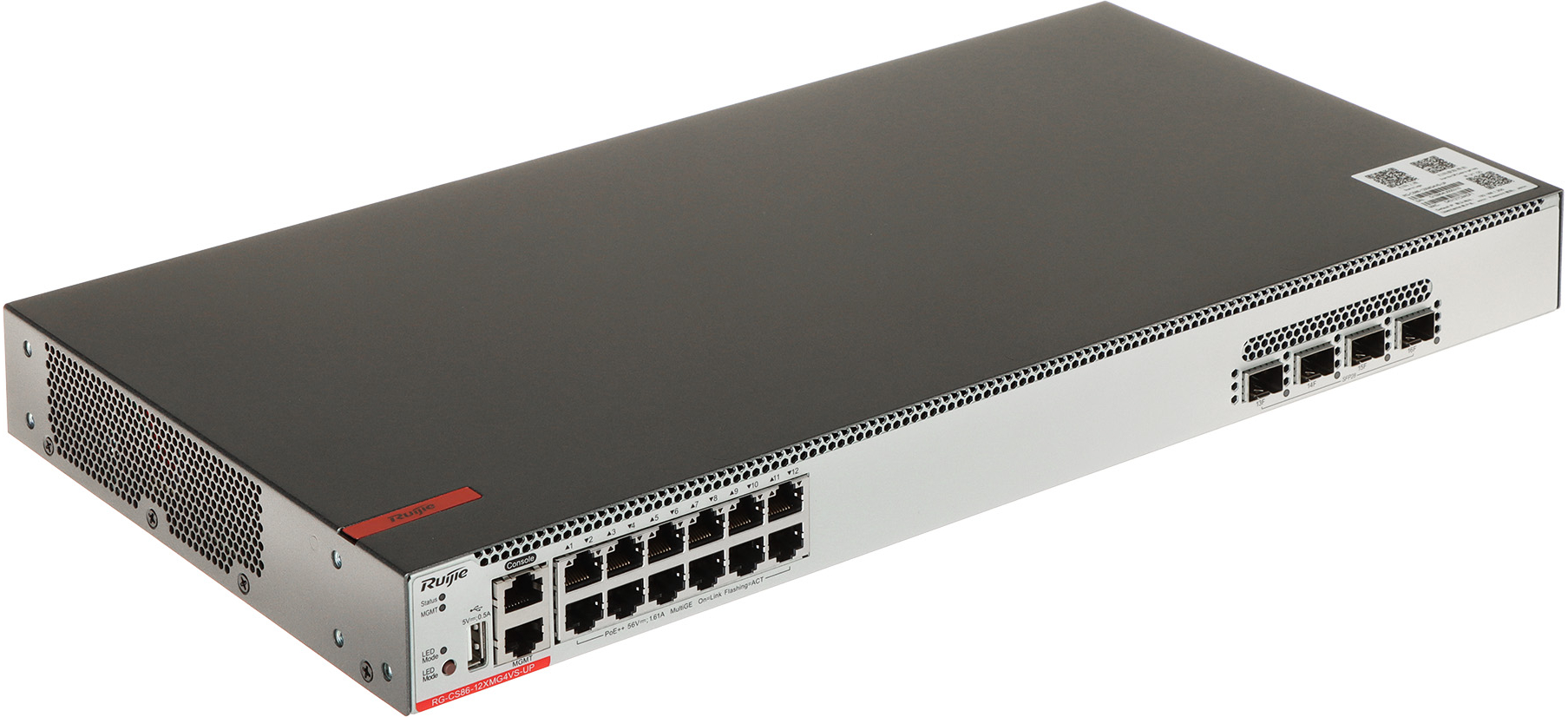

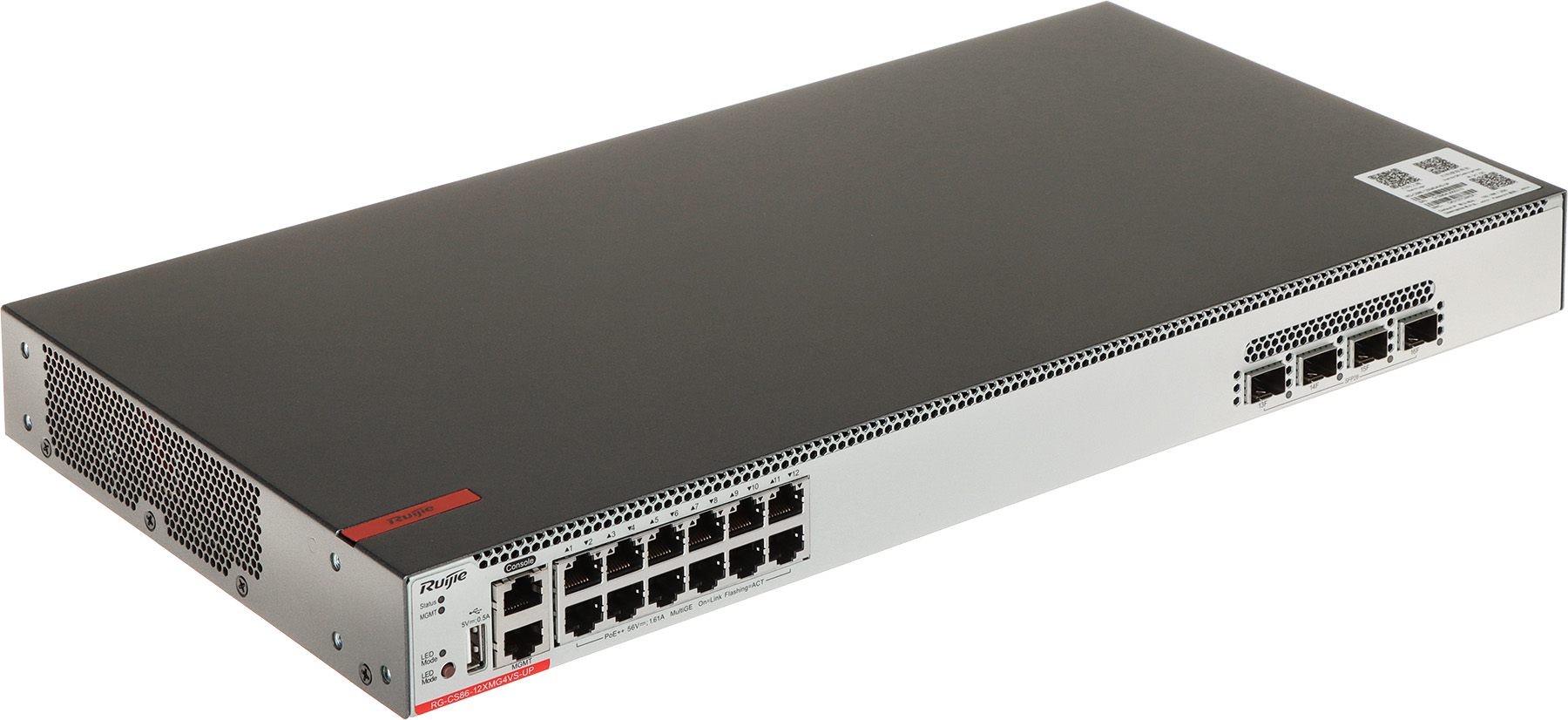

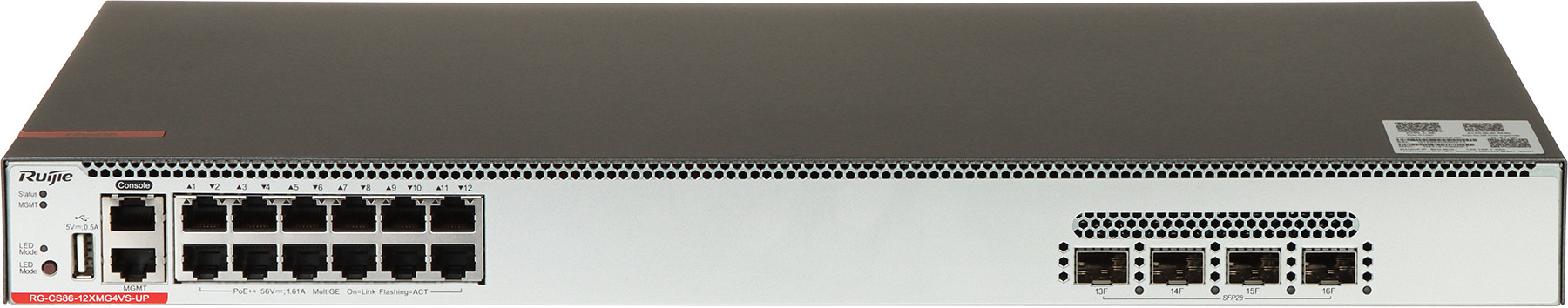

SWITCH POE RG-CS86-12XMG4VS-UP 12-PORT SFP+ RUIJIE

€3,709.00

(Включая налог 21%)

Задать вопрос

КОД: RG-CS86-12XMG4VS-UP

Доступность: 2 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

LAN ports: 12 x RJ45 100/1000/2.5G/5G/10G Base-T ( 12 x Hi-PoE (802.3af/at/bt) ), 4 x SFP28 10GE/25GE - Uplink, 2 x RJ45 - Configuration possibility from PC, Console, 1 x USB - Configuration possibility from PC ; Management; Transmission speed: 100 / 1000 Mbps, 2.5 / 5 / 10 Gbps : 12 LAN & PoE ports, 10 / 25 Gbps : 4 x SFP (Uplink) ports ; MAC addresses table: 32k ;

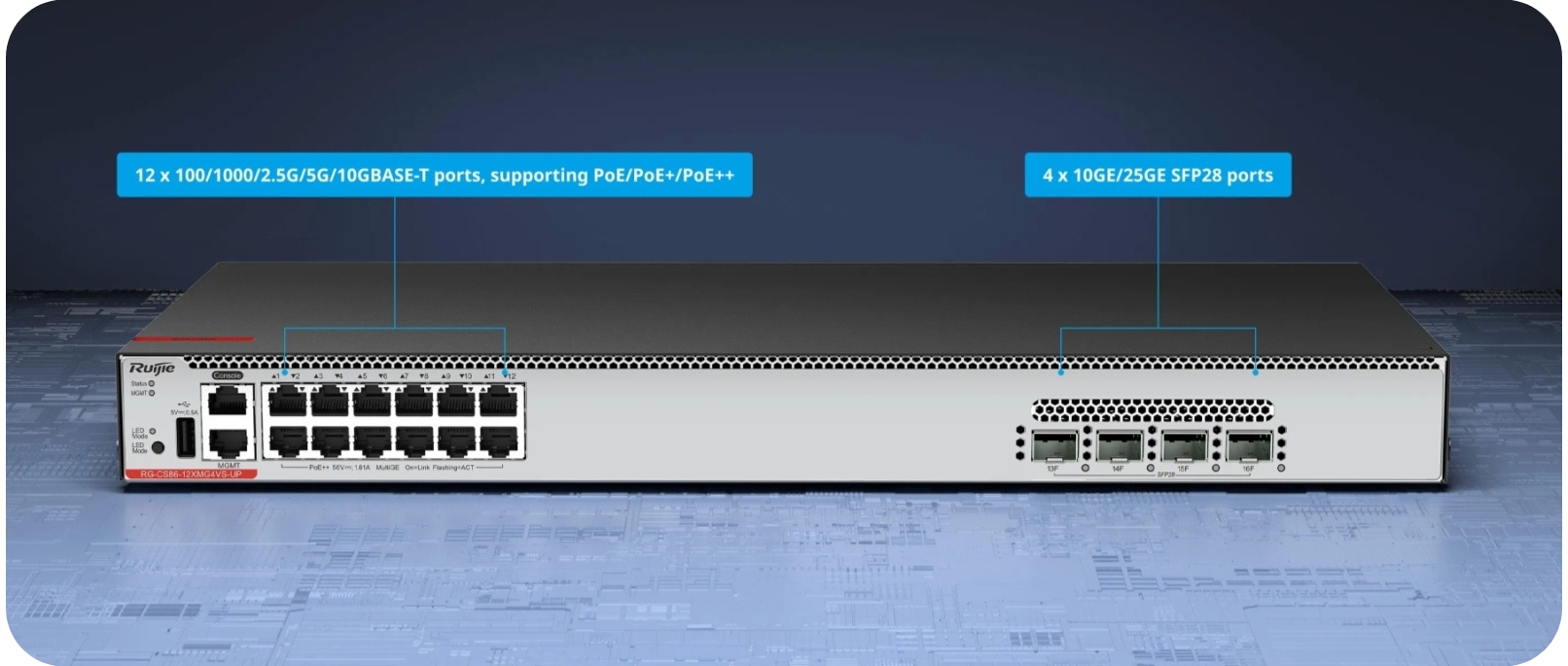

LAN ports:	12 x RJ45 100/1000/2.5G/5G/10G Base-T ( 12 x Hi-PoE (802.3af/at/bt) ), 4 x SFP28 10GE/25GE - Uplink, 2 x RJ45 - Configuration possibility from PC, Console, 1 x USB - Configuration possibility from PC
Management:
Number of fan coolers:
LED diodes:	Status, MGMT port - Management, LED mode, 1 ... 12 Link/Act, 13F ... 16F Link/Act
Transmission speed:	100 / 1000 Mbps, 2.5 / 5 / 10 Gbps : 12 LAN & PoE ports, 10 / 25 Gbps : 4 x SFP (Uplink) ports
Maximal output power:	90 W / port PoE - 1 ... 12 ports
Maximal total power:	370 W
Switching capacity:	440 Gb/s
Forwarding rate:	327 Mpps
MAC addresses table:	32k

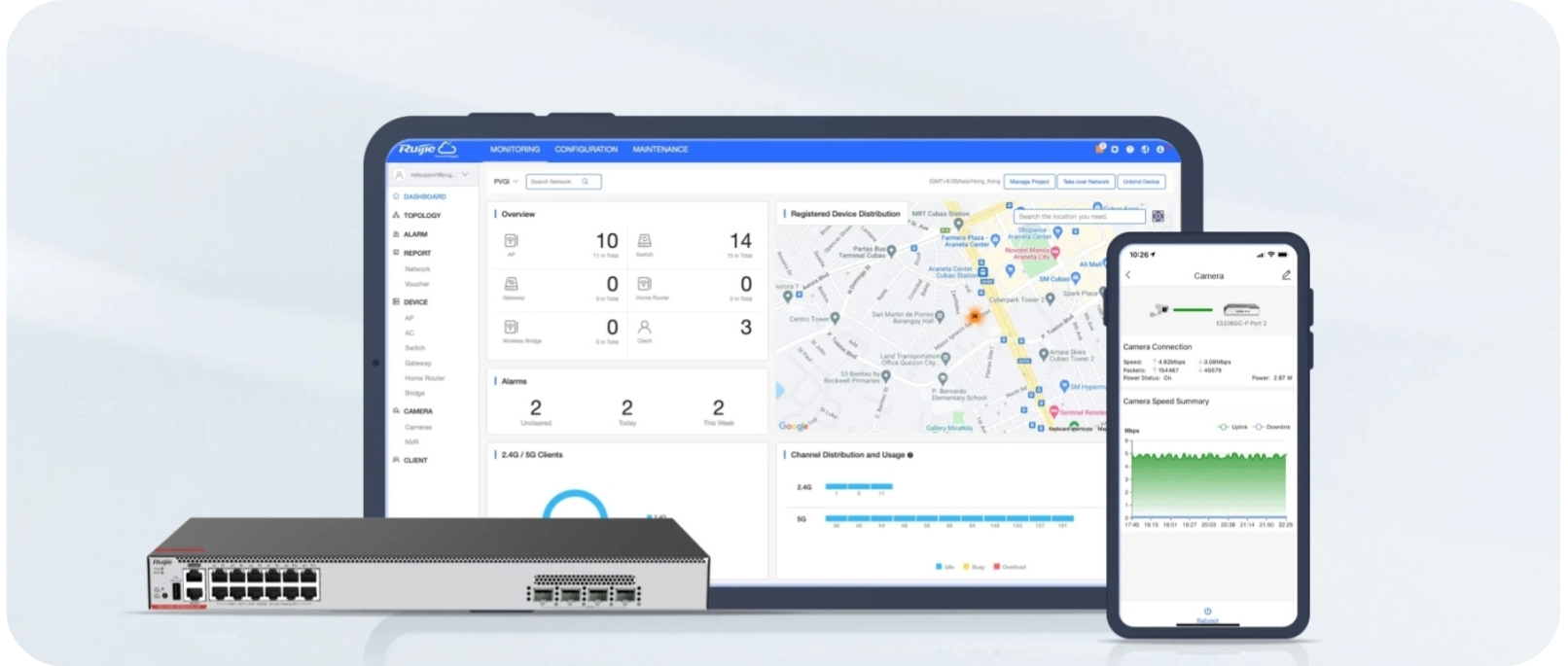

Mobile phones support:	Android: Ruijie Reyee free application iOS (iPhone): Ruijie Reyee free application
Default IP address:	192.168.1.200
Default admin user / password:	admin / admin
Main features:	Switch is managed through the web and the cloud (Ruijie Reyee application) IEEE 802.1Q standard support, up to 4096 VLAN groups and 4K VIDs Spanning Tree STP/RSTP/MSTP Compliance with the LLDP protocol DHCP client, DHCP server, DHCP Relay support DHCP snooping support Static routing IGMP Snooping V1/V2/V3 Quality of Service QoS based on IPP/ToS, DSCP and 802.1p IEEE 802.1x and Radius Authentication CPP NFPP IP-MAC Binding SNMP v1/v2c/v3 IEEE802.3x Flow Control MTBF (Mean Time Between Faults) : 194297 h Can be mounted in a Rack cabinet
Certificates:	CE, UKCA
Protections:	Overvoltage limiter (common/differential) : 6 / 6 kV (power) Overvoltage limiter : 4 kV - MGMT port Overvoltage limiter : 4 kV - Console Protection against electrostatic discharge - Contact/Air (ESD/EMP) : 6 / 8 kV
Housing:	Rack 19", Metal
Power supply:	100 V ... 240 V AC
Power consumption:	max. 90 W (without PoE) max. 460 W (PoE, LAN)
Operation temp:	0 °C ... 45 °C
Weight:	3.43 kg
Dimensions:	442 x 222 x 44 mm, RACK 19", 1U
Manufacturer / Brand:	RUIJIE
Guarantee:	3 years
