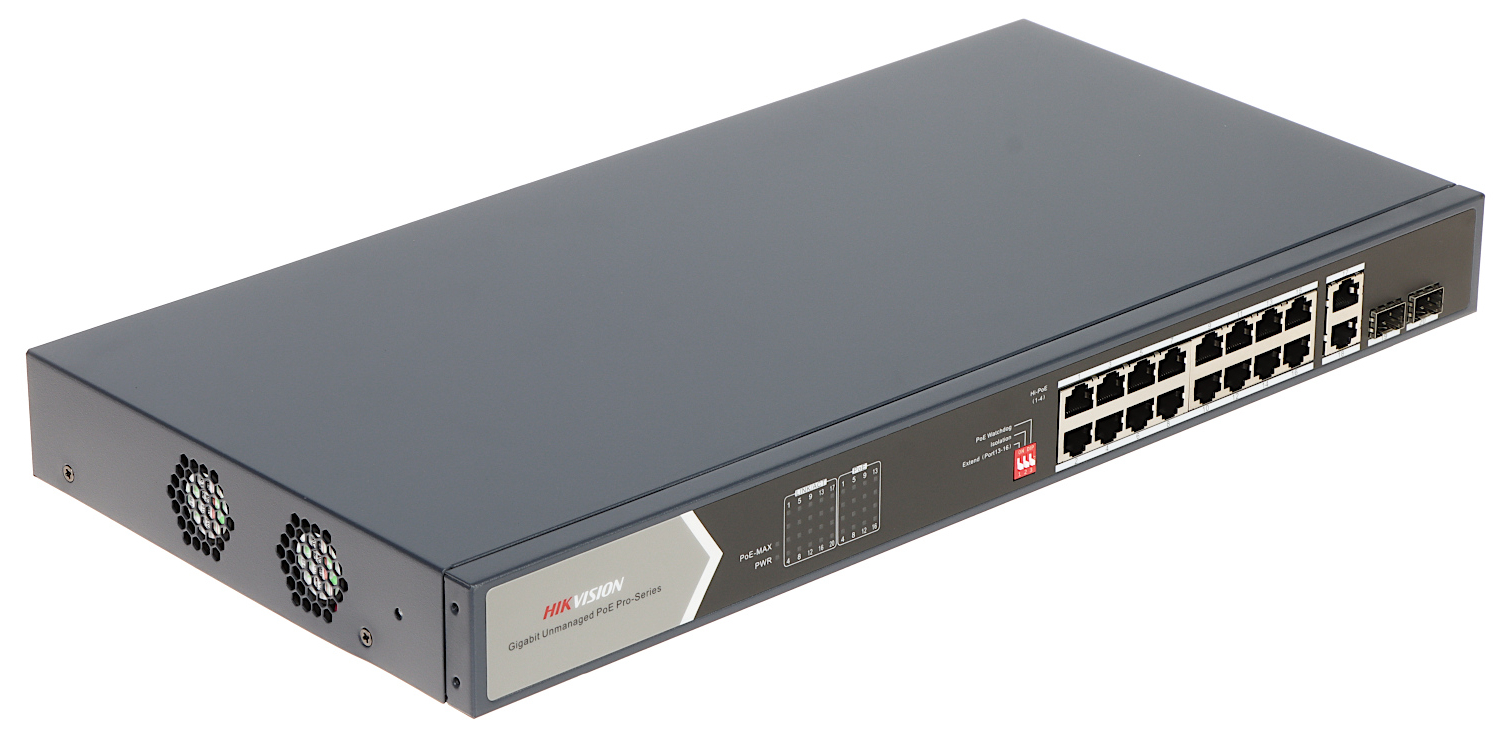

SWITCH POE DS-3E0520HP-E 16-PORT SFP Hikvision

€252.74

(Включая налог 21%)

Задать вопрос

КОД: DS-3E0520HP-E

Доступность: 2 шт.

Кол-во:

+ −

Минимальное количество для товара "SWITCH POE DS-3E0520HP-E 16-PORT SFP Hikvision" 1.

Купить в один клик

Описание
Особенности

LAN ports: 16 x RJ45 10/100/1000 Base-TX ( 4 x Hi-PoE (802.3af/at/bt) + 12 x PoE (802.3af/at) ), 2 x RJ45 10/100/1000 Base-TX - Uplink, 2 x port SFP 1000 Base-X - Uplink ; Transmission speed: 10 / 100 / 1000 Mbps - 16 LAN & PoE ports, 10 / 100 / 1000 Mbps - 2 RJ45 (Uplink) ports, 1000 Mbps - 2 SFP (Uplink) ports ; Maximal total power: 225 W ;

LAN ports:	16 x RJ45 10/100/1000 Base-TX ( 4 x Hi-PoE (802.3af/at/bt) + 12 x PoE (802.3af/at) ), 2 x RJ45 10/100/1000 Base-TX - Uplink, 2 x port SFP 1000 Base-X - Uplink
Transmission speed:	10 / 100 / 1000 Mbps - 16 LAN & PoE ports, 10 / 100 / 1000 Mbps - 2 RJ45 (Uplink) ports, 1000 Mbps - 2 SFP (Uplink) ports
Maximal output power:	90 W / port Hi-PoE - 1 ... 4 ports 30 W / port PoE - 5 ... 16 ports
Maximal total power:	225 W
MAC addresses table:	8k
Management:
Operation modes:	Extend Off : 100 m, 1000 Mbps - 1 ... 16 ports Extend On : 300 m, 10 Mbps - 13 ... 16 ports Port Isolation : 1 ... 16 ports Watchdog PoE : 1 ... 16 ports
LED diodes:	Power, Link/Act, PoE, PoE Max
Main features:	MDI/MDI-X auto detection feature - auto detecting the data transmission mode Overvoltage protection : 6 kV - PoE ports EXTEND mode - 13 ... 16 ports Power supply PoE : - wires : 1-2, 3-6 - 5 ... 12 ports - wires : 1-2, 3-6, 4-5, 7-8 - 1 ... 4, 13 ... 16 ports Port isolation PoE Watchdog / PD Alive mode - monitoring of the ports that power PoE devices and automatic restart by cutting off the power supply when an unresponsive device is detected Kensington-lock compatible
Certificates:	CE, FCC, RoHS
Housing:	Metal
Power supply:	100 ... 240 V AC, 50 / 60 Hz
Power consumption:	max. 250 W
Operation temp:	-10 °C ... 55 °C
Weight:	2.63 kg
Dimensions:	440 x 221 x 44 mm, RACK 19", 1U
Manufacturer / Brand:	Hikvision
SAP Code:	301801516
Guarantee:	3 years
