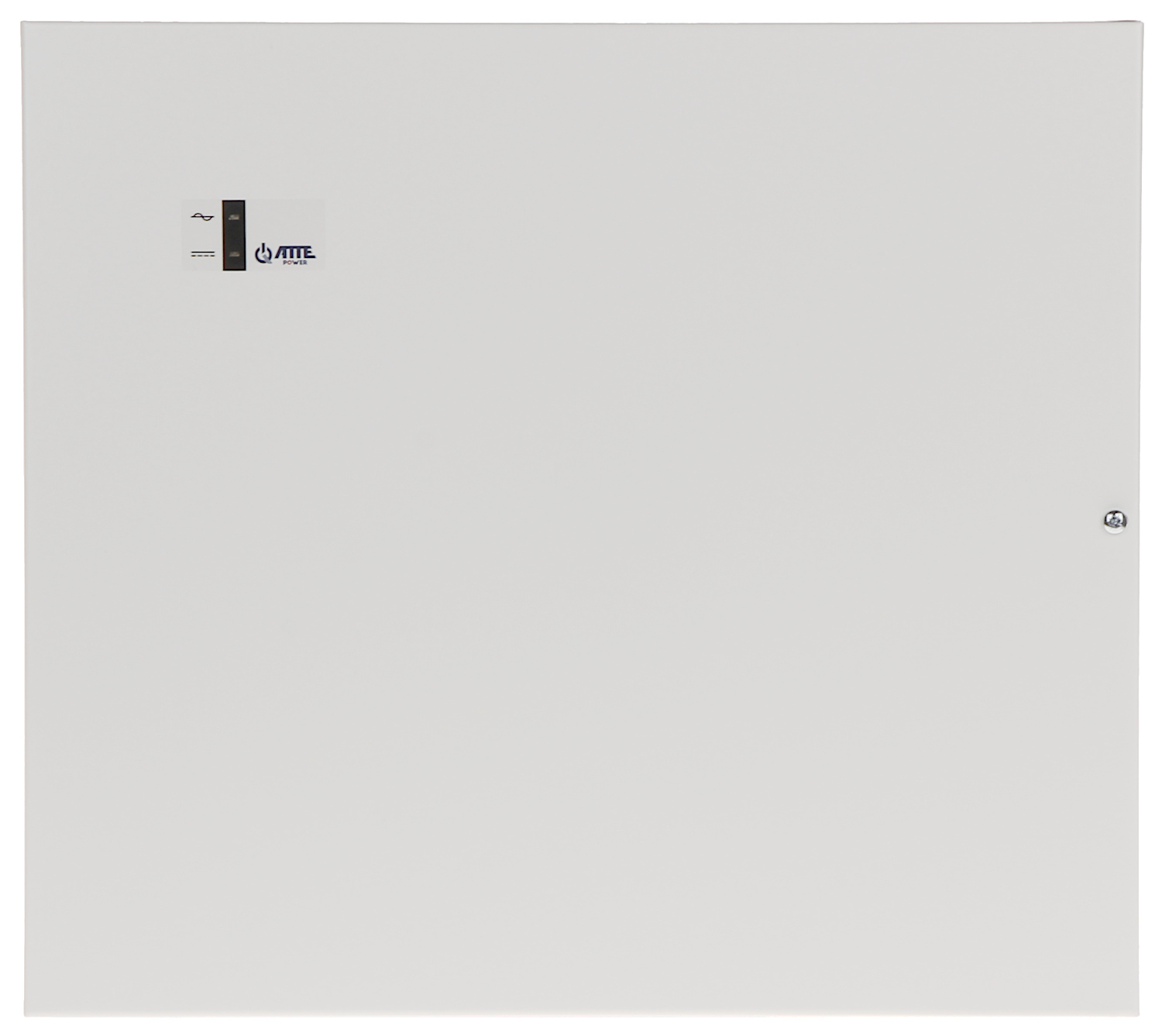

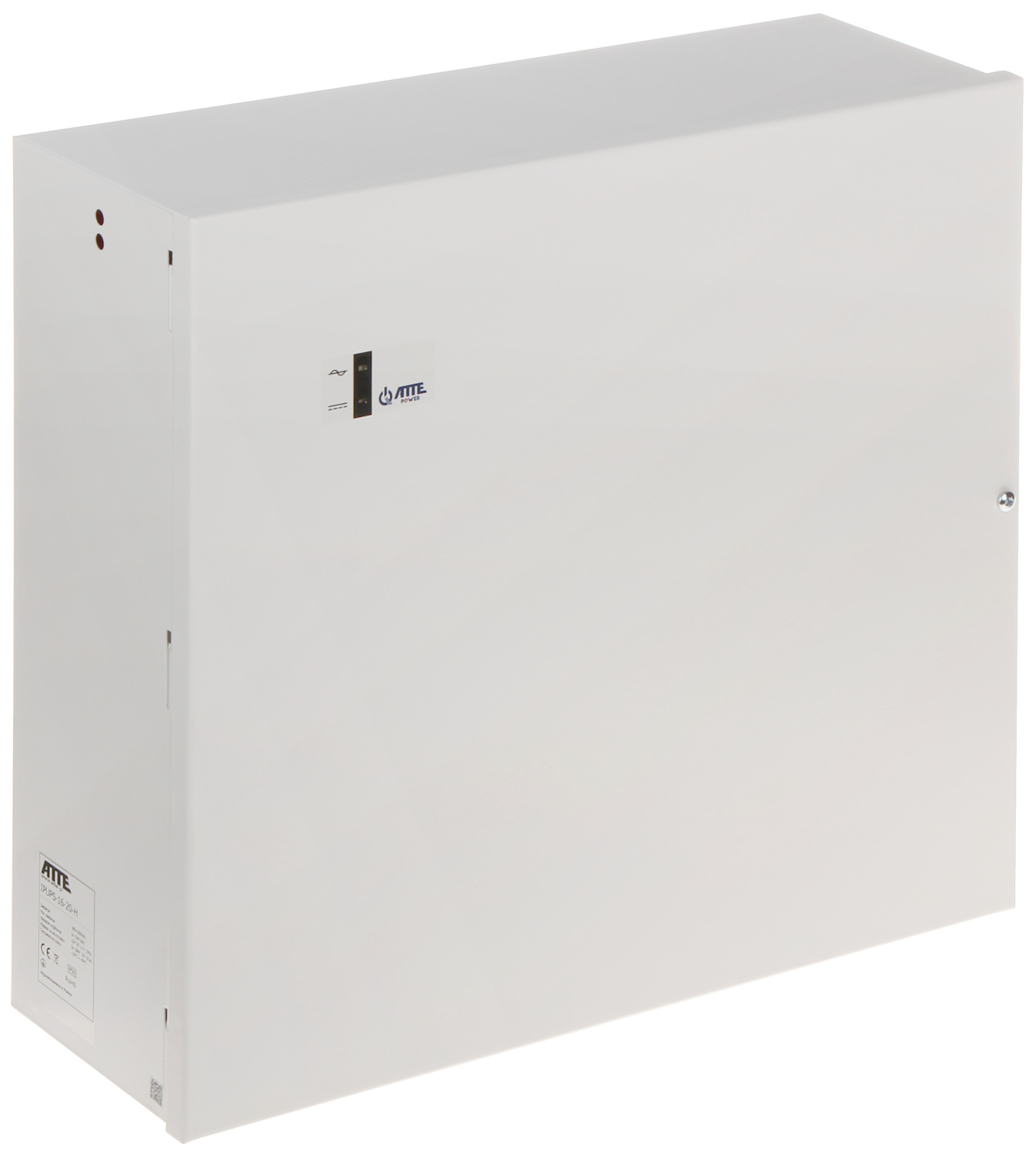

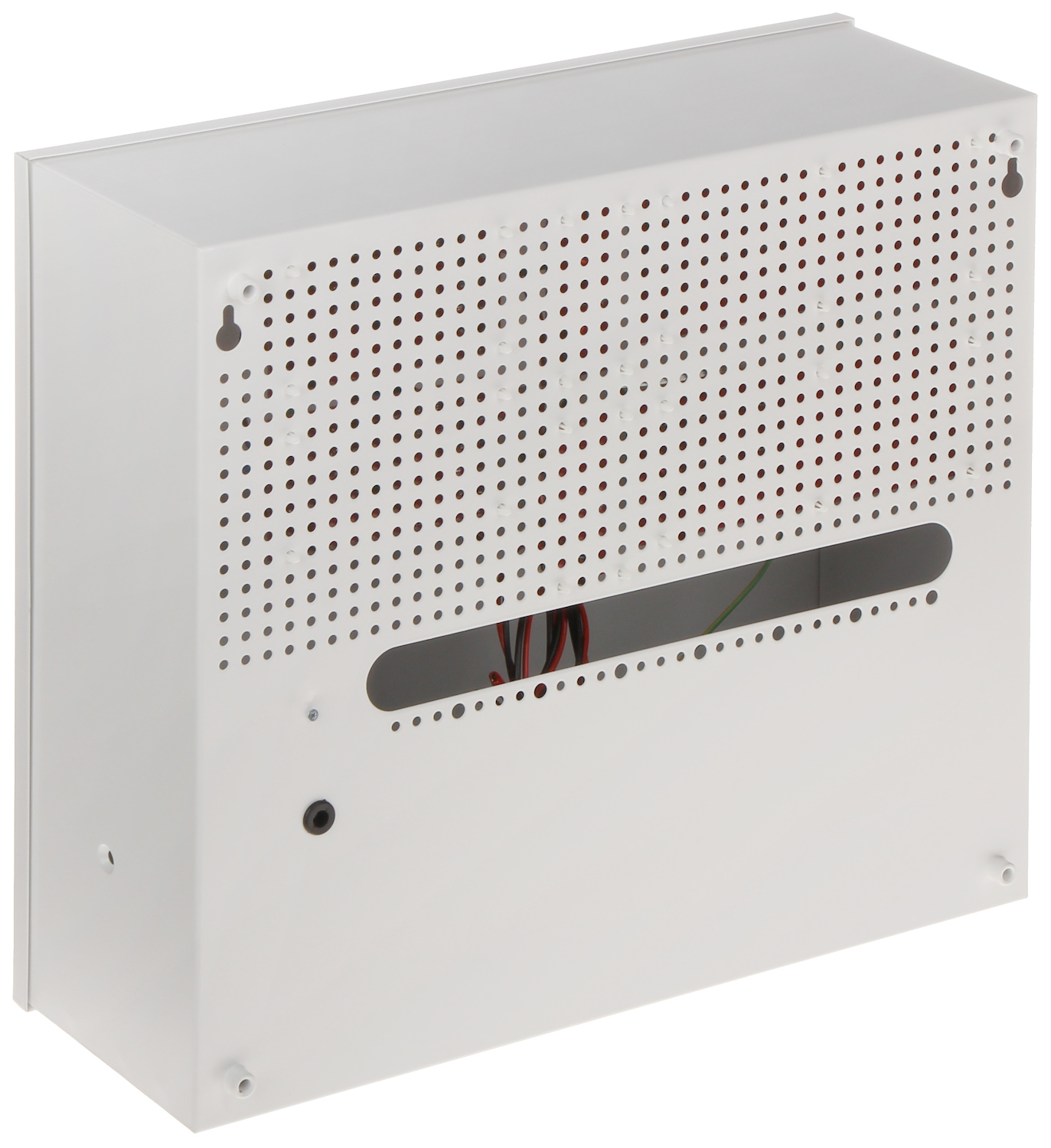

POE SWITCH WITH BUFFERED POWER SUPPLY IPUPS-16-20-H 16-PORT ATTE

€626.25

(Включая налог 21%)

Задать вопрос

КОД: IPUPS-16-20-H

Доступность: 3 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

LAN ports: 2 x RJ45 10/100/1000 Base-T - Uplink 16 x RJ45 10/100 Base-T, PoE 802.3af/at / Passive PoE ; Transmission speed: 10 / 100 / 1000 Mbps : 2 x Uplink port 10 / 100 Mbps : 16 x LAN & PoE port ; Maximal total power: 130 W ;

LAN ports:	2 x RJ45 10/100/1000 Base-T - Uplink 16 x RJ45 10/100 Base-T, PoE 802.3af/at / Passive PoE
Management:
LED diodes:	2 x 230V AC IN, 2 x 12V DC OUT, 2 x 48V DC OUT, 2 x CHARGING (battery charging), 20 x LAN, 4 x Gigabit Ethernet
Transmission speed:	10 / 100 / 1000 Mbps : 2 x Uplink port 10 / 100 Mbps : 16 x LAN & PoE port
Maximal output power:	40 W @ Passive PoE - LAN & PoE ports, 30 W @ PoE (802.3af/at) - LAN & PoE ports
Maximal total power:	130 W

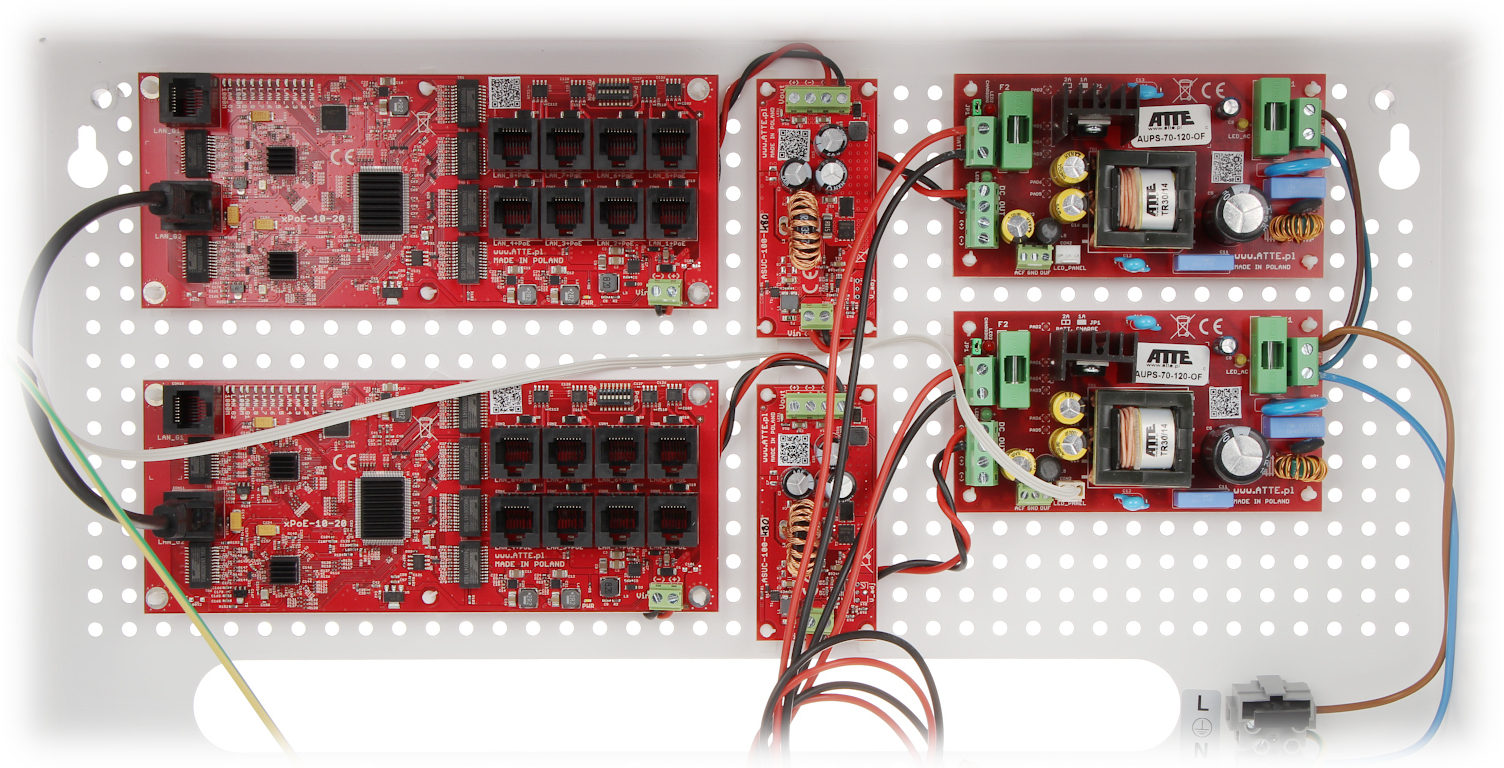

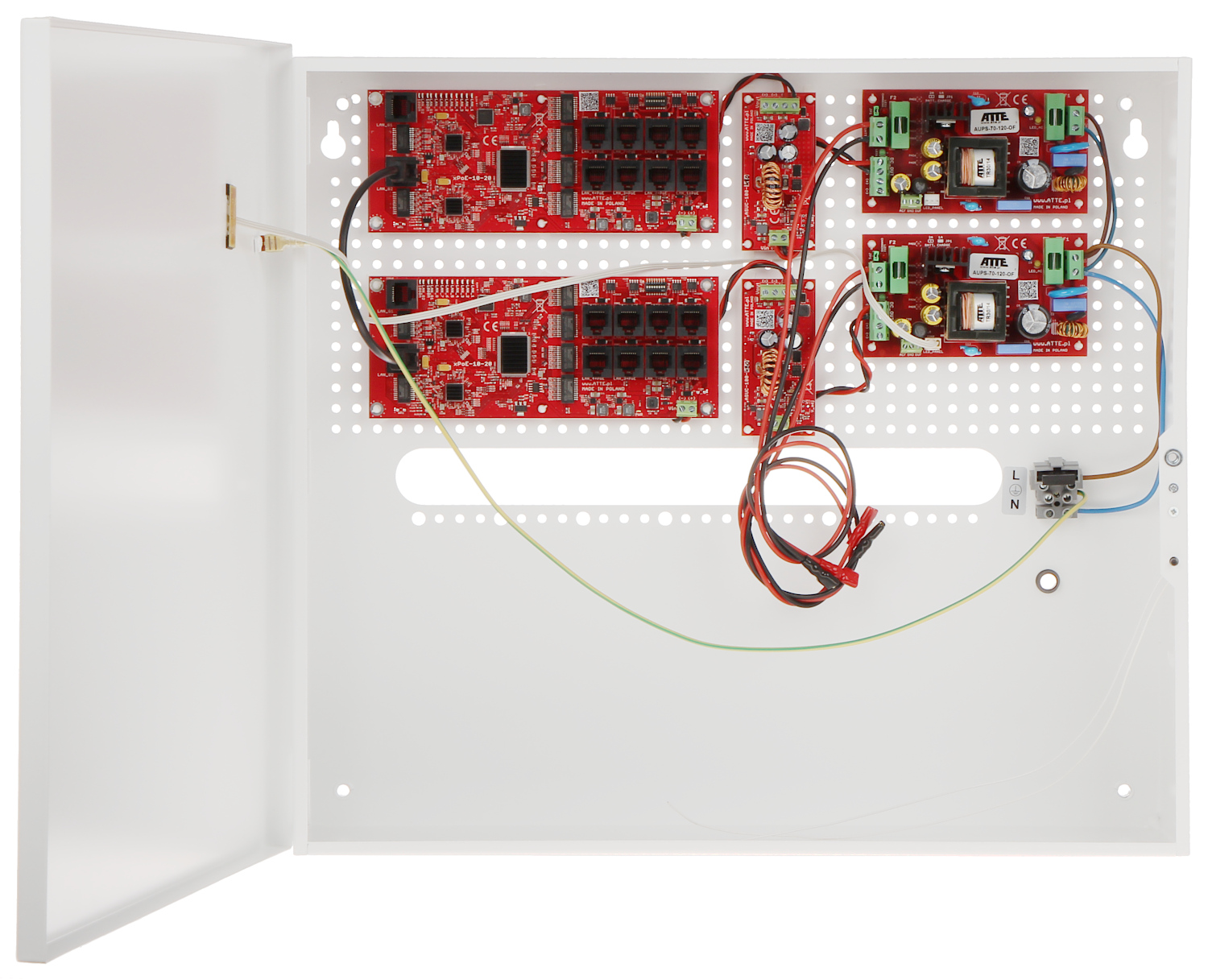

Main features:	The ability to independently turn on and off the PoE power for each of the LAN 1 ... LAN 8 ports The modular design streamlines service tasks and enables quick and easy system expansion The raster system of module assembly facilitates the expansion of the device by further modules 2 x Place for battery : 12 V / 18 Ah Battery charging current : 1 A / 2 A - (set with the JP1 jumper) Technical outputs of the OC type signaling loss of voltage at the PSU output (OUF) and loss of voltage in the 230V mains (ACF) Protection against deep discharge of the battery PSU thermal protection : 130 °C TAMPER switch indicating open the cover
Power supply:	230 V AC
Weight:	4.7 kg
Dimensions:	455 x 405 x 150 mm
Manufacturer / Brand:	ATTE
Guarantee:	2 years
