Frequency range: | 2.4 GHz ... 2.4835 GHz |
Antenna type: | 2 x 5 dBi |
Standards: | IEEE 802.11 b/g/n |
Baud rates: | 300 Mbps |
Processor: | Atheros |
Modulation type: | CCK, OFDM, BPSK, QPSK |

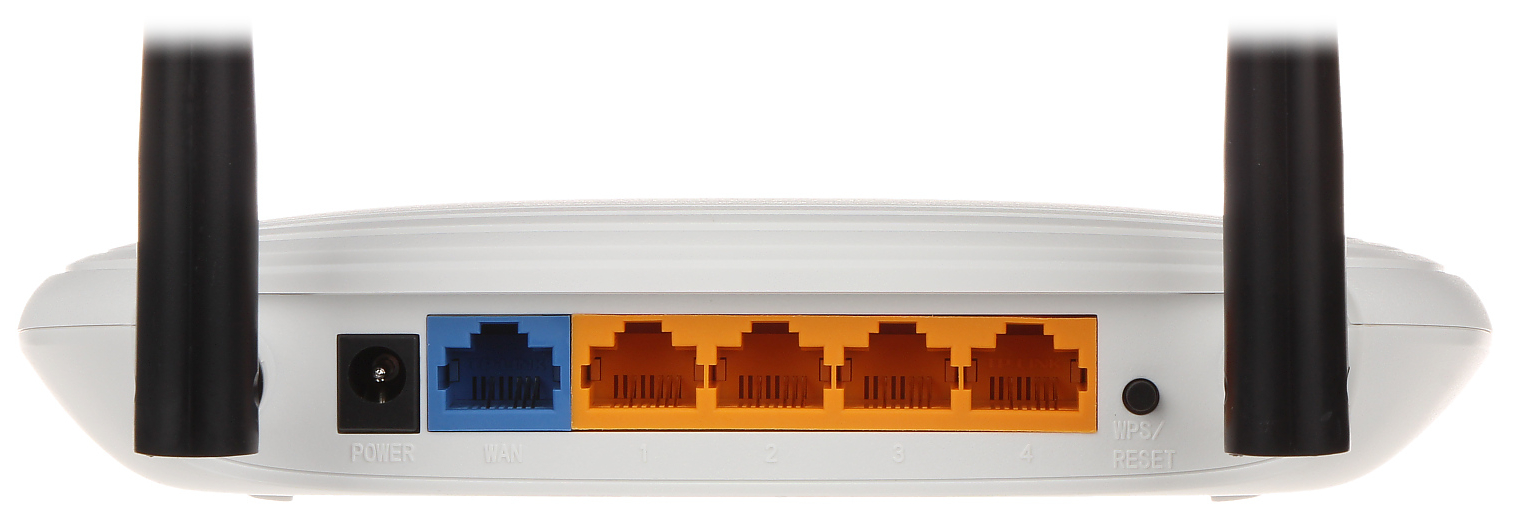

LAN ports: | 1 x 10/100 Mbps Uplink 4 x 10/100 Mbps LAN |
LED indicators: | Power, System, LAN, WLAN, Act/Link (4 x Ethernet) |
Receiver sensitivity: | |
DDNS: | |
DHCP server: | ![]() |
Firmware update: | ![]() |
Operation modes: | Router, Bridge WDS |
Protections: | 64/128/152-bit WEP, WPA/WPA2 Table of access / access-deny according to MAC addresses of client cards Internet access filtering via filters of IP addresses, MAC addresses and ports of TCP/IP protocol |
Management interface: | Web browser |
Transmitter power: | max. 20 dBm |

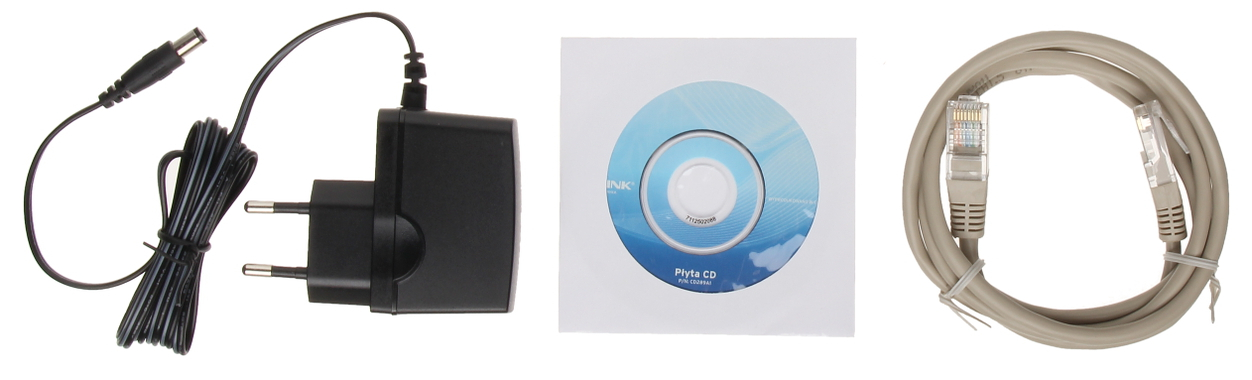

Power supply: | 9 V DC / 600 mA (power adapter included) |
Main features: | |
Operation temp: | 0 °C ... 40 °C |
Permissible relative humidity: | max. 90 % (non-condensing) |
Weight: | 0.170 kg |
Dimensions: | 192 x 130 x 33 mm |
Manufacturer / Brand: | TP-LINK |
Guarantee: | 3 years |
