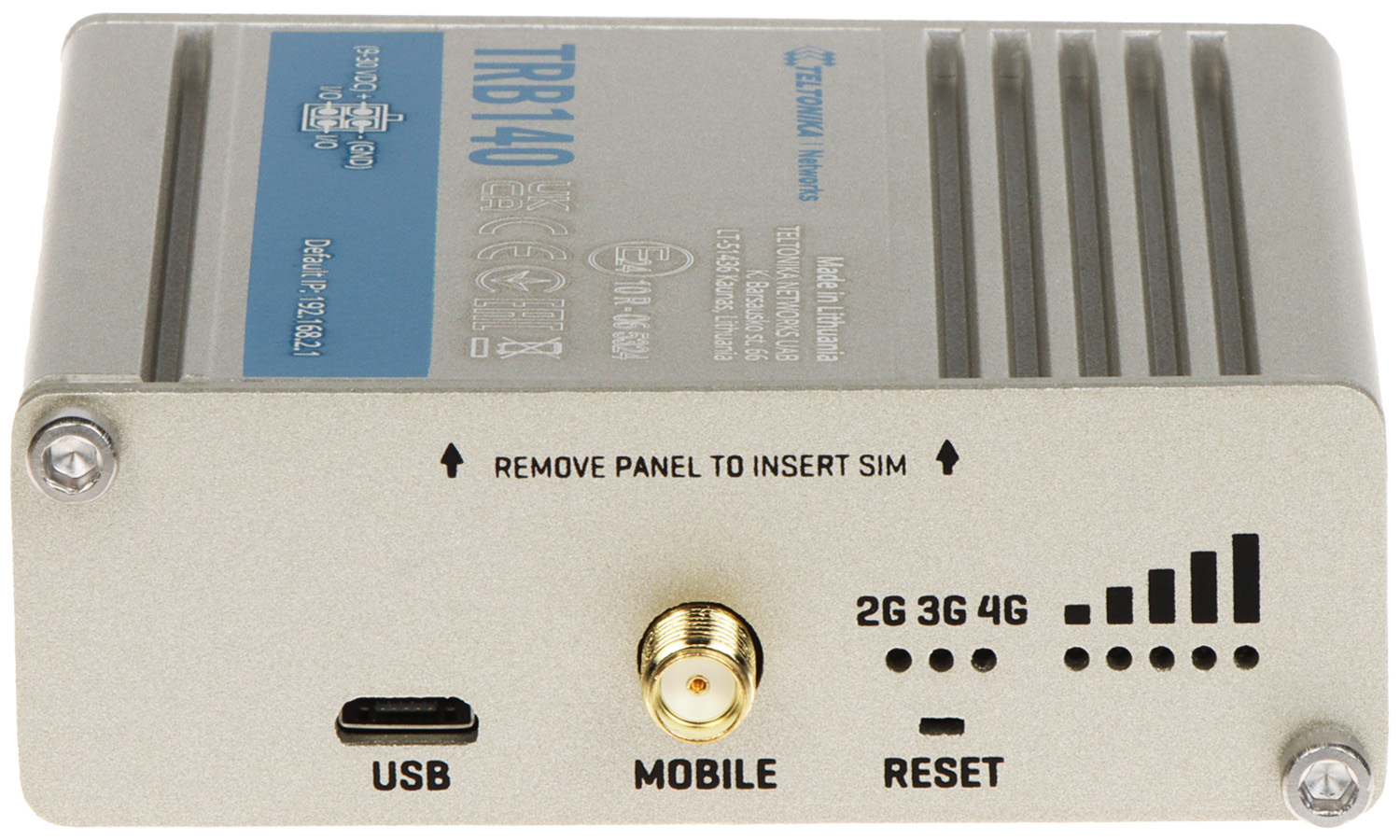

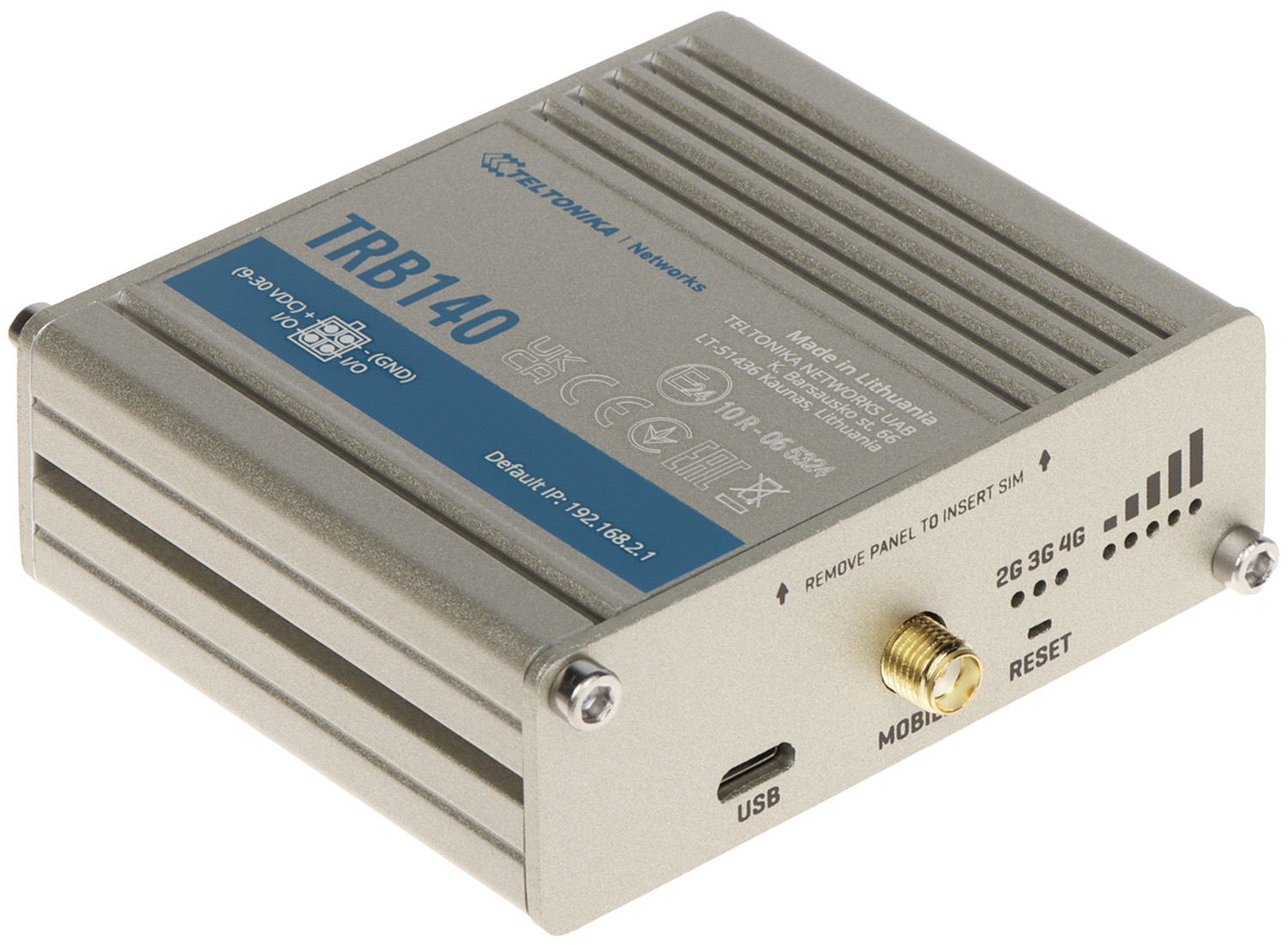

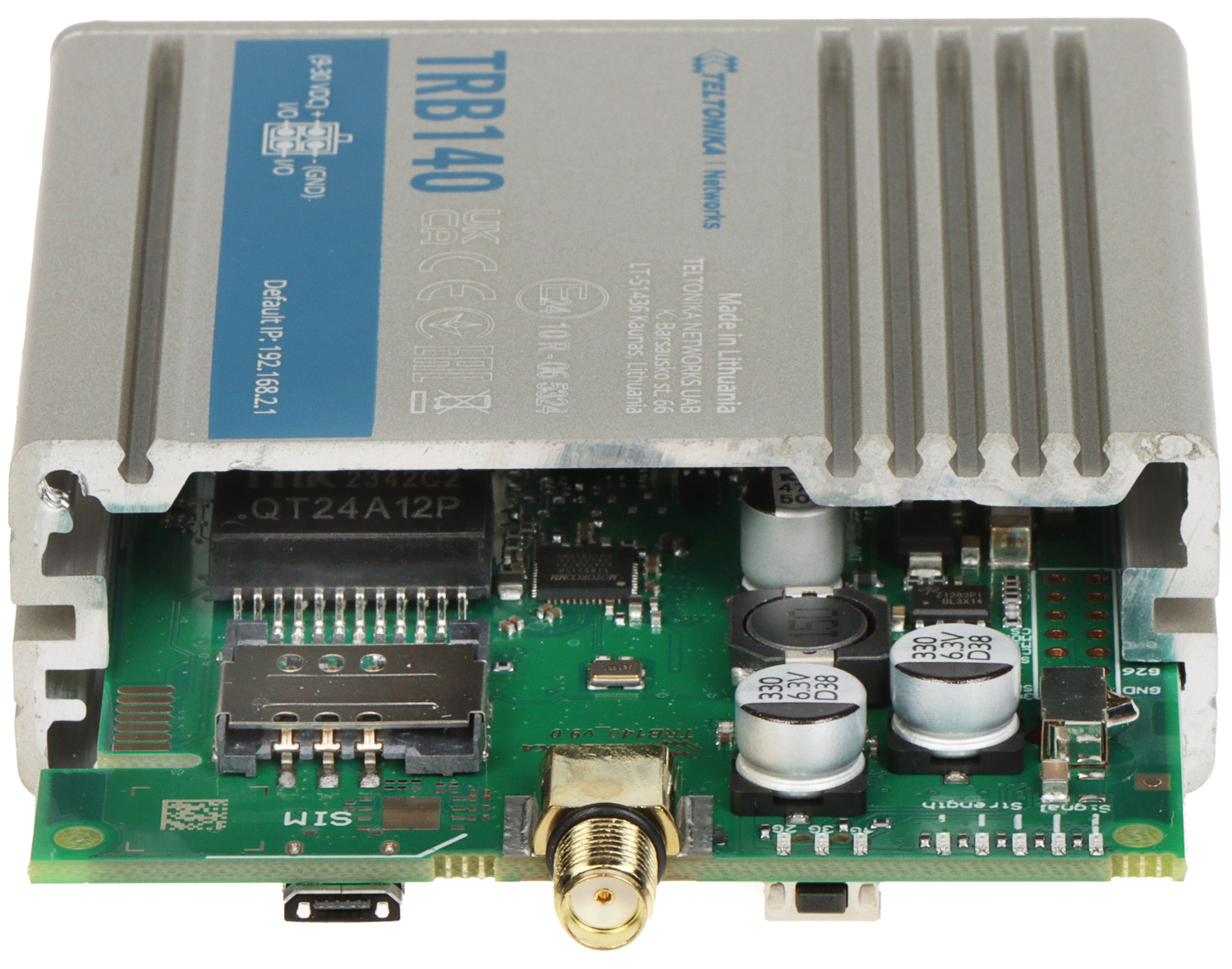

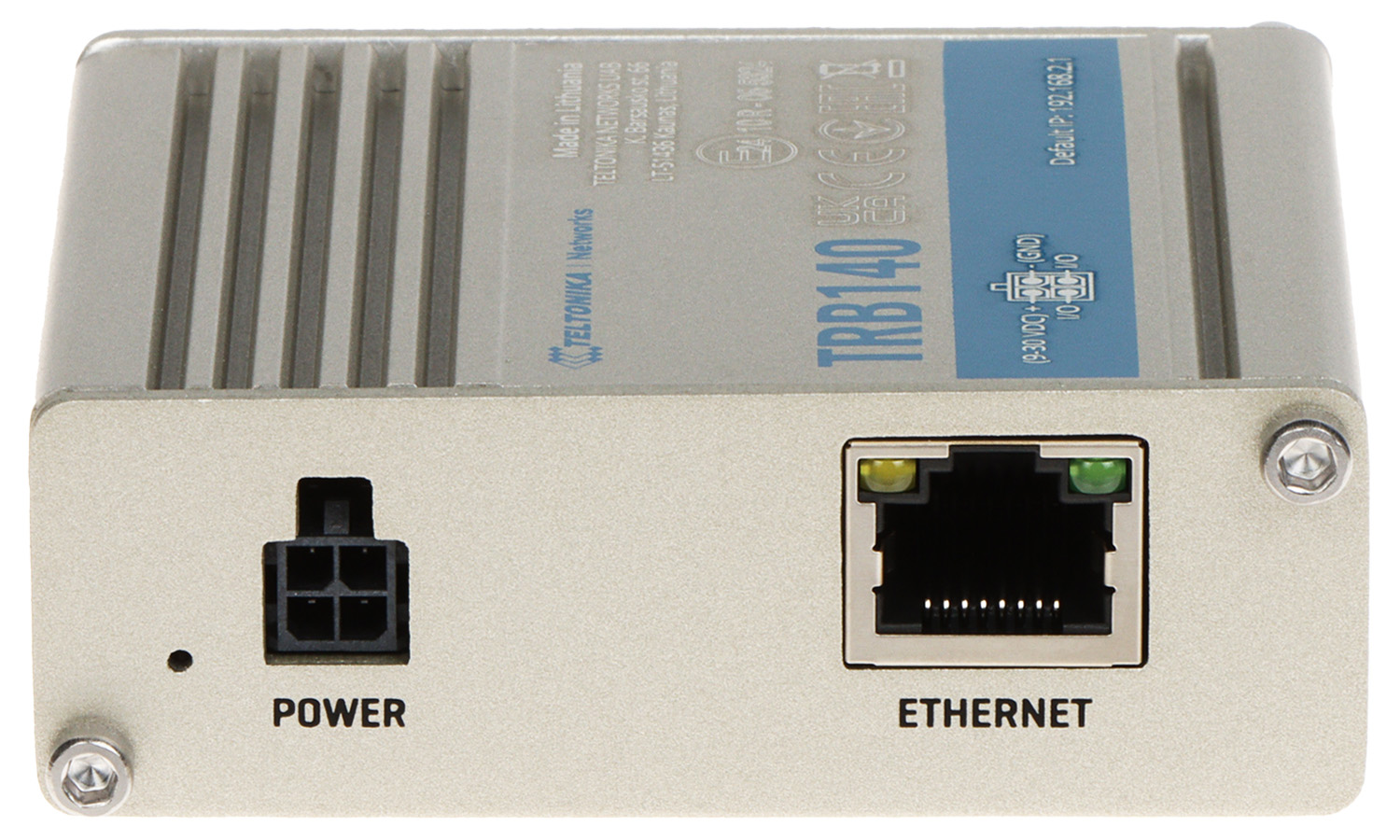

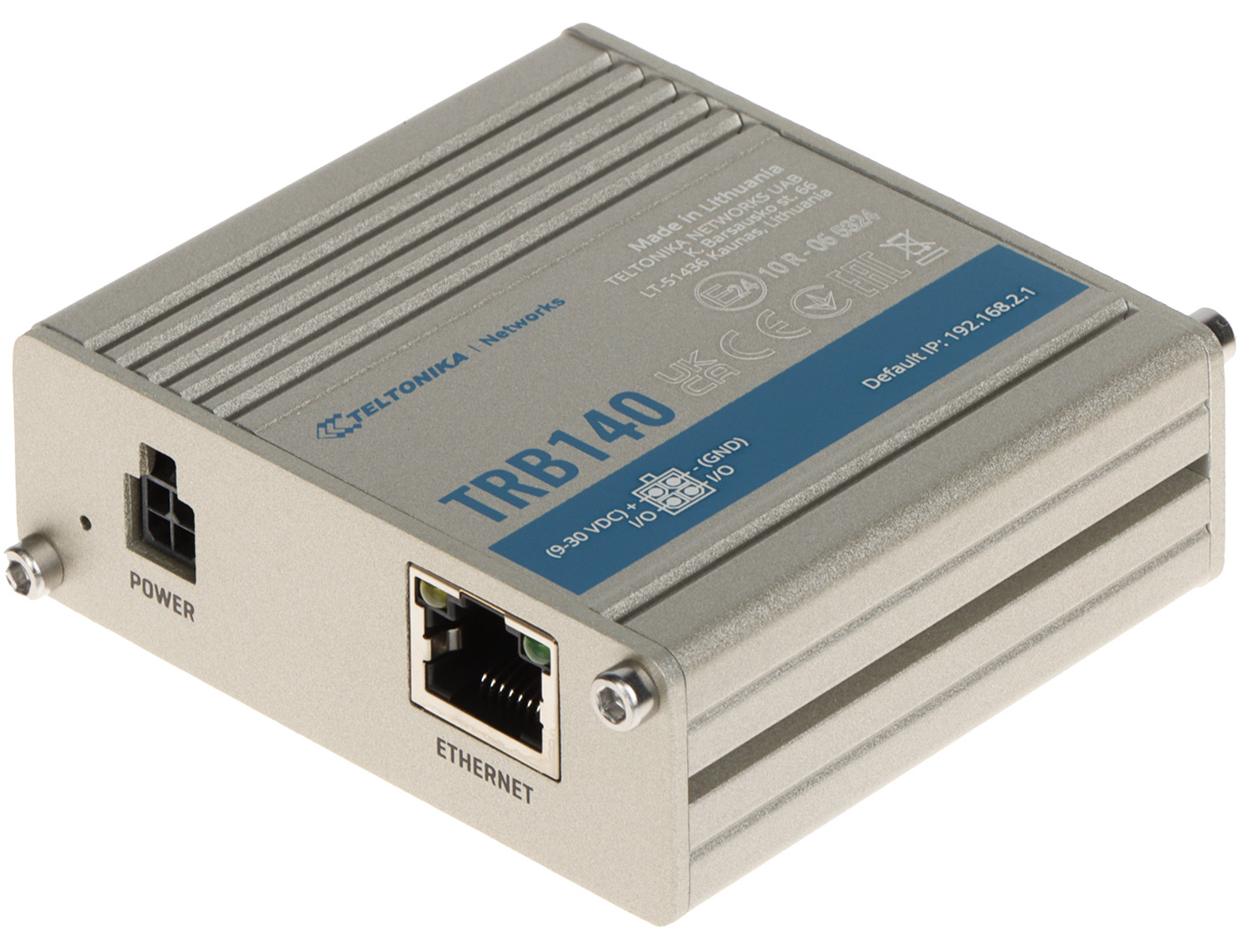

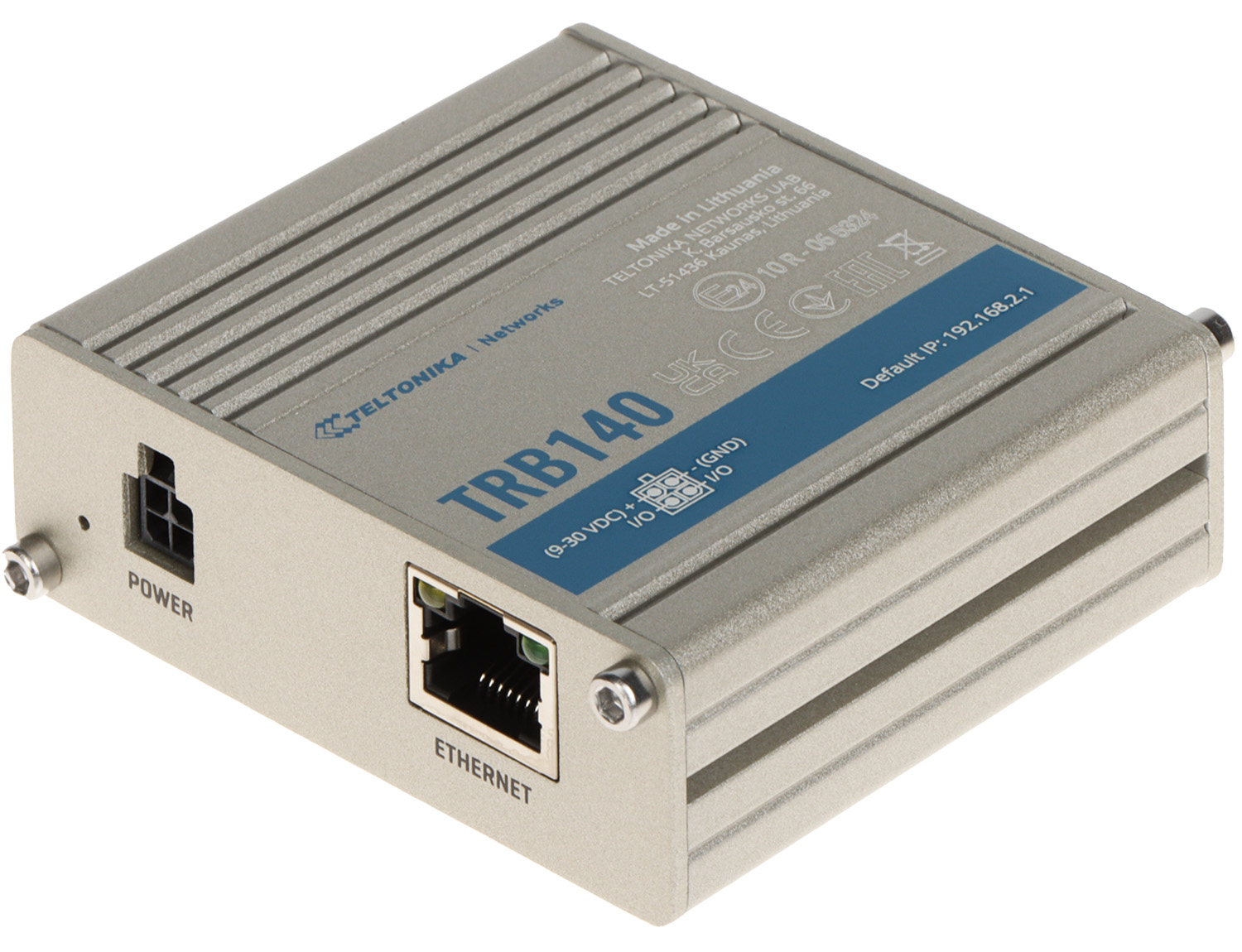

4G/LTE GATEWAY TRB140 Teltonika

€164.64

(Включая налог 21%)

Задать вопрос

КОД: TRB140

Доступность: 16 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

Frequency range: 699 ... 868 MHz, 1850 ... 2690 MHz ; Antenna type: 1 x Omnidirectional antenna 4G LTE ; Standards: LTE Cat. 4, 3G WCDMA, 2G GSM ; Baud rates: 150 / 42 / 0.236 Mbps (4G / 3G / 2G) ; SIM card slot: 1 x Mini SIM – 2FF ; USB port: micro USB ; Main features: Support for VoIP technology, Support for IoT (Internet of Things) systems, 1 digital input / output, 4-pin industrial power socket, Wide range of supported supply voltages ;

Frequency range:	699 ... 868 MHz, 1850 ... 2690 MHz
Antenna type:	1 x Omnidirectional antenna 4G LTE - 1 dBi (SMA connector)
Standards:	LTE Cat. 4, 3G WCDMA, 2G GSM
Baud rates:	150 / 42 / 0.236 Mbps (4G / 3G / 2G)
LAN ports:	1 x 10 / 100 / 1000 Mbps - Ethernet
Transmitter power:	≤ 23 dBm @ 4G LTE ≤ 24 dBm @ 3G WCDMA ≤ 33 dBm @ 2G GSM
LED indicators:	Power, Link/Act - LAN, 2G, 3G, 4G, 5 x Signal indicator
Network type:	4G LTE-FDD: B1/3/7/8/20/28A 4G LTE-TDD: B38/40/41 3G B1/B8 2G B3/B8
LTE:
SIM card slot:	1 x Mini SIM – 2FF
DDNS:	Support > 25
DHCP server:
USB port:	micro USB
Protections:	IEEE 802.1x and Radius Authentication MAC addresses filtering Firewall Protection against DDOS, SYN, SSH, HTTP/HTTPS attacks Mobile quota control White list / Black list Access control Protection against reverse polarity connection Overvoltage protection > 31 V DC / 10 µs
Management interface:	Web browser, Teltonika RMS application, SMS
Default IP address:	192.168.2.1
Operating system:	RutOS (Linux OS based)
Firmware update:

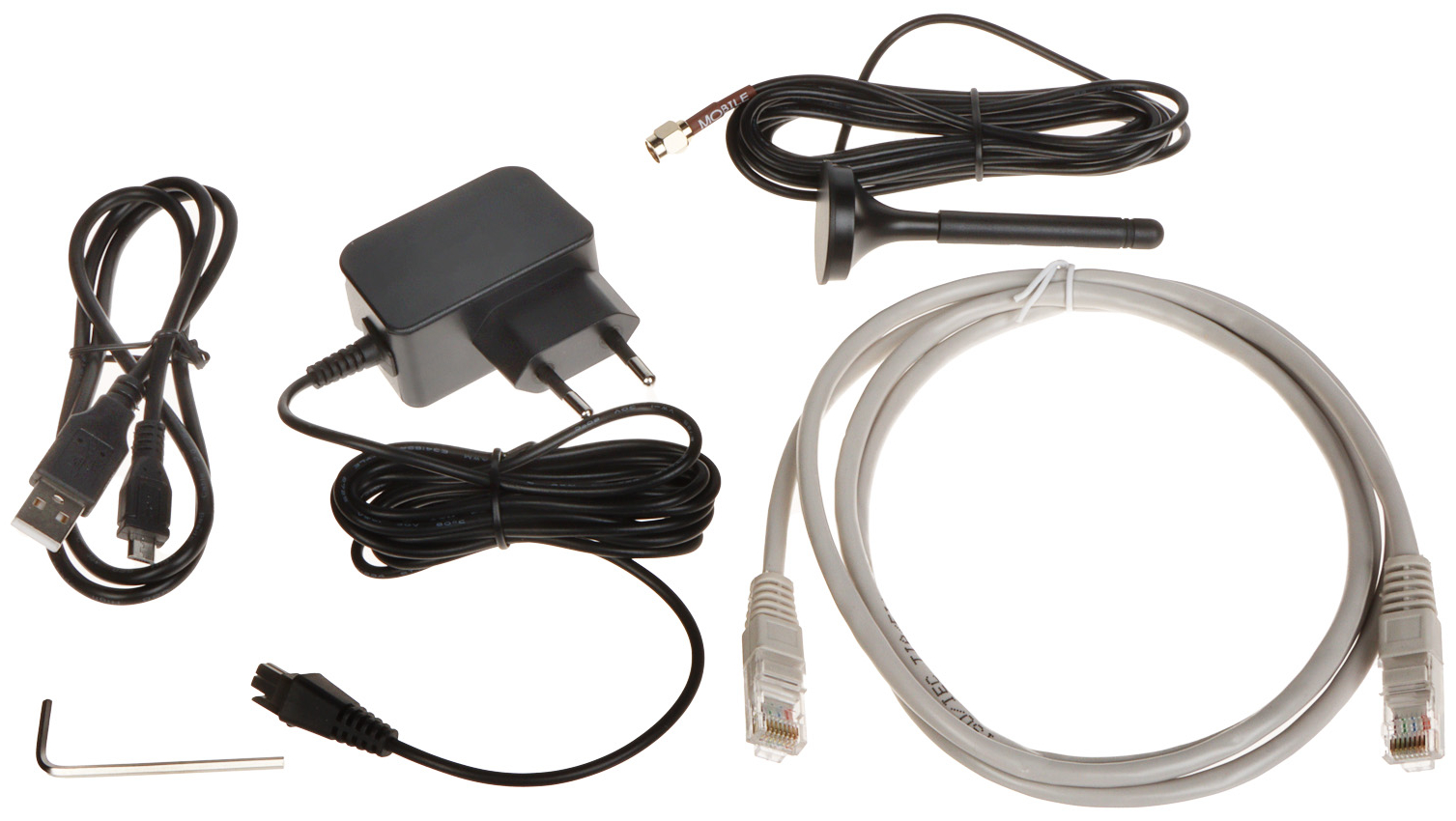

Main features:	Compliance with the Modbus, DLMS, DNP3, OPC UA protocol MDI/MDI-X auto detection feature - auto detecting the data transmission mode Static routing Support for VoIP technology, View topology and network status WMM support (QoS mechanism of the 802.11e standard) DHCP Relay support VLAN support VPN networks: IPsec VPN, L2TP VPN, PPTP VPN, Open VPN Compliance with the MQTT protocol SNMP v1/v2/v3/Trap Support for IoT (Internet of Things) systems, Configuration using the Teltonika RMS application Virtual network interface - micro USB port 1 digital input / output - ability to set certain I/O conditions to initiate event, RESET button Durable aluminum housing Shock-proof Industrial wide temperature design. 4-pin industrial power socket, Wide range of supported supply voltages "Index of Protection" : IP30 Ethernet cable included USB A / micro USB B cable included
Power supply:	9 V DC / 1 A (power adapter included) 9 ... 30 V DC 9 ... 30 V DC - Passive PoE, Powering from LAN1
Power consumption:	≤ 5 W
Operation temp:	-40 °C ... 75 °C
Permissible relative humidity:	10 % ... 90 % (non-condensing)
Weight:	0.14 kg
Dimensions:	75 x 72 x 25 mm
Manufacturer / Brand:	Teltonika
Guarantee:	2 years
