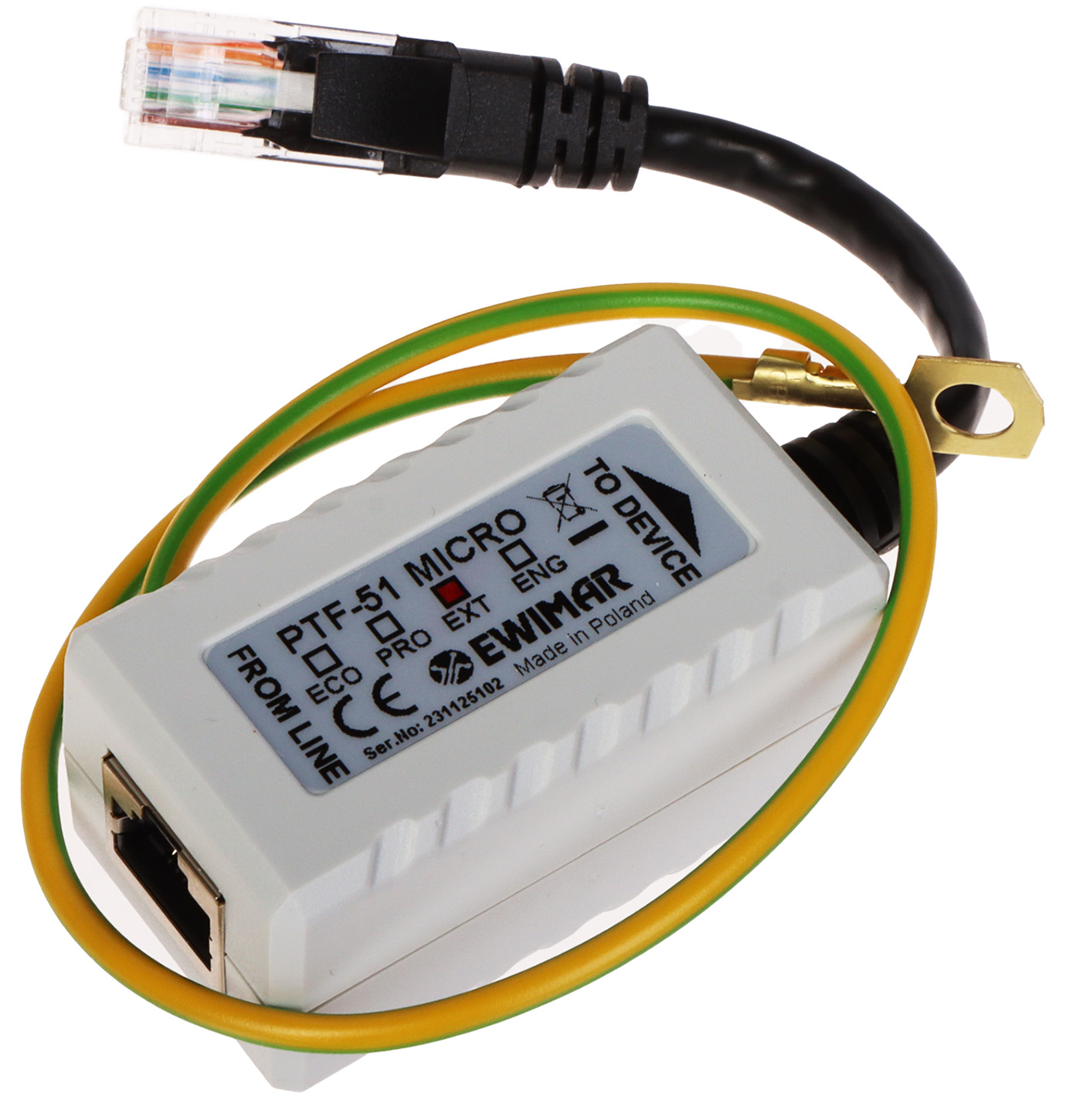

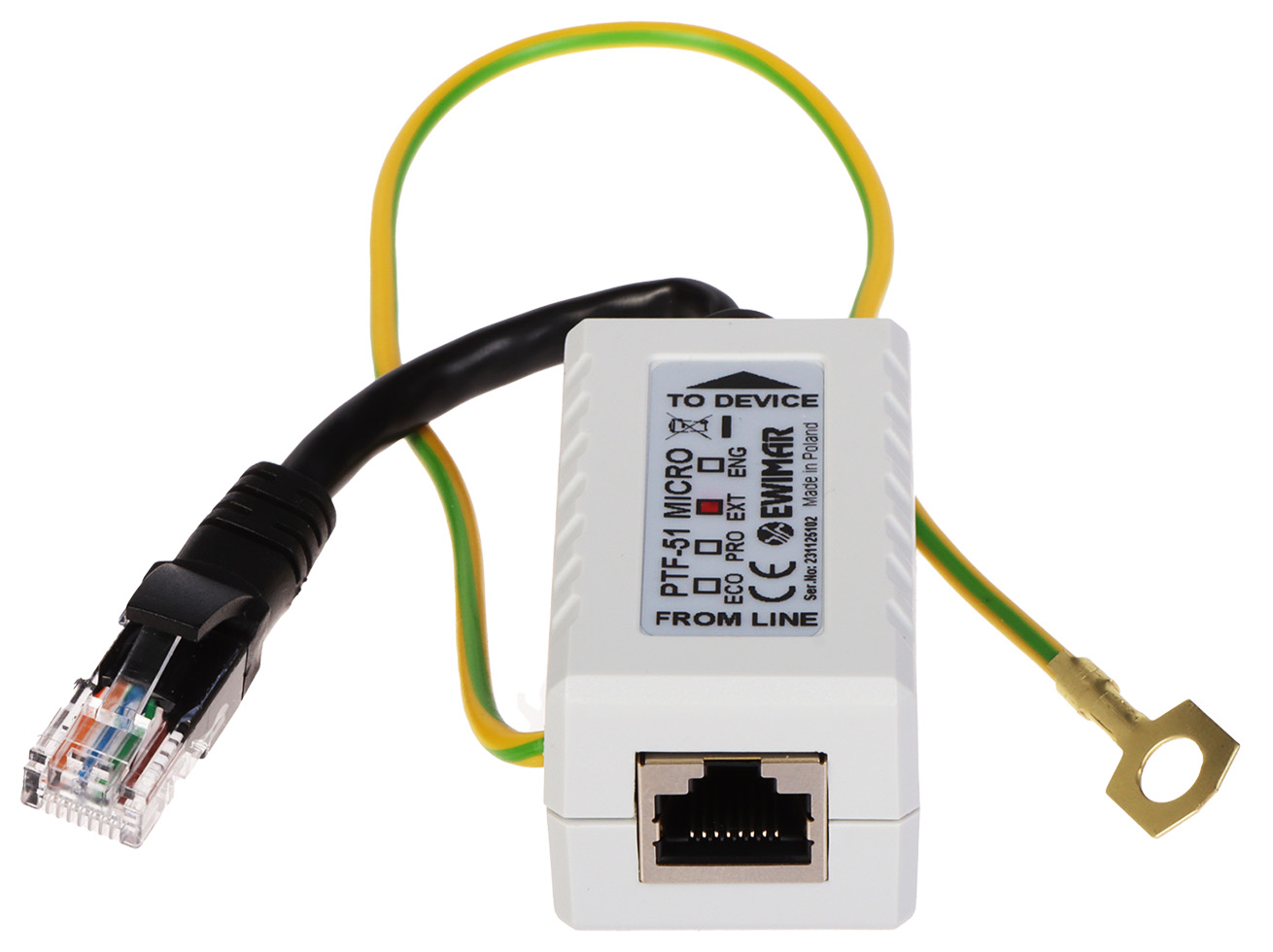

Device is designed to overvoltage protection of devices connected to the Ethernet 10/100 Mb/s networks - protects 2 pairs of UTP cable; Number of channels: 1 ; Nominal voltage (line-ground): 90 V DC ; Voltage protection level line-PG: ≤ 600 V ; Nominal discharge current (line-PG): 100 A - 8/20 µs ; Manufacturer / Brand: EWIMAR ;
| Number of channels: | 1 |
| Sockets type: | (RJ45) 10/100 Mb FTP cat. 6 |
| Nominal voltage (line-ground): | 90 V DC |
| Maximal voltage line-PG: | 110 V DC |
| Voltage protection level line-PG: | ≤ 600 V |
| Nominal discharge current (line-PG): | 100 A - 8/20 µs |
| Nominal voltage (line-line): | |
| Maximal voltage (line-line): | |
| Protected wires: | 1-2, 3-6 - data line |
| Protected pairs of wires: | (1+2)-(3+6), (4+5)-(7+8) - PoE |
| Connectors type: | |
| Length of grounding cable: | 0.29 m |
| Housing: | Plastic |
| Weight: | 0.05 kg |
| Dimensions: | 57 x 31 x 27 mm |
| Manufacturer / Brand: | EWIMAR |
| Guarantee: | 2 years |
Brand:
Ewimar
