In particular, the protector is designed to protect IP cameras powered remotely in PoE technology, i.e. through unused pairs of wires in the transmission cable; Number of channels: 4 ; Voltage protection level line-line: ≤ 40 V - 1 kV/µs [C3] ; Voltage protection level line-PG: ≤ 600 V - 1 kV/µs [C3] ; Nominal power voltage: 50 V ; Nominal current: 400 mA ; Voltage protection level line-line for power: ≤ 95 V - 1 kV/µs [C3] ; Voltage protection level line-PG for power: ≤ 1000 V - 1.2/50 µs [C2] ;
| Number of channels: | 4 |
| Signal line - wires 1, 2, 3, 6: | |
| Transmission speed: | 10 / 100 Mbps |
| Rated voltage: | 5 V |
| Maximal voltage: | 6 V |
| Voltage protection level line-line: | ≤ 40 V - 1 kV/µs [C3] |
| Voltage protection level line-PG: | ≤ 600 V - 1 kV/µs [C3] |
| Nominal discharge current (line-line): | 20 A - 10/1000 µs [C3] |
| Nominal discharge current (line-PG): | 20 A - 10/1000 µs [C3] |
| Power line - wires 4, 5 and 7, 8: | |
| Nominal power voltage: | 50 V |
| Maximal power voltage: | 56 V |
| Nominal current: | 400 mA |
| Voltage protection level line-line for power: | ≤ 95 V - 1 kV/µs [C3] |
| Voltage protection level line-PG for power: | ≤ 1000 V - 1.2/50 µs [C2] |
| Nominal discharge current line-line for power: | 10 A - 10/1000 µs [C3] |
| Nominal discharge current for power (line-PG): | 2 kA - 8/20 µs [C2] |
| General information: | |
| Protection parameters compliance: | Compliance with PN-EN61643-21 |

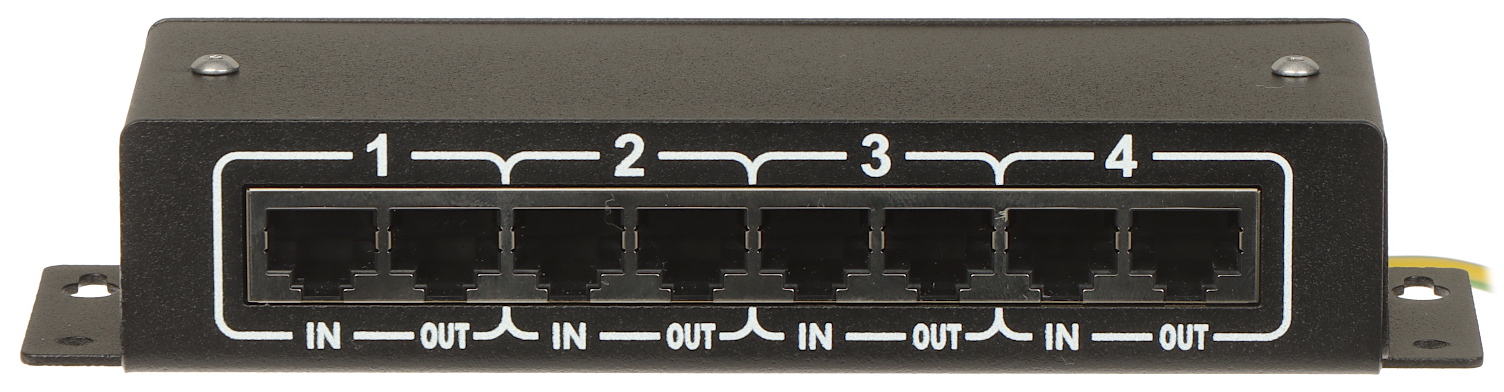

| Sockets type: | 8 x RJ-45 shielded socket (8P8C) ( 4 Inputs, 4 Outputs ) |
| Housing: | Metal, black |
| Weight: | 0.32 kg |
| Dimensions: | 167 x 50 x 32 mm |

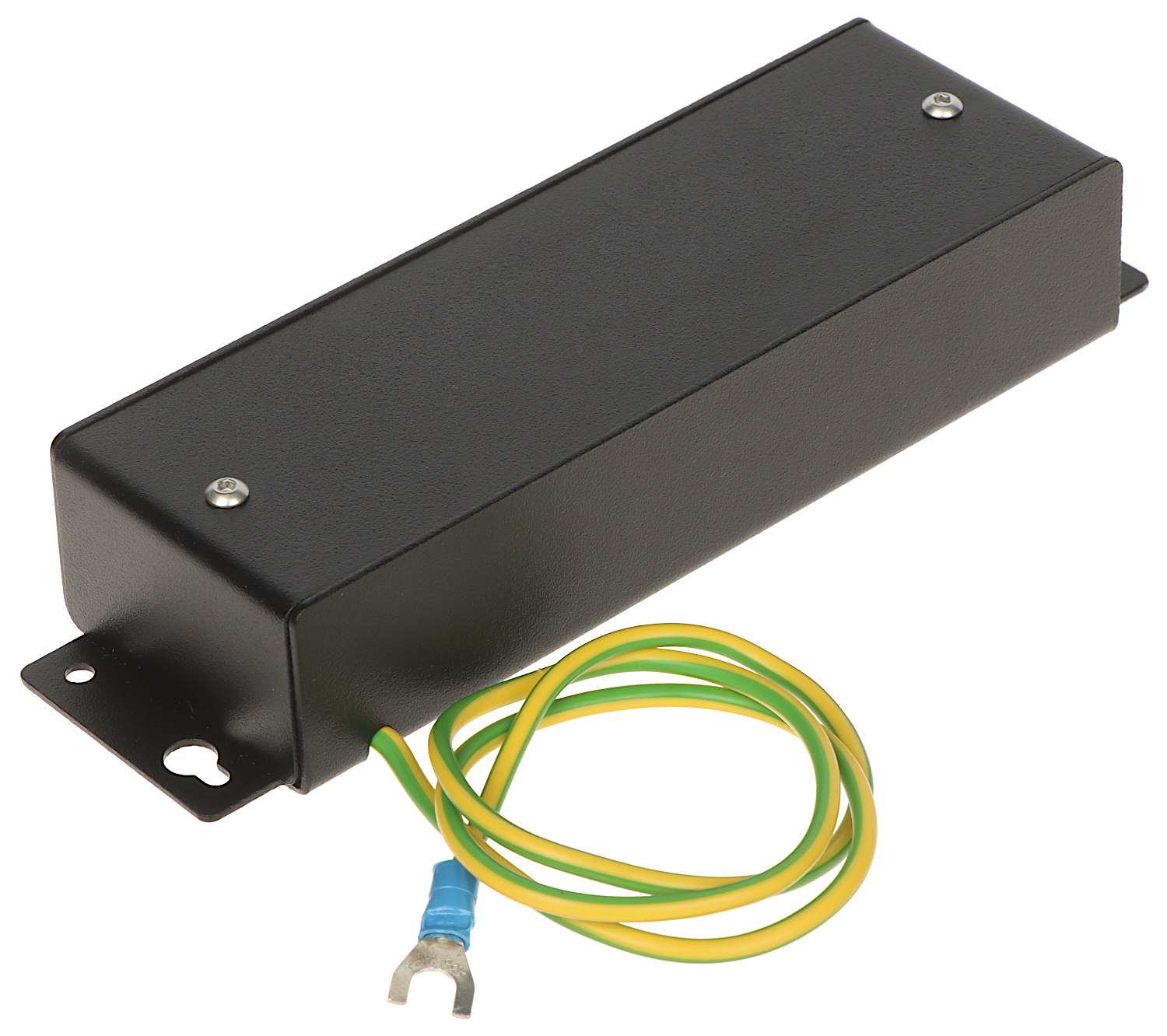

| Length of grounding cable: | 55 cm |
| Guarantee: | 2 years |
Brand:
AXON
