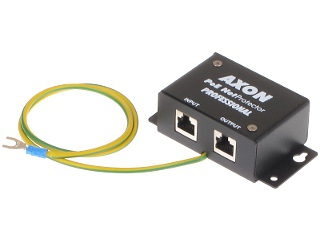

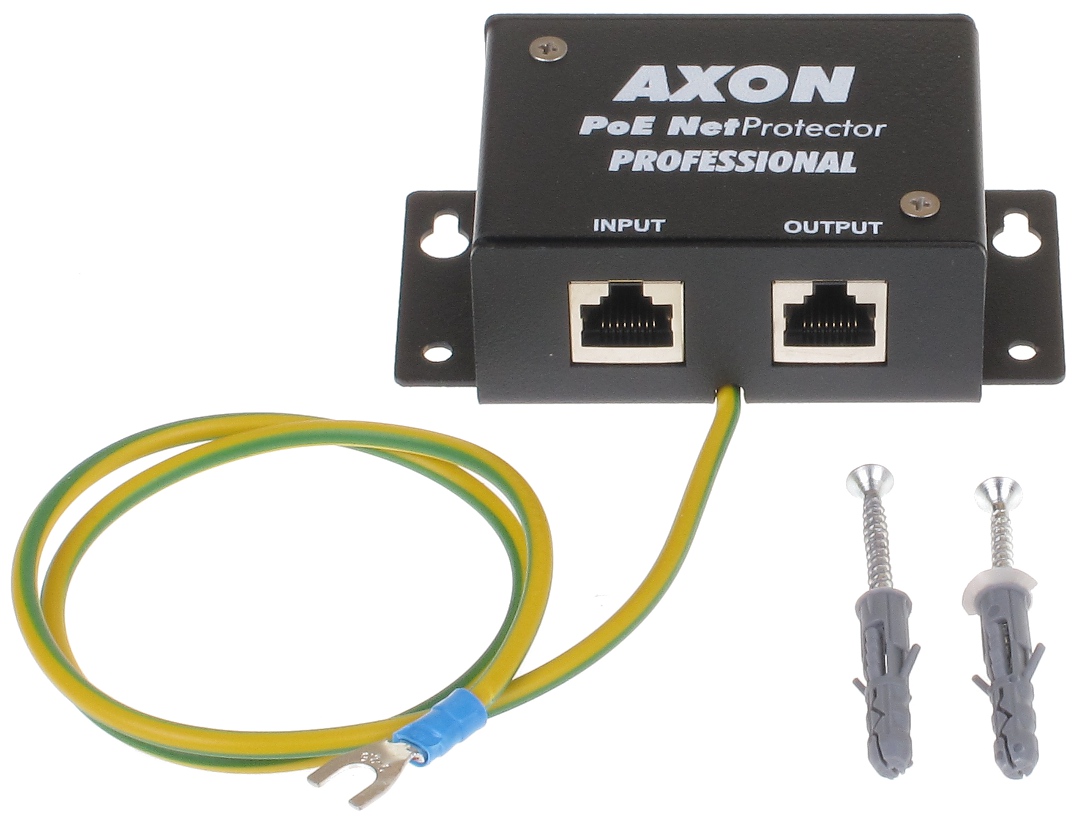

Device is designed to overvoltage protection of devices connected to the Ethernet 10/100/1000 Mb/s networks, powered remotely by unused pairs of wires; Rated voltage: 5 V ; Voltage protection level line-line: ≤ 40 - 1 kV/µs ; Voltage protection level line-PG: ≤ 600 - 1 kV/µs ; Nominal discharge current (line-line): 20 A (10/1000µs) ; Nominal power voltage: 50 V ;
| Signal line - wires 1, 2, 3, 6: | |
| Rated voltage: | 5 V |
| Maximal voltage: | 6 V |
| Voltage protection level line-line: | ≤ 40 - 1 kV/µs |
| Voltage protection level line-PG: | ≤ 600 - 1 kV/µs |
| Nominal discharge current (line-line): | 20 A (10/1000µs) |
| Nominal discharge current (line-PG): | 20 A (10/1000µs) |
| Power line - wires 4, 5 and 7, 8: | |
| Nominal power voltage: | 50 V |
| Maximal power voltage: | 56 V |
| Nominal current: | 400 mA |
| Nominal discharge current line-line for power: | 10 A (10/1000µs) |
| Nominal discharge current for power (line-PG): | 2 kA (8/20µs) |
| Voltage protection level line-line for power: | ≤ 95 V - 1 kV/µs |
| Voltage protection level line-PG for power: | ≤ 1000 V - 1 kV/µs |
| Norm: | Compliance with PN-EN61643-21 |
| Sockets types: | RJ45 (8P8C) |
| Housing: | Metal, black |
| Dimensions: | 95 x 50 x 30 mm |
| Weight: | 0.18 kg |
| Guarantee: | 2 years |
Brand:
AXON
