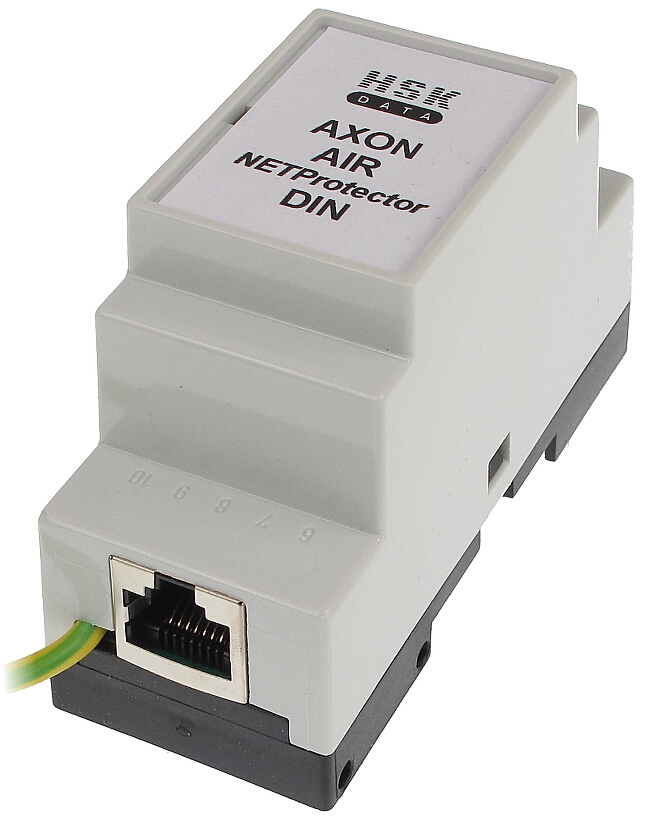

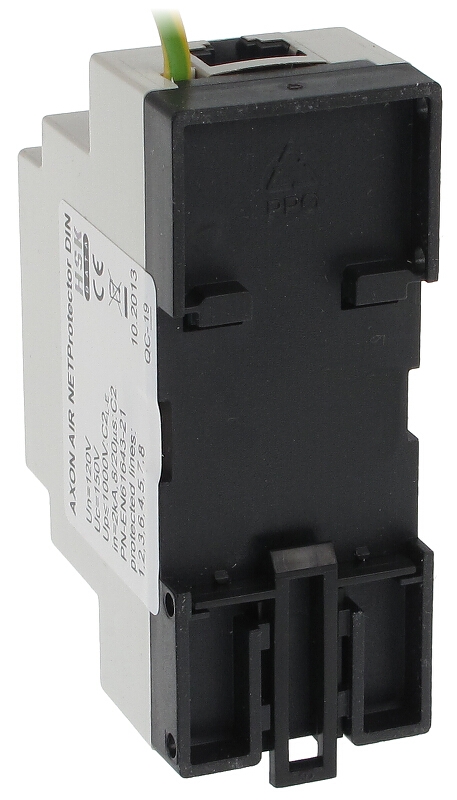

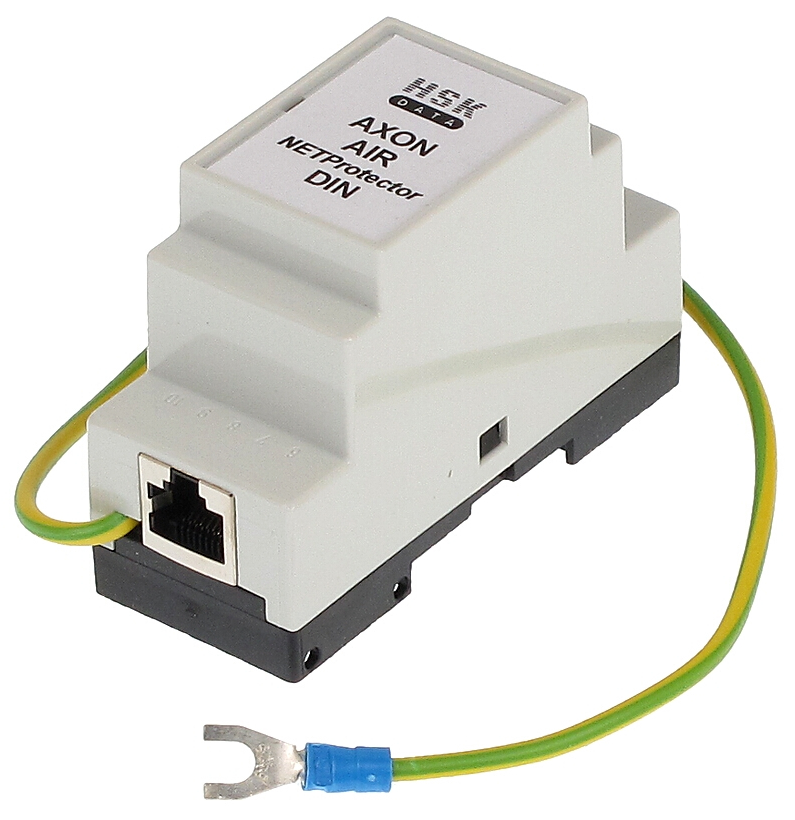

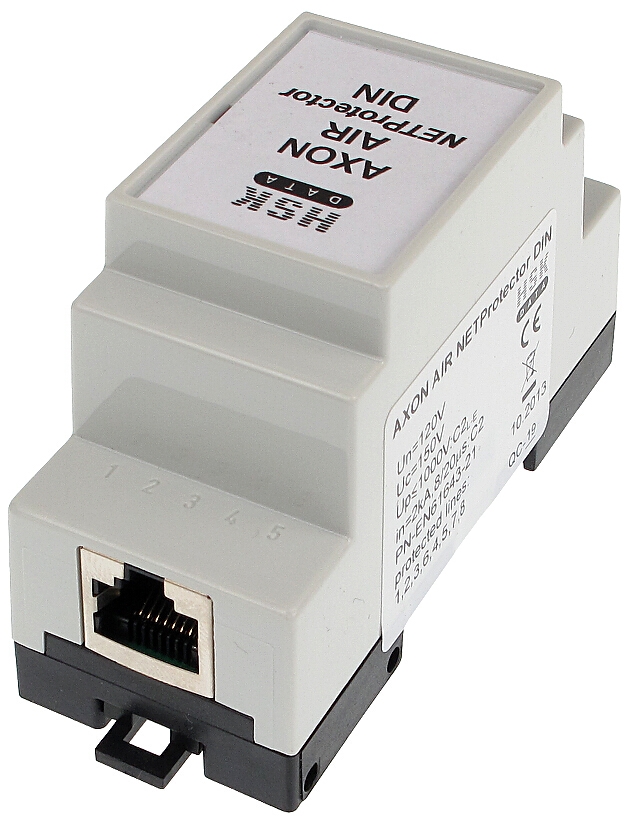

Device is designed to overvoltage protection of devices connected to the Ethernet 10/100/1000 Mb/s networks - protects 4 pairs of UTP cable; Rated voltage: 120 V ; Housing: DIN, TS-35 rail mounting ;
| Rated voltage: | 120 V |
| Maximal voltage: | 150 V |
| Voltage protection level line-PG [C2]: | ≤ 1000 V - 1.2/50 µs |
| Nominal discharge current line-PG [C2]: | 2 kA - 8/20 µs |
| Protected pairs of wires: | 1-2, 3-6, 4-5, 7-8 |
| Sockets type: | RJ45 (8P8C) |
| Housing: | |
| Weight: | 0.06 kg |
| Dimensions: | 86 x 58 x 35 mm |
| Guarantee: | 2 years |
Brand:
AXON
