• Электропитание: 9-30 В пост. • Подключение индикации выхода: встроенная светодиодная индикация • Диапазон обнаружения: 120 м2 • Размеры: Ø 102 х 42 (В) мм
|

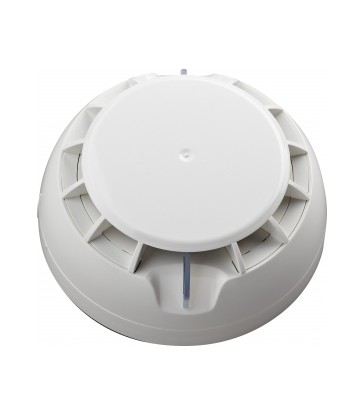

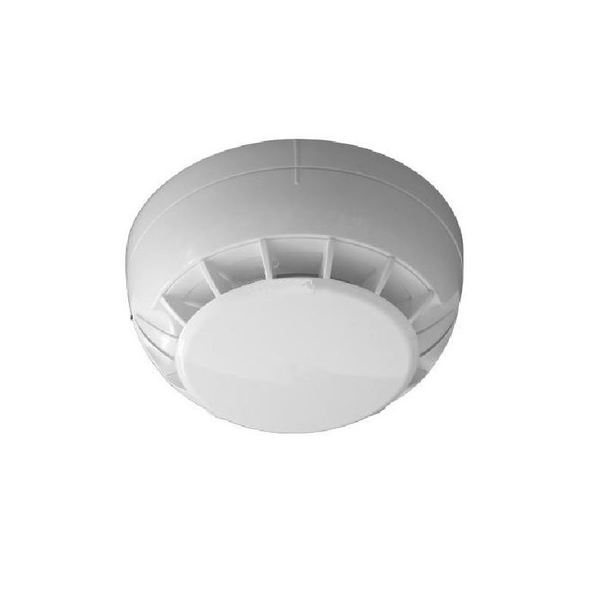

Model |
SensoMAG S30 |
|
Operating Voltage Range |
9-30 VDC (Nom. 12/24 VDC) |
|
Average Current Consumption in Quiescent State |
< 50ua |
|
Alarm state current |
base type B24 and B24D: 20mA/12-30V / base type B24RD: 33mA/12V, 49mA/ 24V, 57mA/30V / base type B12: 18mA/9V, 29mA/12V, 32mA/15V |
|
Protected Area |
up to 120 m2 (in accordance with EN54-7) |
|
Installation Height |
up to 16m (in accordance with EN54-7) |
|
Output in Alarm State at Terminal RI |
20mA (max) /-3.3V |
|
Degree of protection |
IP 30 |
|
Wire Gauge for Terminals |
0.4mm2 , 2.0mm2 |
|
Operational temperature range |
-10°С / +60°С |
|
Relative humidity resistance |
(93 ± 3) % at 40°С |
|
Dimensions (incl. base) |
diameter 102 mm, h 42 mm |
|
Weight (incl. base) |
160 g |
