• Электропитание: 12-30 В пост. • Подключение индикации выхода: встроенная светодиодная индикация • Диапазон обнаружения: 45 ° • Размеры: Ø 100 x 47 (H) мм
|

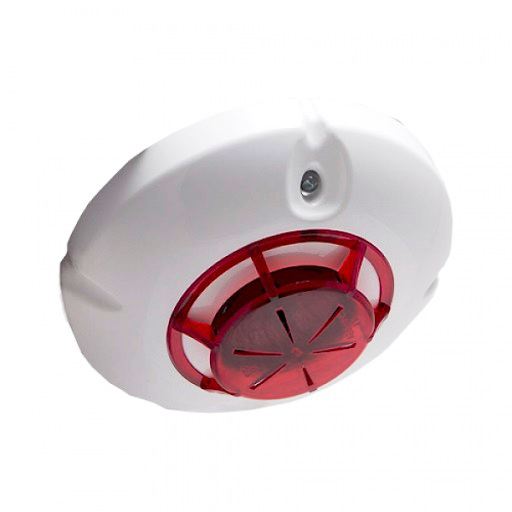

Model |
FD8040 |
|
Supply voltage |
(from12- to30)V DC |
|
Duty mode current |
300 μA |
|
Fire condition current |
– with base type 8000 or 8000D: (8-25) mA – with base type 8000R, 8000DR: (18-55) mA |
|
Cross section of the connection wire |
(0.8-1.5mm2) |
|
Degree of protection |
IP 40 |
|
Operation temperature range |
From Minus 10oC to 55oC |
|
Relative humidity resistance |
(92±3) % at 40 oC |
|
Time delay |
T-10s (optional T-5s; T-20s) |
|
Dimensions (base included) |
(base type 8000 included) 100mm h 47 mm Ø |
|
Output in Alarm condition |
Terminal RI/KL for RI31 or RI31S |
|
Protected area |
Circle with diameter 10m, h 8m |
|
Type of the line connection |
two-wire |
|
Cross section of the connection wire |
(0.8-1.5mm2) |
