• Электропитание: 10-30 В пост. • Температура сигнализации извещателя тепла: 60 ° • Подключение индикации выхода: встроенная светодиодная индикация • Размеры: Ø 100 x 47 (H) мм
|

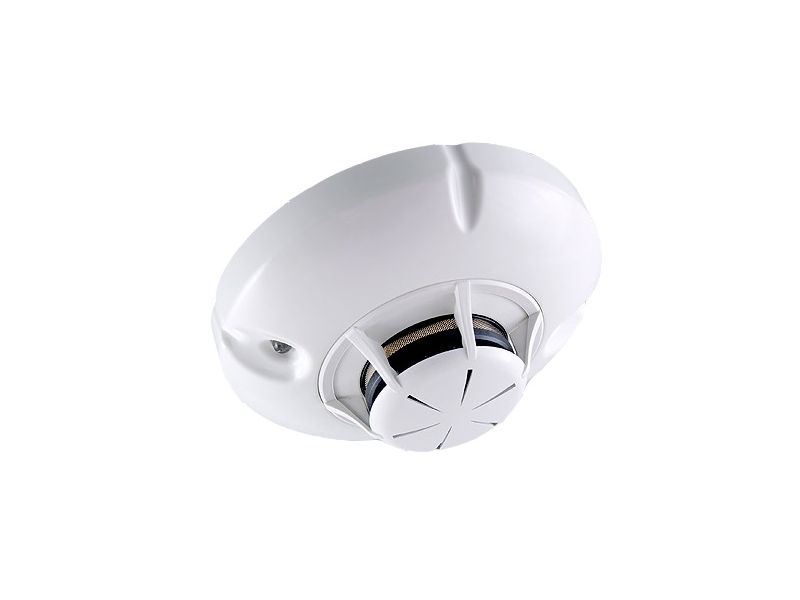

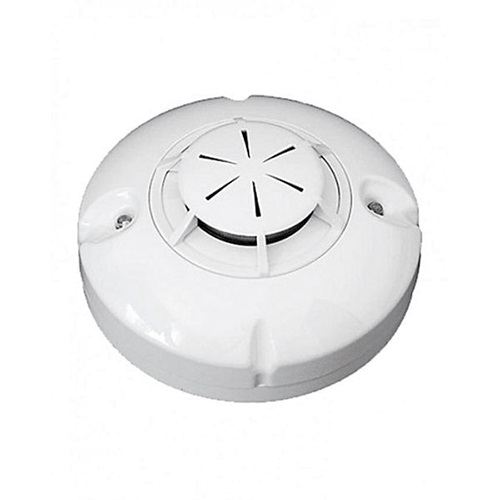

Model |
FD8020 |
|
Supply voltage |
(10-30)VDC |
|
Duty mode current |
55 μA |
|
Fire condition current |
– with base type 8000 or 8000D: (8-25) mA – with base type 8000R, 8000DR: (18-55) mA |
|
Terminals |
For wires with cross section (0.8-2.5)mm2 |
|
Degree of protection |
IP 43 |
|
Operation temperature |
Minus 10oC to 55oC |
|
Relative humidity |
(93±3) % at 40oC |
|
Sensitivity |
In accordance with EN54-5, class A2R or BR |
|
Mounting |
Using bases of series 8000 |
|
Dimensions (base included) |
Ø100, h 47 mm |
|
Casing material |
ABS plastics, white |
|
Weight (base included) |
0.100 kg |
|
Protected area |
Circle with diameter 10m, h 8m |
