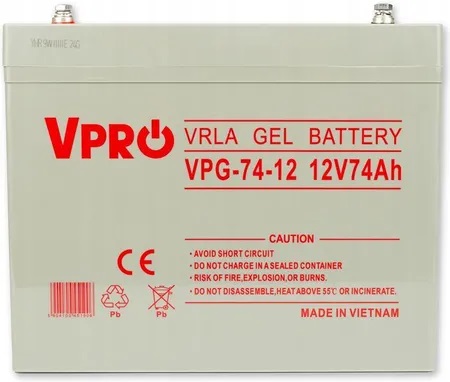

DEEP CYCLE-SOLAR GEL VPRO PREMIUM 12V 74 Ah
Nominal voltage:12V
Nominal capacity:74Ah
Total height:215mm
Height:211mm
Width:168mm
Length:260mm
Weight:22.5kg±3%
Capacity (at 25°C) 10h (10.8V):74Ah
Capacity (at 25°C) 3h (10.8V):52.5Ah
Capacity (at 25°C) 1h (10.5V):39Ah
Internal resistance (at 25°C):6mΩ
Capacity: (40°C):102%
Capacity (25°C):100%
Capacity (0°C):85%
Capacity (-15°C):65%
Self-discharge (25°C) 3msc:91% of nominal capacity
Self-discharge (25°C) 6msc:82% of capacity nominal
Self-discharge (25°C) 12msc: 64% of nominal capacity
Recommended operating temp: 25°C±3°C
Operating temperature range - discharge: -15°C to 50°C
Operating temperature range - charging: -10°C to 50°C
Operating temperature range - storage: -20°C to 50°C
Buffer charge voltage (25°C): 13.5VDC-13.8VDC
Cyclic charge voltage (25°C): 14.4VDC-14.7VDC
Maximum charging current: 14A
Maximum discharge current: 700A (for 5 seconds)
Design life (25°C): 12 years
