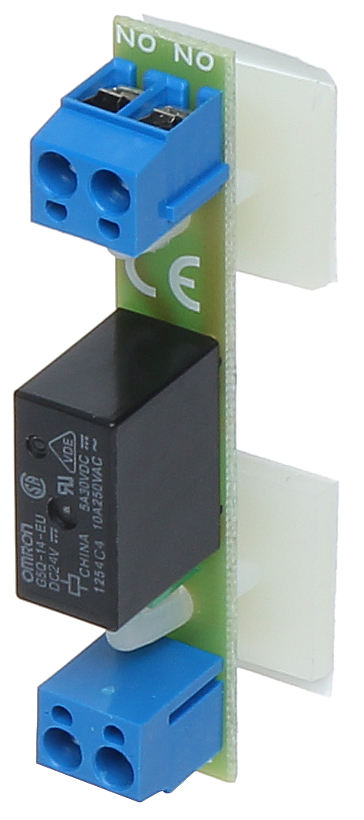

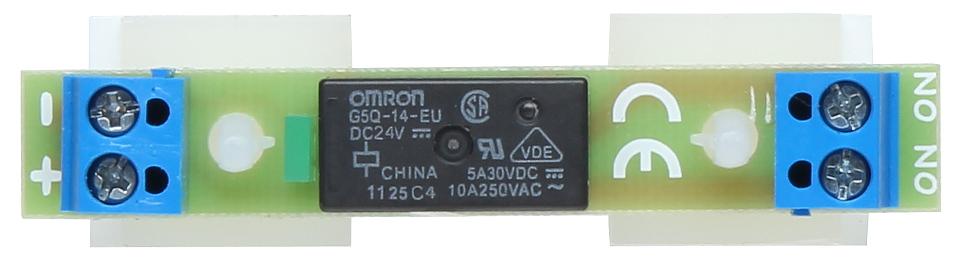

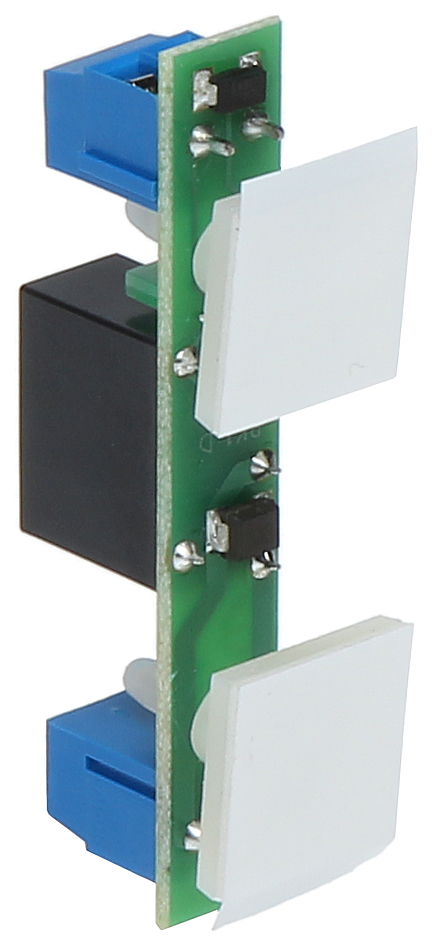

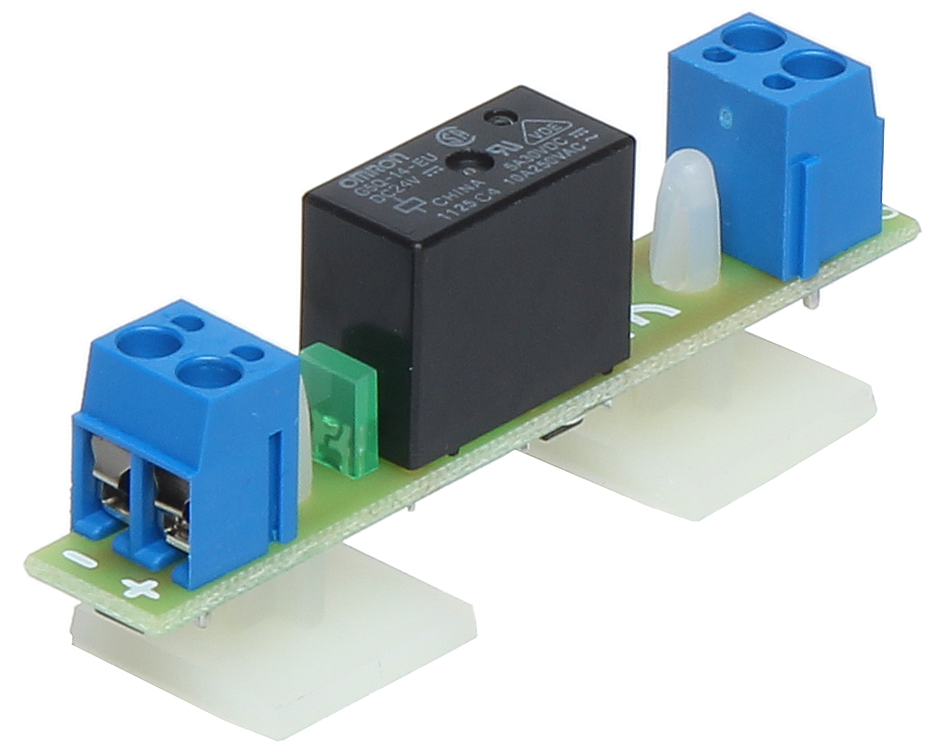

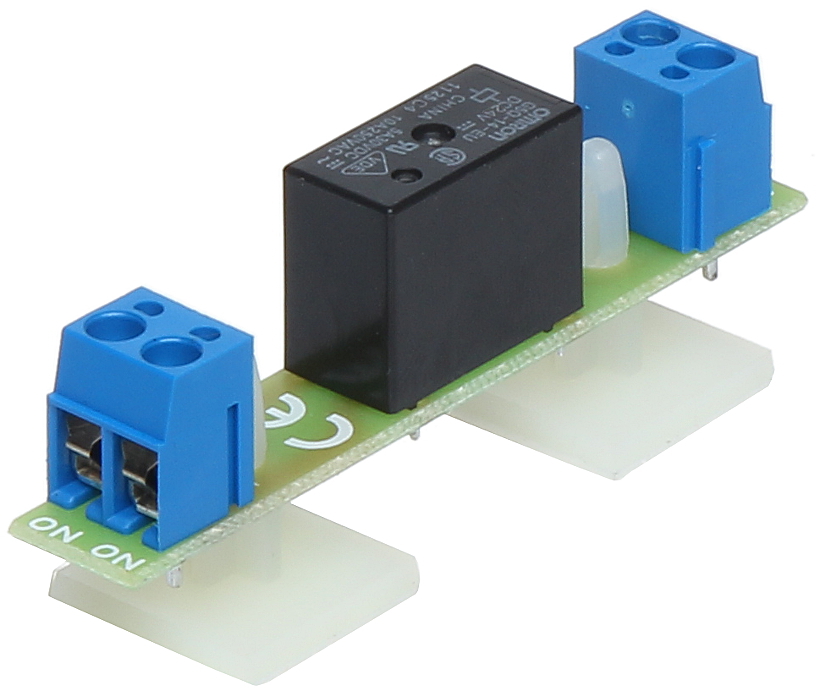

It can be used to increase maximal load of controller transistor output line and for galvanic isolation between output line and load point; Number of relay outputs: 1 ; Power supply: 24 ... 45 V DC ; Relay maximal load: 5 A (max), 30 V DC / 50 V AC ; Output: NO ; Main features: Mounting with self-adhesive bases, Protections : Overvoltage, Reverse polarity connection ;
| Number of relay outputs: | 1 |
| Power supply: | 24 ... 45 V DC |
| Current consumption: | 17 mA / 24 V DC |
| Relay maximal load: | 5 A (max), 30 V DC / 50 V AC (max) |
| Output: | NO |
| Application: | relay for electromagnetic lock/electric strike |
| Main features: | |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 0.02 kg |
| Dimensions: | 69 x 18 x 27 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
