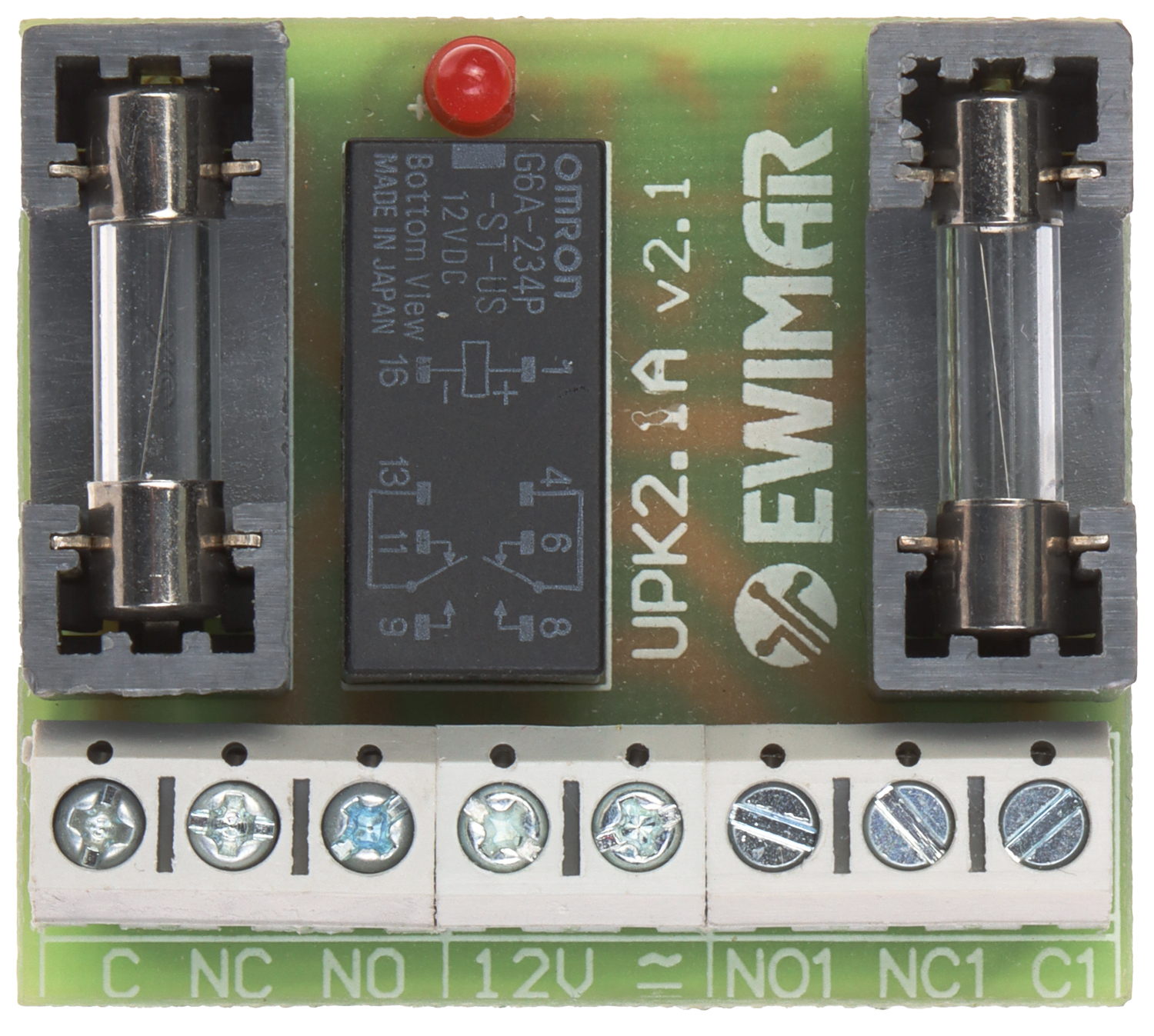

It can be used to increase maximal load of controller transistor output line and for galvanic isolation between output line and load point; Number of relay outputs: 2 ; Power supply: 12 V DC ; Relay maximal load: 2 A @ 30 V AC / DC ; Output: 2 x NO/NC ; Main features: 2 x 5/20mm delayed fuse - 2 A ;
| Number of relay outputs: | 2 - Relays controlled by a single control input |
| Power supply: | 12 V DC |
| Current consumption: | 28 mA @ 12 V DC |
| Relay maximal load: | 2 A @ 30 V AC / DC (max) |
| Output: | 2 x NO/NC |
| Main features: | |
| Weight: | 0.024 kg |
| Dimensions: | 42 x 37 x 18 mm |
| Manufacturer / Brand: | EWIMAR |
| Guarantee: | 2 years |
Brand:
Ewimar
