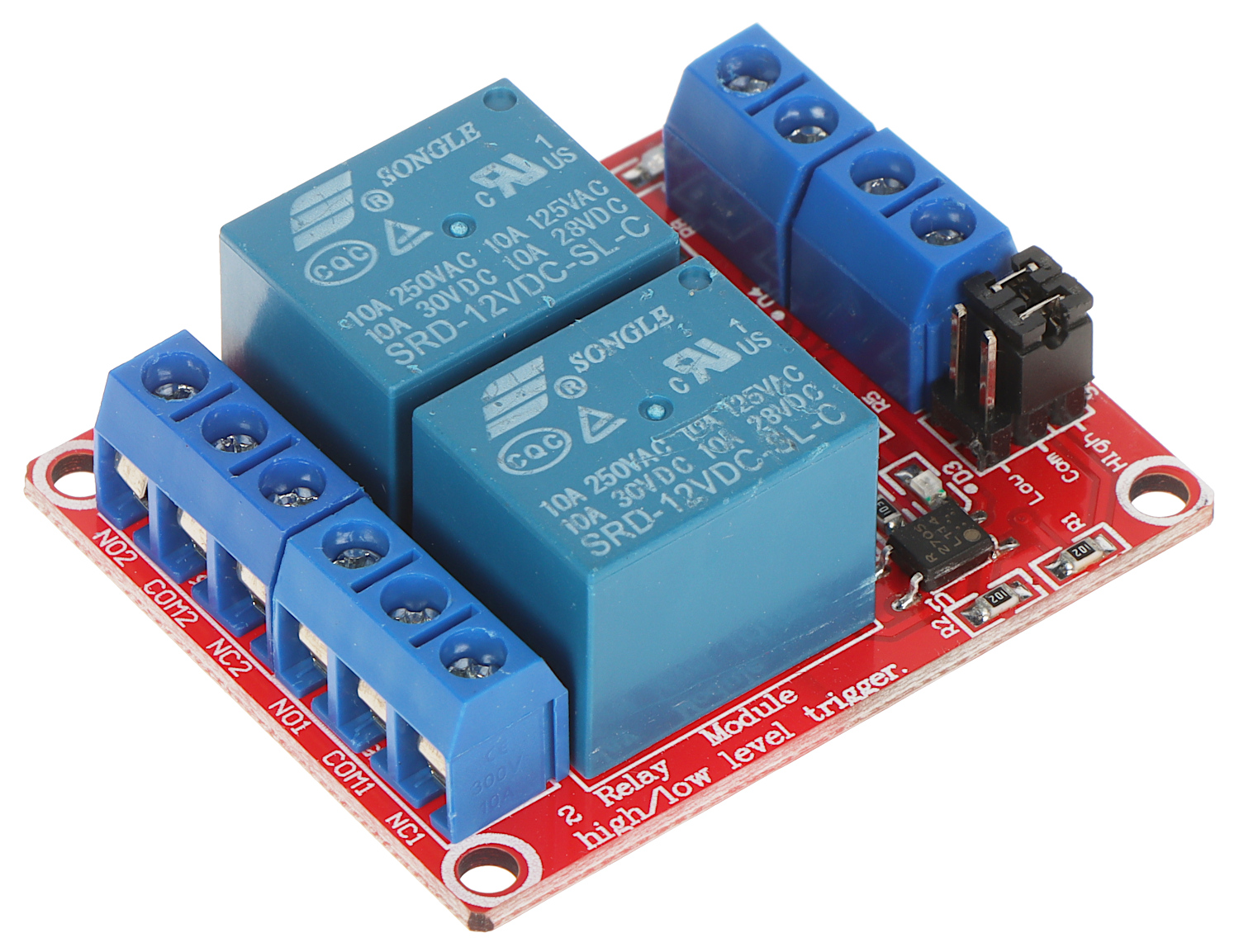

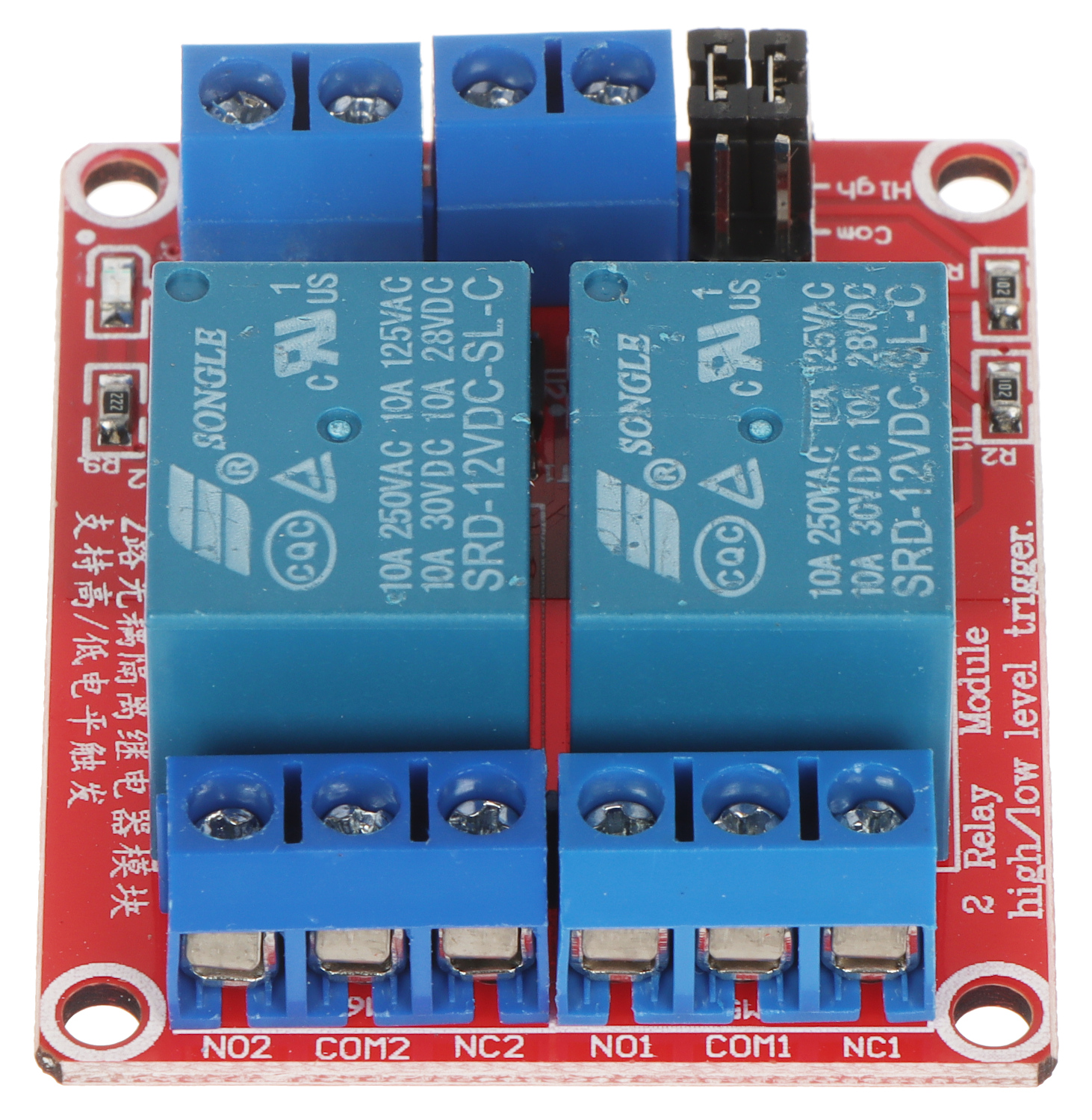

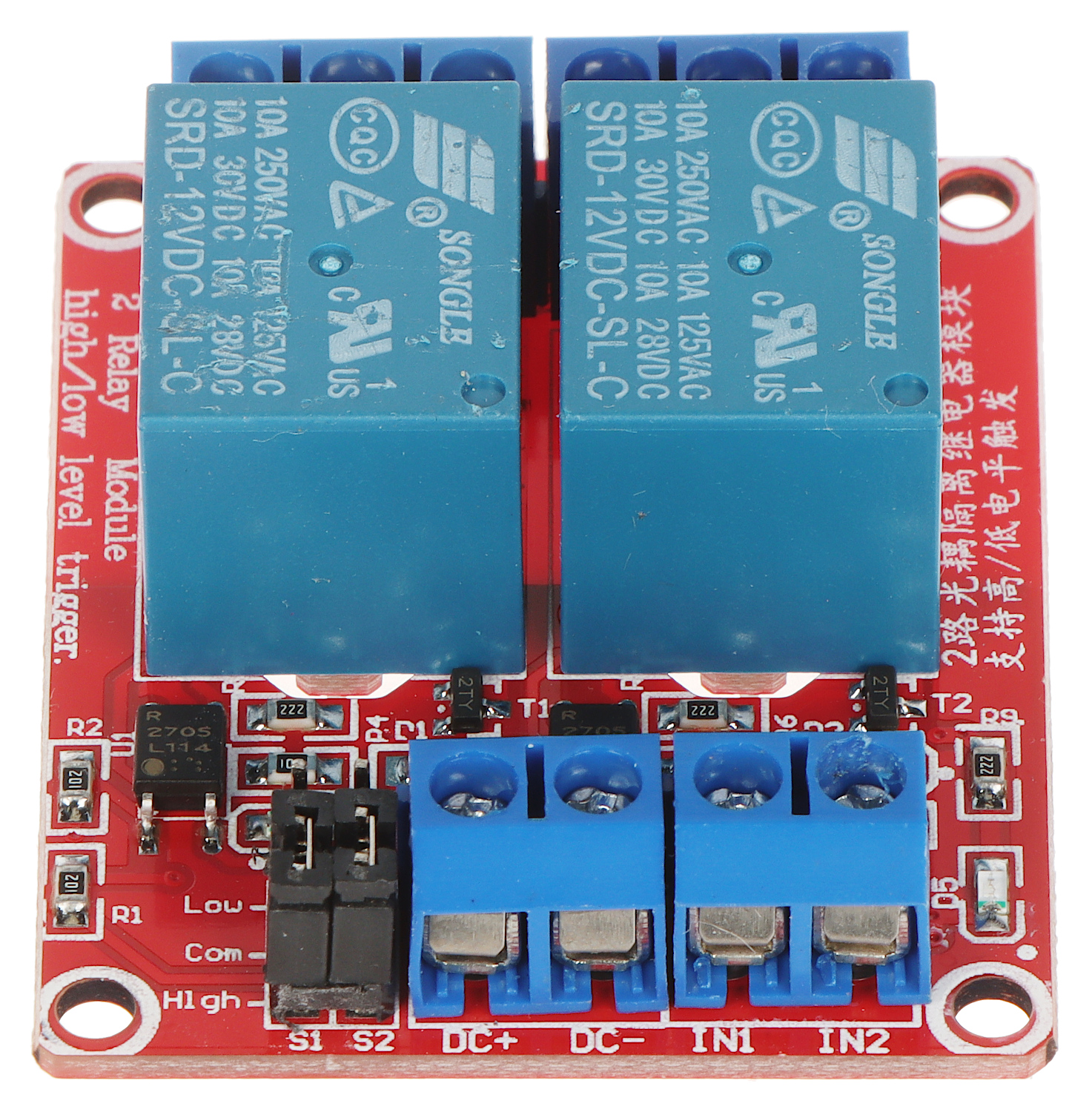

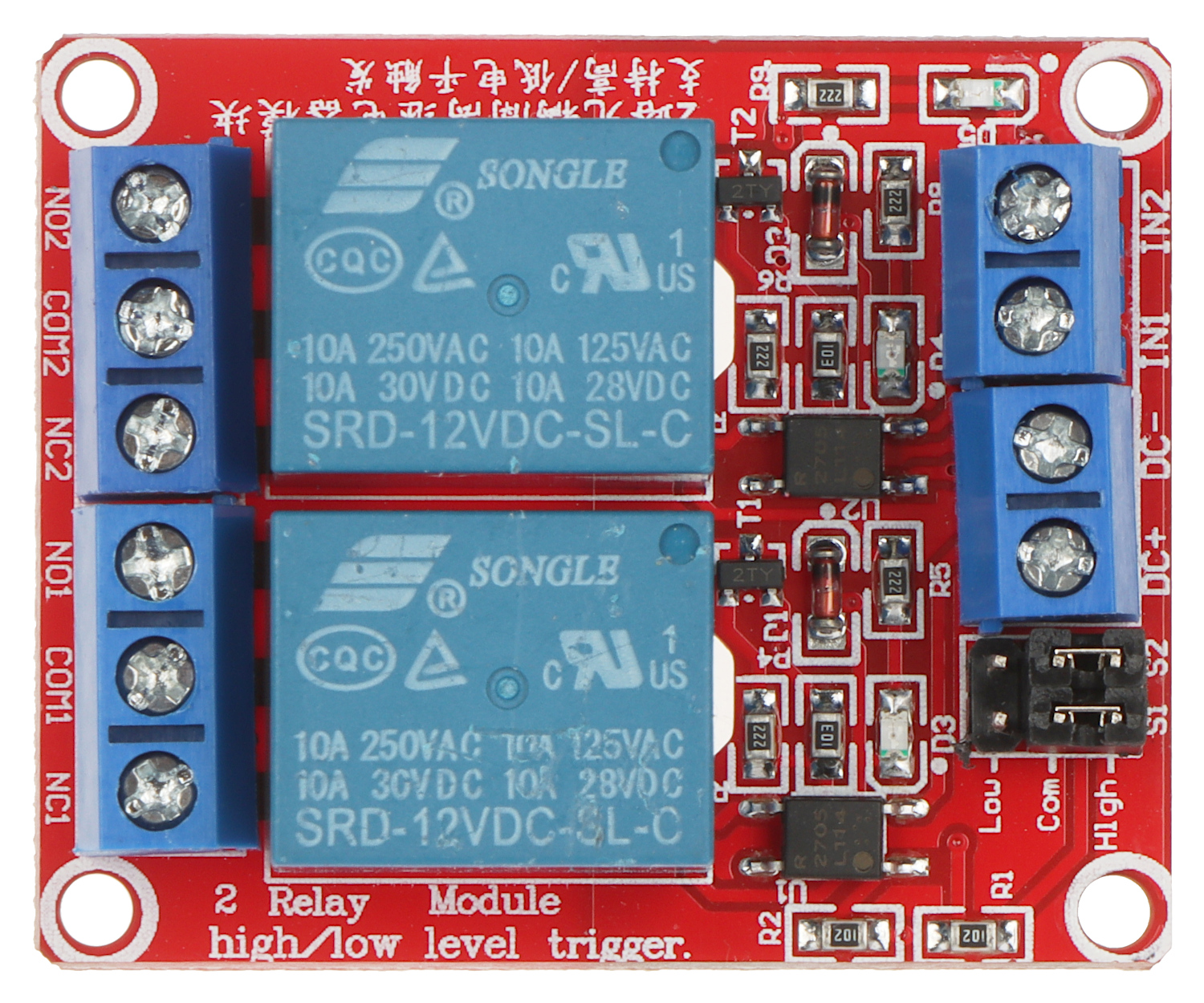

It can be used to increase maximal load of controller transistor output line and for galvanic isolation between output line and load point; Number of relay outputs: 2 ; Power supply: 12 V DC ; Current consumption: 111 mA, 5 mA - IN input ; Relay maximal load: 10 A (max) @ 28 V DC / 30 V DC / 125 V AC / 250 V AC ; Output: 2 x NO/NC ; Main features: relay inputs triggering by low or high voltage - Set with jumpers, LED indication ;
| Number of relay outputs: | 2 |
| Power supply: | 12 V DC |
| Current consumption: | |
| Relay maximal load: | 10 A (max) @ 28 V DC / 30 V DC / 125 V AC / 250 V AC |
| Output: | 2 x NO/NC |
| Main features: | |
| Weight: | 0.03 kg |
| Dimensions: | 50 x 41 x 19 mm |
| Guarantee: | 2 years |
Brand:
Delta Multimedia
