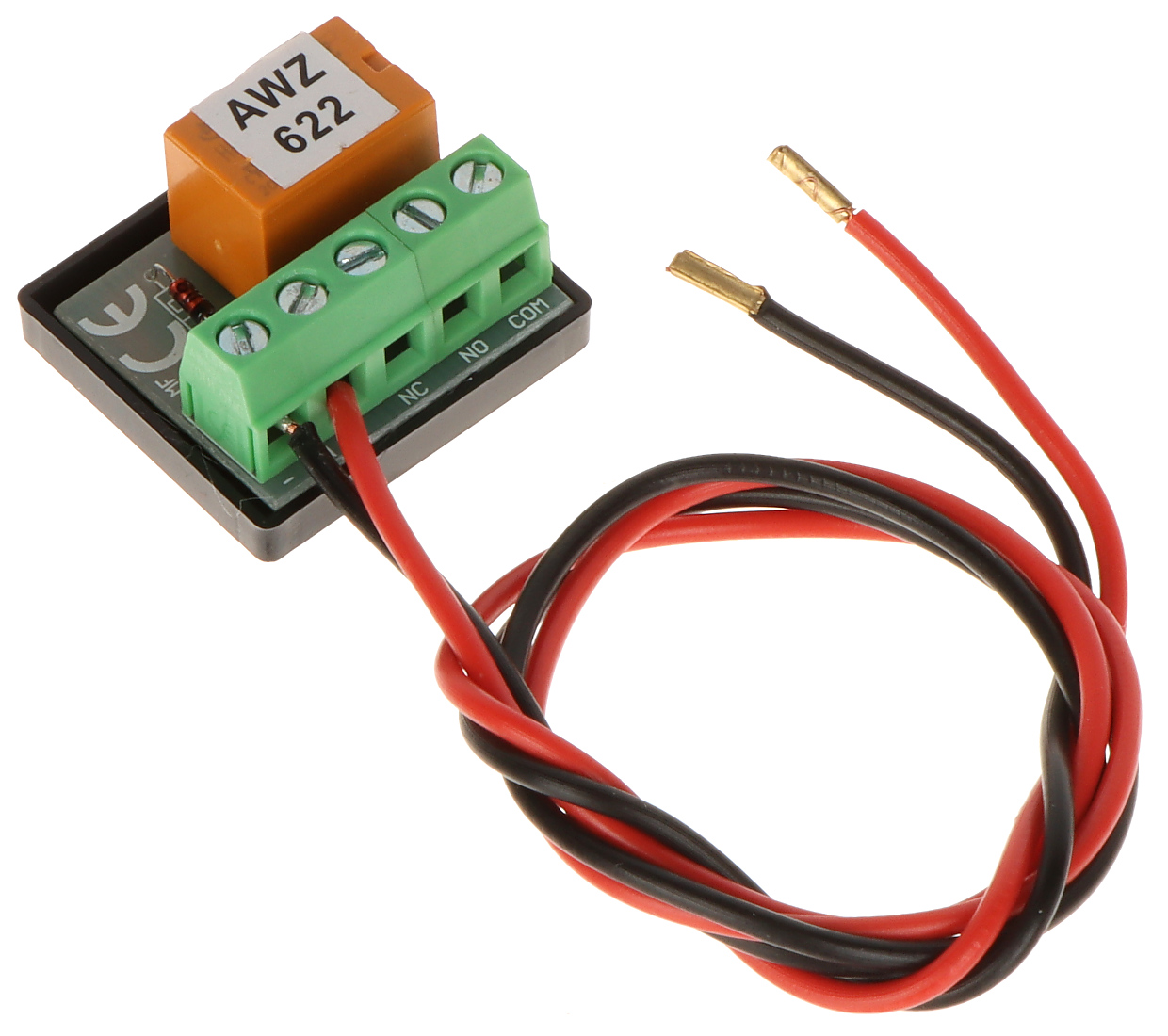

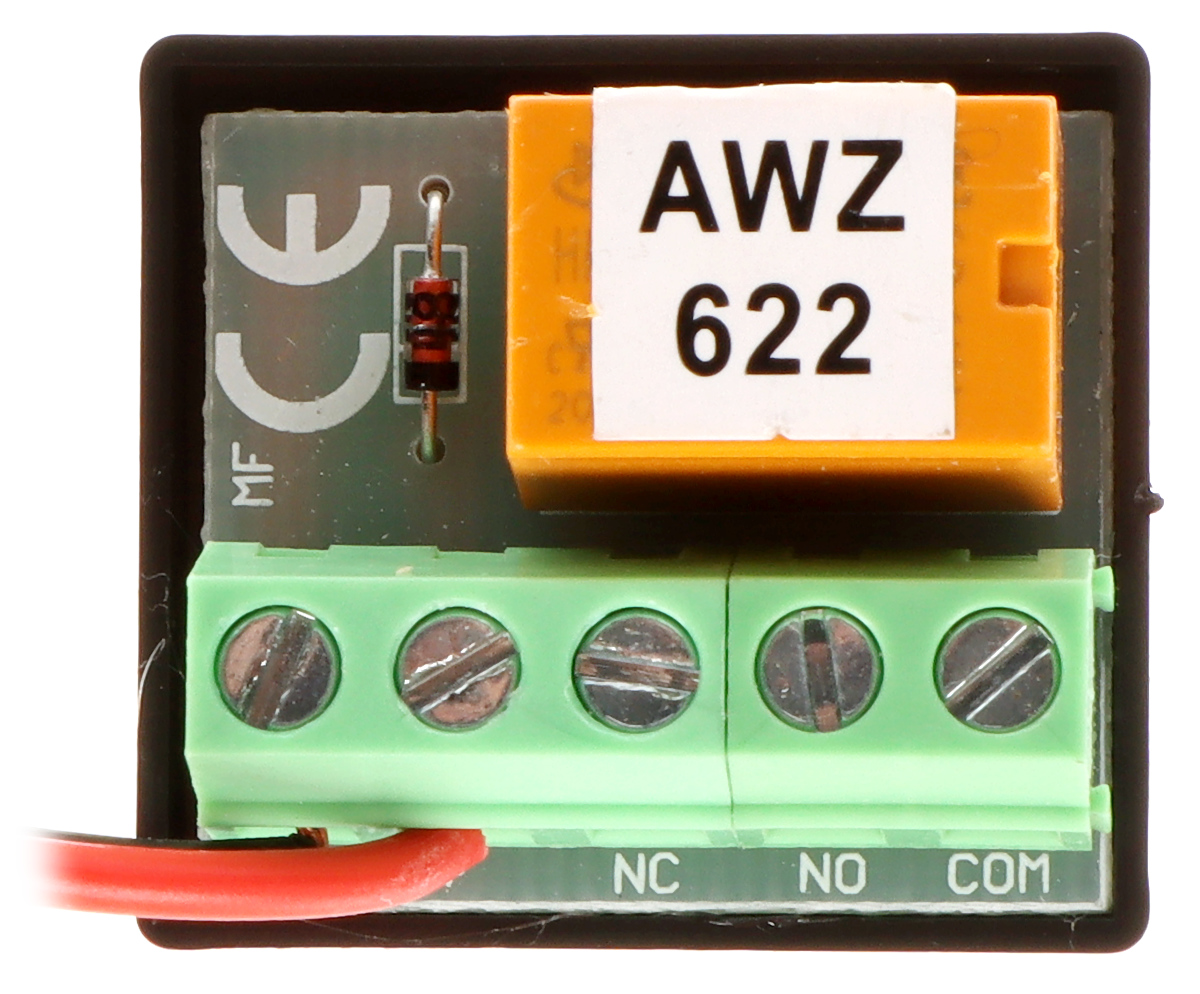

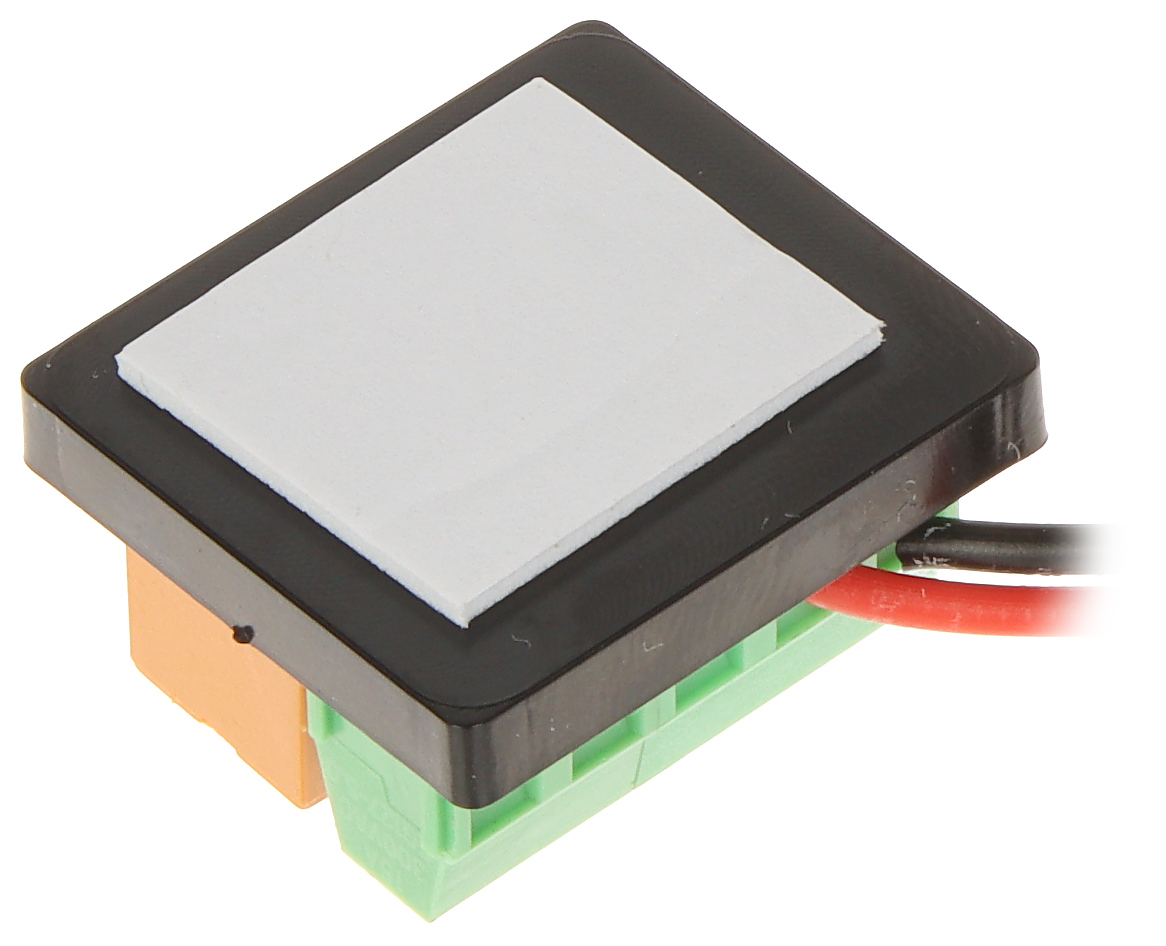

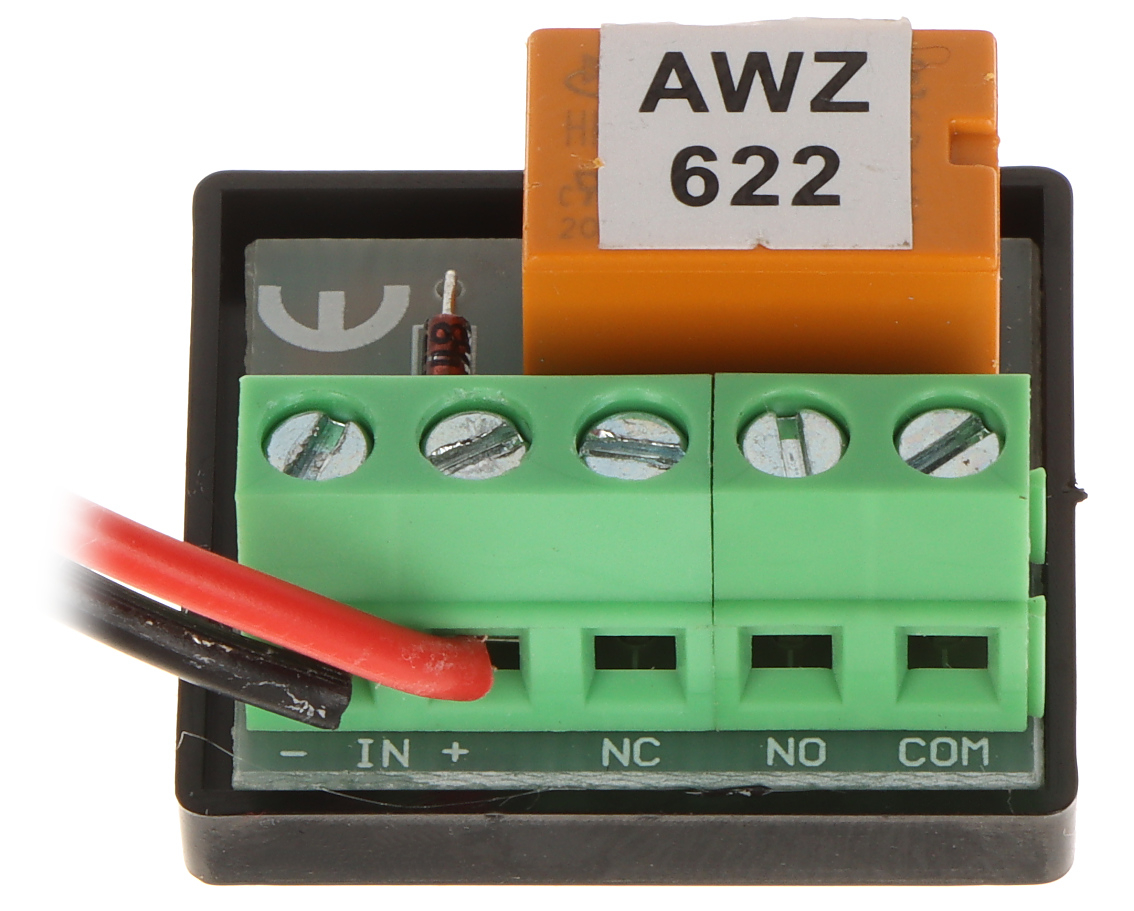

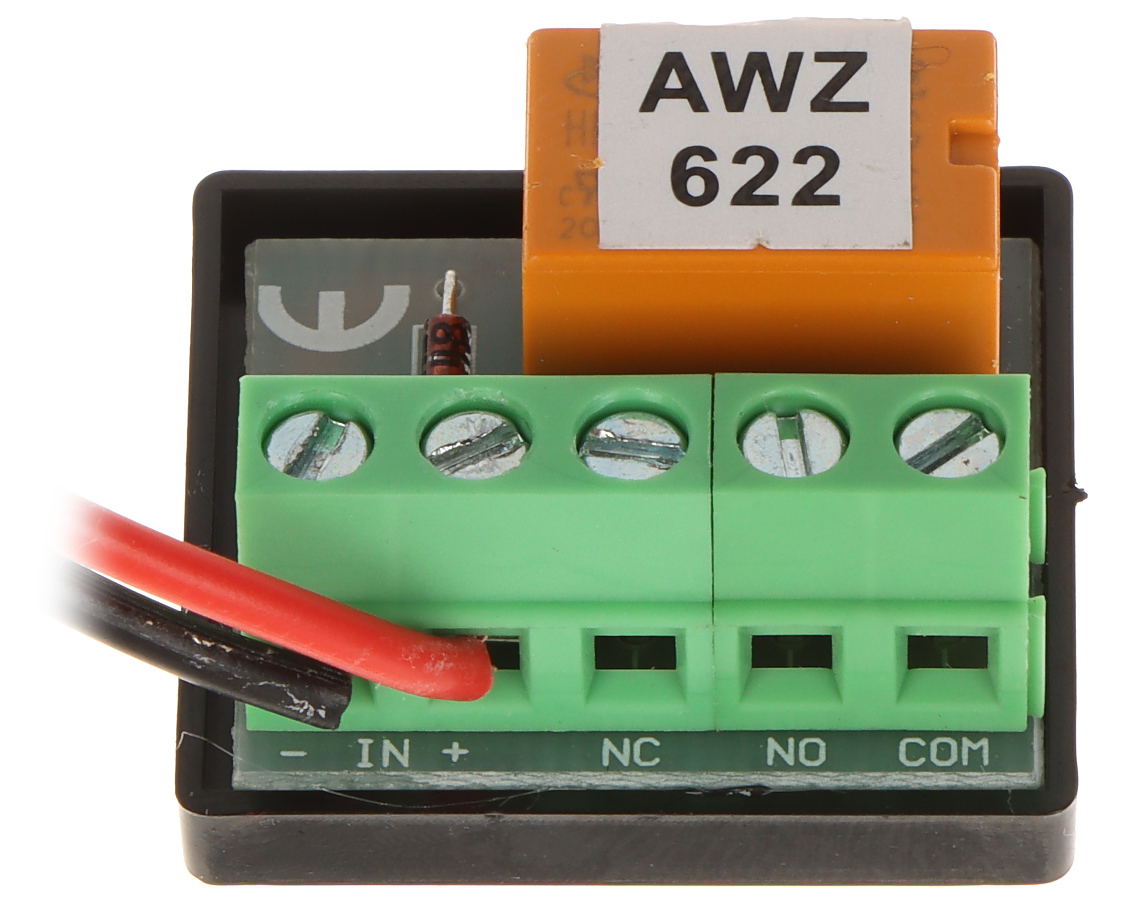

It can be used to increase maximal load of controller transistor output line and for galvanic isolation between output line and load point; Number of relay outputs: 1 ; Power supply: 10 ... 14 V DC ; Relay maximal load: 1 A (max), 30 V DC / 50 V AC ; Output: 1 x NO / NC ;
| Number of relay outputs: | 1 |
| Power supply: | 10 ... 14 V DC |
| Current consumption: | 20 mA (max) @ 12 V DC |
| Relay maximal load: | 1 A (max), 30 V DC / 50 V AC (max) |
| Output: | 1 x NO / NC |
| Operation temp: | -10 °C ... 50 °C |
| Weight: | 0.02 kg |
| Dimensions: | 30 x 27 x 18 mm |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
Brand:
Pulsar
