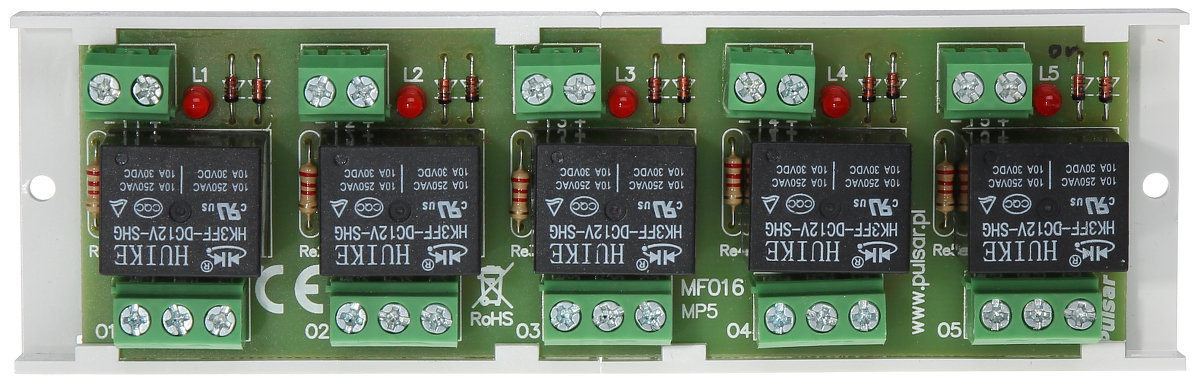

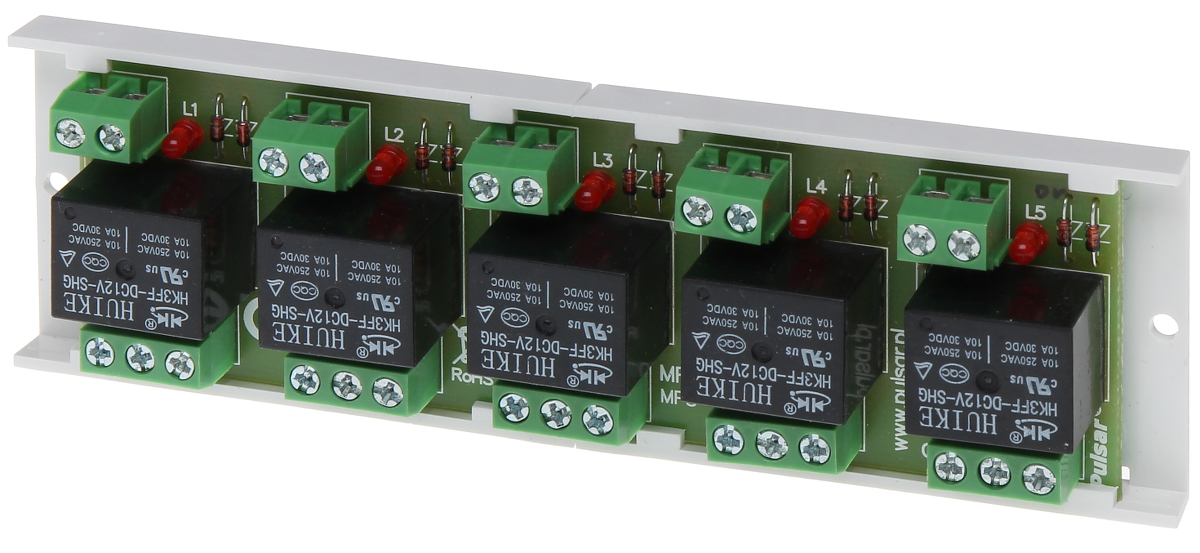

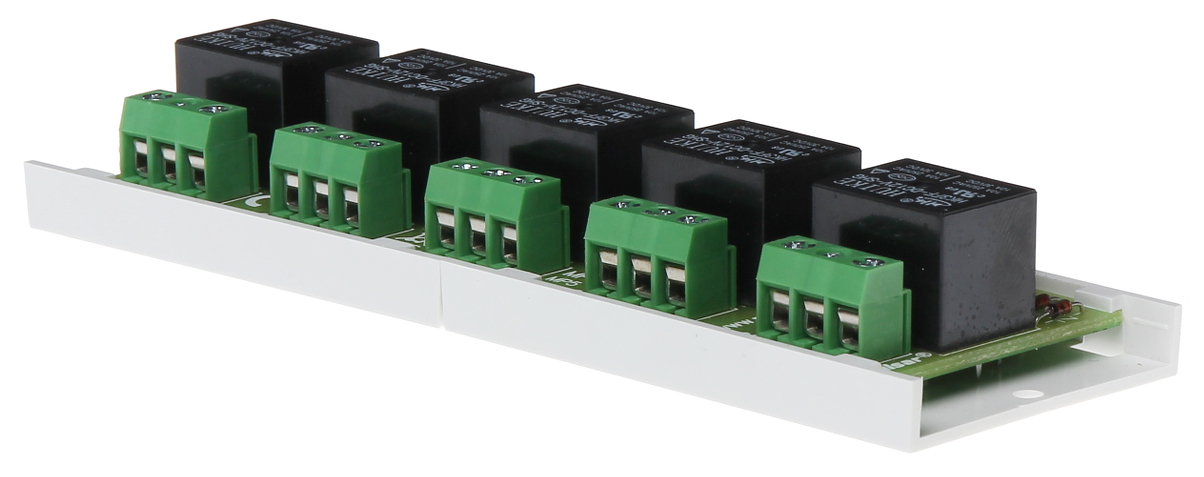

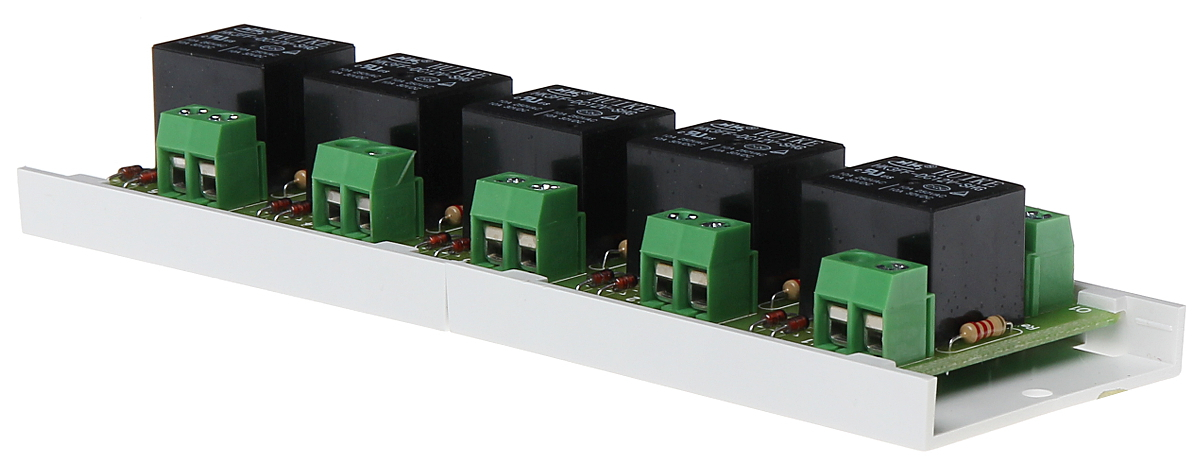

It can be used to increase maximal load of controller transistor output line and for galvanic isolation between output line and load point; Number of relay outputs: 5 ; Power supply: 10 ... 14 V DC ; Relay maximal load: 2 A (max), 30 V DC / 50 V AC ; Output: 5 x NO/NC ;
| Number of relay outputs: | 5 |
| Power supply: | 10 ... 14 V DC |
| Current consumption: | 37 mA per each relay at voltage 12 V DC |
| Relay maximal load: | 2 A (max), 30 V DC / 50 V AC (max) |
| Output: | 5 x NO/NC |
| Main features: | LED indication |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 0.12 kg |
| Dimensions: | 140 x 43 x 23 mm |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
Brand:
Pulsar
