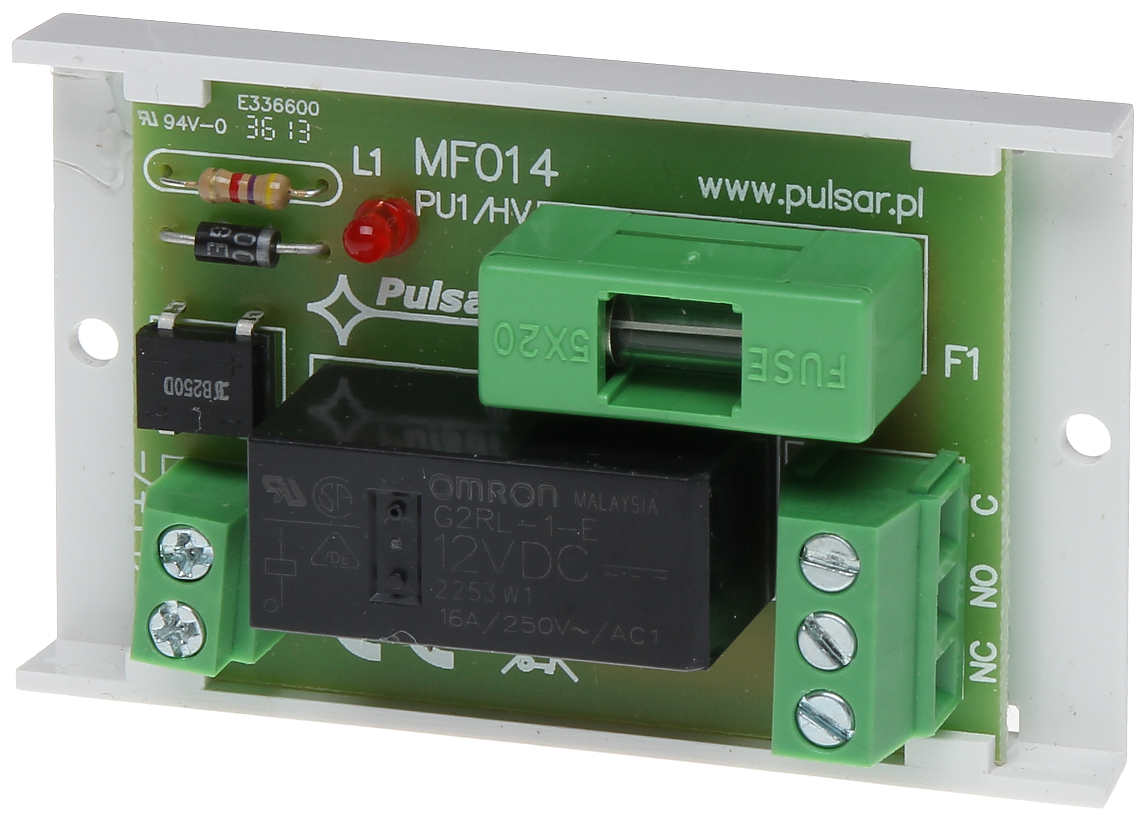

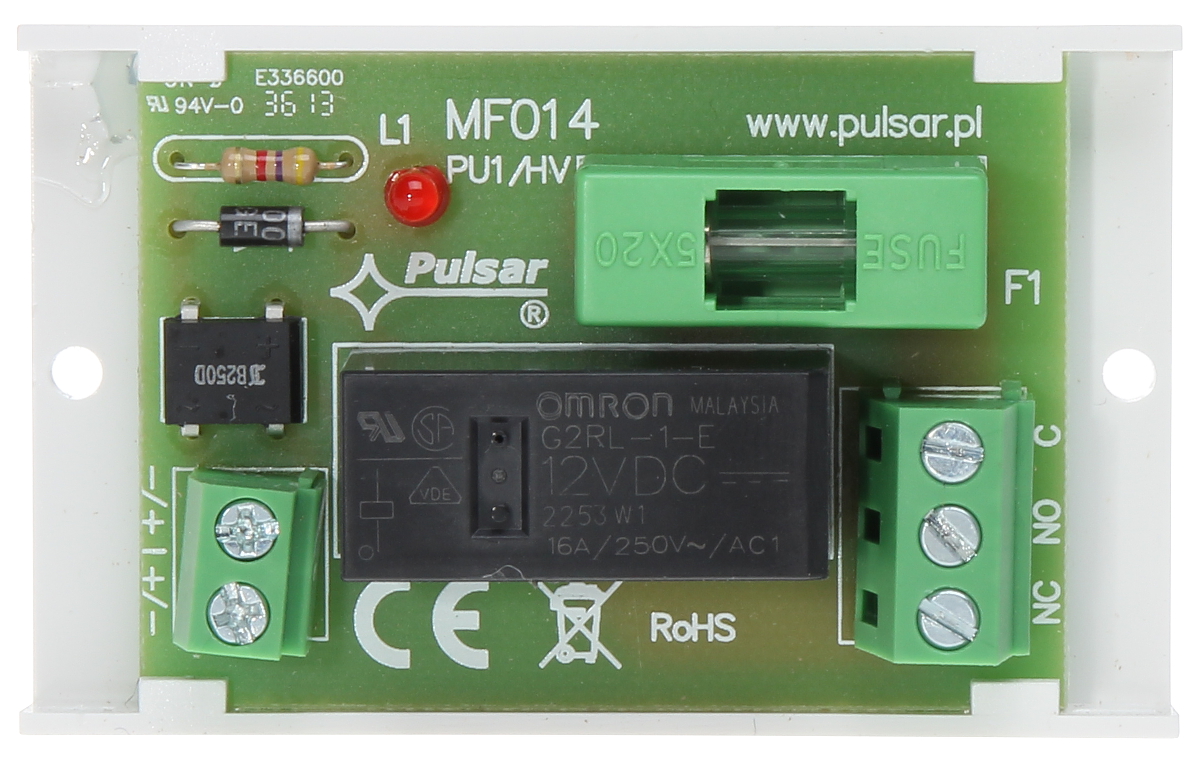

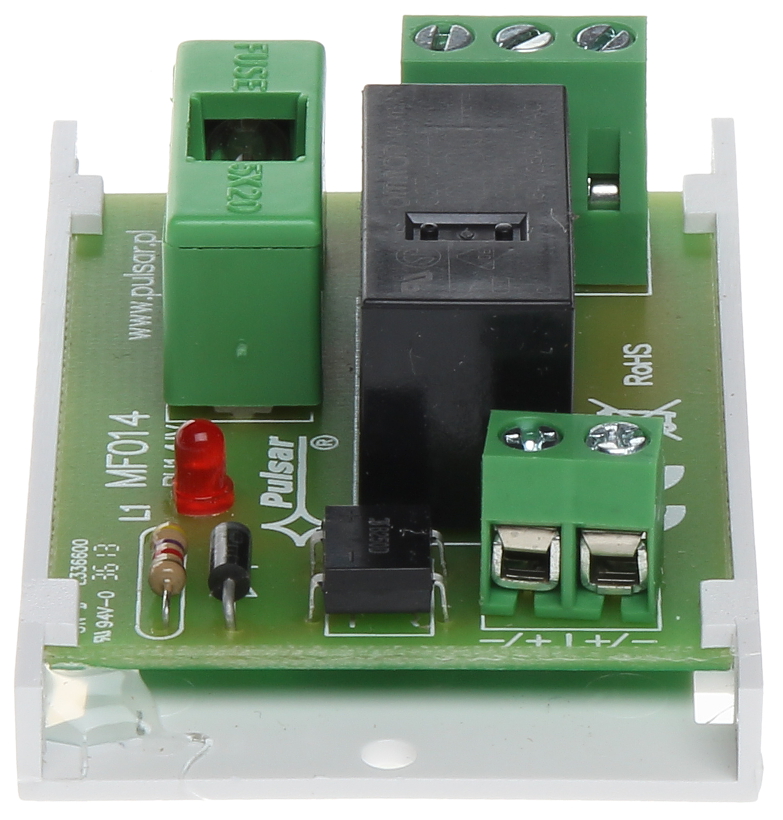

It can be used to increase maximal load of controller transistor output line and for galvanic isolation between output line and load point; Number of relay outputs: 1 ; Power supply: 10 ... 16 V AC/DC ; Relay maximal load: 6 A (max), 30 V DC / 250 V AC ; Output: 1 x NO/NC ; Main features: 5/20mm delayed fuse - 6.3 A ;
| Number of relay outputs: | 1 |
| Power supply: | 10 ... 16 V AC/DC |
| Current consumption: | 33 mA @ 12 V DC |
| Relay maximal load: | 6 A (max), 30 V DC / 250 V AC (max) |
| Output: | 1 x NO/NC |
| Main features: | |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 0.04 kg |
| Dimensions: | 70 x 43 x 23 mm |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
Brand:
Pulsar
