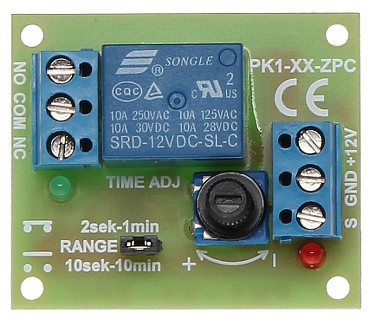

PK1-12-ZPC
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
The PK1-12-ZPC allows the extension of the short trigger pulse for the time set by potentiometer. The device can be used to extend short control pulses, controlling the operation of bolts, electromagnetic jumpers, bistable control, and also to make the shift in access control projects, depending on the status of the controller, door opening sensor (reed), exit button, etc.
|
Number of relay outputs: |
1 |
|
Power supply: |
10 ... 16 V DC |
|
Current consumption: |
35 mA (max) |
|
Relay maximal load: |
10 A (max) @ 30 V DC / 50 V AC (max) |
|
Output: |
1 x NO/NC |
|
Main features: |
· Time settings range · LED indication |
|
Operation temp: |
-10 °C ... 40 °C |
|
Weight: |
0.025 kg |
|
Dimensions: |
47 x 40 x 23 mm |
