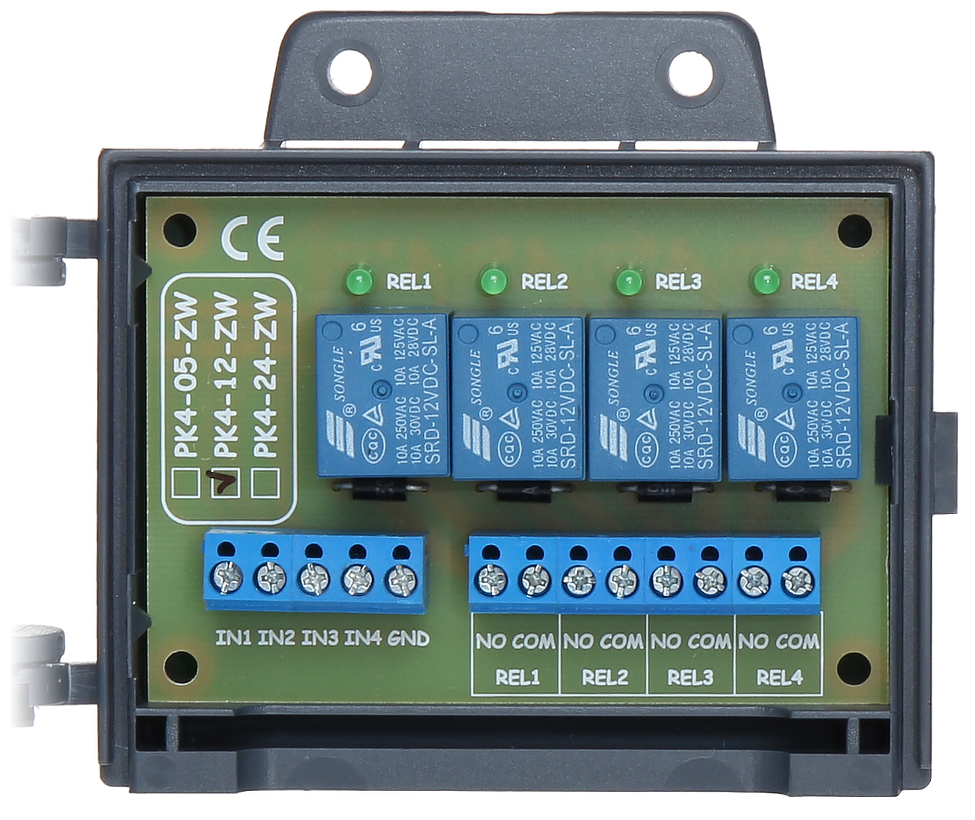

It can be used to increase maximal load of controller transistor output line and for galvanic isolation between output line and load point; Number of relay outputs: 4 ; Power supply: 10 ... 16 V DC ; Relay maximal load: 10 A (max), 30 V DC / 50 V AC ; Output: 4 x NO ; Main features: Protections : Overvoltage, Reverse polarity connection Splash-proof casing ;
| Number of relay outputs: | 4 |
| Power supply: | 10 ... 16 V DC |
| Current consumption: | 35 mA per each relay at voltage 12 V DC |
| Relay maximal load: | 10 A (max), 30 V DC / 50 V AC (max) |
| Output: | 4 x NO |
| Application: | relay for electromagnetic lock/electric strike |
| Main features: | |
| Operation temp: | -25 °C ... 70 °C |
| Weight: | 0.12 kg |
| Dimensions: | 118 x 91 x 37 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
