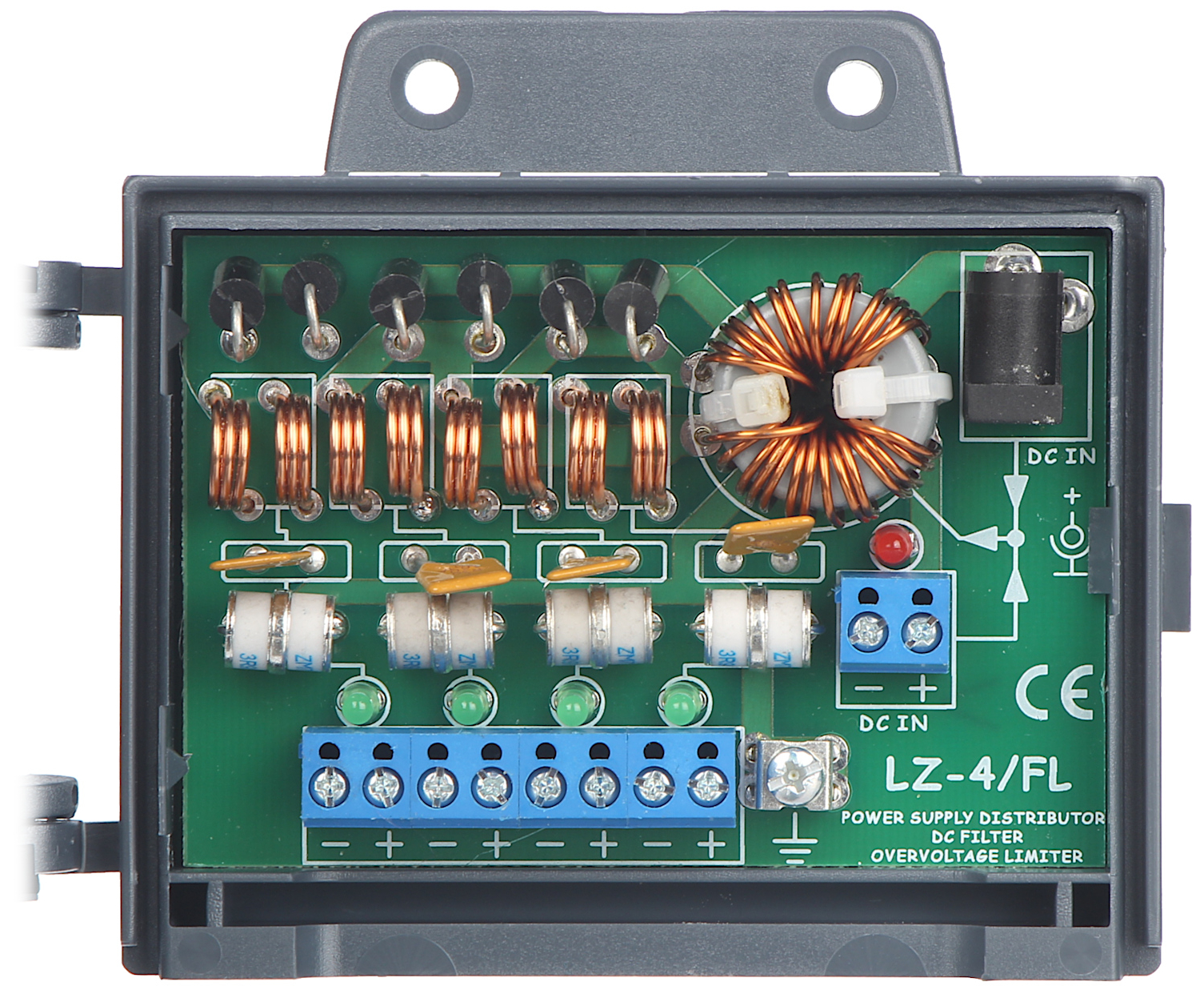

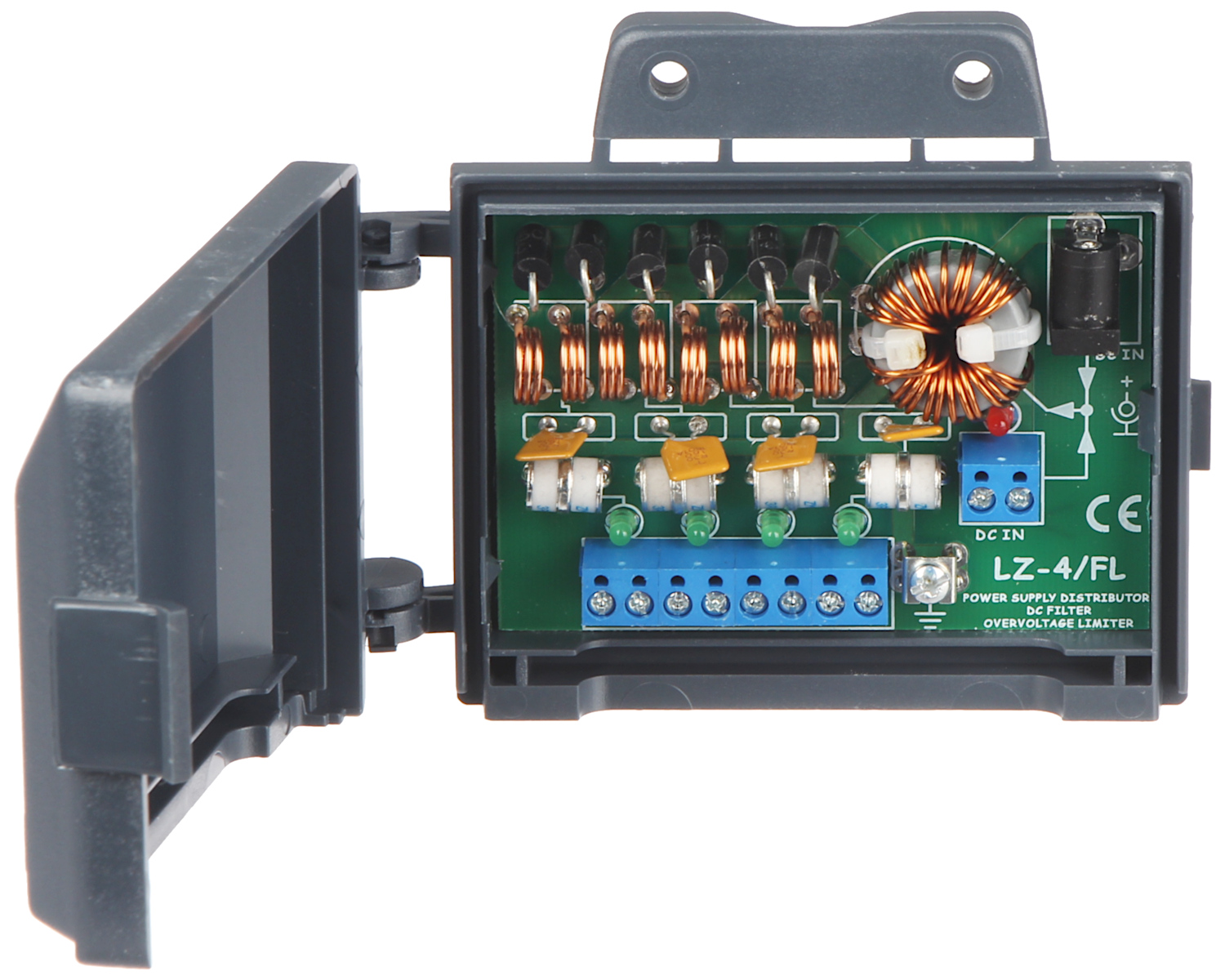

The LZ-4/FL is a passive device and allows to distribute the power supply; Additionally is equipped with filter, which eliminates interferences from switching adaptors and overvoltage limiter; Number of power outputs: 4 ; Max. output current for single output: 1.5 A ; Protection type: 4 x 1.5 A Polymer fuse ; Filter built-in: DC filter to eliminate interferences ;
| Number of power inputs: | 2 |
| Number of power outputs: | 4 |
| Maximal power voltage: | 12 V DC 15 V DC |
| Maximal power supply current: | 6 A terminals |
| Max. output current for single output: | 1.5 A |
| Protection type: | 4 x 1.5 A Polymer fuse |
| Treshold voltage (wire / ground): | > 47 V |
| Maximum stroke current: | 5 kA (t= 8/20µs) |
| Overvoltage limiter reaction time: | 15 ns |
| Grounding: | indirect, via cable terminal |
| Power connectors type: | Input : socket 2.1/5.5 mm / cable terminal Output : Cable terminals |
| Operation temp: | -50 °C ... 55 °C |
| Permissible relative humidity: | < 95 % |
| Filter built-in: |  DC filter to eliminate interferences |
| Main features: | |

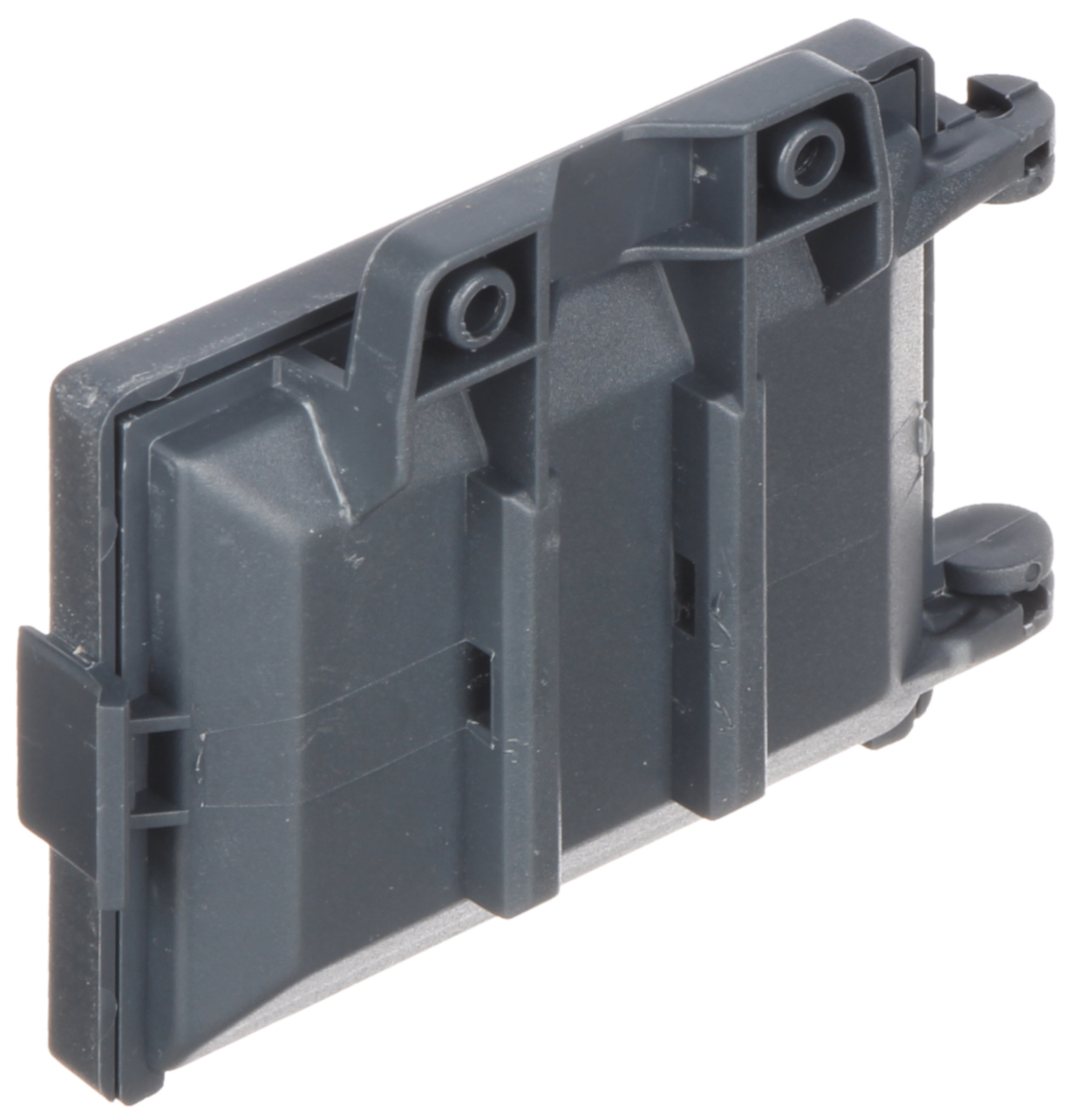

| Housing type: | Plastic |
| Dimensions: | 116 x 90 x 36 mm |
| Weight: | 0.125 kg |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
