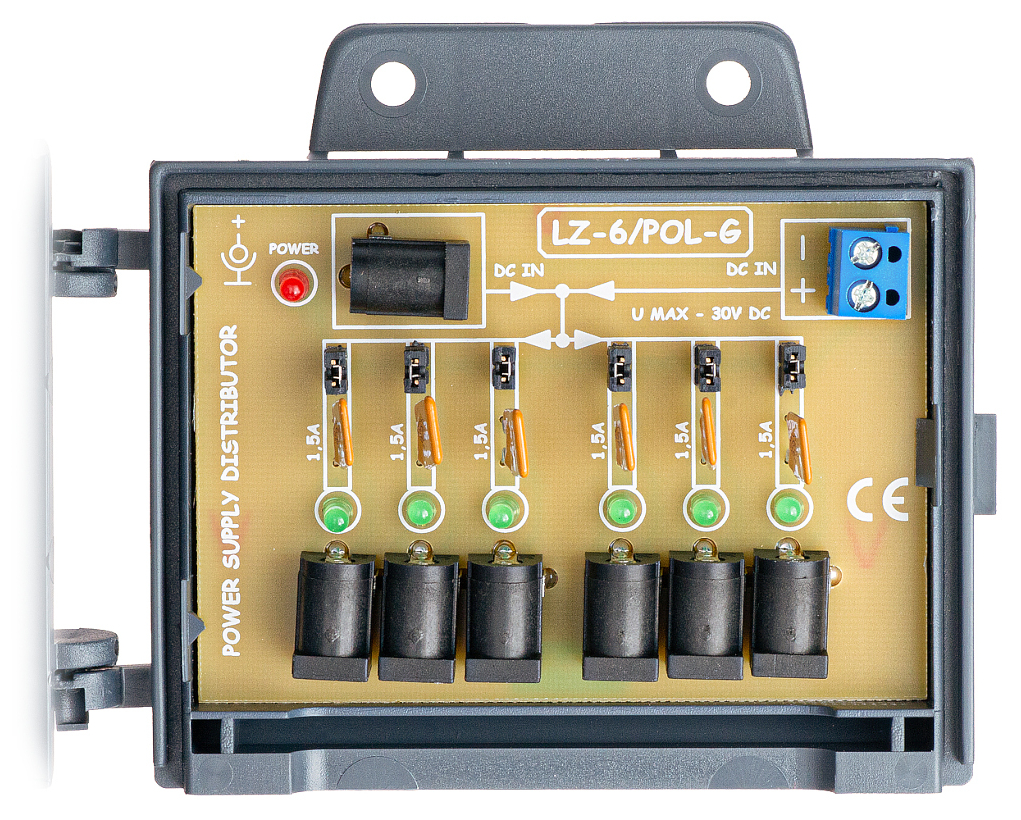

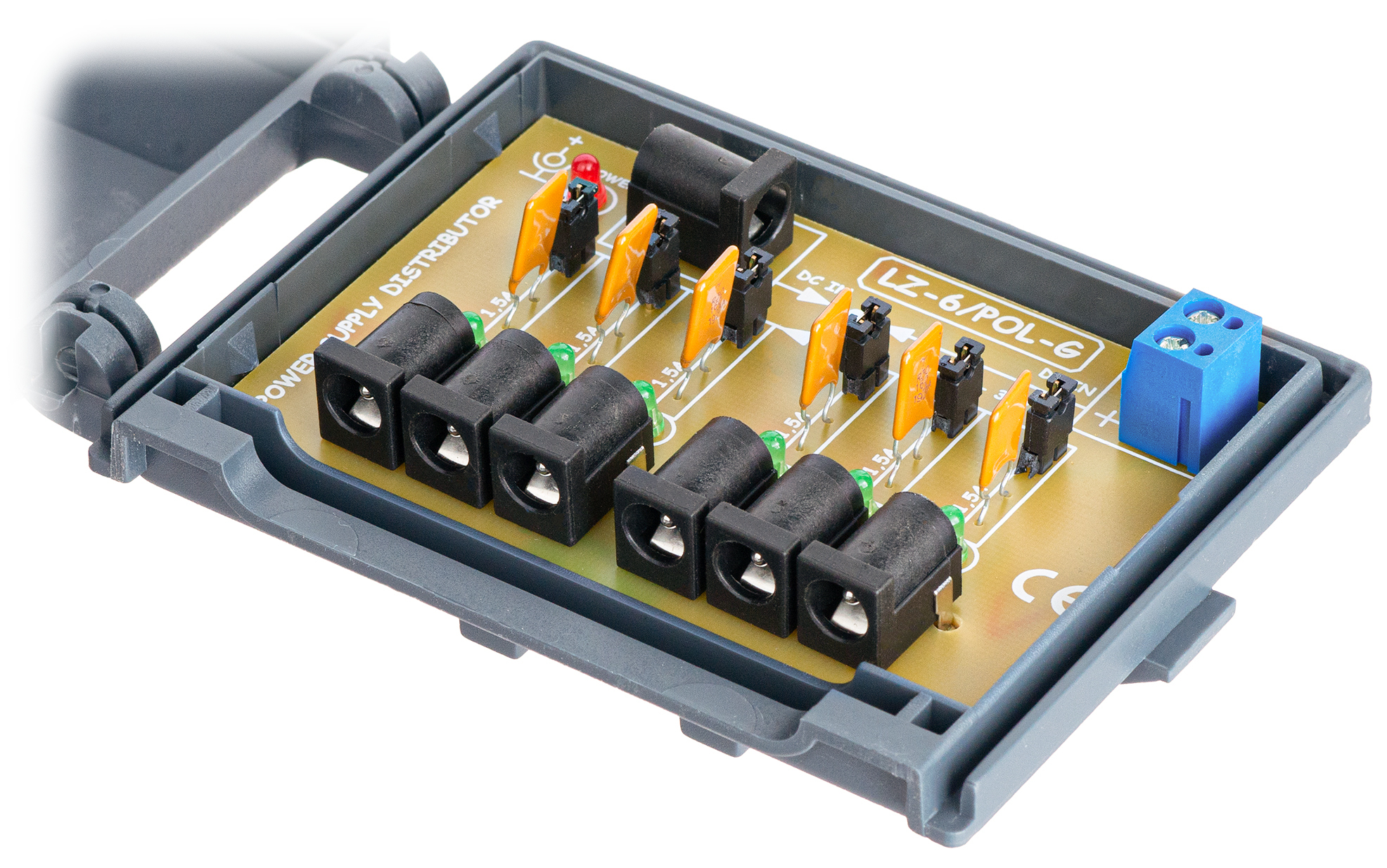

POWER SUPPLY DISTRIBUTOR LZ-6/POL-G
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
The LZ-6/POL-G is a passive device and allows to distribute the power supply; Number of power outputs: 6 ; Max. output current for single output: 1.5 A ; Protection type: 6 x 1.5 A Polymer fuse ;
| Number of power inputs: | 2 |
| Number of power outputs: | 6 |
| Maximal power voltage: | 24 V DC (typical 12V) |
| Maximal power supply current: | terminals |
| Max. output current for single output: | 1.5 A |
| Protection type: | 6 x 1.5 A Polymer fuse |
| Power connectors type: | Input : socket 2.1/5.5 mm / Cable terminals Output : sockets 2.1/5.5 mm |
| Operation temp: | -50 °C ... 55 °C |
| Permissible relative humidity: | < 95 % |
| Weight: | 0.09 kg |
| Dimensions: | 120 x 91 x 37 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
