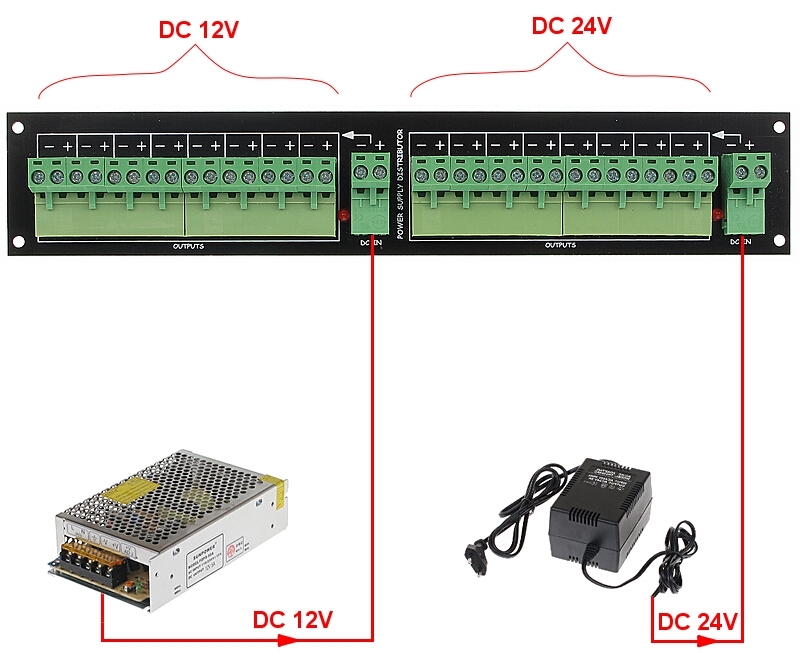

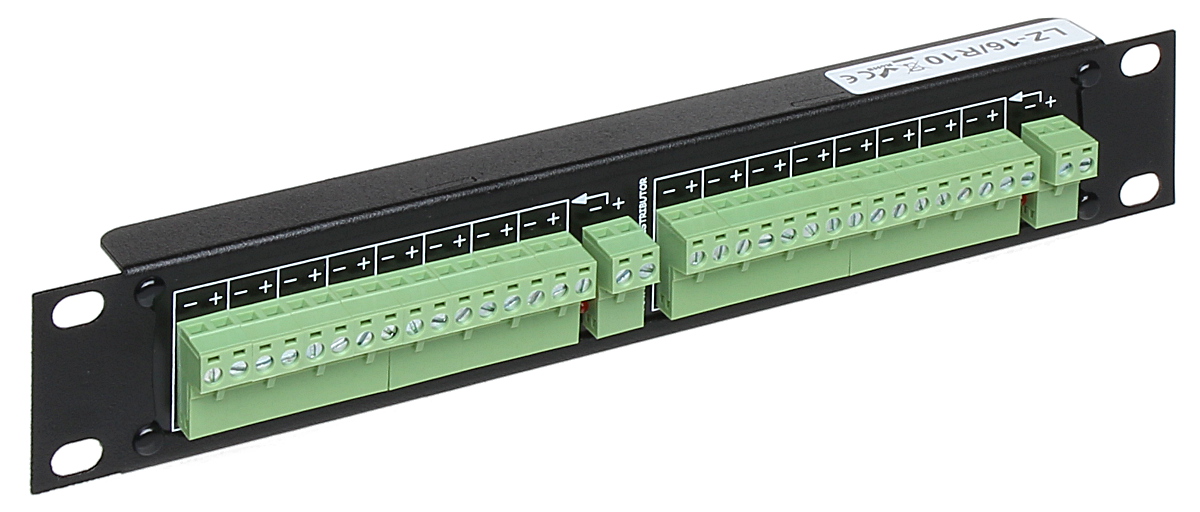

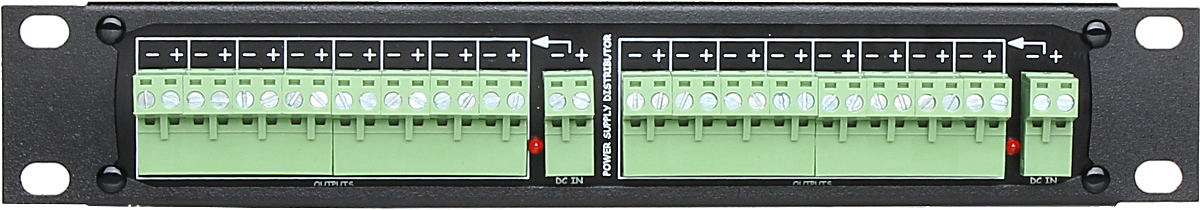

The device enables power distribution inside RACK cabinets from a single higher power supply source (or several power sources) to maximum 16 devices with max. single output current of 1A; Housing type: Rack 10" ; Dimensions: 255 x 41 x 40 mm ;
| Number of power outputs: | 16 (2 x 8 outputs) |
| Number of power inputs: | 2 (one per each 8-outputs terminal) |
| Maximal power voltage: | 24 V DC (typical 12V) |
| Maximal power supply current: | 5 A (for single terminal) |
| Max. output current for single output: | 1 A |

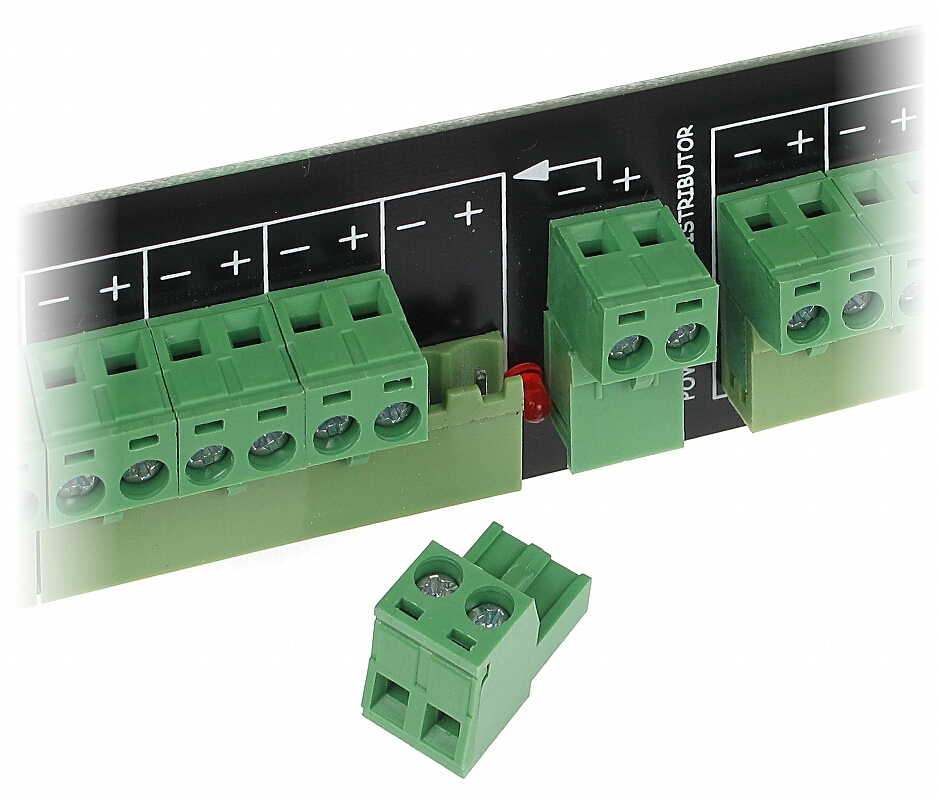

| Power connectors type: | Input : Cable terminals Output : Cable terminals |
| Operation temp: | -50 °C ... 55 °C |
| Permissible relative humidity: | < 95 % |
| Housing type: | Rack 10" |
| Weight: | 0.19 kg |
| Dimensions: | 255 x 41 x 40 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
