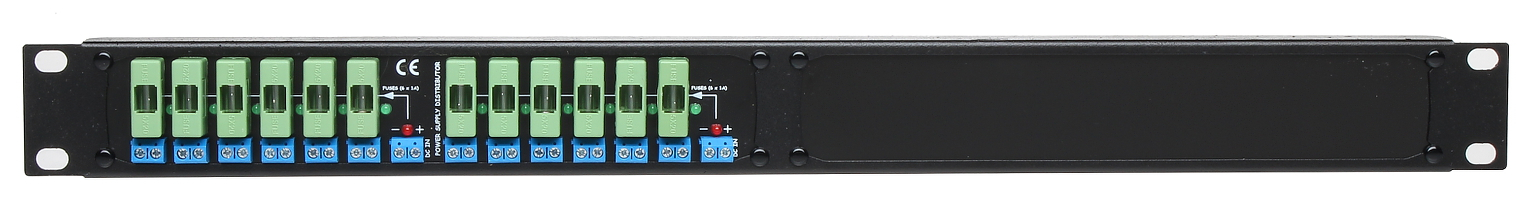

The device enables power distribution inside RACK cabinets from a single higher power supply source (or several power sources) to maximum 12 devices with max. single output current of 1A; Protection type: 12 x 1 A 5/20mm delayed fuse ; Dimensions: 482 x 45 x 39 mm ;
| Number of power outputs: | 12 (2 x 6 outputs) |

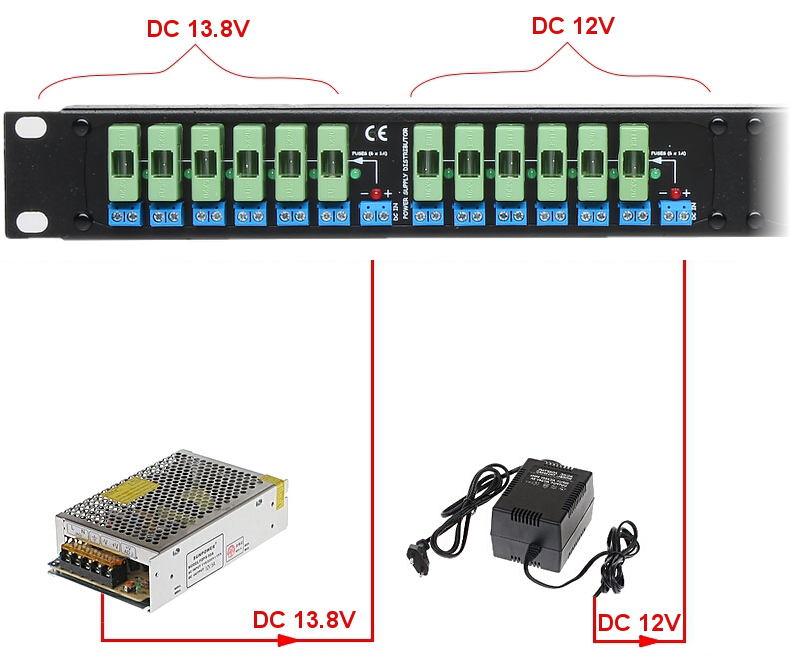

| Number of power inputs: | 2 (one per each 6-outputs terminal) |
| Maximal power voltage: | 24 V DC (typical 12V) |
| Maximal power supply current: | 5 A (for single terminal) |
| Max. output current for single output: | 1 A |

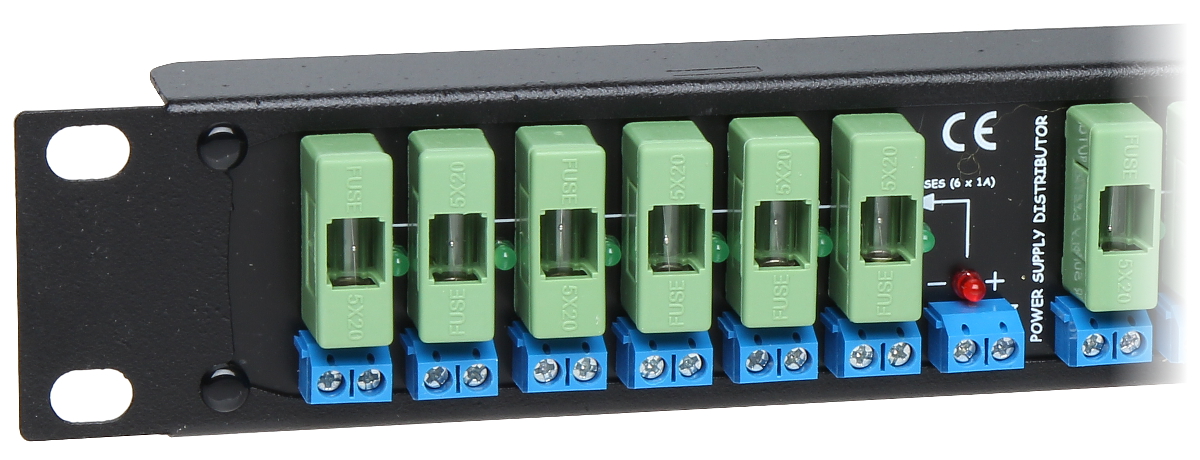

| Protection type: | 12 x 1 A 5/20mm delayed fuse |
| Power connectors type: | Input : Cable terminals Output : Cable terminals |
| Operation temp: | -50 °C ... 55 °C |
| Permissible relative humidity: | < 95 % |
| Housing type: | RACK 19", 1U |
| Weight: | 0.3 kg |
| Dimensions: | 482 x 45 x 39 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
