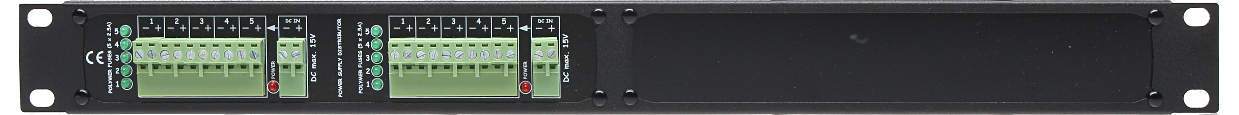

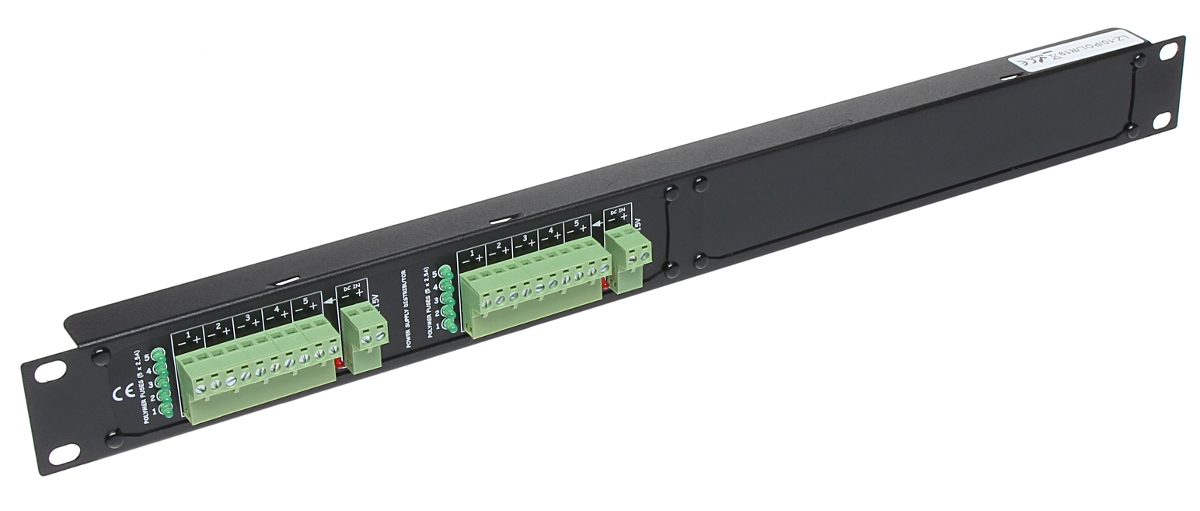

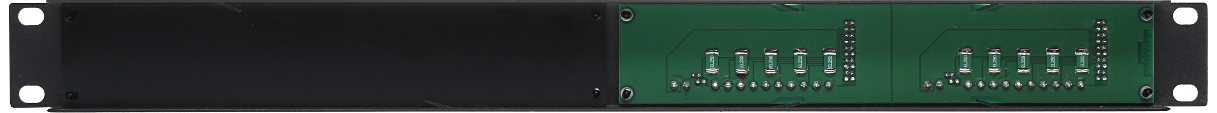

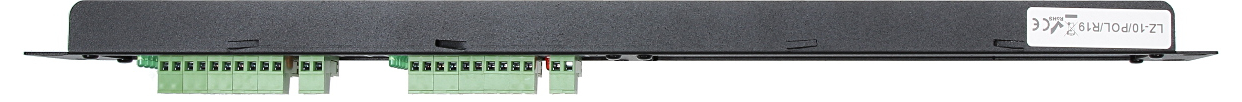

The device enables power distribution inside RACK cabinets from a single higher power supply source (or several power sources) to maximum 10 devices with max. single output current of 2.5A; Protection type: 10 x 2.5 A - Polymer fuse ; Housing type: RACK 19", 1U ; Dimensions: 482 x 41 x 40 mm ;
| Number of power outputs: | 10 (2 x 5 outputs) |

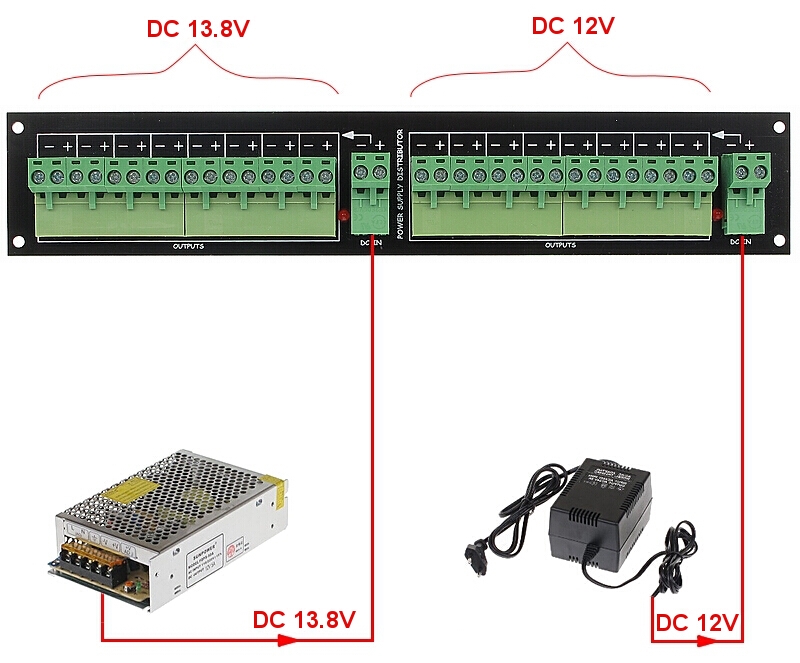

| Number of power inputs: | 2 (one per each 5-outputs terminal) |
| Maximal power voltage: | 15 V DC (typical 12V) |
| Maximal power supply current: | 12.5 A (for single terminal) |
| Max. output current for single output: | 2.5 A |
| Protection type: | 10 x 2.5 A - Polymer fuse |

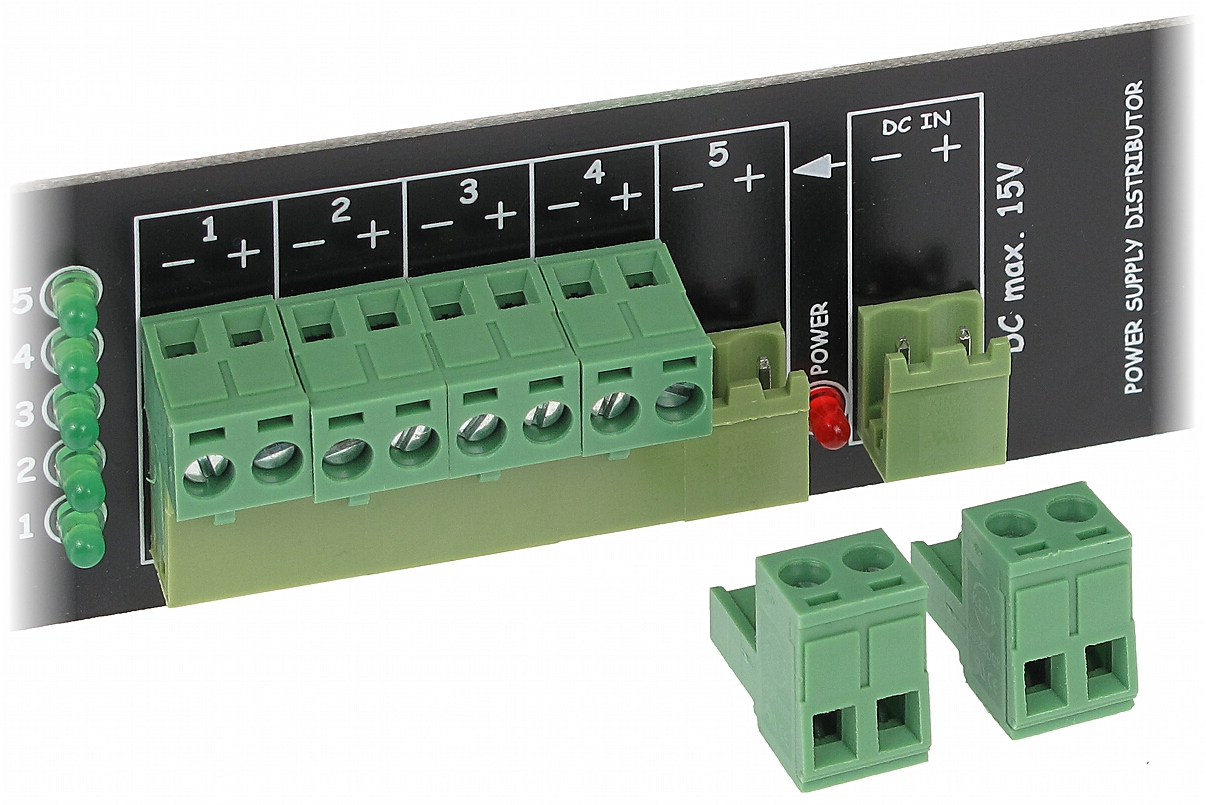

| Power connectors type: | Input : Cable terminals Output : Cable terminals |
| Operation temp: | -50 °C ... 55 °C |
| Permissible relative humidity: | < 95 % |
| Housing type: | RACK 19", 1U |
| Weight: | 0.280 kg |
| Dimensions: | 482 x 41 x 40 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
