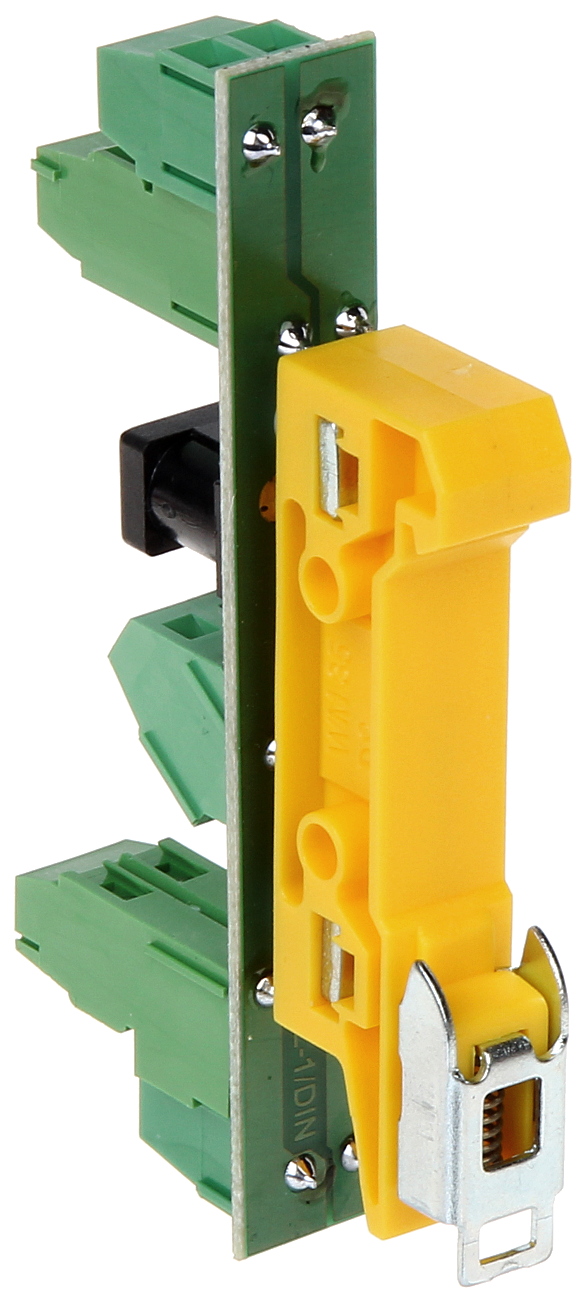

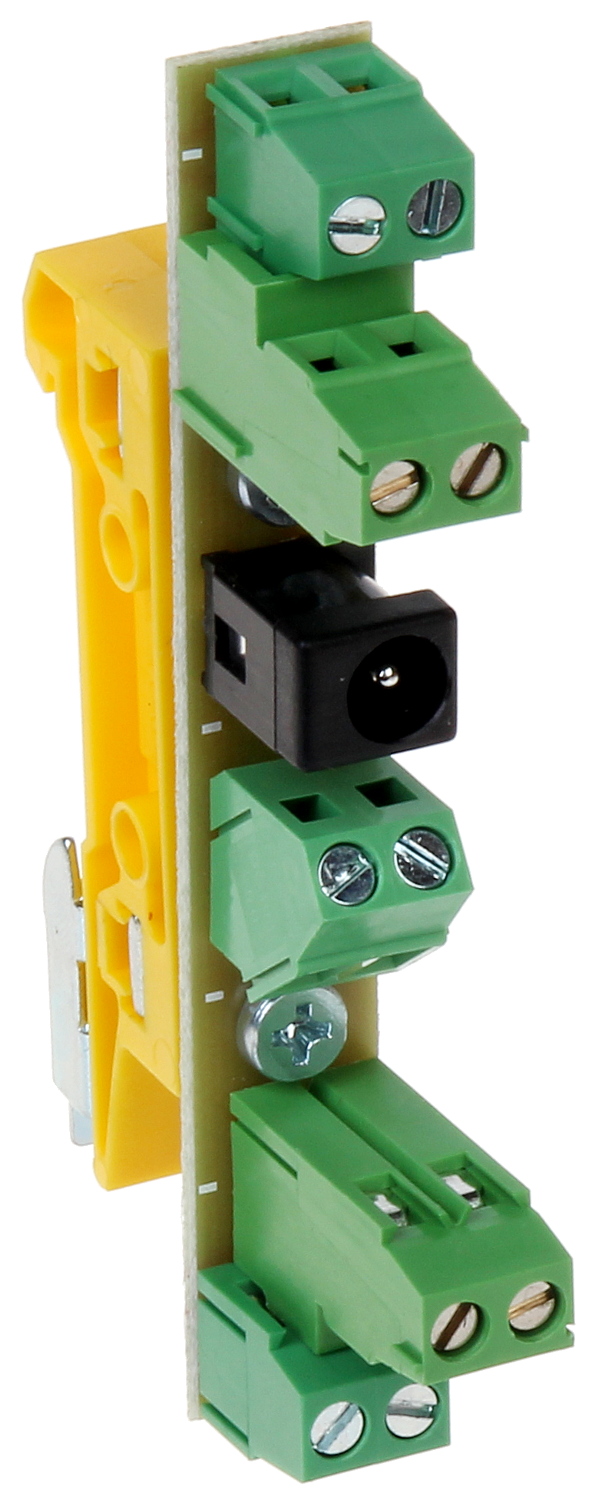

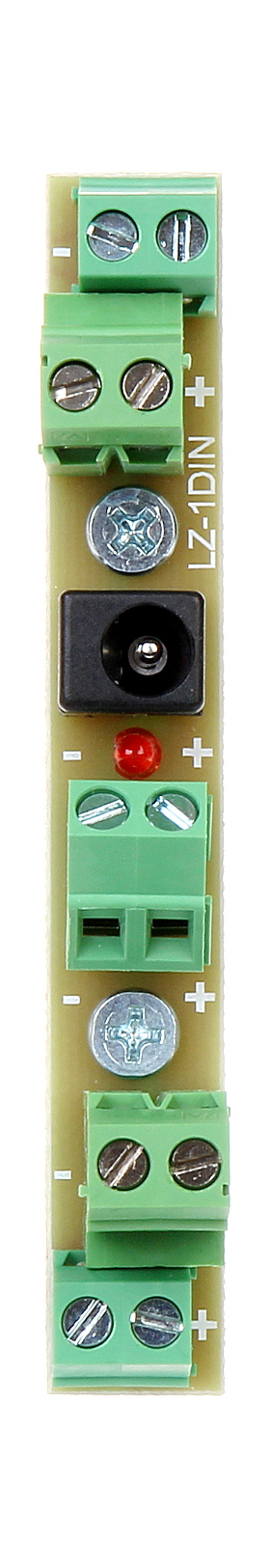

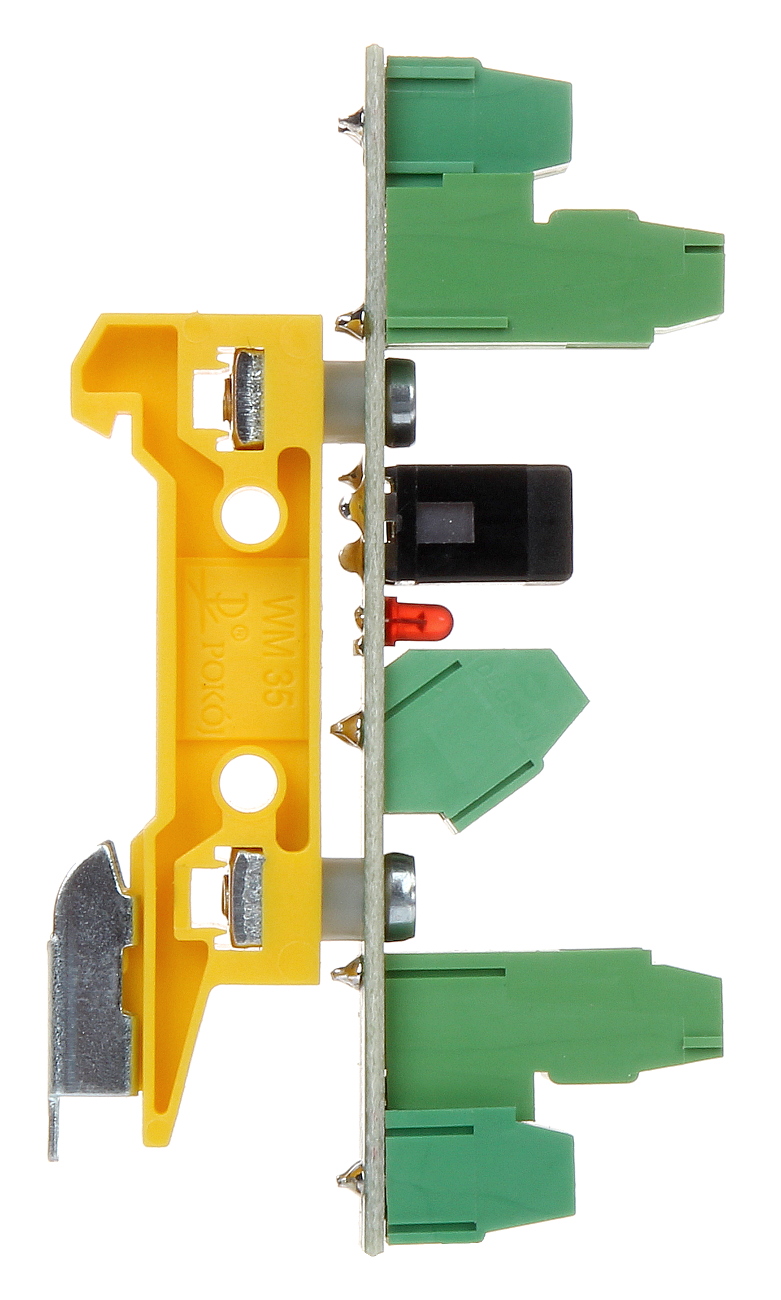

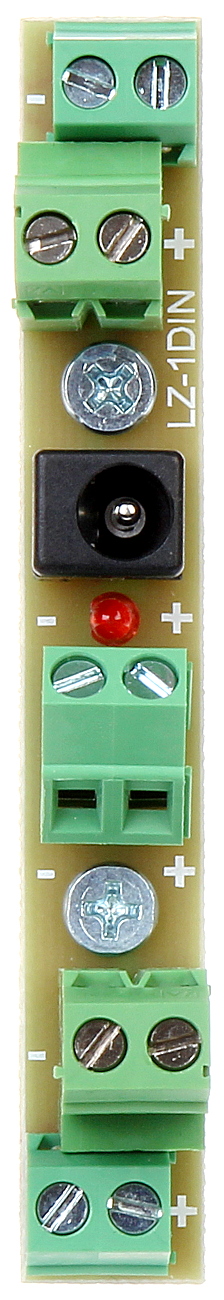

The LZ-1/DIN is a passive device and allows to distribute the power supply; Number of power outputs: 4 ; Max. output current for single output: 6 A ; Housing type: PCB, DIN, TS-35 rail mounting ;
| Number of power inputs: | 2 |
| Number of power outputs: | 4 |
| Maximal power voltage: | 24 V DC (typical 12V) |
| Maximal power supply current: | |
| Max. output current for single output: | 6 A |
| Protection type: |  |
| Power connectors type: | Input : 5.5/2.1 socket, cable terminals Output : Cable terminals |
| Operation temp: | -50 °C ... 55 °C |
| Main features: | LED indicator - Input voltage |
| Housing type: | PCB, DIN, TS-35 rail mounting |
| Weight: | 0.025 kg |
| Dimensions: | 90 x 50 x 13 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
