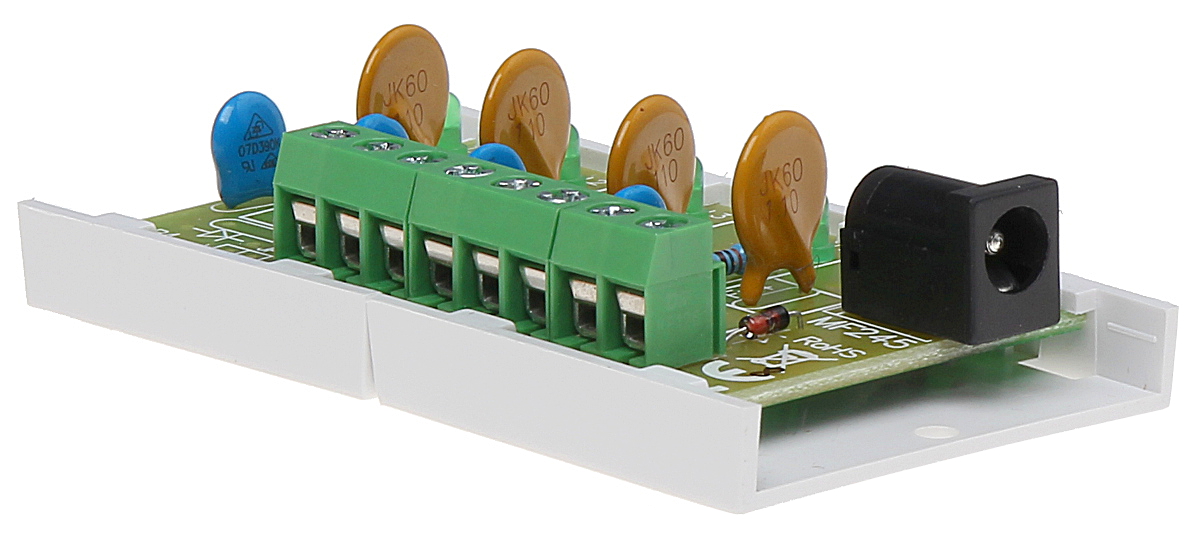

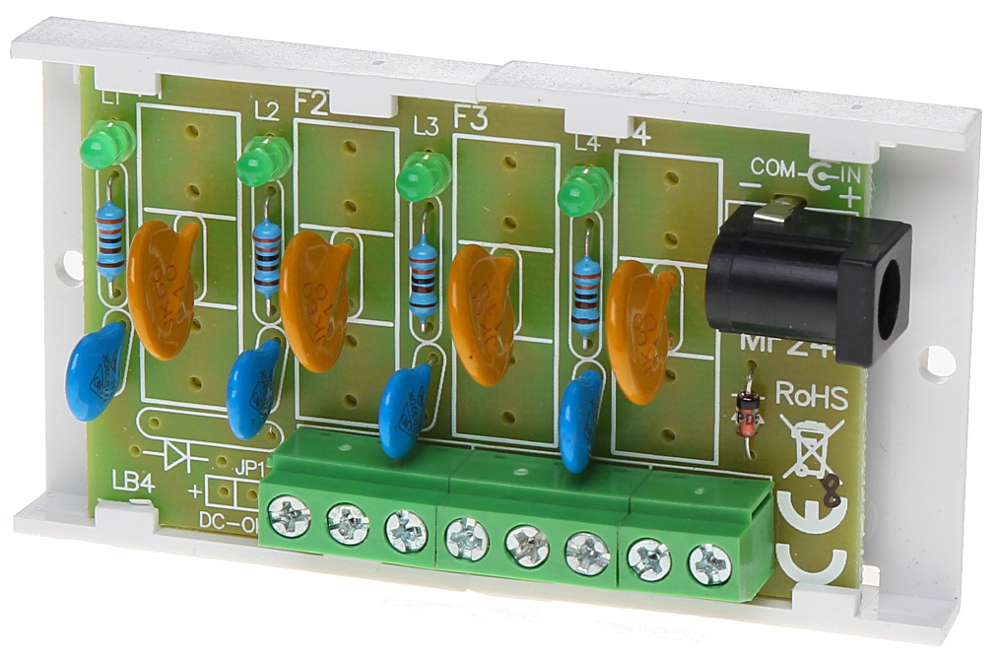

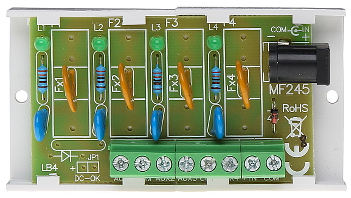

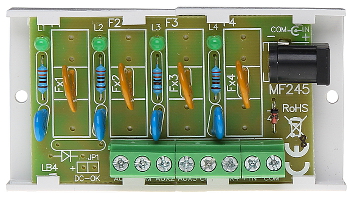

The AWZ-575 is a passive device and allows to distribute the power supply; Number of power outputs: 4 ; Max. output current for single output: 1 A ; Protection type: 4 x 1 A - PTC Polymer Fuse ;
| Number of power inputs: | 2 |
| Number of power outputs: | 4 |
| Maximal power voltage: | 30 V DC (typical 12V) |
| Maximal power supply current: | 4 A |
| Max. output current for single output: | 1 A |
| Protection type: | 4 x 1 A - PTC Polymer Fuse |
| Power connectors type: | Input - 5.5/2.1 socket, Cable terminals Output - Cable terminals |
| Operation temp: | -10 °C ... 50 °C |
| Main features: | |

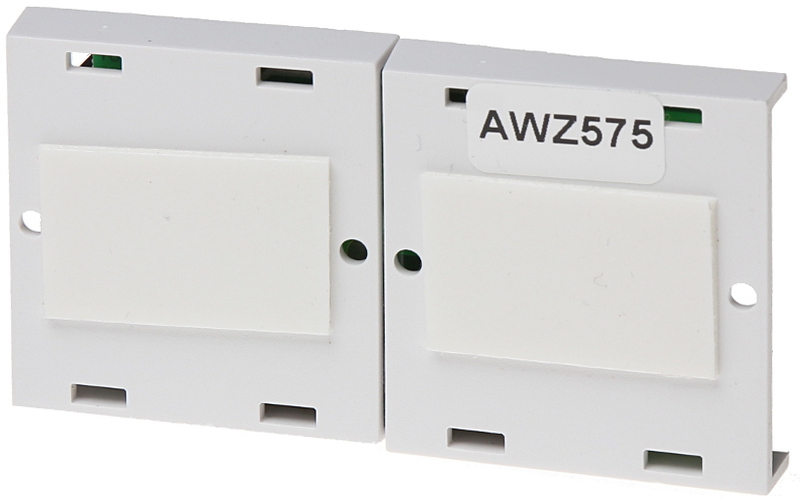

| Housing type: | Plastic |
| Dimensions: | 80 x 43 x 22 mm |
| Weight: | 0.03 kg |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
Brand:
Pulsar
