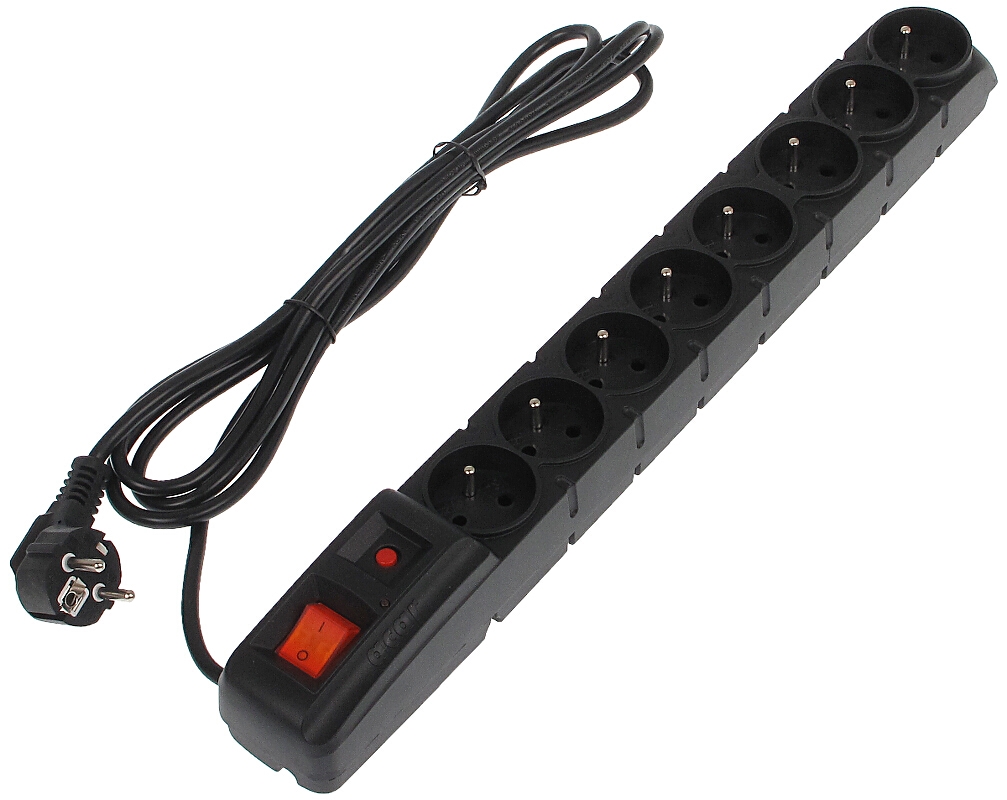

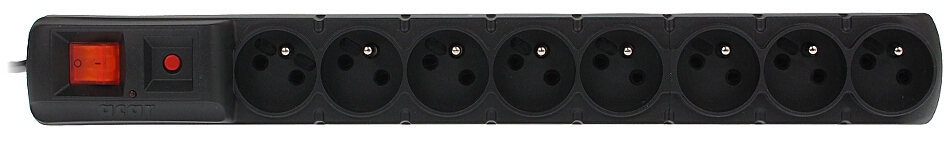

POWER DISTRIBUTION UNIT ACAR-S8/FA/RACK
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Protection device, protects the devices against lighting discharges or surges in AC 230V power lines; Number of outlets: 8 grounded outlets 10A/250V ;
| Rated voltage: | 230 V AC / 50 Hz |
| Nominal load current: | 10 A (total) |
| Nominal voltage of surge suppressor: | 250 V / 50 Hz |
| Protection level of surge suppressor: | ≤ 1.3 kV (L/N) |
| Number of outlets: | 8 grounded outlets 10A/250V |
| Automatic delayed fuse: |  |
| Nominal stroke current: | 2 kA (L/N) - 8/20 µs |
| Maximum stroke current: | 6.5 kA (L/N) - 8/20 µs |
| Leak current: | < 0.5 mA |
| Response time: | < 25 ns |
| Switch: | two-way, with light indication |
| Length of the cable: | 2.9 m |
| Housing: | RACK 19", 1U, Plastic - non-flammable |
| Weight: | 0.61 kg |
| Dimensions: | 445 x 54 x 55 mm |
| Guarantee: | 2 years |
Brand:
ACAR
