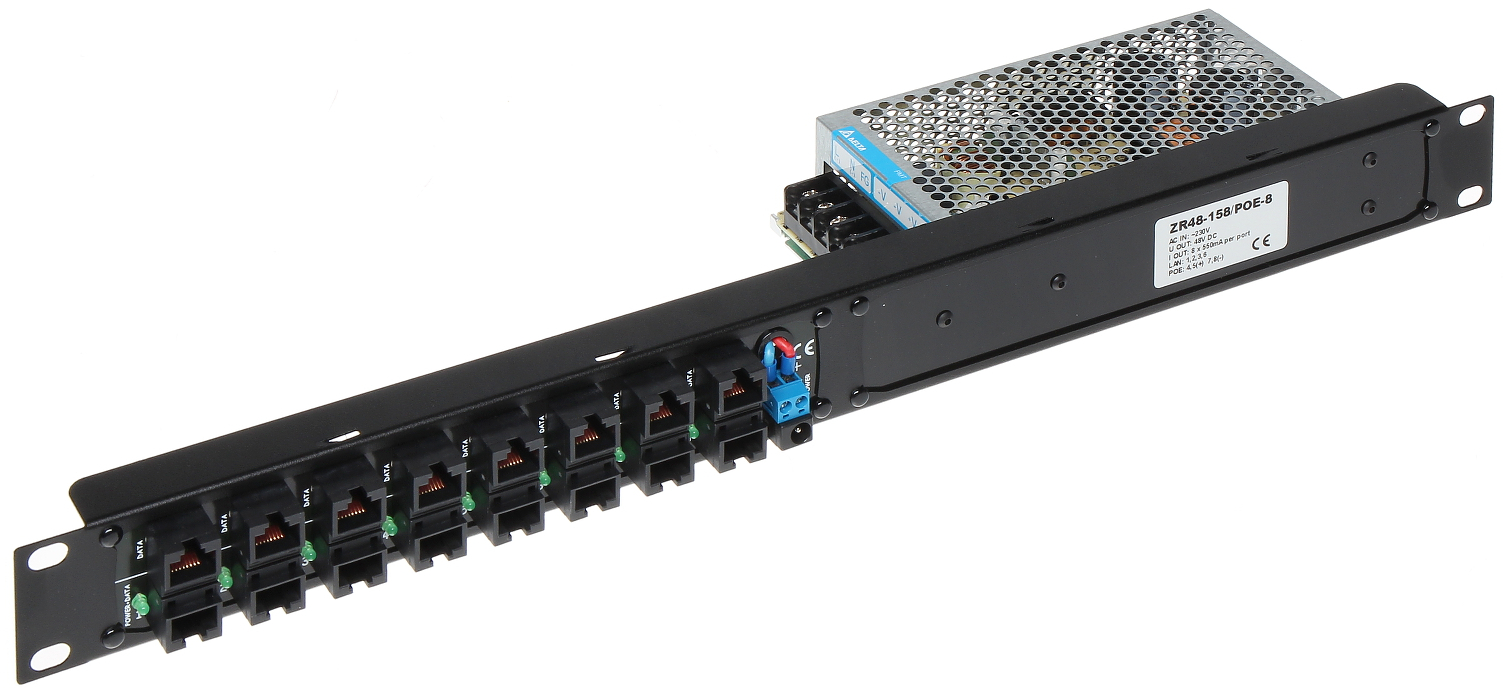

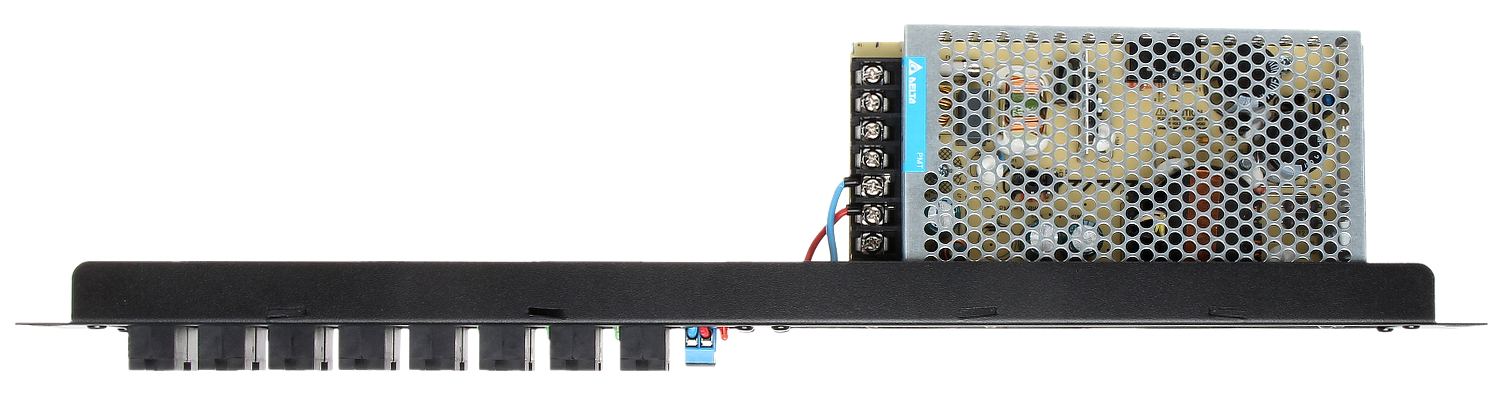

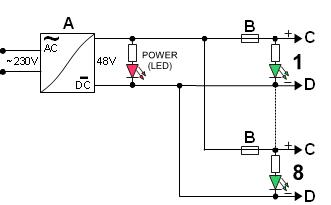

The adapter enables the introduction of the PoE supply voltage to the typical twisted-pair cable; Power voltage: 90 V ... 132 V AC, 180 V ... 264 V AC ; Output voltage: 48 V DC ; Maximal load: 3.3 A ; MTBF (Mean Time Between Faults): > 700000 h ;
| Adapter type: | Switching |
| Power voltage: | selectable by switch |
| Voltage frequency range: | 47 ... 63 Hz |
| Output power: | 160 W |
| Output voltage: | 48 V DC |
| Output voltage adjustment: | 45.6 V ... 52.8 V |
| Maximal load: | 3.3 A 550 mA / Output |
| Efficiency: | 89 % |
| MTBF (Mean Time Between Faults): | > 700000 h - Telcordia SR-332 |
| Power supply distance: | 100 m |
| Number of inputs: | 8 pcs (RJ-45) |
| Number of outputs: | 8 pcs (RJ-45) |
| Protections: | |

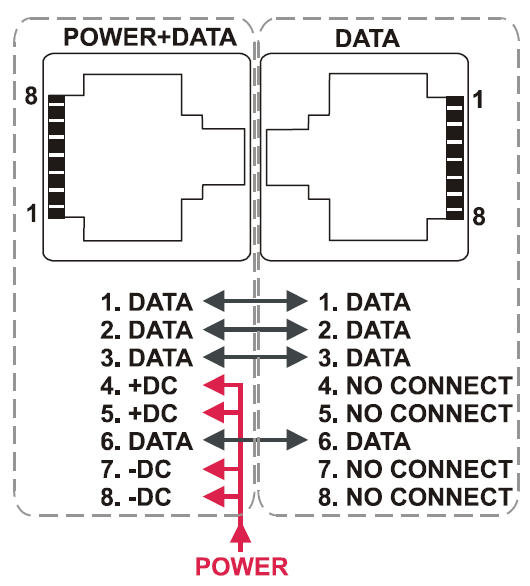

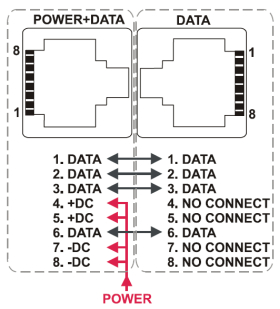

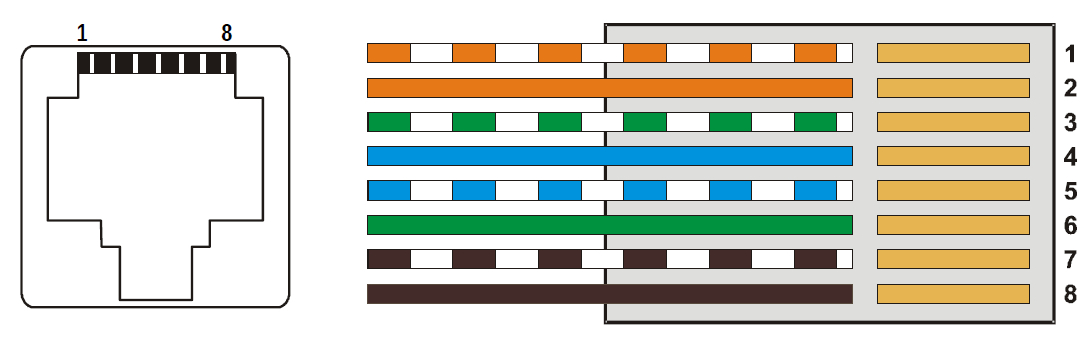

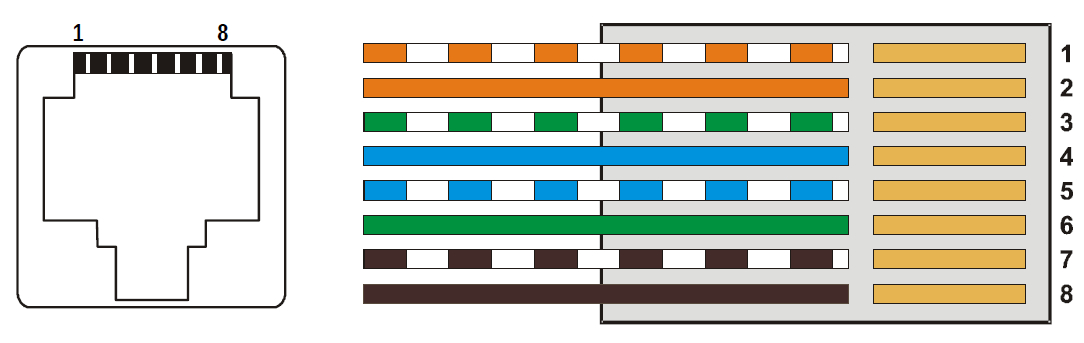

| Main features: | Pin numbers for RJ-45 connector |
| Manufacturer / Brand: | DELTA |
| Main features: | Polymer fuse |
| LED indicators: | |

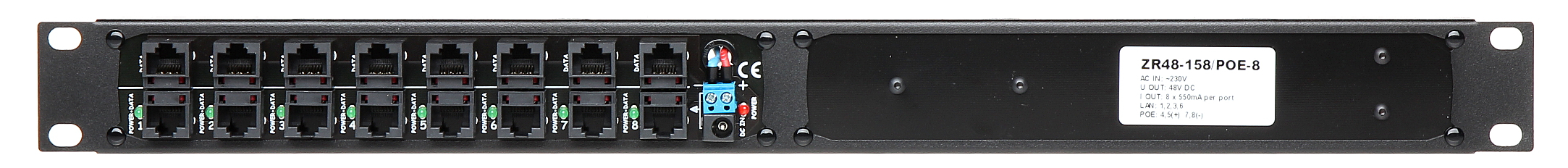

| Housing type: | 1 U Rack 19" |
| Operation temp. / Relative humidity: | -10 °C ... 70 °C / 10 % ... 80 % |
| Weight: | 0.74 kg |
| Dimensions: | 483 x 44 x 102 mm |
| Guarantee: | 5 years |
Brand:
Delta
