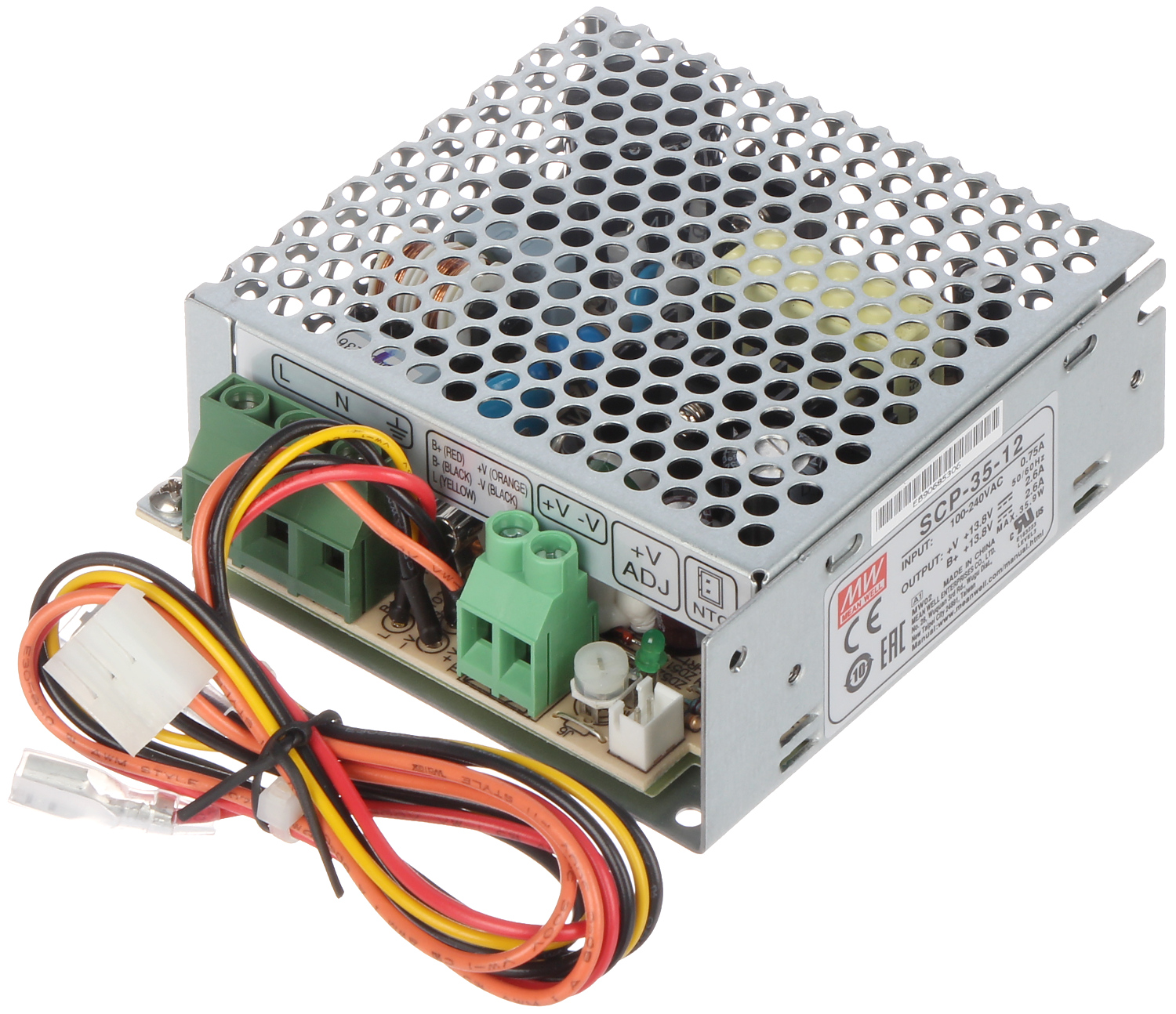

The buffered power supply adapter is designed to powering control panels, sensors, code locks, cameras, consoles, intercoms and other alarm system equipment; Output voltage: 13.8 V DC ; Output voltage adjustment: 13.1 ... 15.8 V ; Maximal load: 2.6 A ; Battery charging current: 0.26 A ; Output power: 35 W ;
| Adapter type: | Switching |
| Power voltage: | 85 ... 264 V AC |
| Output voltage: | 13.8 V DC |
| Output voltage adjustment: | 13.1 ... 15.8 V |
| Maximal load: | 2.6 A |
| Battery charging current: | 0.26 A |
| Output power: | 35 W |
| Efficiency: | 83 % |
| Number of outputs: | 1 pcs |
| Protections: | |
| Operation temp. / Relative humidity: | -20 °C ... 90 °C / 20 % ... 90 % |
| Supported standards: | UL60950-1, TUV EN60950-1 |
| EMI conduction and radiation: | Compliance to EN55022 (CISPR22) class B |
| Harmonic: | Compliance to EN61000-3-2,-3 standard |
| EMS immunity: | Compliance with EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-1 standards |
| MTBF (Mean Time Between Faults): | 523300 hours |
| Weight: | 0.35 kg |

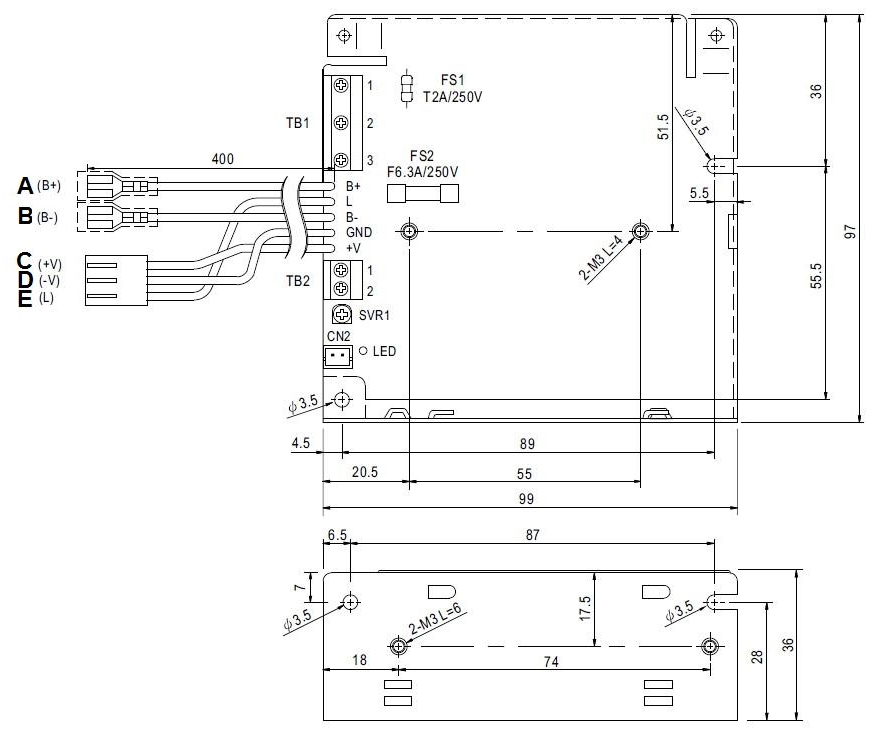

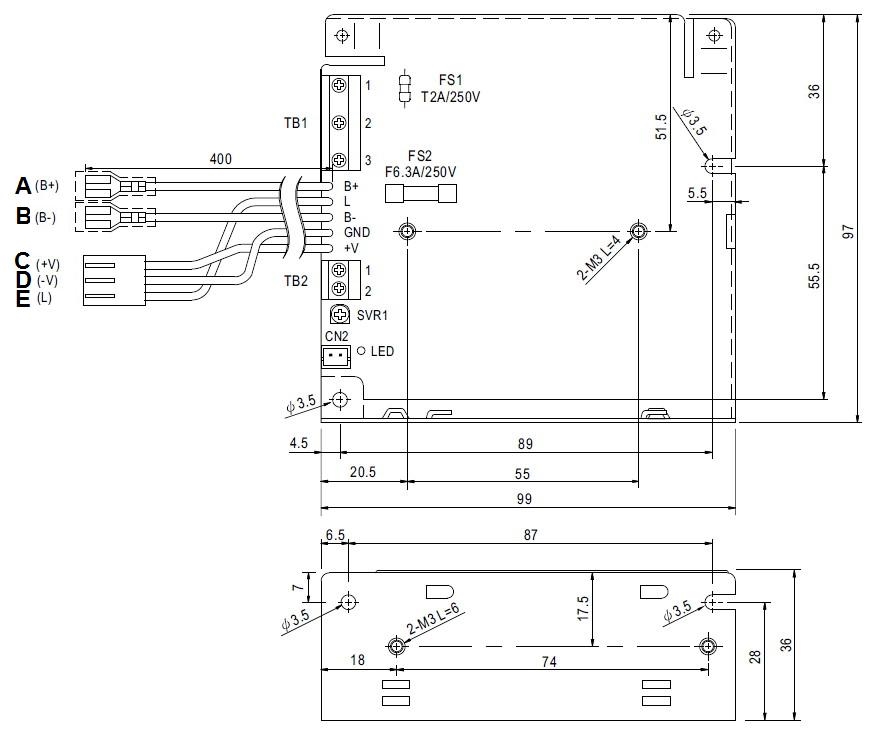

| Dimensions: | 99 x 98 x 36 mm |
| Guarantee: | 2 years |
Brand:
Pulsar
