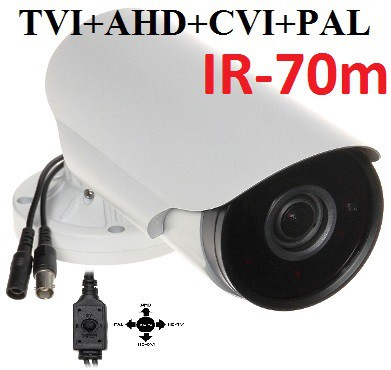

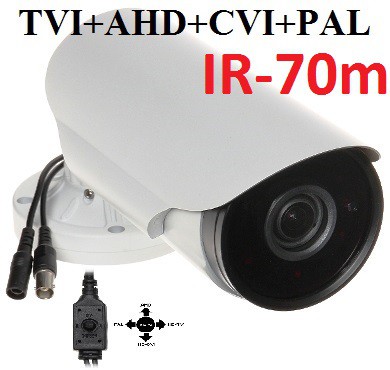

VOHDX170w - Multi-HD, PAL, HD-TVI, HD-CVI, A-HD. 1080p, 2,8-12mm, IR-70m
PAL, HD-TVI, HD-CVI, A-HD. Multi-HD, 1080p, 2,8-12mm, IR 70m filtr IR CMOS 1/2.8 SONY IMX323 HTC1088 DWDR, DNR, DFOG, AWB, BLC, SENSE UP, PAL/ TVI / CVI / AHD IP66 -30°....50°C
|
Standard: |
AHD, HD-CVI, HD-TVI, PAL |
|
Sensor: |
1/2.9 " Sony CMOS IMX323 |
|
Digital Image Processor: |
HTC1088 |
|
Matrix size: |
2.1 Mpx |
|
Resolution: |
1920 x 1080 - 1080p, AHD-H, HD-CVI, HD-TVI , |
|
Range of IR illumination: |
70 m |
|
IR illuminator power adjustment: |
Automatic |
|
Lens: |
2.8 ... 12 mm, 2 Mpx |
|
View angle: |
· 95 ° ... 35 ° |
|
S/N ratio: |
> 50 dB |
|
Video output: |
1 Vpp 75 Ω, AHD / HD-CVI / HD-TVI / PAL - selectable by switch |
|
Main features: |
· ICR - Movable InfraRed filter · AGC - Automatic Gain Control · White Balance - ATW/Manual · Sense-UP - (Slow Shutter) - Increase the sensor sensitivity max. x 30 · D-WDR - Wide Dynamic Range · 2-DNR, 3-DNR - Digital Noise Reduction · F-DNR (Defog) - Reduction of image noise caused by precipitation · Motion Detection - max. 4 zones · Privacy zones - max. 4 · BLC - configurable Back Light Compensation · HSBLC - High Light Compensation (spot) · Mirror - Mirror image · image "freeze" · Sharpness - sharper image outlines · Monitor type correction - LCD/CRT |
|
OSD menu: |
Yes |
|
"Index of Protection": |
IP66 |
|
Power supply: |
12 V DC / 570 mA |
|
Power consumption: |
≤ 7 W |
|
Housing: |
Compact - Metal |
|
Color: |
White |
|
Operation temp: |
-30°C ... 50 °C |
|
Weight: |
1.254 kg |
|
Dimensions: |
300 x 101 x 91 mm |
|
Supported languages: |
English, Chinese, French, Spanish, Dutch, German, Polish, Portuguese, Russian, Turkish, Italian |
|
Guarantee: |
2 years |
