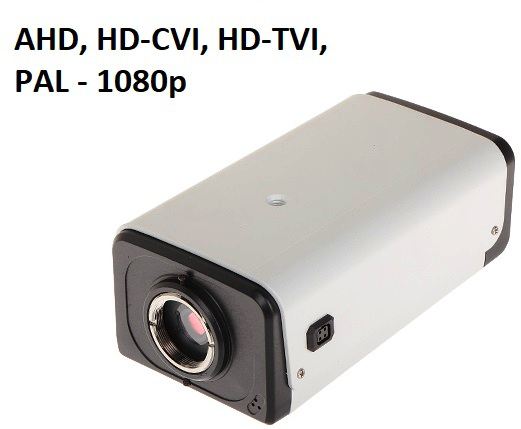

AHD, HD-CVI, HD-TVI, PAL - 1080p/720p
|
Standard: |
AHD, HD-CVI, HD-TVI, PAL |
|
Sensor: |
1/2.9 " Progressive Scan CMOS |
|
Digital Image Processor: |
FH8538M |
|
Matrix size: |
2.1 Mpx |
|
Resolution: |
1920 x 1080 - 1080p/720p, AHD-H, HD-CVI, HD-TVI , |
|
Video output: |
1 Vpp 75 Ω, AHD, HD-CVI, HD-TVI, PAL |
|
Lens: |
yes |
|
Auto Iris socket: |
DC |
|
S/N ratio: |
> 50 dB |
|
Min. illumination: |
0.1 Lux @ F1.2 (color) , |
|
IR illuminator support: |
ICR - Movable InfraRed filter |
|
OSD menu: |
yes |
|
Main features: |
D-WDR - Wide Dynamic Range 3D-DNR - Digital Noise Reduction F-DNR (Defog) - Reduction of image noise caused by precipitation BLC/HLC - Back Light / High Light Compensation Sense-UP - increase the camera sensitivity x30 ICR - Movable InfraRed filter Mirror - Mirror image Privacy zones - max. 4 Motion Detection - max. 4 configurable zones Sharpness - sharper image outlines Auto White Balance |
|
Power supply: |
12 V DC / 120 mA |
|
Power consumption: |
≤ 1.5 W |
|
Housing: |
BOX, Metal |
|
Color: |
White / Black |
|
Operation temp: |
-20 °C ... 50 °C |
|
Weight: |
0.5 kg |
|
Dimensions: |
149 x 82 x 58 mm |
