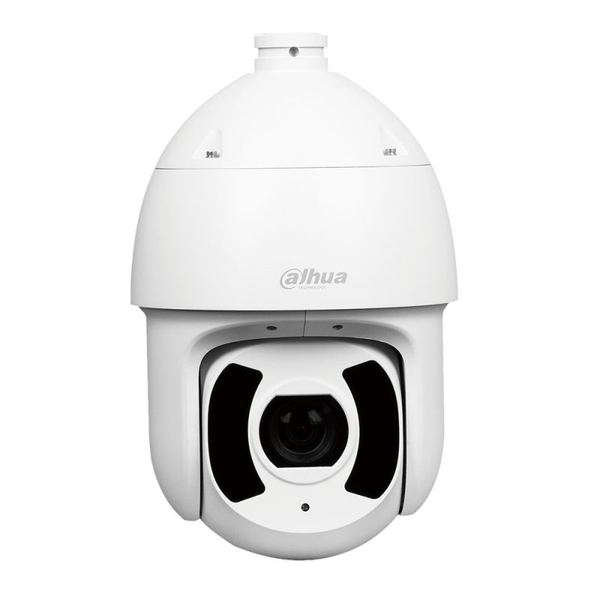

SD6CE225I-HC-S3 - 2MP, IR 200 m, lens 4.8-120 mm

Standard:

AHD, HD-CVI, HD-TVI, CVBS

Sensor:

1/2.8 " SONY Starvis™ Back-illuminated CMOS

Matrix size:

2.1 Mpx

Resolution:

1920 x 1080  - 1080p
1280 x 720  - 720p
960 x 576  - 960H

Range of IR illumination:

200 m

IR illuminator power adjustment:

Automatic

Lens:

4.8  ... 120 mm

View angle:

·  63 ° ... 2.6 °

Optical zoom:

x 25

Digital zoom:

x 16

Rotation speed depending on ZOOM level:

Yes

Auto IR illuminator:

Adaptive adjusting of the IR illuminator power to the lens zoom and outdoor light conditions

Horizontal rotation range:

360 ° continuous

Vertical rotation range:

-20 ° ... 90 °

Rotation speed (manual control):

0.1 °/s ... 200 °/s (horizontal) ,
0.1 °/s ... 120 °/s (vertical)

Preset rotation speed:

300 °/s (horizontal) ,
200 °/s (vertical)

PTZ control:

Via interface RS-485
The ability to control via coaxial cable from recorder Dahua

Protocols:

Pelco-D, Pelco-P, DH-SD (auto detection)

Video output:

AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω

Audio:

External microphone input

Number of presets:

300

Route settings:

8

Horizontal scan:

Yes

Park action:

Call the set function (tour, scan, etc.) after specified dwell time

Alarm inputs / outputs:

2 / 1

Main features:

·  WDR - 120 dB - Wide Dynamic Range

·  2D-DNR, 3D-DNR - Digital Noise Reduction

·  F-DNR (Defog) - Reduction of image noise caused by precipitation

·  IR illuminator optimization

·  BLC/HLC - Back Light / High Light Compensation

·  ICR - Movable InfraRed filter

·  Auto White Balance

·  24 Configurable Privacy Zones

·  The camera is equipped with a built-in heater with a thermostat

OSD menu:

Yes

Vandal-proof:

IK10

"Index of Protection":

IP67

Power supply:

24 V AC / 3 A (power adapter included)

Power consumption:

≤ 25 W

Housing:

Speed Dome, Metal

Color:

White

Operation temp:

-40 °C ... 60 °C

Weight:

6.5 kg

Dimensions:

270  x 420  x 209 mm

Supported languages:

Polish, English

Manufacturer / Brand:

DAHUA
