RG59+ - 2x0.5mm2 (видео кабель + кабель питание)
коаксиальный видео кабель + кабель питание

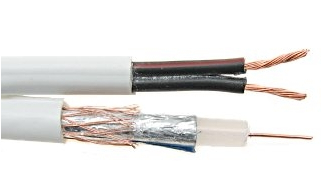

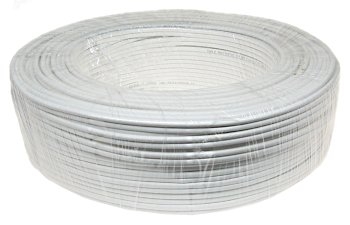

Coaxial cable 75 Ohm; main cord 0.8mm wire; integaterd with power cord 2x0.5mm2 - 100m/rol
CCTV specialistic cable. Two power wires plus coaxial cable.
Power cable specifications:
Wire: 2 x 0.5 mm²
Coaxial cable specifications:
* Impedance: 75 Ω
* Inner conductor: Cu wire 0.59 mm
* Dielectric: PE full 3.7 mm
* Screen: Aluminium foil (PET)
* Braid: Cu wire
* Screening efficiency: > 75 dB
* Outer coating: PVC 5.5 mm
Attenuation (dB) of the 100m cable length for particular frequencies (MHz):
* 100 MHz - 10.6 dB
* 200 MHz - 15.2 dB
* 500 MHz - 25.4 dB
* 1000 MHz - 38.9 dB
The video signal can be transmitted via this cable for distance up to 400m without any amplifier using necessary.
The CCTV specialistic cable Rg59+2X0.50 has 2 wires of 0.5 mm² each. Theoretical resistance is 3.4Ω/100m. Manufacturer data is 5.5Ω/100m. In powering cameras with 12V DC over RG59+2X0.50 cable and on the assumption that the voltage will fall to 11V, the power may be delivered over the following distances:
|
Max. distance at R=3.4Ω / 100m |
Max. distance at R=5.5Ω / 100m |
Max. current |
|
[m] |
[m] |
[A] |
|
10 |
6.2 |
1.471 |
|
20 |
12.3 |
0.735 |
|
30 |
18.5 |
0.49 |
|
40 |
24.7 |
0.368 |
|
50 |
30.9 |
0.29 |
|
60 |
37.1 |
0.245 |
|
70 |
43.3 |
0.210 |
|
80 |
49.4 |
0.184 |
|
90 |
55.7 |
0.163 |
|
100 |
61.8 |
0.147 |
|
150 |
92.7 |
0.098 |
|
200 |
122.8 |
0.074 |
|
250 |
154 |
0.059 |
|
300 |
185.5 |
0.049 |
|
350 |
216.4 |
0.042 |
|
400 |
245.7 |
0.037 |
|
450 |
275.4 |
0.033 |
|
500 |
313.4 |
0.029 |
