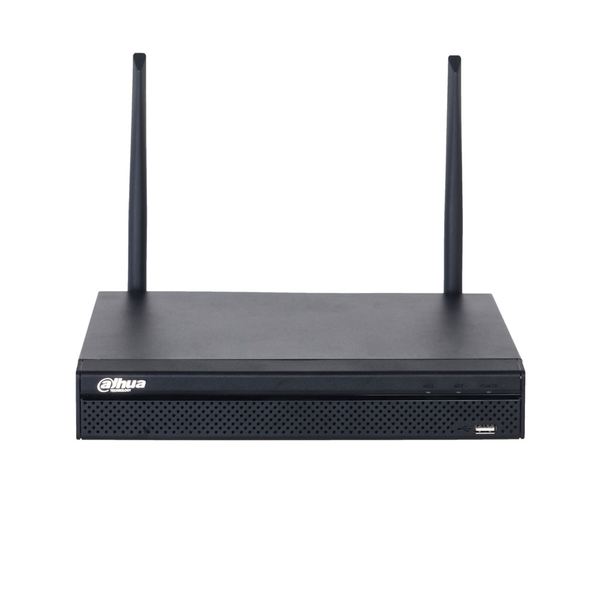

NVR1108HS-W-S2-CE Wi-Fi 8-CH DAHUA

Standard:

TCP/IP

Supported resolutions:

max. 6 Mpx - 3072 x 2048 px

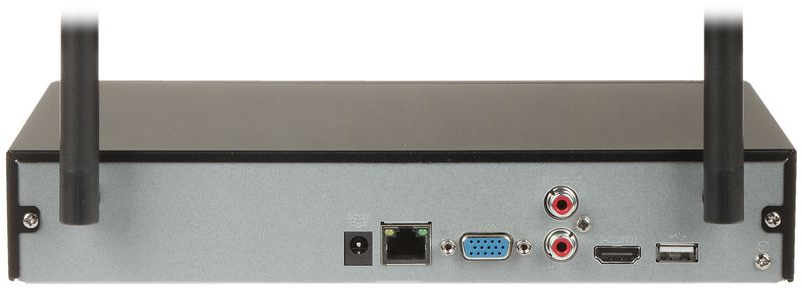

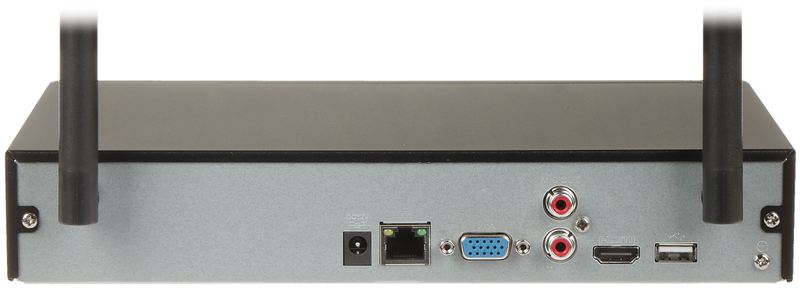

Video outputs:

1 pcs HDMI
1 pcs VGA

Audio support:

8 Channels - Audio from cameras

Audio inputs:

1 pcs CINCH

Audio outputs:

1 pcs CINCH

Image compression method:

Smart H.265 / H.265 / Smart H.264 / H.264 / MJPEG

Bitrate:

max. 40 Mbps
max. 16 Mbps Wi-Fi

Supported hard drives:

1  x 16 TB SATA

Recording modes:

Manual, Motion Detection, Schedule

External storage devices backup:

Backup to USB drive (pendrive, external drive)

Searching and playback the records:

Records searching: by time and events type. Records playback: forward, backward, fast, slow
Advanced searching (to the one second accuracy)
1, 4 or 8 channels synchronous playback, Smart Playback function

Network interface:

·  1 x RJ-45 10/100 Base-TX

·  2.4 GHz Wi-Fi - IEEE 802.11 b/g/n

Network functions:

·  Built-in Wi-Fi module - Dahua cameras support : Smart, auto-paring, Remote configuration, Remote management

·  Full support via network, Remote records copying, Web-Server built-in

Network protocols:

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, Alarm Server, P2P

Default IP address:

192.168.1.108

Default admin user / password:

admin / -
The administrator password should be set at the first start

Web browser access ports:

80, 37777

PC client access ports:

37777

Mobile client access ports:

37777

Mobile phones support:

Port no.: 37777 or access by a cloud (P2P)

·  Android: DMSS free application

·  iOS (iPhone): DMSS free application

See how to configure the P2P function in Dahua recorders and how to enable the mobile application

RTSP URL:

rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream

USB:

2 pcs USB 2.0

PTZ control:

IP Speed Dome Cameras

Main features:

·  Privacy zones

·  VIDEO signal loss alarm

Power supply:

12 V DC / 1.5 A (power adapter included)

Power consumption:

≤ 10 W (without HDD)

Operation temp:

-10 °C ... 45 °C

Weight:

0.84 kg

Dimensions:

260  x 248  x 48 mm

Supported languages:

Polish, English, Bulgarian, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Serbian, Slovenian, Swedish, Hungarian, Italian

Manufacturer / Brand:

DAHUA
