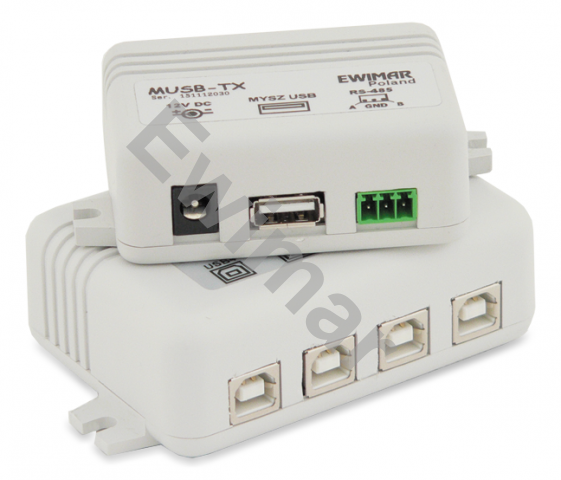

Active addressable mouse extension With optical separation to control Up to 8 devices at a distance of up to 1200m • Standard USB 1.2 / 2.0 • Transfer speed 9600 baud • Transmission of one pair of twisted pair • Supports 4 expandable device up to 8 • Optical separation: eliminating industrial disturbances due to potential differences • Surge protection up to 600V • Transmission range up to 1200 m • Built-in transmitter and addressable receiver with optional expandable receiver, power supply, USB cable and optical mouse • Mouse control is done in real time • Compatible with fiber optic systems and wireless telemetry systems • Dimensions 87 x 28 x 51 (mm) • Support wireless mouse
| Technical specification: | |
| Parameter | Value |
| Support of USB standard | 1.0, 1.2, 2.0 |
| USB input (transmitter) | connector A |
| USB output (receiver) | connector B |
| Number of supported channels | 4 up to 8 after expansion |
| Power supply | transmitter: 12V, |
| receiver: USB slot | |
| Transfer speed | 9600 baud |
| Maximum distance control | 1200m |
| Optical separation | 1.5kV |
| Surge protection | 600W |
| Housing | freestanding, bolted |
| Size | Transmitter: 87 x 28 x51 (mm), |
| Receiver:90,4 x 63,7 x 32 (mm) | |
| Work temperature | -15°C ~ 40°C |
