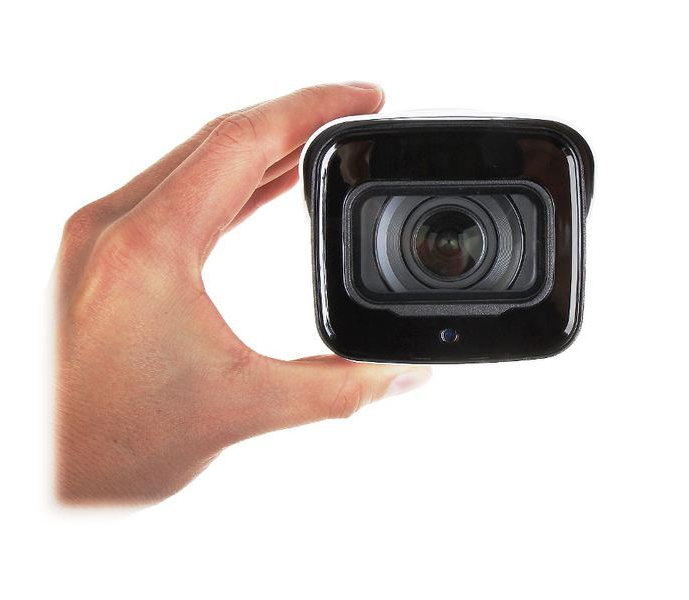

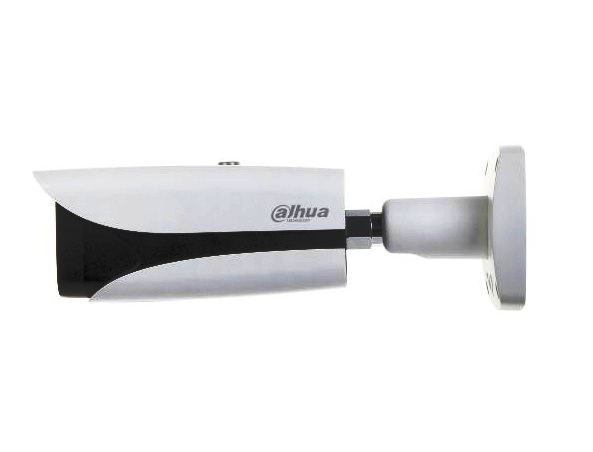

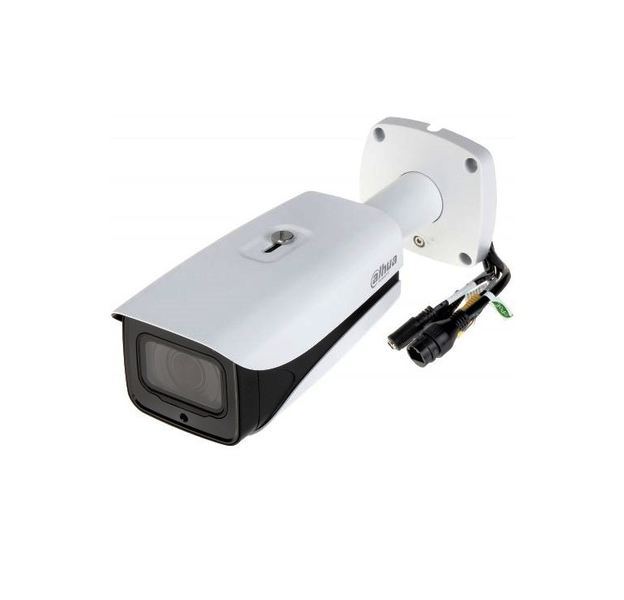

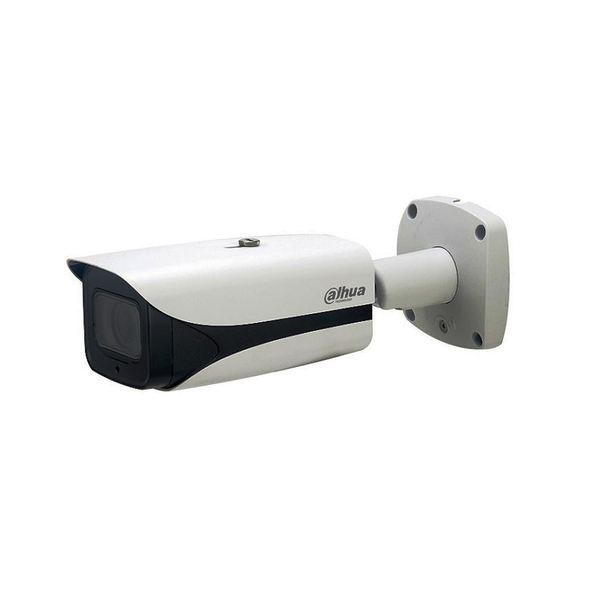

IPC-HFW5241E-ZE - 2MP, 2.7-13.5mm MotorZoom, Ir 50m, StarLight, Alarm 2/1, Audio 1/1, microSD

Standard:

TCP/IP

Sensor:

1/2.8 " STARVIS™ CMOS

Matrix size:

2.1 Mpx

Resolution:

1920 x 1080  - 1080p
1280 x 960  - 1.3 Mpx
1280 x 720  - 720p

Lens:

2.7  ... 13.5 mm - Motozoom

View angle:

109 ° ... 30 °

Compression:

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Range of IR illumination:

50 m

Alarm inputs / outputs:

2 / 1

Bitrate:

·  32  ... 8192 kbps - H.264

·  19  ... 7424 kbps - H.265

Main stream frame rate:

25 fps @ 1080p

Audio:

·  External microphone input

·  Audio output

·  Bi-directional audio streaming support

·  Audio detection

Network interface:

10/100 Base-T (RJ-45)

Network protocols:

HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, SNMP, QoS, UPnP, NTP, ICMP, IGMP, IEEE 802.1x, Multicast

WEB Server:

Built-in, NVR compliance

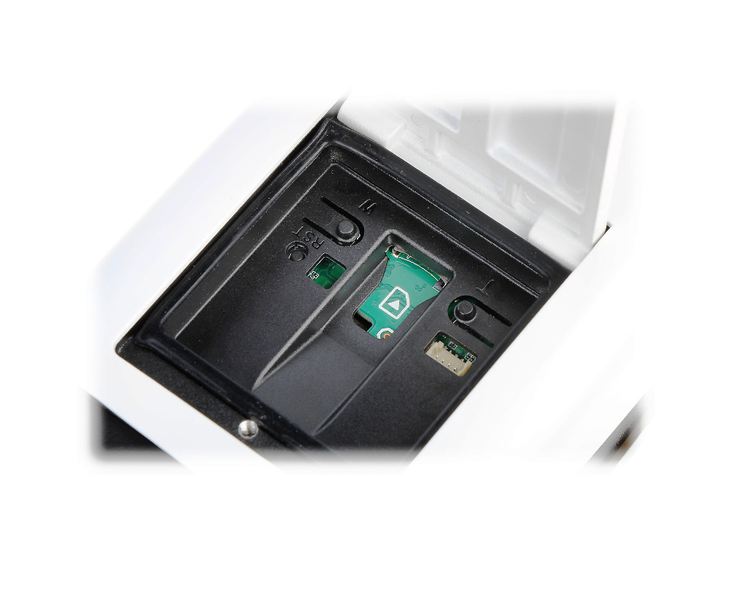

Memory card slot:

Micro SD memory cards up to 256GB support (possible local recording)

ONVIF:

16.12

RS-485 interface:

No

Main features:

·  Motozoom lens

·  WDR - 120 dB - Wide Dynamic Range

·  EIS - Electronic Image Stabilization

·  3D-DNR - Digital Noise Reduction

·  ROI - improve the quality of selected parts of image

·  F-DNR (Defog) - Reduction of image noise caused by precipitation

·  BLC/HLC - Back Light / High Light Compensation

·  Possibility to change the resolution, quality and bit rate

·  Motion Detection

·  Configurable Privacy Zones

·  ICR - Movable InfraRed filter

·  Mirror - Mirror image

·  Heat map - the selection in the image by corresponding colors the areas with different traffic

·  IVS analysis : crossing the line (tripwire), scene changing, intrusion - classification of people and vehicles, abandoned/missing object, people counting - detection and maintenance of 4 independent areas, detection of people gathering, face detection - supports 6 types of facial attributes extraction

Power supply:

·  ePoE,

·  PoE (802.3af),

·  12 V DC / 860 mA

Power consumption:

< 10.3 W

Operation temp:

-30 °C ... 60 °C

Housing:

Compact, Metal + Plastic

Color:

White + Black

"Index of Protection":

IP67

Vandal-proof:

IK10

Supported languages:

Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Italian

Weight:

1.07 kg

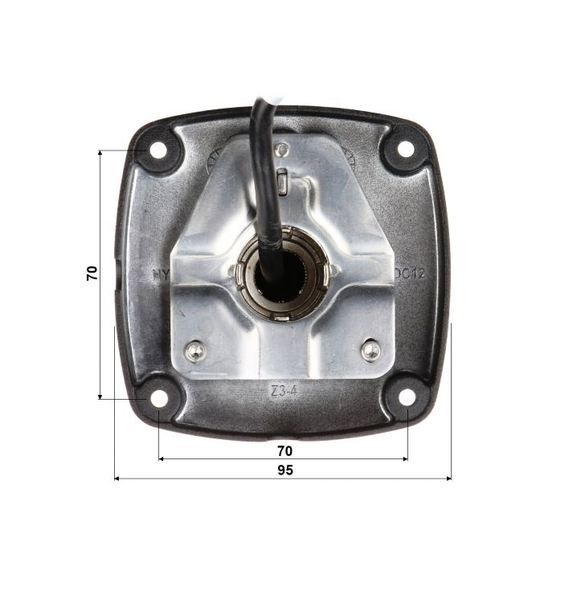

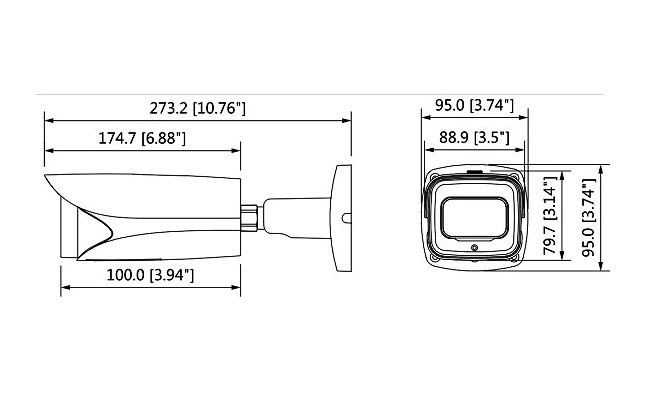

Dimensions:

273  x 95  x 95 mm
