• 1/3” 4Megapixel progressive CMOS • H.265& H.264 dual-stream encoding • 20fps@4M(2688×1520) &25/30fps@3M(2304×1296) • WDR(120dB), Day/Night(ICR), 3DNR, HLC, AGC, BLC • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS • 2.8 mm / 3.6mm fixed lens • Max IR LEDs Length 30m • IP67, PoE
|
Standard: |
TCP/IP |
|
Sensor: |
1/3 " Progressive Scan CMOS |
|
Scanning system: |
Progressive |
|
Matrix size: |
4.0 Mpx |
|
Resolution: |
2688 x
1520 - 4.0 Mpx , |
|
Lens: |
2.8 mm / 3.6 mm |
|
View angle: |
· 2.8 mm - 104 ° · 3.6 mm - 87 ° |
|
Range of IR illumination: |
30 m |
|
S/N ratio: |
> 50 dB |
|
Memory card slot: |
No |
|
Image compression method: |
H.265 / H.264 / MJPEG |
|
Alarm inputs / outputs: |
No |
|
Audio: |
No |
|
Bitrate: |
32
... 10240 kbps - H.264 |
|
Main stream frame rate: |
20 fps
@ 4.0 Mpx |
|
Network interface: |
10/100 Base-T (RJ-45) |
|
Network protocols: |
HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, QoS, UPnP, NTP, Bonjour, IEEE 802.1x, Multicast, ICMP, IGMP |
|
WEB Server: |
Built-in |
|
Max. number of on-line users: |
20 |
|
ONVIF: |
16.12 |
|
Main features: |
· 3D-DNR - Digital Noise Reduction · D-WDR - Wide Dynamic Range · BLC/HLC - Back Light / High Light Compensation · Possibility to change the resolution, quality and bit rate · Motion Detection · Configurable Privacy Zones · D-ZOOM - Digital Zoom · Mirror - Mirror image |
|
Color: |
White |
|
Power supply: |
· PoE (802.3af), · 12 V DC / 390 mA |
|
Power consumption: |
< 4.7 W |
|
Housing: |
Dome - Metal / Plastic |
|
"Index of Protection": |
IP67 |
|
Operation temp: |
-30 °C ... 60 °C |
|

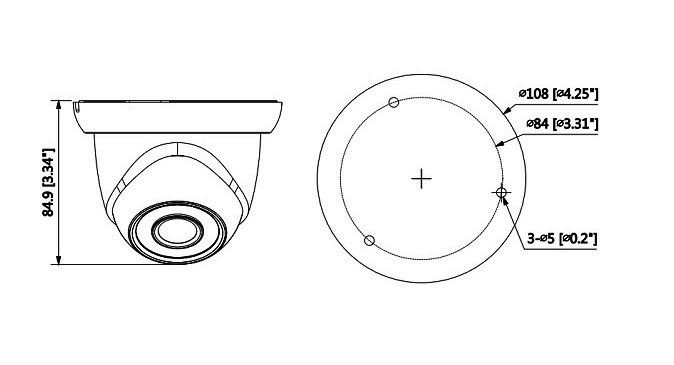

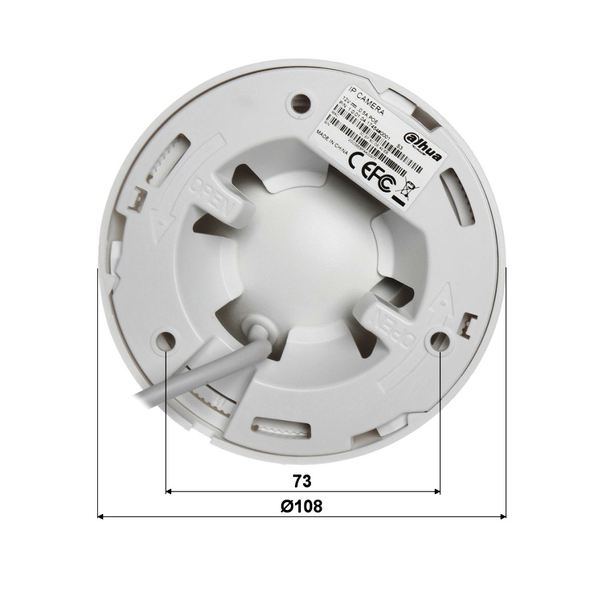

Dimensions: |
Ø 108 x 85 mm |
|
Weight: |
0.27 kg |
