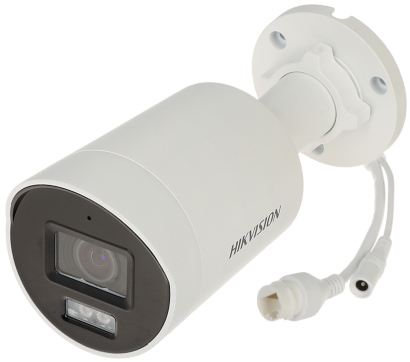

IP КАМЕРА DS-2CD2047G2H-LIU(2.8MM)(EF) ColorVu - 4 Mpx Hikvision

Standard:

TCP/IP

Sensor:

1/1.8 " Progressive Scan CMOS

Matrix size:

4 Mpx

Resolution:

2688 x 1520  - 4 Mpx ,
1920 x 1080  - 1080p
1280 x 720  - 720p

Lens:

2.8 mm

View angle:

·  104 ° (manufacturer data)

·  101 ° (our tests result)

White light LED illuminator range:

40 m

Range of IR illumination:

40 m

Memory card slot:

Micro SD memory cards up to 512GB support (possible local recording)

Image compression method:

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Audio:

·  Microphone built-in

·  Audio transmission via network

·  Compliance with the AAC standard

·  Noise and echo reduction

Main stream frame rate:

25 fps @ 4 Mpx

Network interface:

10/100 Base-T (RJ-45)

Network protocols:

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv4/IPv6, UDP, Bonjour, SSL / TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

WEB Server:

Built-in

Max. number of on-line users:

6

ONVIF:

19.12

Main features:

·  Smart Hybrid Light / ColorVu technology - IR or LED illuminator works in night mode. White light will turn on automatically only when an object is detected in the monitored area, which effectively improves image quality

·  WDR - 130 dB - Wide Dynamic Range

·  3D-DNR - Digital Noise Reduction

·  ROI - improve the quality of selected parts of image

·  Anti-Flicker - The technology eliminates the tiring eyes flickering image effect

·  ANR - Automatic Network Replenishment allows to save image to the card when the network connection with DVR is break (network failure) and next synchronize its

·  NAS - Network Attached Storage support - allows to connect memory resources directly to the computer network

·  BLC - Back Light Compensation

·  HLC - High Light Compensation (spot)

·  Auto White Balance

·  AGC - Automatic Gain Control

·  Possibility to change the resolution, quality and bit rate

·  Mirror - Mirror image

·  Configurable Privacy Zones

·  Sharpness - sharper image outlines

·  Smart motion detection (with recognizing people and vehicles)

·  Filtering of false alarms based on the recognition of persons and vehicles

·  Intelligent image analysis : crossing the line (tripwire), intrusion, scene changing, detection of entry into the area / exit from the area, face detection

Mobile phones support:

Port no.: 8000 or access by a cloud (P2P)

·  Android: Free application Hik-Connect

·  iOS: Free application Hik-Connect

Default IP address:

192.168.1.64

Default admin user / password:

admin / -
The administrator password should be set at the first start

Web browser access ports:

80

PC client access ports:

Port no.: 8000 or access by a cloud (P2P) - iVMS-4200 application

Mobile client access ports:

8000

Port ONVIF:

80

RTSP URL:

·  Main stream : rtsp://user:password@192.168.1.64:554/Streaming/Channels/101/

·  Sub stream : rtsp://user:password@192.168.1.64:554/Streaming/Channels/102/

Power supply:

·  PoE (802.3af),

·  12 V DC / 450 mA

Power consumption:

·  ≤ 7 W @ PoE

·  ≤ 5.5 W @ 12 V DC

Housing:

Compact, Metal

Color:

White

"Index of Protection":

IP67

Operation temp:

-30 °C ... 60 °C

Weight:

0.52 kg

Dimensions:

234  x 120  x 117 mm
