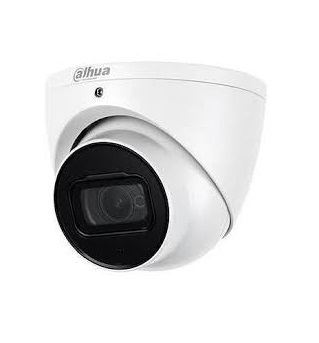

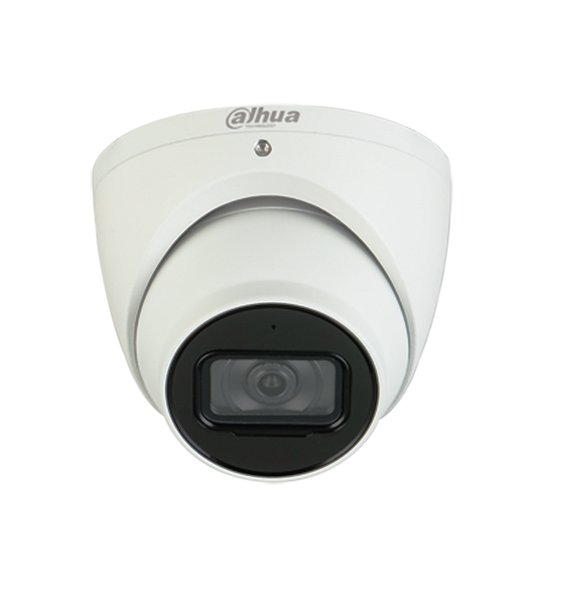

HDW5442TM-AS - 4MP, 3.6mm, IR LED 50m, microSD, Microphone, 12VDC/PoE

Standard:

TCP/IP

Sensor:

1/1.8 " Progressive Scan CMOS

Matrix size:

4 Mpx

Resolution:

2688 x 1520  - 4 Mpx ,
2560 x 1440  - 3.7 Mpx ,
2304 x 1296  - 3 Mpx ,
1920 x 1080  - 1080p
1280 x 960  - 1.3 Mpx
1280 x 720  - 720p

Lens:

3.6 mm

View angle:

·  89 °

Range of IR illumination:

50 m

Memory card slot:

Micro SD memory cards up to 256GB support (possible local recording)

Image compression method:

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Alarm inputs / outputs:

No

Audio:

·  Microphone built-in

·  Audio detection

Main stream frame rate:

25 fps @ 4 Mpx
50 fps @ 1080p

Network interface:

10/100 Base-T (RJ-45)

Network protocols:

IPv4/IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, IEEE 802.1x SNMP

WEB Server:

Built-in

Max. number of on-line users:

20

ONVIF:

18.12

Main features:

·  WDR - 140 dB - Wide Dynamic Range

·  3D-DNR - Digital Noise Reduction

·  ROI - improve the quality of selected parts of image

·  F-DNR (Defog) - Reduction of image noise caused by precipitation

·  BLC/HLC - Back Light / High Light Compensation

·  Possibility to change the resolution, quality and bit rate

·  Audio detection

·  Motion Detection

·  Configurable Privacy Zones

·  Mirror - Mirror image

·  Heat map - the selection in the image by corresponding colors the areas with different traffic

·  IVS analysis : intrusion, crossing the line (tripwire) - classification of people and vehicles, scene changing, abandoned/missing object, detection of people gathering, face detection, people counting - support for 4 independent detection areas

Power supply:

·  PoE (802.3af),

·  ePoE,

·  12 V DC / 600 mA

Power consumption:

< 7.2 W

Housing:

Dome - Metal

Color:

White

"Index of Protection":

IP67

Operation temp:

-30 °C ... 60 °C

Weight:

0.55 kg

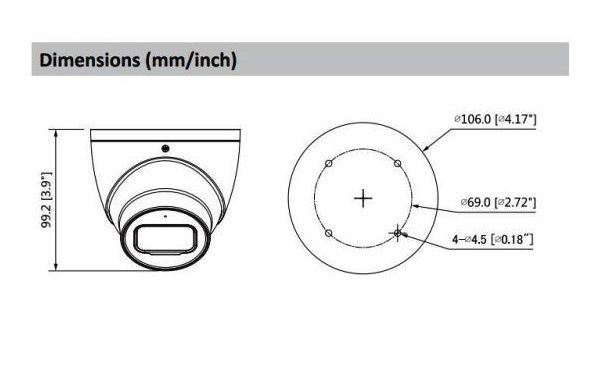

Dimensions:

Ø 106  x 99 mm
